Nokia X2-01 User manual

Nokia X2–01 User Guide

Issue 1.0

Contents

Safety 4

Your Nokia X2-01 in brief 5

Key features 5

Keys and parts 5

Get started 7

Insert the SIM card and battery 7

Remove the SIM card 8

Switch on or off 8

Antennas 8

Charge the battery 9

Connect a headset 9

Insert a memory card 10

Remove the memory card 11

Connect a USB data cable 11

Attach the wrist strap 12

Access codes 12

Home screen 12

Keypad lock 15

Use your device without a SIM card 16

Applications running in background 16

Calls 16

Make and answer a call 16

Loudspeaker 17

Dialling shortcuts 17

Write text 17

Write using the keyboard 17

Predictive text input 18

Navigate the menus 18

Messaging 19

Text and multimedia messages 19

Flash messages 21

Nokia Xpress audio messages 21

Nokia Messaging Service 21

Voice messages 22

Message settings 22

Contacts 22

Music 23

Music player 23

FM radio 24

Photos 25

Capture images and record video

clips 25

View your images and video clips 25

Applications 26

Alarm clock 26

Gallery 26

Extras 26

Voice recorder 27

To-do list 27

Calendar 27

Settings 28

Profiles 28

Themes 28

Tones 28

Display settings 28

Date and time 29

Shortcuts 29

Synchronisation and backup 30

Connectivity 30

Call 31

Device 32

Accessories 32

Configuration 32

Security 33

Browser security 33

Restore factory settings 34

Web or Internet 34

About Web 34

2Contents

Connect to a web service 35

Operator menu 35

SIM services 35

Find more help 35

Support 35

About device software updates 35

Update device software using your

device 36

Update device software using your

PC 37

Nokia original accessories 37

Practical rules about accessories 38

Battery 38

Green tips 38

Save energy 38

Recycle 39

Product and safety information 39

Index 46

Contents 3

Safety

Read these simple guidelines. Not following them may be dangerous or illegal. Read

the complete user guide for further information.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile phone use is not allowed or when it may

cause interference or danger, for example, in aircraft, near medical

equipment, fuel, chemicals, or blasting areas.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while

driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect

performance.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

KEEP YOUR DEVICE DRY

Your device is not water-resistant. Keep it dry.

PROTECT YOUR HEARING

Listen to a headset at a moderate level, and do not hold the device near your

ear when the loudspeaker is in use.

4Safety

Your Nokia X2-01 in brief

Key features

•Enjoy the messaging features with the full QWERTY keyboard.

•Manage your social networking profiles and music with dedicated keys.

•Read and reply to your mail when out and about.

•See an overview of your correspondence with someone in the conversational

messaging view.

Keys and parts

1Earpiece

2Selection keys

3Call key

4Navi™ key (scroll key)

5End/Power key

6Backspace key

7Enter key

Your Nokia X2-01 in brief 5

8Microphone

9Space key

10 Music key

11 Function key

12 Shift key

13 Sym key

14 Messaging key

15 Ctrl key

16 Headset connector/Nokia AV connector (3.5 mm)

17 Charger connector

18 Camera lens

19 Wrist strap hole

20 Loudspeaker

6 Your Nokia X2-01 in brief

21 Micro USB connector

22 Memory card slot

To access some messaging or music features, press the messaging or music key. You

can assign different functions to the keys.

Get started

Insert the SIM card and battery

Note: Switch the device off and disconnect the charger and any other device

before removing any covers. Avoid touching electronic components while changing any

covers. Always store and use the device with any covers attached.

The SIM card and its contacts can be easily damaged by scratches or bending, so be

careful when handling, inserting, or removing the card.

1 Place your finger in the recess at the bottom of the device, and carefully lift and

open the back cover (1).

2 Insert the SIM card. Make sure the contact area of the card is facing down (2).

3 Line up the contacts of the battery and the battery compartment, and insert the

battery (3).

Get started 7

4 To replace the back cover, direct the top locking catches toward their slots (4), and

press down until the cover locks into place (5).

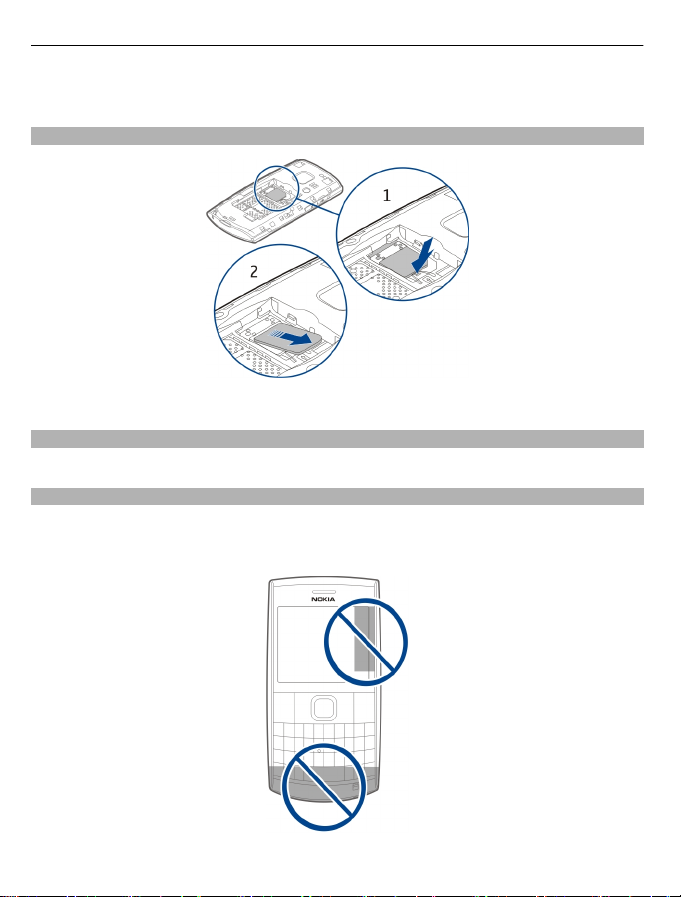

Remove the SIM card

Press the release spring (1), and slide out the SIM card (2).

Switch on or off

Press and hold the power key.

Antennas

Avoid touching the antenna area unnecessarily while the antenna is transmitting or

receiving. Contact with antennas affects the communication quality and may cause a

higher power level during operation and may reduce the battery life.

8Getstarted

Charge the battery

Your battery has been partially charged at the factory, but you may need to recharge it

before you can switch on your device for the first time. If the device indicates a low

charge, do the following:

1 Connect the charger to a wall outlet.

2 Connect the charger to the device.

3 When the device indicates a full charge, disconnect the charger from the device,

then from the wall outlet.

You do not need to charge the battery for a specific length of time, and you can use the

device while it is charging.

If the battery is completely discharged, it may take several minutes before the charging

indicator appears on the display or before any calls can be made.

If the battery has not been used for a long time, to begin charging, you may need to

connect the charger, then disconnect and reconnect it.

Connect a headset

Do not connect products that create an output signal as this may cause damage to the

device. Do not connect any voltage source to the Nokia AV connector. If you connect an

external device or headset, other than those approved by Nokia for use with this device,

to the Nokia AV connector, pay special attention to volume levels.

Get started 9

Insert a memory card

Use only compatible memory cards approved by Nokia for use with this device.

Incompatible cards may damage the card and the device and corrupt data stored on the

card.

Your phone supports microSD cards with a capacity of up to 8 GB.

A compatible memory card may be supplied with the device, and may already be

inserted in the device. If not, do the following:

1 Open the cover of the memory card slot.

2 Insert the card into the memory card slot with the contact surface facing up, and

press until it locks into place.

3 Close the cover of the memory card slot.

10 Get started
