Nokia NSERIES N95-1 Specification sheet
Get started
Nokia N95-1
9205518, Issue 1 EN
2
Keys and parts (work mode)
Model number: Nokia N95-1.
Hereinafter referred to as Nokia N95.
1Power key
2Selection keys and to select commands and access
Options
Tip! To lock or unlock the keypad, press , then .
3Menu key to access the main menu
4Call key
5Edit key to open a list of commands when you edit text
6Scroll key to move around the menus ( , , , ) and
to select items ( ).
7Numeric keypad
8Clear key
9End key
10 Multimedia key to access the multimedia menu and
open the music player
11 Light sensor
12 Secondary camera with lower resolution
3

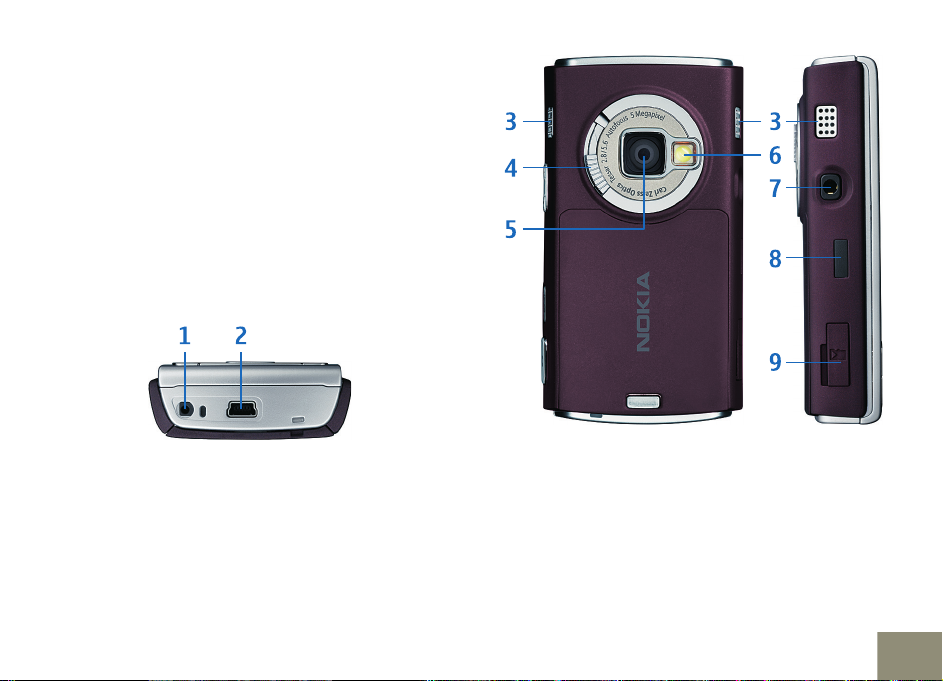

Keys and parts (back)
1Charger connector
2Mini USB connector to connect to a compatible PC
3Stereo speakers with 3D sound effect
4Camera activation switch with lens cover
5Main camera for high resolution image capture and video
recording
6Camera flash
7Nokia AV connector 3.5 mm for compatible headsets,
headphones, and Video Connectivity cable
8Infrared (IR) window
9Memory card slot for a compatible microSD card
4
Keys and parts (media mode)
1Media keys under the 2-way slide
•Next key
•Play/pause key
•Stop key
•Previous key
2Zoom/volume key
3Review key to view the last stored image or video
clip
42-stage capture key for auto-focus, still image
capture, and video recording
When you open the media keys under the 2-way slide, the media
mode is activated and the display is shown in landscape
orientation.
Use the media keys to control music and video players.
To access the multimedia menu, press , or open the media
keys under the 2-way slide when the device is in the standby
mode.
To activate the main camera, open the lens cover with the
camera activation switch. To lock the focus on an object, press
the capture key halfway down. To take a picture, press the
capture key down.
To activate the video mode, select in the active toolbar. To
shoot video, press the capture key down.
To deactivate the main camera, close the lens cover.
5
Shortcuts
•To switch between open applications, press
and hold .
Leaving applications running in the
background increases the demand on battery
power and reduces the battery life.
•To open the music player, press and hold .
•To start the camera, open the lens cover with
the camera activation switch.
•To open Gallery, press twice.
•To call your voice mailbox (network service),
press and hold .
•To open the multimedia menu, press , or in the standby
mode, open the media keys under the 2-way slide.
•To change the profile, press , and select a profile.
•To switch between General and Silent profiles, press and
hold . If you have two phone lines (network service), this
action switches between the two lines.
•To open the last dialed numbers list, press .
•To use voice commands, press and hold .
•To start the Web browser (network service), press and hold
.
Keypad lock (keyguard)
When the keys are locked, is displayed.
To lock the keys, press , then .
To unlock the keys, open the 2-way slide, or press , then .
When the keys are locked, opening the camera lens cover
unlocks the keys.
To have the keypad lock activated automatically after a time-out
or when the 2-way slide is closed, press , and select Tools >
Settings > General > Security > Phone and SIM card.
When the keypad lock is on, calls may be possible to the official
emergency number programmed into your device.
6

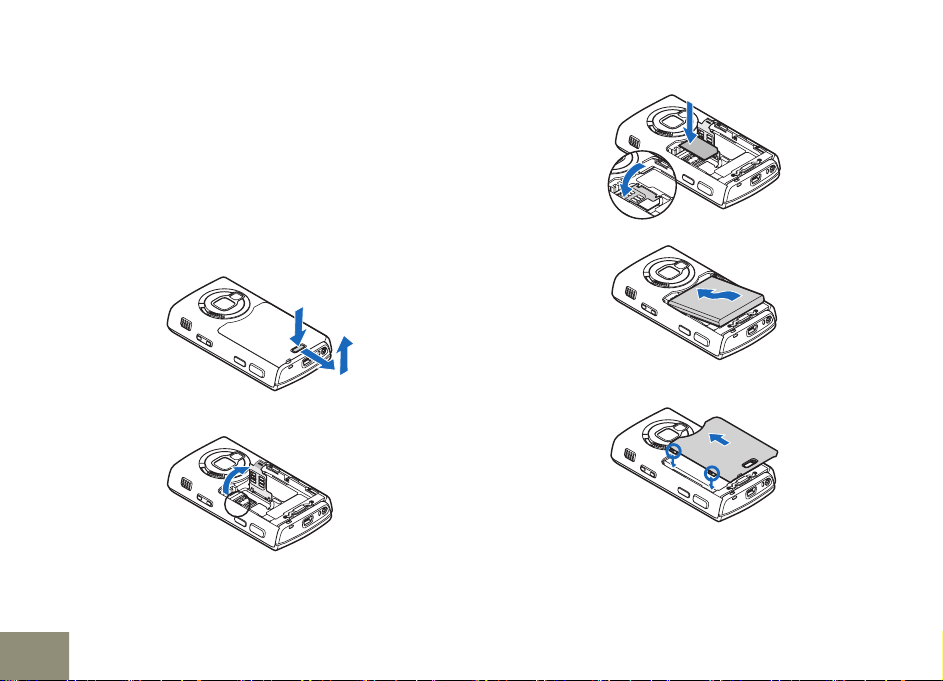

Insert the (U)SIM card and battery
A USIM card is an enhanced version of the SIM card and is
supported by UMTS mobile phones.
Keep all SIM cards out of the reach of small children.
Always switch the device off and disconnect the charger before removing
the battery.
For availability and information on using SIM card services, contact your
SIM card vendor. This may be the service provider or other vendor.
1With the back of the device facing you, press the release
button, slide the cover, and lift it up.
2To release the (U)SIM card holder, lift the holder up from the
handle.
3Insert the (U)SIM card. Make sure that the contact area on
the card is facing the connectors on the device and the
bevelled corner on the card is facing the base of the device.
4Close the holder, and lock it into place.
5Insert the battery.
6Replace the cover so that the locking catches are directed
towards their slots, and slide the cover into place.
7
Switch the device on
1Press and hold .
2If the device asks for a (U)PIN code or
lock code, enter it, and press . The
factory setting for the lock code is
12345.
Your device has internal antennas.
Note: As with any radio transmitting
device, avoid touching an antenna
unnecessarily when the antenna is in use.
For example, avoid touching the cellular
antenna during a phone call. Contact with a transmitting or receiving
antenna affects the quality of the radio communication, may cause
the device to operate at a higher power level than otherwise needed,
and may reduce the battery life.
1Cellular antenna
2Bluetooth technology/
wireless LAN antenna
3GPS receiver
Charge the battery
1Connect a compatible charger
to a wall outlet.
2Connect the power cord to the
device. If the battery is
completely discharged, it may
take a while before the
charging indicator starts
scrolling.
3When the battery is fully
charged, the charging indicator
stops scrolling. Disconnect the charger from the device, then
from the wall outlet.
8
Support
Help
The help function provides instructions when using the device.
To access it from an application, select Options > Help.
User guide
Refer to the user guide for other important information about
your device.
Online
Check www.nseries.com/support or your local Nokia web site for
the latest version of the user guide, additional information,
downloads, and services related to your Nokia product.
© 2007 Nokia. All rights reserved.
Nokia, Nokia Connecting People, Nseries, and N95 are trademarks or
registered trademarks of Nokia Corporation. Other product and company
names mentioned herein may be trademarks or tradenames of their
respective owners.
Reproduction, transfer, distribution, or storage of part or all of the
contents in this document in any form without the prior written
permission of Nokia is prohibited.
