SPECIFICATIONS SHEET
Installation Kit for Four (4) Satellite Radio Tuners
SRK-4W
SATELLITE RADIO ANTENNA ACCESSORIES
SATELLITE RADIO ANTENNA ACCESSORIES
SRK-4W Kit
ILA–16dB
IMT–75/50
SRC–2M
COAX CABLE
IMT-50/75 SMB*
USE WITH UNIVERSAL SATELLITE ANTENNA
CUSTOMER
SUPPLIED
ANTENNA
IMT–50/75 MF
IMT–75/50
SRC–2M
SRS–4W
ANT–SAT*
XM®/SIRIUS® SATELLITE
RADIO ANTENNA IMT–75/50 IMT–75/50
*
SOLD SEPARATELY

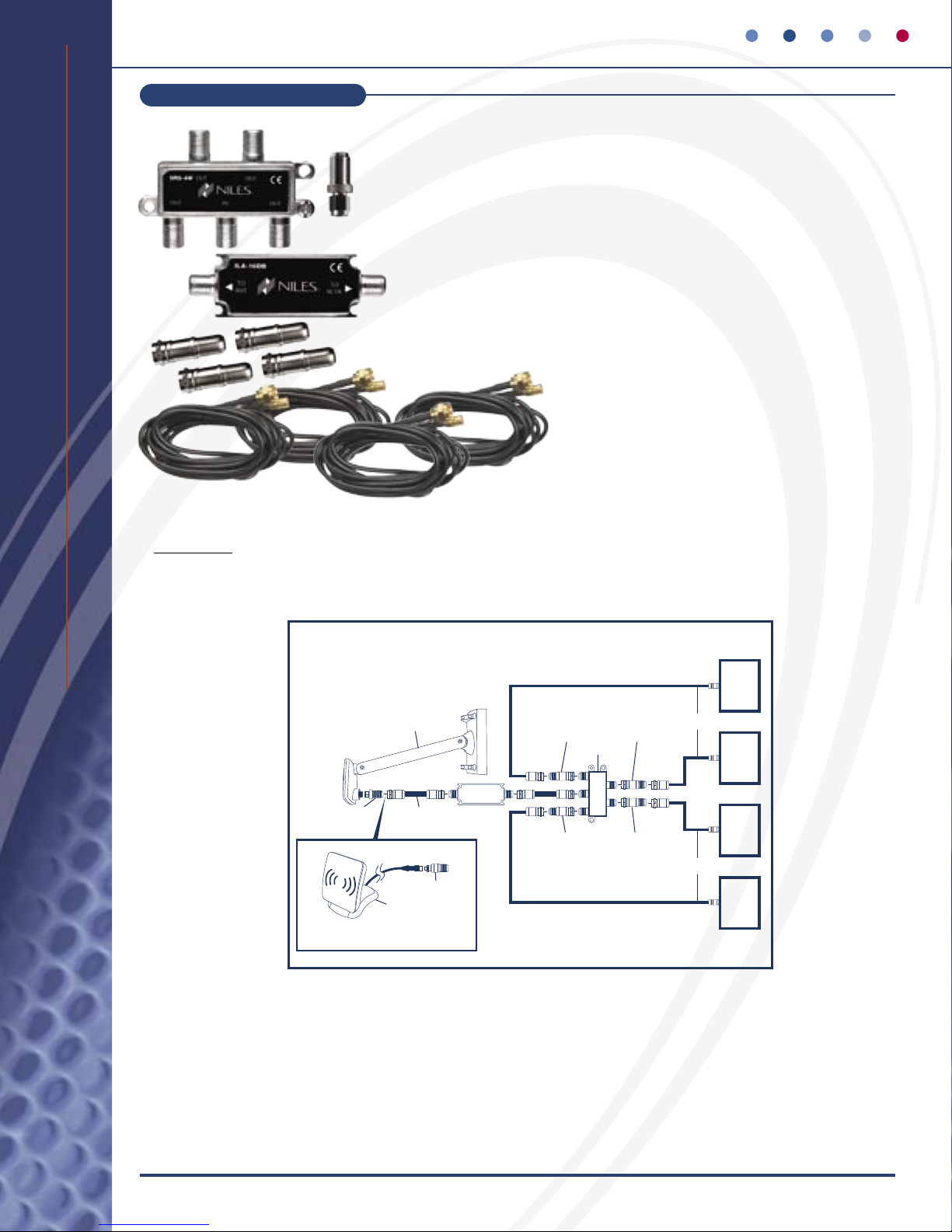

TYPICAL SYSTEM INSTALLATION DIAGRAM
SRK-4W
Stock Number
FG01262
CONTENTS
■ One SRS-4W splitter
■ One ILA-16dB amplifier; F-female input to F-female output
■ Four IMT-75/50 transformers; F-male input 75Ω to F-female output 50Ω
■ Four SRC-2M F to SMB extension cable
■ One IMT-50/75 MF transformer; Mini F-male input 50Ω to F-female output 75Ω
Warranty: Two-year limited
Individual items sold separately in bulk quantities.
©2006 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation.
All other trademarks are the property of their respective owners.

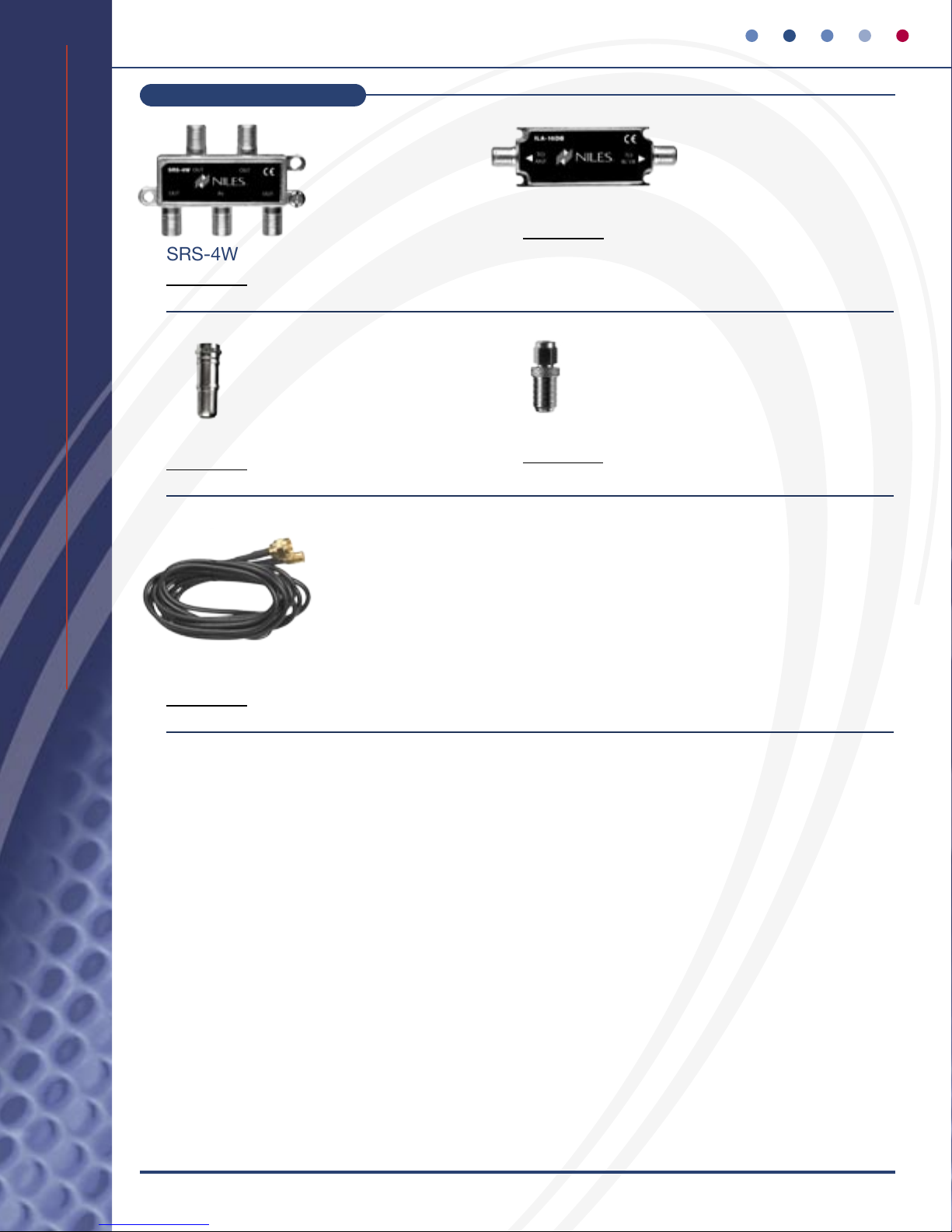

SRS-4W
Stock Number
FG01244
IMT-75/50
Stock Number
FG01248
ILA-16dB
Stock Number
FG01250
NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI – www.nilesaudio.com
SPECIFICATIONS
■ Quantity: 1
■ 4-way splitter 75 ohm
■ F-female input to 4
F-female outputs
■ 2.3GHz – 2.4GHz
SPECIFICATIONS
■ Quantity: 4
■ In-line antenna transformer
■ F-male input 75Ω to
F-female output 50Ω
■ 2.3GHz – 2.4GHz
SPECIFICATIONS
■ Quantity: 4
■ 2-meter low-loss 50-ohm
F to SMB extension cable
■ F-male to SMB terminations
■ 2.3GHz – 2.4GHz
SPECIFICATIONS
■ Quantity: 1
■ In-line antenna amplifier
■ F-female input to
F-female output
■ 2.3GHz – 2.4GHz
SPECIFICATIONS
■ Quantity: 1
■ Impedance matching
transformer
■ Mini F-male input 50Ω
to F-female output 75Ω
■ 2.3GHz – 2.4GHz
IMT-50/75 MF
Stock Number
FG01246
SRC-2M
Stock Number
FG01252
SATELLITE RADIO ANTENNA ACCESSORIES
Specifications
CS0018B
