Nilar Home Box 288VDC User manual



QUICKINSTALLATIONGUIDE



210016E&210016EP

Validforproducts:

Importantinformaon

Readcarefully

Keepthisinformaonforfurtherreference

WARNING



Thisproductcontainspowerfulbaerypacks(NiMH) andis

suppliedbymulplehazardouselectricalsources.Bewareof

storedandresidualenergies.

Obeylocalregulaonsforliveworkingwhencasing/doorisopen.

Wearelectricallyinsulatedgloveswhenhandlingbaerypacks.

Baerysurfacesmaycarryhazardousvoltageduetolowered

insulaonresistance.Donotplacebaerypacksonconducve

surfaces.

Riskforelectricshockandarcingifproductisusedincorrectly.

Thebaerypackscannotbeturnedoﬀelectrically.Pleasenote:

 Workonlywithonebaerypackterminalattheme.

 Rupturediscmayreleaseelectrolyteduringabnormaluse.

Wethereforerecommendwearingsafetyglasses.

Riskforelectricalhazardsifproductisexposedtorainor

moisture.

Donotoperatetheproductwithsuspectedfailures.Ifyou

suspectthattheproductisdamaged,haveitinspectedby

qualiﬁedservicepersonnel.

Neverinstalladamagedbaerypackoradamagedinsulaon

tray.

Donotblockorcovertherupturediscoutletonthebaerypack.

Ifaﬁreoccurs,itcanbeexnguishedbyusingCO2.Ensurethat

ﬁreexnguishersareavailable.

CAUTION



Ifabaerypackisdamagedmechanically,thefollowingmay

occur:

 Highheatgeneraononthesurfaceofthebaerycells.

 Electrolytemayescape.

 Eventualsmokefromthebaerypackscanirritatethe

skin,eyesandrespiratorysystem.

Therefore,followtheseguidelines:

 Donotopenthebaerypacks.

 Donotmodifyormechanicallydamagethebaerypacks.

 OperatetheNilarHomeBoxonlywithintheallowed

operangrange.

 Donotshort‐circuitthebaerypacks.

 Donotconnuetousethebaerypacksaeridenﬁed

asfaulty.

Itisrequiredthatasmokealarm,preferablywithconnected

surveillancefuncon,isinstalledincloseandstrategical

conneconwiththeinstallaonoftheproduct.Furthermore,the

installaonofagasalarmthatwarnsincaseofhighlevelsof

hydrogenisrecommended.

Alwaysinstalltheproductinawell‐venlatedlocaon.

Toavoidpotenalhazards,usethisproductonlyasspeciﬁed.

Donotoperatetheproductwithcoversremoved.Ifcoversare

removedduringe.g.repair,donottouchanyexposed

connecons.

Theproductshallnotbeexposedtoliquids(notevendrippingor

splashing)andobjectsﬁlledwithliquidsmustnotbeplacedon

orclosetotheproduct.

Removepersonalmetalitemssuchasrings,bracelets,necklaces,

andwatcheswhenphysicallyhandlingtheproductsinceitcan

resultinashort‐circuitcurrentcausingsevereburn.

Keepproductsurfacescleananddry.

THISQUICKGUIDEISONLYINTENDEDTOBEUSEDBYINSTALLATIONPERSONNELWITHPREVIOUSINSTALLATION

EXPERIENCEANDFULLUNDERSTANDINGOFTHEPROCEDUREANDSAFETYWARNINGSEXPLAINEDANDDESCRIBEDINTHE

MOREEXTENSIVEINSTRUCTION MANUAL (73‐H014)!

IFUNCERTAINTYARISES,ALWAYSREFERTOINSTRUCTION MANUAL (73‐H014)!

THEINSTRUCTIONMANUALCANBEDOWNLOADEDAT:hps://www.nilar.com/partner‐login/

PERSONALPROTECTIVE

EQUIPMENT(PPE)



AlwaysusePPEduringhandlingandinstallaonofproduct.At

minimumthisincludessafetyshoeswithsteeltoe,safety

glasses,andelectricallyinsulatedgloves:



TOOLS&

ACCESSORIES



TX20   Torxscrewdriver,size20



HX4   Hexscrewdriver,size4



PH2   Crossscrewdriver,size2



WS   Wirestripper 



WARNING&CAUTION

SYMBOLS



Thefollowingwarningandcauonsymbolsareusedthroughout

thedocument:





GENERAL

CAUTION

WARNING

CRUSHHAZARD

WARNING

HAZARDOUS

VOLTAGE

CAUTION

HEAVY

WEIGHT



SCOPEOFSUPPLY



Thefollowingcomponentsarepartoftheproductdelivery.

Note! For illustraƟve purposes, the components are not depicted

to scale!







Importantinformaon

Readcarefully

Keepthisinformaonforfurtherreference

❶ Cabinetassembly(1unit)

❷ Ambienttemperaturesensor(1unit)

❸ Communicaoncables(3unitsincl.1spare)

❹ 120ΩCANterminaonplug(1unit)

❺ Nilarbaerypacks(4units)

❻ Insulaontrays(4units)

❼ Baeryholders(4units)

❽ Screwsforbaeryholders(4units)



PRODUCTREGISTRATION



Inordertoobtainandclaimfullwarrantyfortheproduct,the

NilarHomeBoxmustberegisteredontheNilarproductregistra‐

onwebpage(hps://www.nilar.com/product‐registraon/).As

analternavetheQR‐codebelowcanalsobeusedfordirect

accesstothewebpage.Regardingthecompletewarrantycondi‐

onsindetail,pleasecontactyourauthorizedlocalNilarrepre‐

sentave.



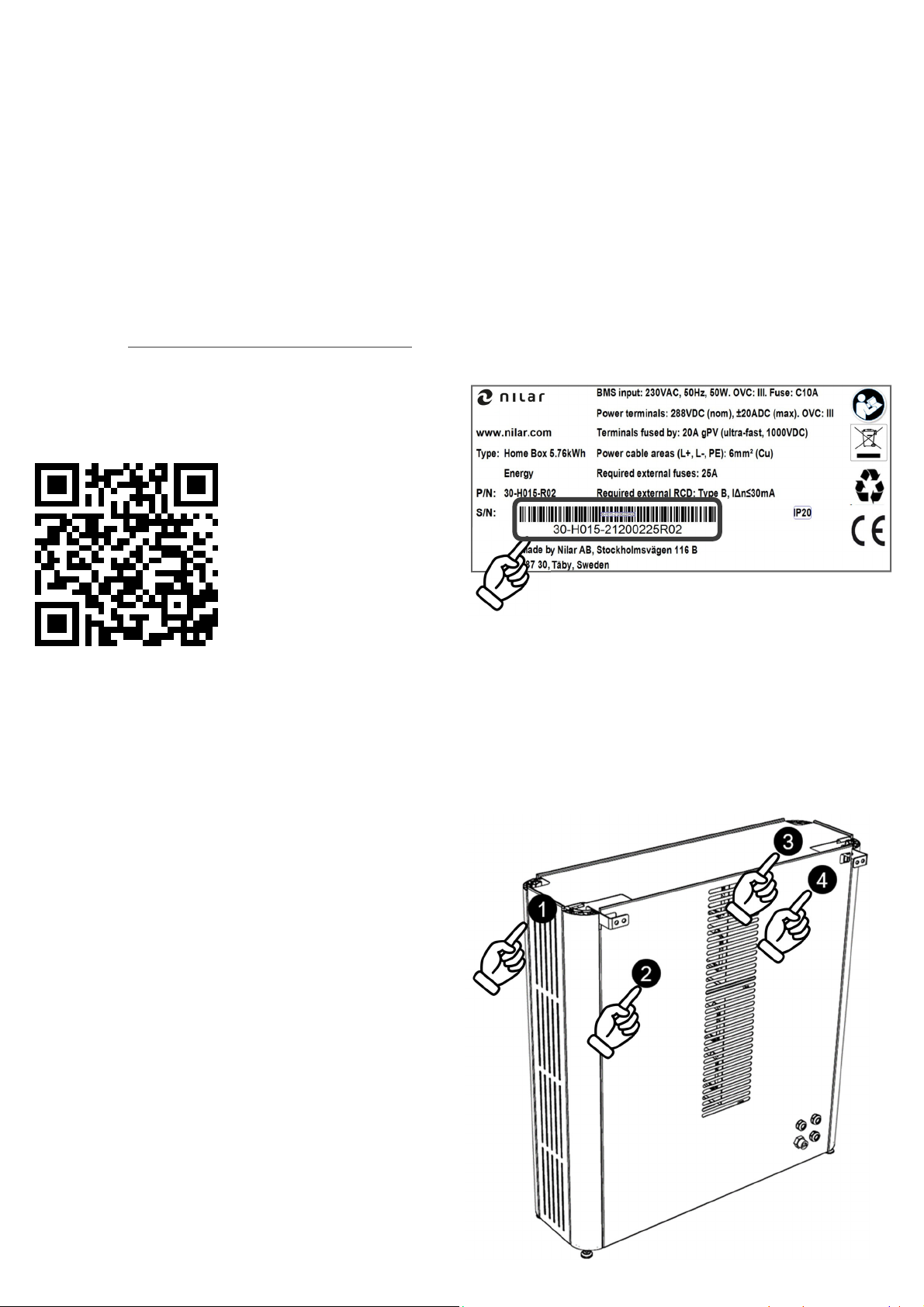

SERIALNUMBER



ForregistraontheserialnumberoftheNilarHomeBoxis

needed.TheserialnumbercanbefoundontheNilarlabels.

Thelabelsareplacedinfour(4)diﬀerentlocaonsoftheNilar

HomeBox.Ononesideofthesideplates❶,asalosesckerin

theplascpocketforthequickguide❷,onthetopplatebelow

thecoverlid❸andonthebackplate❹.

1

2

3

HX4

x 4

HX4

Ensureappropriatespaceforthe

HomeBox.

Ifrequired,adjustthesupport

legsoftheHomeBoxtolevel.

Unscrewandremovethecorner

tops.

Unscrewandremovethecover

lid.

PLEASE READ THE

WARNING STICKERS ON

THE TOP PLATE BEFORE

PROCEEDING

DO NOT ATTACH THE HOME

BOX TO THE WALL UNTIL

INSTALLATION HAS REACHED

STEP 21 IN THIS

INSTALLATION GUIDE

4

5

6

Slidethefrontplateupwardsto

unhookitandliitthereaer

outwardsandoﬀ.

Slidethesideplateupwardsto

unhookitandliitthereaer

outwardsandoﬀ.

Repeatprocedurefortheside

plateontheoppositeside.

Tiltthetopplateupwardsand

liitoﬀ.

7

9

x 4

HX4

UnscrewandremovetheBMS

cover.

8

AlwaysinstallatypeBorB+

(≤30mA)ResidualCurrent

Device(RCD).IfanRCDofanot-

hertype(AC,AorF)isalready

installedbetweengridandin-

verter,itneedstobereplaced

withanRCDoftypeBorB+.

TypeB

TypeB+

____________________________

TypeAC

TypeA

TypeF

GENERAL CAUTION IS

REQUESTED WHEN

WORKING WITH THE BMS

IF THE HOME BOX IS IN-

STALLED TOGETHER WITH A

KOSTAL INVERTER WITH ITS

IN-BUILT TYPE B RCD (IΔn

=6mA) ACTIVATED, THIS

INSTALLATION STEP IS NOT

APPLICABLE

Posive(+)wireofpower

cable(s)connectstothefuse

marked’F1’oftheNilarBMS.

10

11

12

Routethe288VDCsystempower

cable(s)fromtheinverter

throughthelowerrightcable

glandlocatedonthebacksideof

theNilarHomeBox. 

Negave(-)wireofpower

cable(s)connectstothefuse

marked’F2’oftheNilarBMS.

CONDUCTOR CROSS-SECTION

MUST BE 6mm2 (Cu)

THE INVERTER MAY STILL

PROVIDE HAZARDOUS

VOLTAGE AND RESIDUAL

ENERGY, ALTHOUGH IT IS

SWITCHED OFF OR MAY

APPEAR SWITCHED OFF

THE POSITIVE (+) WIRE

OF THE INCOMING

POWER CABLE(S) MUST

ALWAYS BE EXTERNALLY

PROTECTED BY A 25A

MCB/FUSE

CONDUCTOR CROSS-SECTION

MUST BE 6mm2 (Cu)

THE NEGATIVE (-) WIRE

OF THE INCOMING

POWER CABLE(S) MUST

ALWAYS BE EXTERNALLY

PROTECTED BY A 25A

MCB/FUSE

288VDC,posive

288VDC,negave

PH2

WS

PH2

Thelivewireoftheoperang

powercableconnectstothe

terminalmarked’1’oftheNilar

BMS.

Routethe230VACoperang

powercablethroughtheupper

lecableglandlocatedonthe

backsideoftheNilarHomeBox.

Nilarrecommendsthataswitch

isinstalledfortheoperang

powercable,preferablyinthe

vicinityoftheNilarHomeBox.

Theprotecveearth(PE)wireof

thepowercable(s)istobe

connectedtotheterminal

marked‘PE’ oftheNilarBMS.

CONDUCTOR CROSS-SECTION

MUST BE 6mm2 (Cu)

288VDC,protecveearth

230VAC,live

14

13

15

WS

CONDUCTOR CROSS-

SECTION MAX 2,5MM2 (CU).

FUSE/MCB: C10A

(MIN. 6A AND MAX. 10A,

CHARACTERISTICS: B, C, D

OR K ARE POSSIBLE)
