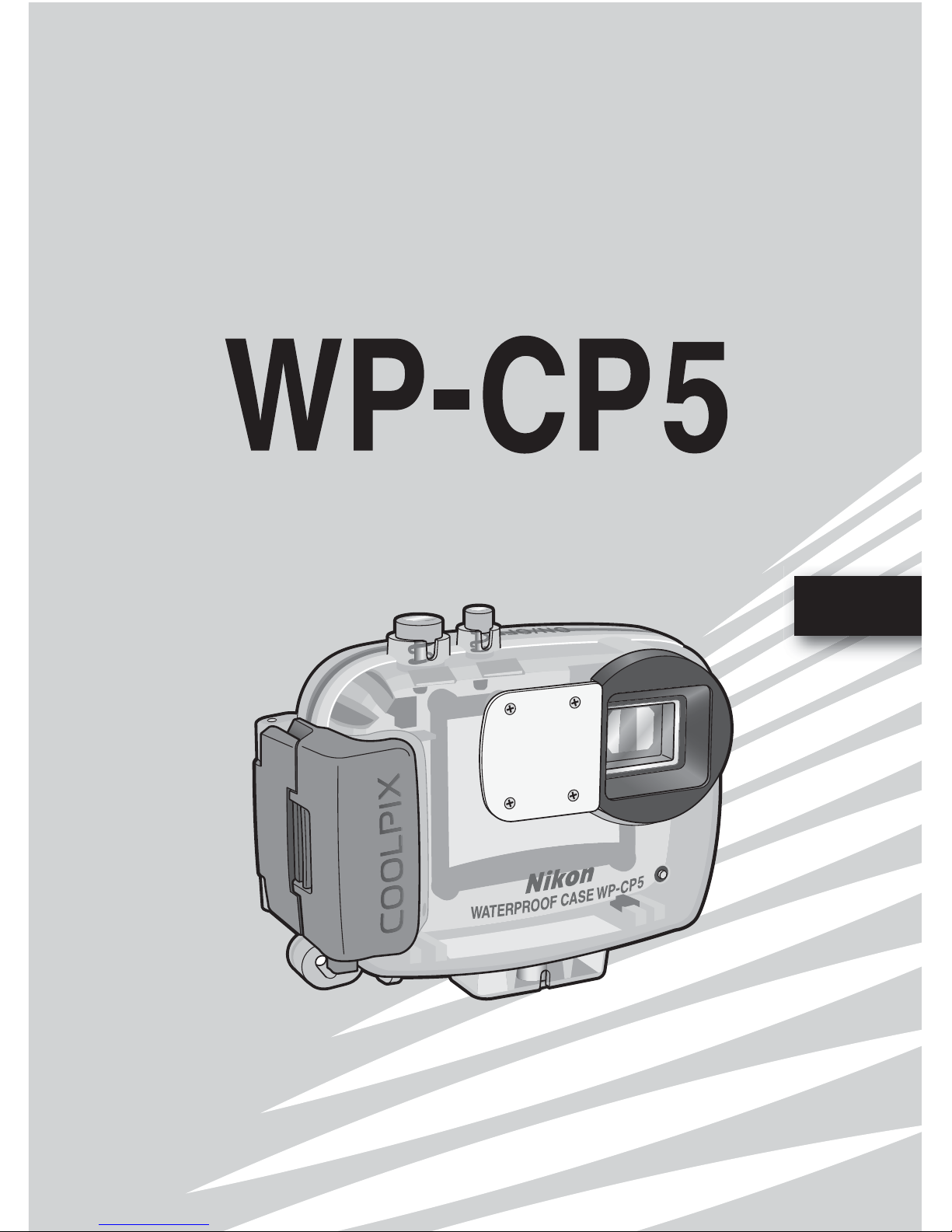

Nikon WP-CP5 User manual

WATERPROOF CASE

User’s Manual

For Your Safety

To prevent damage to your Nikon product or injury to yourself or to others,

read the following safety precautions in their entirety before using this equip-

ment. Keep these safety instructions where all those who use the product

will read them.

The consequences that could result from failure to observe the precautions

listed in this section are indicated by the following symbol:

This icon marks warnings, information that should be read before using this

Nikon product to prevent possible injury.

WARNINGS

Turn camera off immediately in the event

of malfunction

Should you notice smoke or an unusual

smell coming from the equipment,

remove the battery from the camera

immediately, taking care to avoid burns.

Continued operation could result in

injury. After removing the battery, take

the equipment to a Nikon-authorized

service representative for inspection.

Do not use in the presence of ﬂammable

gas

Do not use electronic equipment in the

presence of ﬂammable gas, as this could

result in explosion or ﬁre.

Observe caution when using the strap

Never place the strap around the neck

of an infant or child.

Keep out of reach of children

Particular care should be taken to pre-

vent infants from putting small parts

into their mouths.

Do not disassemble

Failure to observe this precaution could

result in injury or product malfunction.

Should the product break as the result

of a fall or other accident, take it to a

Nikon-authorized service representative

for inspection, being careful not to in-

jure yourself on the broken parts.

Observe proper precautions when han-

dling camera batteries

If improperly handled, batteries may

emit gases that will collect inside the

waterproof case, where they may cause

explosion or ﬁre. Observe the follow-

ing precautions when handling camera

batteries:

• Use only batteries approved for use in

the camera.

• Batteries are prone to leakage when

fully discharged. Remove the camera

from the case when not in use.

• Should water enter the case, remove

the battery from the camera immedi-

ately.

• Keep the battery terminals dry. Failure

to observe this precaution could result

in injury or product malfunction.

Do not swallow silica gel or O-ring grease

The silica gel desiccant and O-ring

grease used in this product are not

edible.

Keep out of direct sunlight

Do not leave the WP-CP5 in direct

sunlight. The case could focus sunlight,

causing ﬁre.

Do not dive while holding

To prevent injury caused by the case

striking the body, do not jump or dive

into water while holding the WP-CP5.

Do not use below 40m

Do not use at depths below 40m

(130ft). Failure to observe this precau-

tion could result in leakage or other

malfunction.

Keep the case watertight

Do not clean the case with a high-pres-

sure jet. Do not open the case where it

would be exposed to dust or sand, and

be sure to remove any foreign objects

from the O-ring and any parts of the

case that are in contact with the O-

ring before closing the case. Failure to

observe these precautions could result

in leakage.

Do not exposure to high temperatures

Do not expose the product to tem-

peratures over 40°C (104°F). Failure to

observe this precaution could cause the

product to warp, resulting in leakage.

Observe caution when operating the

ﬂash

Using the ﬂash close to your subject’s

eyes could cause temporary visual

impairment. Particular care should

be observed if photographing infants,

when the ﬂash should be no less than

one meter (39in.) from the subject.

iii

Cautions

To ensure continued enjoyment of your Nikon product, observe the following

precautions when storing or using the device.

Preventing Leakage

WATER INSIDE THE CASE COULD NOT ONLY EXPOSE THE CAMERA TO IRREPARABLE DAMAGE BUT ALSO RESULT

IN FIRE, ELECTRIC SHOCK, OR EXPOSURE TO POISONOUS GASES. THE ENTRY OF WATER INTO THE CASE CAN BE

PREVENTED BY OBSERVING THE FOLLOWING PRECAUTIONS:

• Before sealing the case, examine the O-ring, watertight channel, and any parts of

the case that are in contact with the O-ring carefully to ensure that they are free of

dirt, hair, lint, dust, sand, and other foreign objects. Make sure that the O-ring is not

twisted or out of position.

• The O-ring requires periodic replacement. Replace the O-ring immediately if it is dam-

aged, cracked, warped, or has lost elasticity. O-rings should be replaced at least once

a year; do not use a worn O-ring or a type of O-ring or O-ring grease not designated

for use in this product. Do not use NIKONOS O-ring lubricant (grease).

• Be careful not to damage the O-ring when removing it from the case. Do not use

metal objects or objects with sharp points when removing the O-ring.

• Do not use force when removing or positioning the O-ring. Excessive force may per-

manently stretch the ring, causing the case to leak.

• To prevent wear, use only COOLPIX O-ring grease designated for use with this prod-

uct. Do not use NIKONOS O-ring lubricant (grease) or other types of O-ring grease.

• Do not open the waterproof case in areas exposed to spray, high winds, dust, or

sand.

• Do not drop the case, place under heavy objects, or subject to excessive force. Failure

to observe this precaution could cause the case to warp, resulting in leakage.

• In the event of leakage, stop use immediately, dry the camera and the interior of the

case, and take the camera and case to a Nikon-authorized service representative.

Shock and Vibration

The waterproof case is not designed to protect the camera from blows or vibration. Do

not drop the case, strike it against hard objects, throw it into the water, jump into the

water holding the case, or leave the case in an area subject to extreme vibration. Failure

to observe these precautions could result in damage to the camera.

Maximum Depth

The WP-CP5 is waterproof to 40m (130ft). At greater depths, the case could leak,

break, or change shape, resulting in damage to the camera.

Before using the WP-CP5 in or near water, test for leaks as described on pages 6–7

and 12 of this manual.

Temperature

Do not leave the case in areas exposed to high temperatures, such as inside a car, near

a heater, on a beach, or in direct sunlight. Failure to observe this precaution could

weaken or warp the case, resulting in damage to the camera. Sudden changes in

temperature could result in condensation inside the case, which could also damage the

camera. To prevent condensation:

• Before exposing the case to sudden changes in temperature, place it in a sealed plastic

bag. Do not open the bag until the case has reached the same temperature as its

surroundings.

• Place the supplied desiccant (silica gel) in the case with the camera as directed on

page 10 of this manual.

• Do not expose the case to high temperatures by leaving it on the beach or in direct

sunlight before entering the water.

Chemicals

• Do not expose the case to volatile chemicals or their vapors. Failure to observe this

precaution could result in damage to the case.

• Do not use chemical detergents, rust inhibitors, thinner, alcohol, or other volatile

chemicals when cleaning the case. Wash in fresh water only.

• Use only desiccants designated for use with this product (see page 19).

• Use only COOLPIX O-ring grease designated for use with this product (see page 19).

Do not use NIKONOS O-ring lubricant (grease).

• Do not use sealants or anti-fog chemicals.

• Do not handle the case after applying sunscreen. Sunscreen can damage the clear

plastic parts of the case.

• Do not apply stickers to the case, as the adhesive could cause the case to deterio-

rate.

Travelling by Air

If possible, include the case in your carry-on baggage when travelling by air. When

packing the case with checked luggage, leave the case open or remove the O-ring. If

the case is sealed, changes in air pressure may damage the case or prevent the case

from opening.

High Altitudes

When travelling from high to low altitudes, open the case periodically to equalize the

pressure. If the case is kept sealed, changes in air pressure may damage the case or

prevent the case from opening.

Table of Contents

For Your Safety ................................................................................................ i

Cautions ........................................................................................................... iii

Notices.............................................................................................................. vi

Introduction 1

Package Contents............................................................................................ 1

Parts of the WP-CP5 ........................................................................................ 2

Overview.......................................................................................................... 4

Check for Leaks 6

Insert the Camera 8

1. Ready the Camera ....................................................................................... 8

2. Insert the Camera........................................................................................ 9

3. Insert Desiccant............................................................................................ 10

4. Perform a Final Check ................................................................................. 10

5. Close the Case.............................................................................................. 11

Check for Leaks Again 12

Take Pictures 13

1. Turn the Camera On.................................................................................... 13

2. Adjust Settings............................................................................................. 13

3. Take Pictures................................................................................................ 14

Clean the Case 15

Maintenance 17

Caring for the O-ring ...................................................................................... 17

Storage............................................................................................................. 19

Technical Notes 19

Speciﬁcations................................................................................................... 19

Optional Accessories ....................................................................................... 19

Notices

• No part of the manuals included with

this product may be reproduced, trans-

mitted, transcribed, stored in a retrieval

system, or translated into any language

in any form, by any means, without

Nikon’s prior written permission.

• Nikon reserves the right to change the

speciﬁcations of the hardware and soft-

ware described in these manuals at any

time and without prior notice.

• Nikon will not be held liable for any

damages resulting from the use of this

product.

• While every effort has been made to

ensure that the information in these

manuals is accurate and complete, we

would appreciate it were you to bring

any errors or omissions to the attention

of the Nikon representative in your area

(address provided separately).

Life-Long Learning

As part of Nikon’s “Life-Long Learning” commitment to ongoing product support and

education, continually-updated information is available on-line at the following sites:

• For users in the U.S.A.: http://www.nikonusa.com/

• For users in Europe and Africa: http://www.europe-nikon.com/support

• For users in Asia, Oceania and the Middle East: http://www.nikon-asia.com/

Visit these sites to keep up-to-date with the latest product information, tips, answers to

frequently-asked questions (FAQs), and general advice on digital imaging and photog-

raphy. Additional information may be available from the Nikon representative in your

area. For contact information, visit http://nikonimaging.com/

Before using this product, be sure that the camera is functioning normally and that

the case does not leak ( 6–7, 12). Failure to check for leaks before using the

product could result in irreparable damage to the camera, batteries, or memory

card. Nikon will not be held liable for damages or lost proﬁts that may result from

leakage or product malfunction.

Important: Before Using This Product

Nikon COOLPIX cameras are designed to the highest standards and include com-

plex electronic circuitry. Only Nikon brand electronic accessories (including battery

chargers, batteries, and AC adapters) certiﬁed by Nikon speciﬁcally for use with this

Nikon digital camera are engineered and proven to operate within the operational

and safety requirements of this electronic circuitry.

For more information about Nikon brand accessories, contact a local authorized

Nikon dealer.

Important: Use Only Nikon Brand Electronic Accessories

Use only with cameras that list the WP-CP5 in the “Optional Accessories” section of

the camera manual. Do not place other objects in the WP-CP5. Additional compat-

ibility information may be available from the websites listed below.

Important: Use Only with Compatible Cameras

Introduction

Thank you for your purchase of a WP-CP5 waterproof case for compatible

Nikon digital cameras. The WP-CP5 is waterproof to a depth of 40 m (130ft),

allowing pictures to be taken underwater or in mist and rain. This manual

has been written to help you enjoy taking pictures using the waterproof case.

Keep this manual where all those who use the product will read it, and be sure

to read both it and the camera manual thoroughly before use.

To make it easier to ﬁnd the information you need, the following symbols and

conventions are used:

This icon marks cautions, informa-

tion that should be read before use

to prevent damage to the camera.

This icon marks tips, additional in-

formation that may be helpful when

using the camera.

This icon marks notes, information

that should be read before using

the camera.

This icon indicates that more infor-

mation is available elsewhere in this

manual.

WP-CP5 (with O-ring in place;

check that O-ring is undam-

aged before use)

COOLPIX O-ring

grease

Spare O-ring

WP-AN1 strap

User's Manual

WATERPROOF CASE

User’s Manual (this booklet)

e t

e case an

accessories out o

ox an

at t

e pac

age

contains all the following items:

Package Contents

Warranty

Silica gel desiccant

(1 package of 5; reseal

after opening)

Introduction

Parts of the WP-CP5

O-ring/O-ring guide ( 17)

Front coverCamera guides ( 9)

Rear cover Watertight channel ( 10, 17)

Shutter-release button

( 14; ) Power switch

( 13; )

Diffusion panel

Buckle

( 6, 9, 11)

Lens window

Attaching the Strap

Latch

(6, 9, 11)

O-ring seal ( 10, 17)

Introduction

: Performs same function as corresponding camera control. See camera Guide to

Digital Photography for details.

MENU button

(13; )

Mode selector

( 13; )

Zoom out (W/) button

(14; )

Zoom in (T/) button

(14; )

Monitor window

(playback) button

( 14; )

(delete) button

(13; )

Tripod socket

Eyelet for strap

(2)

Buckle release

button ( 9)

Camera multi selectorWaterproof case

Multi selector ( 13; )

Table of contents

Languages:

Other Nikon Camera Accessories manuals

Nikon

Nikon SB-104 os User manual

Nikon

Nikon AF DC-Nikkor 105mm f/2 D User manual

Nikon

Nikon AF-S NIKKOR 24mm f/1.8G ED User manual

Nikon

Nikon EN-MH1 User manual

Nikon

Nikon DS-U2 User manual

Nikon

Nikon AF-S Fisheye NIKKOR 8-15mm f/3.5-4.5E ED User manual

Nikon

Nikon EN-EL3 User manual

Nikon

Nikon DK-17M User manual

Nikon

Nikon AF-S NIKKOR 300mm f/4E PF ED VR User manual

Nikon

Nikon AF-S DX NIKKOR 18-300mm f/3.5-5.6G ED VR User manual

Nikon

Nikon Circular Polarizing Filter @... User manual

Nikon

Nikon DF-M1 User manual

Nikon

Nikon EN-EL3 User manual

Nikon

Nikon PS-4 User manual

Nikon

Nikon R1 User manual

Nikon

Nikon WT-6 User manual

Nikon

Nikon MD-15 User manual

Nikon

Nikon AF-S DX 18-55mm f/3.5-5.6GVR ED User manual

Nikon

Nikon AF-S DX NIKKOR 18-300mm f/3.5-5.6G ED VR User manual

Nikon

Nikon AF-S NIKKOR 200-500mm f/5.6E ED VR User manual

Nikon

Nikon UR-E3 User manual

Nikon

Nikon WP-CP1 - Underwater Housing User manual

Nikon

Nikon AF-S NIKKOR 20mm f/1.8G ED User manual

Nikon

Nikon 1 NIKKOR VR 70-300mm f/4.5-5.6 User manual

Popular Camera Accessories manuals by other brands

Viltrox

Viltrox EF-NEX Mount instructions

Calumet

Calumet 7100 Series CK7114 operating instructions

Ropox

Ropox 4Single Series User manual and installation instructions

Cambo

Cambo Wide DS Digital Series Main operating instructions

Samsung

Samsung SHG-120 Specification sheet

Ryobi

Ryobi BPL-1820 Owner's operating manual

Aegis

Aegis ABL-36020P user manual

Pentax

Pentax Data Back Fc operating manual

Fantasea

Fantasea EyeGrabber F Series instruction manual

Honeywell

Honeywell HDZ20HD user manual

EGO

EGO BA1400T Operator's manual

Sima

Sima SRW-62 user guide

Shape

Shape A7SSMKIT Assembly manual

Slide Kamera

Slide Kamera HST-2 user manual

Power works

Power works 2902613 Original instructions

SES

SES SE-2047-2 user manual

Olympus

Olympus PT-EP05L instruction manual

Starlite

Starlite OctoDome nxt instructions
