NETGEAR EX3700 User manual
Quick Start
AC750 WiFi Range Extender
Essentials Edition
Model EX3700
2
Getting Started

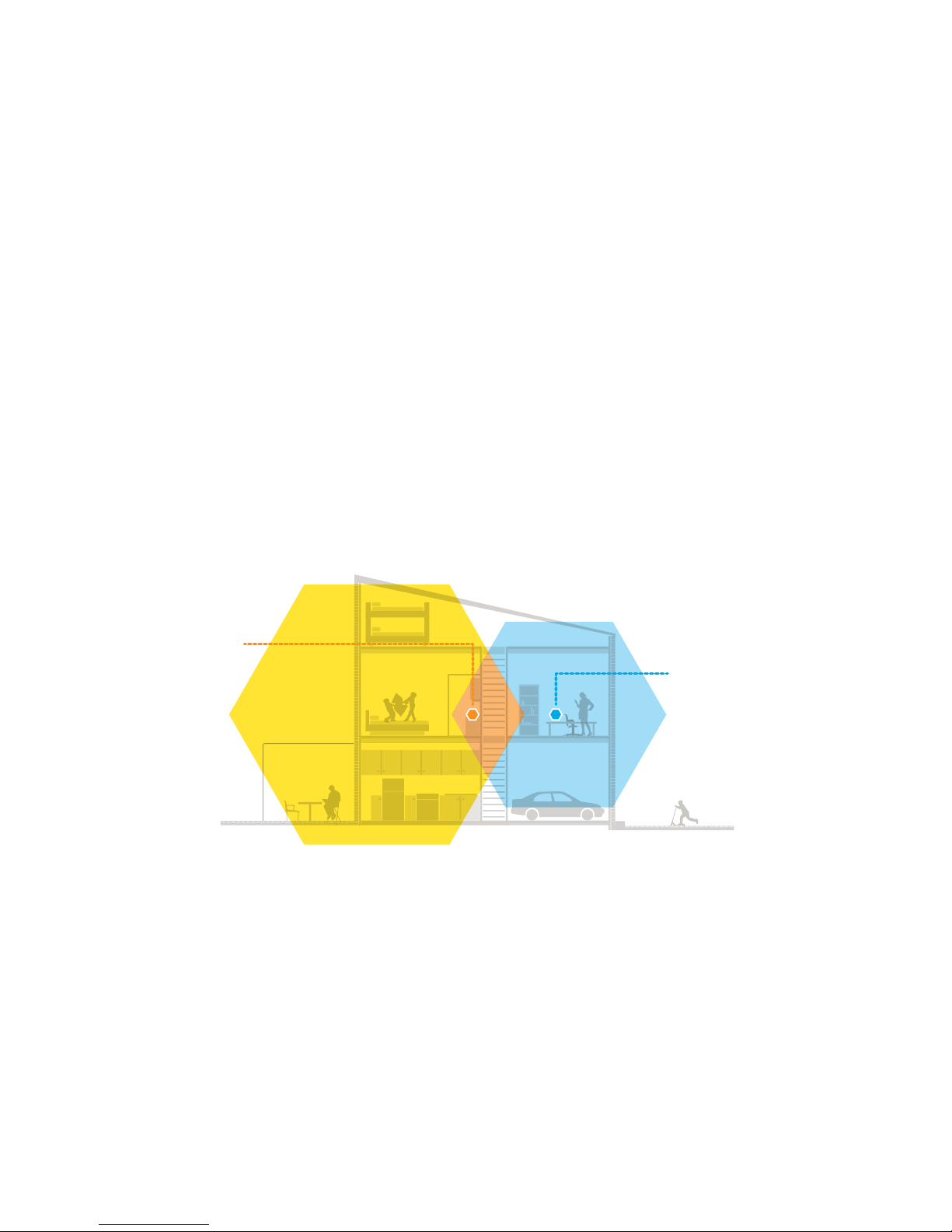

The NETGEAR WiFi Range Extender increases the distance of a WiFi
network by boosting the existing WiFi signal and enhancing the overall
signal quality over long distances. An extender repeats the signals from an
existing WiFi router or access point.
WiFi Range
Extender
Boosts the range
of your existing
WiFi and creates
a stronger signal
in hard-to-reach
areas
Existing WiFi
Sometimes your
router does not
provide the WiFi
coverage that you
need
3
Meet Your Extender
Before you install your extender, familiarize yourself with its LEDs,
buttons, and port.
Front Panel
Router
Link LED
Device
Link LED
Power LED
WPS LED
4
Side Panels
Factory
Reset
button
WPS button
Power On/O
button
Ethernet port
Power connector
(varies by region)
Power connector
(varies by region)
5
LED Descriptions
Router Link LED This LED indicates the connection between the extender and
the router or access point.
Solid green. Best connection.
Solid amber. Good connection.
Solid red. Poor connection.
O. No connection.
Device Link LED This LED indicates the connection between the extender and
a computer or WiFi device.
Solid green. Best connection.
Solid amber. Good connection.
Solid red. Poor connection.
O. No connection.
Power LED Solid amber. The extender is booting.
Solid green. The extender is powered on.
O. The extender is powered o.
WPS LED Solid green. WiFi security is enabled (WPA or WPA2).
Blinking green. A WPS connection is being established.
O. WiFi security is not enabled.
Note: If the Router Link LED or Device Link LED is amber or red, see Find
the Best Location on page 11.
6
Use the Extender in Extender Mode
Place the extender, apply power, and connect it to your WiFi network.
Place the Extender and Apply Power
1. Place your extender in the same room as your WiFi router.
Proximity to the WiFi router is required only during the initial setup
process.
2. Plug the extender into an electrical outlet.
Wait for the Power LED to light green. If the Power LED does not light,
press the Power On/O button on the extender.
Connect to an Existing WiFi Network
To extend the range of your WiFi network, you must connect the extender
to your existing WiFi network. You can do this in one of two ways:
• Connect with WPS. For more information, see Connect with WPS on
page 7.
• Connect with web browser setup. For more information, see
Connect with Web Browser Setup on page 9.
7
Connect with WPS
Wi-Fi Protected Setup (WPS) lets you join a secure WiFi network without
typing the network name and password.
Note: WPS does not support WEP network security. If you are using WEP
security, follow the instructions in Connect with Web Browser Setup on
page 9.
1. Press the WPS button on the side panel of the extender.
The WPS LED blinks.
2. Within two minutes, press the WPS button on your router or access
point.
The WPS LED on the extender lights solid green, the Router Link LED
lights, and the extender connects to your existing WiFi network.
If the Router Link LED does not light, try again. If it still does not light,
see Connect with Web Browser Setup on page 9.
3. If your WiFi router supports the 5 GHz band, repeat Steps 1 and 2 to
connect the extender to the 5 GHz band.
8
4. Find the new extended WiFi network name on your computer or WiFi
device.
The extender creates two new extended WiFi networks. The
extender’s new WiFi network names are based on your existing WiFi
network name, with _2GEXT and _5GEXT at the end of the name.
For example:
• Existing WiFi network name. MyNetworkName
• New extended WiFi network names. MyNetworkName_2GEXT
and MyNetworkName_5GEXT
5. Connect your computer or WiFi device to the new extended WiFi
network.
Use the same WiFi password that you use for your WiFi router.
6. Unplug the extender and move it to a new location closer to the area
with a poor WiFi signal.
The location that you choose must be within the range of your
existing WiFi router network.
7. Plug the extender into an electrical outlet.
Wait for the Power LED to light green. If the Power LED does not light,
press the Power On/O button on the extender.
8. Use the Router Link LED on the front panel to help you choose a spot
where the extender-to-router connection is optimal.
9
Connect with Web Browser Setup
1. Use a WiFi network manager on a computer or WiFi device to find and
connect to the NETGEAR_2GEXT (SSID) WiFi network.
Aer the connection with the computer or WiFi device is established,
the Device Link LED lights.
2. Launch a web browser.
3. Enter www.mywifiext.net in the address field of the browser.
The New Extender Setup screen displays.
4. Click the NEW EXTENDER SETUP button.
The Extender Setup screen displays.
5. Complete the fields on the Extender Setup screen and click the NEXT
button.
6. Click the WIFI RANGE EXTENDER button.
The extender searches for WiFi networks in your area and displays a
list.
7. Select a WiFi network to extend and click the NEXT button.
If you do not want to extend both WiFi bands, clear the 2.4GHz WiFi
Networks or the 5GHz WiFi Networks check box.
10
8. In the Password (network key) field, type the existing WiFi network
password (also called passphrase or security key) and click the NEXT
button.
9. Set the network name (SSID) and password for your extender and
click the NEXT button.
10. Use a WiFi network manager on the computer or WiFi device to
connect to the new extended WiFi network.
Repeat this step for all of your computers and WiFi devices.
11. Click the Continue button.
A message displays confirming that the extender is connected to the
new extended WiFi network.
12. Click the Next button.
The Status screen displays.
