NETGEAR WN3100RP User manual
Installation
N300 WiFi Range Extender
Model WN3100RP
2
Getting Started

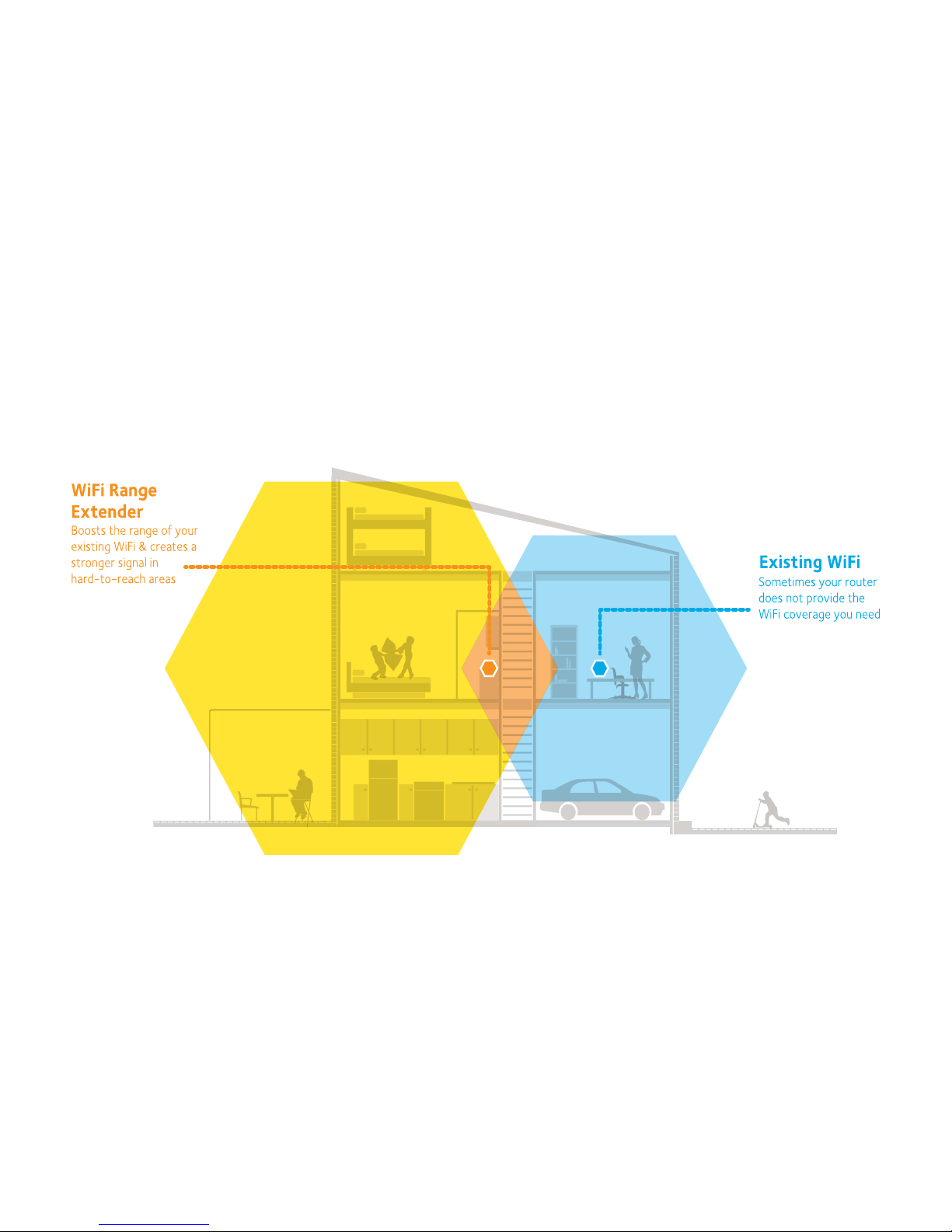

The NETGEAR WiFi Range Extender increases the distance of a WiFi
network by boosting the existing WiFi signal and enhancing the overall
signal quality over long distances. An extender repeats the signals from an
existing WiFi router or access point.
3
Meet Your Extender
Before you install your extender, familiarize yourself with its LEDs,
buttons, and port.
Front and Right Side Panels
Router
Arrow
LED
Client
Arrow
LED
Router Link
LED
Client Link
LED
Power LED
WPS LED
Pass-through
power socket
(varies by region)
Ethernet port
4
Rear and Le Side Panels
Factory Reset
button
WPS
button
Device On/O
switch
Product label
Power connector
(varies by region)
5
LED Descriptions
Router Link
LED
This LED indicates the connection between the extender and
the router or access point.
Solid green. Best connection.
Solid amber. Good connection.
Solid red. Poor connection.
O. No connection.
Client Link LED This LED indicates the connection between the extender and
a computer or WiFi device.
Solid green. Best connection.
Solid amber. Good connection.
Solid red. Poor connection.
O. No connection.
Power LED Solid amber. The extender is booting.
Solid green. The extender is powered on.
O. The extender is powered o.
WPS LED Solid green. WiFi security is enabled (WPA or WPA2).
Blinking green. A WPS connection is in progress.
O. WiFi security is not enabled.
Note: If the Router Arrow LED or Client Arrow LED
blinks, see Find the Best Location on page 13. If no arrow LEDs light, the
extender is in a good location.
6
Install the WiFi Extender
Place the extender, apply power, and connect it to your WiFi network.
Place the Extender and Apply Power
1. Place your extender in the same room as your WiFi router.
Proximity to the WiFi router is required only during the initial setup
process.
2. Plug the extender into an electrical outlet.
The Power LED lights green. If the Power LED does not light,
slide the Device On/O switch on the side of the extender to the On
position.
Connect to an Existing WiFi Network
To extend the range of your WiFi network, you must connect the extender
to your existing WiFi network. You can do this in one of two ways:
• Connect with WPS. For more information, see Connect with WPS on
page 7.
• Connect with web browser setup. For more information, see
Connect with Web Browser Setup on page 9.
7
Connect with WPS
Wi-Fi Protected Setup (WPS) lets you join a secure WiFi network without
typing the network name and password.
Note: WPS does not support WEP network security. If you are using WEP
security, follow the instructions in Connect with Web Browser Setup on
page 9.
1. Press the WPS button on the side panel of the extender.
The WPS LED blinks.
2. Within two minutes, press the WPS button on your router or access
point.
The WPS LED on the extender lights solid green, the Router Link LED
lights, and the extender connects to your existing WiFi network.
If the Router Link LED does not light, try again. If it still does not light,
see Connect with Web Browser Setup on page 9.
3. Find the new extender network name on your computer or WiFi
device.
The extender’s wireless network name (SSID) changes to your existing
WiFi network name, with _EXT at the end of the name, for example:
• Existing WiFi network name. MyNetworkName
• New extended network name. MyNetworkName_EXT
8
4. Connect your computer or WiFi devices to the new extended WiFi
network.
Use the same WiFi password that you use for your WiFi router.
5. Unplug the extender and move it to a new location closer to the area
with a poor WiFi signal.
The location that you choose must be within the range of your
existing WiFi router network.
6. Plug the extender into an electrical outlet.
The Power LED lights green. If the Power LED does not light,
slide the Device On/O switch on the side of the extender to the On
position.
7. Use the Router Link LED on the front panel to help you choose a spot
where the extender-to-router connection is optimal.
9
Connect with Web Browser Setup
1. Use a WiFi network manager on a computer or WiFi device to find and
connect to the NETGEAR_EXT (SSID) WiFi network.
Aer the connection with the computer or WiFi device is established,
the Client Link LED lights.
2. Open a web browser window from the same computer or WiFi device.
The browser takes you directly to the NETGEAR genie web browser
setup. If you are not automatically directed to NETGEAR genie, launch
a web browser and enter www.mywifiext.net in the address field.
Enter admin for the user name and password for the password.
The extender searches for WiFi networks in your area and displays a
list.
10
3. Select a WiFi network to extend and click the Continue button.
The following screen displays:
4. Type the network password (also called passphrase or security key) in
the Password field and click the Continue button.
The following screen displays:
