NetComm NF2 User manual

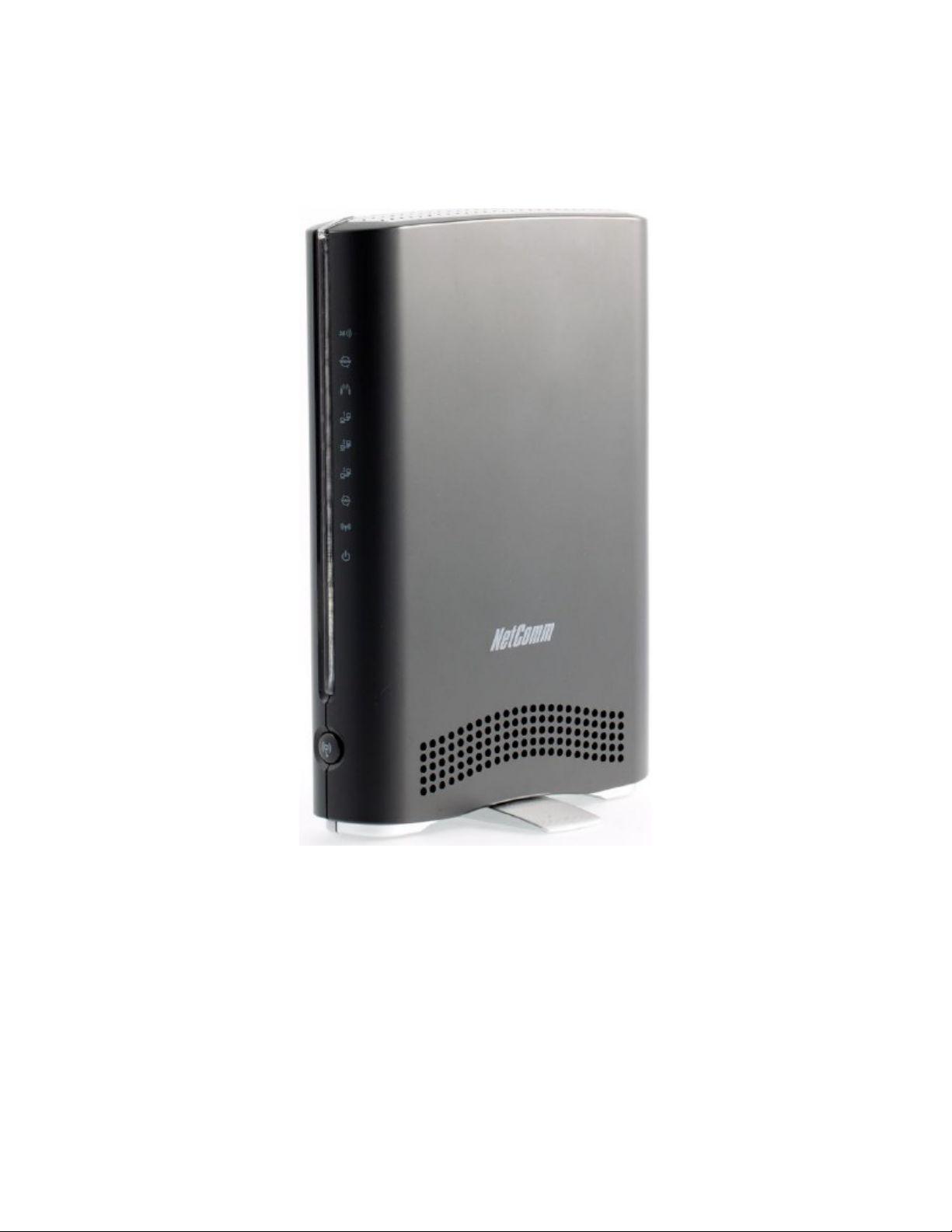

N900 Dual Band Wi-Fi Gigabit Router - NF2
Contents
1 Main Features
2 The Front Panel of the ode
3 Back Panel
4 How to setup/connect your hardware
5 Quick Installation Guide
Main Features
Gigabit WAN port for ADSL and Fibre connectivity
Alternate Internet connection via a 3G/4G SB modem
Concurrent dual band WiFi up to 900Mbps1
Enhance WiFi performance and reduce interference with simultaneous data
transmission over 2.4GHz and 5GHz radio bands
Incorporates 2 x SB 2.0 ports. Connect a 3G/4G SB modem and an external
hard disk drive for file sharing
Connects up to 3 wired devices using the Gigabit LAN Ethernet ports
Supports next generation IPv6 addressing
Green features for power conservation
IPSec VPN endpoint and PPTP and L2TP VPN protocols for securely sending
information over the Internet when interconnecting with another computer network
WIRELESS WAN
• 1 x SB 2.0 port for external 3G/4G modem
• GPRS/EDGE/WCDMA/HSDPA/HS PA/ CDMA2000/ EVDO/LTE
ETHNERNET WAN
• 1 x WAN port (10/100/1000 Mbps)
• PPPoE, DHCP client, Static IP, PPTP, L2TP
• Auto-reconnect, dial-on demand, manual connect
WIRELESS
• IEEE 802.11n. Backwards compatible with IEEE 802.11b/g/a
• 2.4GHz & 5GHz Concurrent WiFi
• SSID broadcast or in stealth mode
• Auto/Manual Channel selection
• WEP/WPA/WPA-PSK/WPA2/WPA2-PSK
• WPS button (WiFi Protected Setup)
SEC RITY
• IP/Service Filter
• RL blocking
• MAC control
• DoS (Denial of Service) Protected
RO TING
• Static Route
• Dynamic Route (RIP v1/v2)
• DMZ
ADMINISTRATION
• PnP • IGD • Syslog
• Web-based I • QoS • Remote Login
• Backup/Restore Settings • SNMP
• TR-069 auto provisioning
• VPN IPSec, L2TP client/server, PPTP client/server

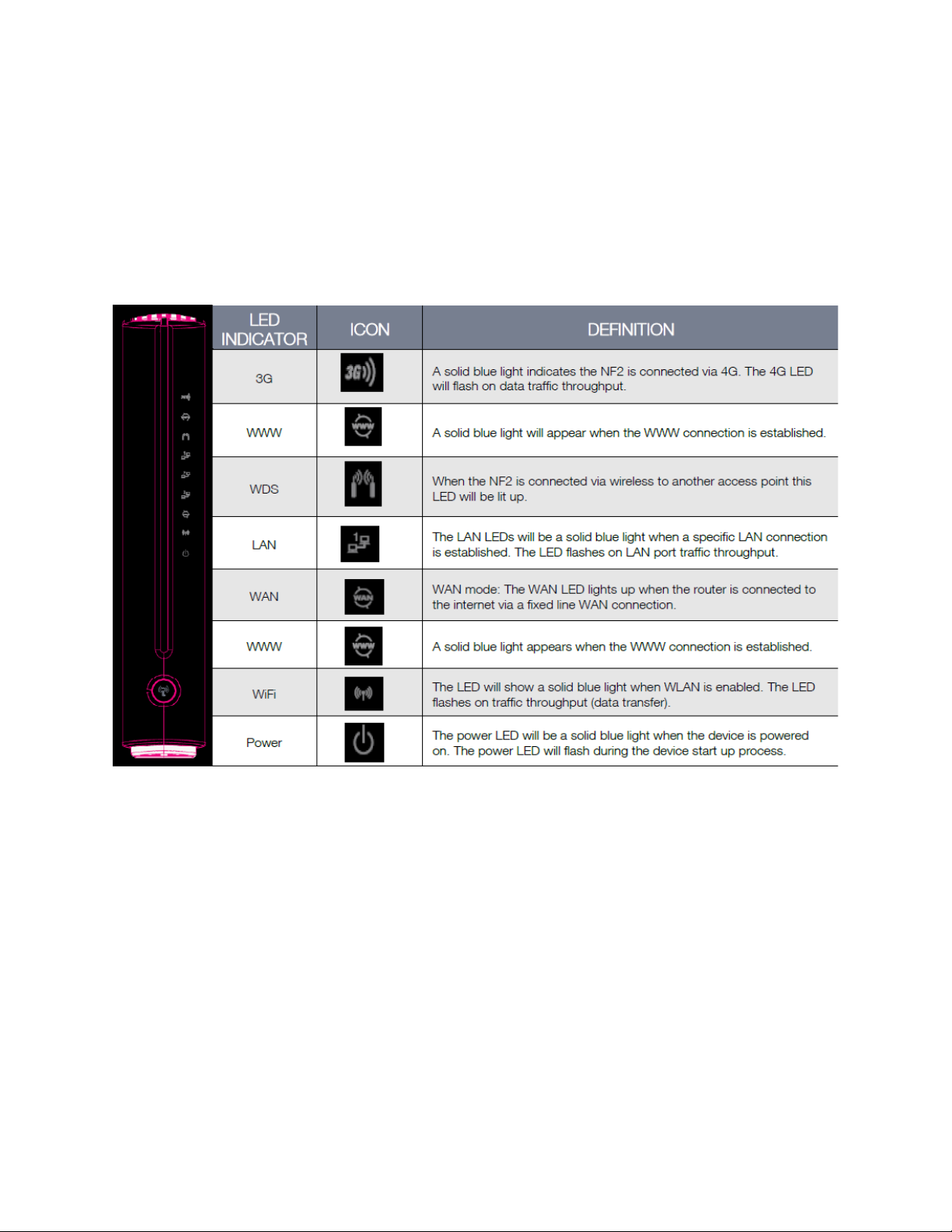

The Front Panel of the ode
Following indicates the status of the LED lights which provides you the modem’s
working status.

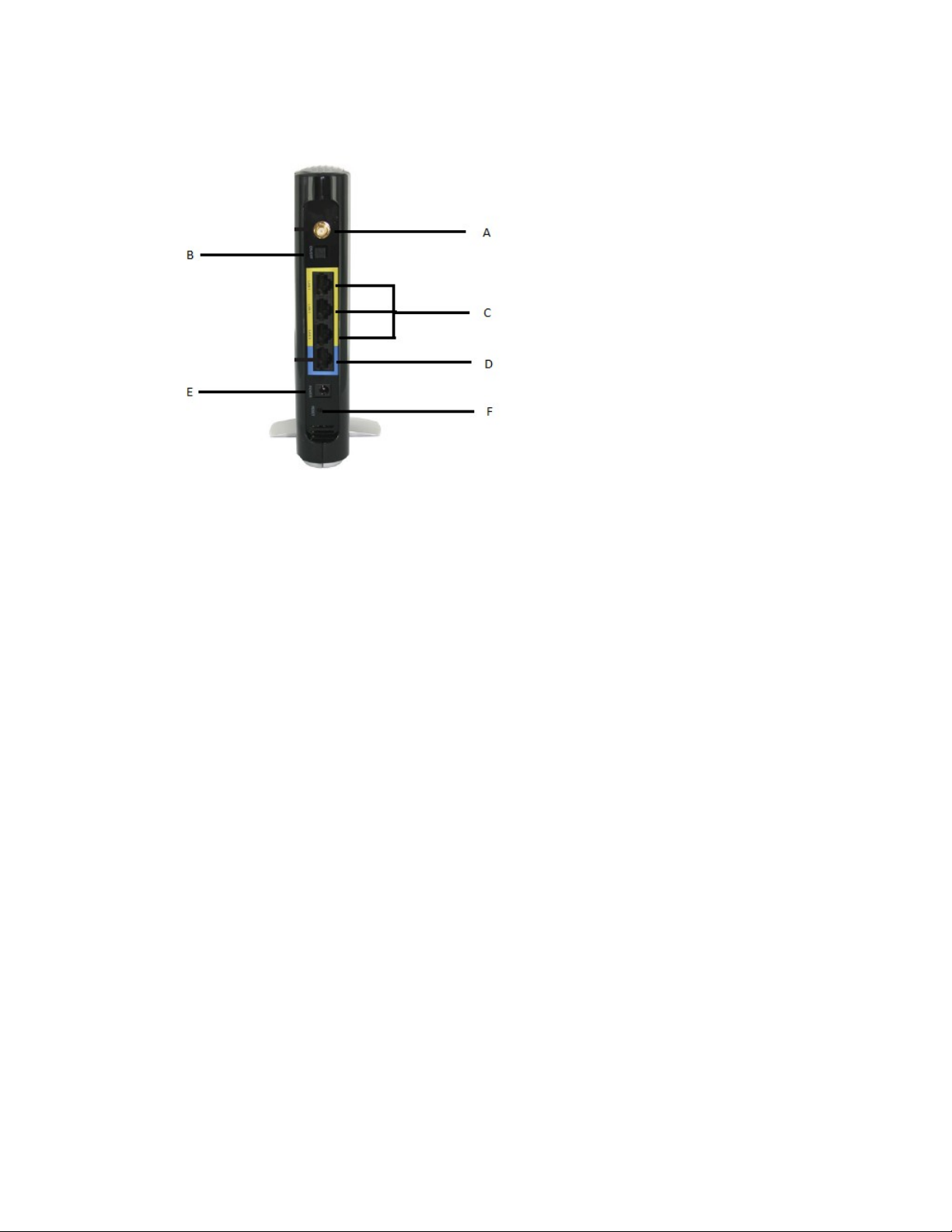

The Back Panel of the ode
A – Antenna: To receive and transmit the wireless data
B – Power Switch (ON/ OFF): The switch for the power
C – LAN Ports (LAN 1, LAN 2, and LAN 3): These ports (1, 2, 3, and 4) connect the Router to
the local PC(s).
D – Modem/ Fibre ONT: This port is to connect the Modem/ Fibre ONT
E – The power socket is where you will connect the power adapter
F – Reset Button: Factory Default Reset button: Press the Reset button for five seconds and
then wait for the Router to reboot

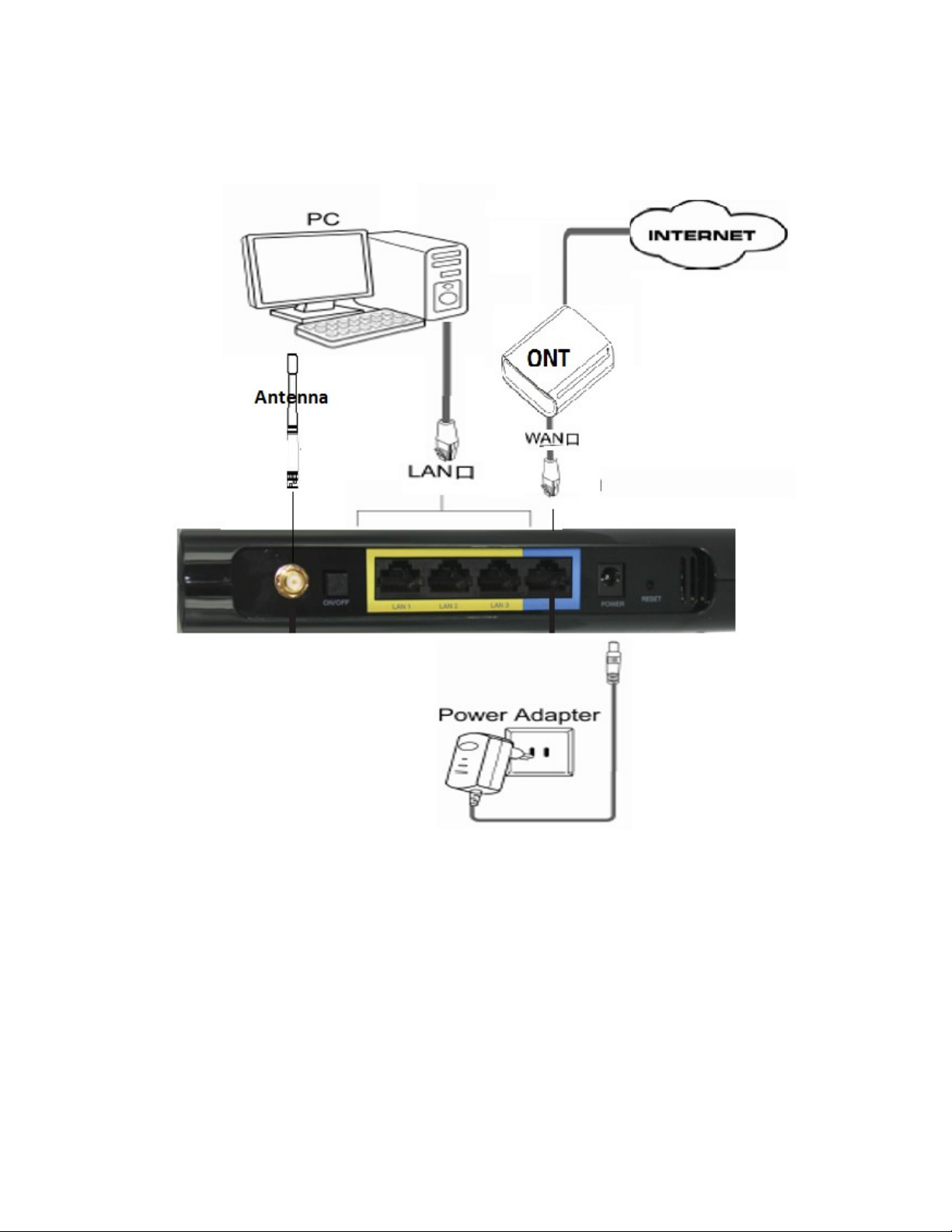

How setup/connect your hardware
Quick Installation Guide
Connecting to the router via an Ethernet cable
Connect an RJ-45 Ethernet cable from one of the yellow Ethernet LAN Ports on the back of
the NF2 to the LAN port of your computer.
Wait approximately 30 seconds for the connection to be established
Login to the web interface
Open a web browser (Internet Explorer, Firefox and Safari), type 192.168.20.1 into the
address bar and press Enter/Return. If 192.168.1.1 is not responding try 192.168.0.1.
At the login screen, type “admin” (without the quotes) into both the sername and the
password fields and click “OK”.

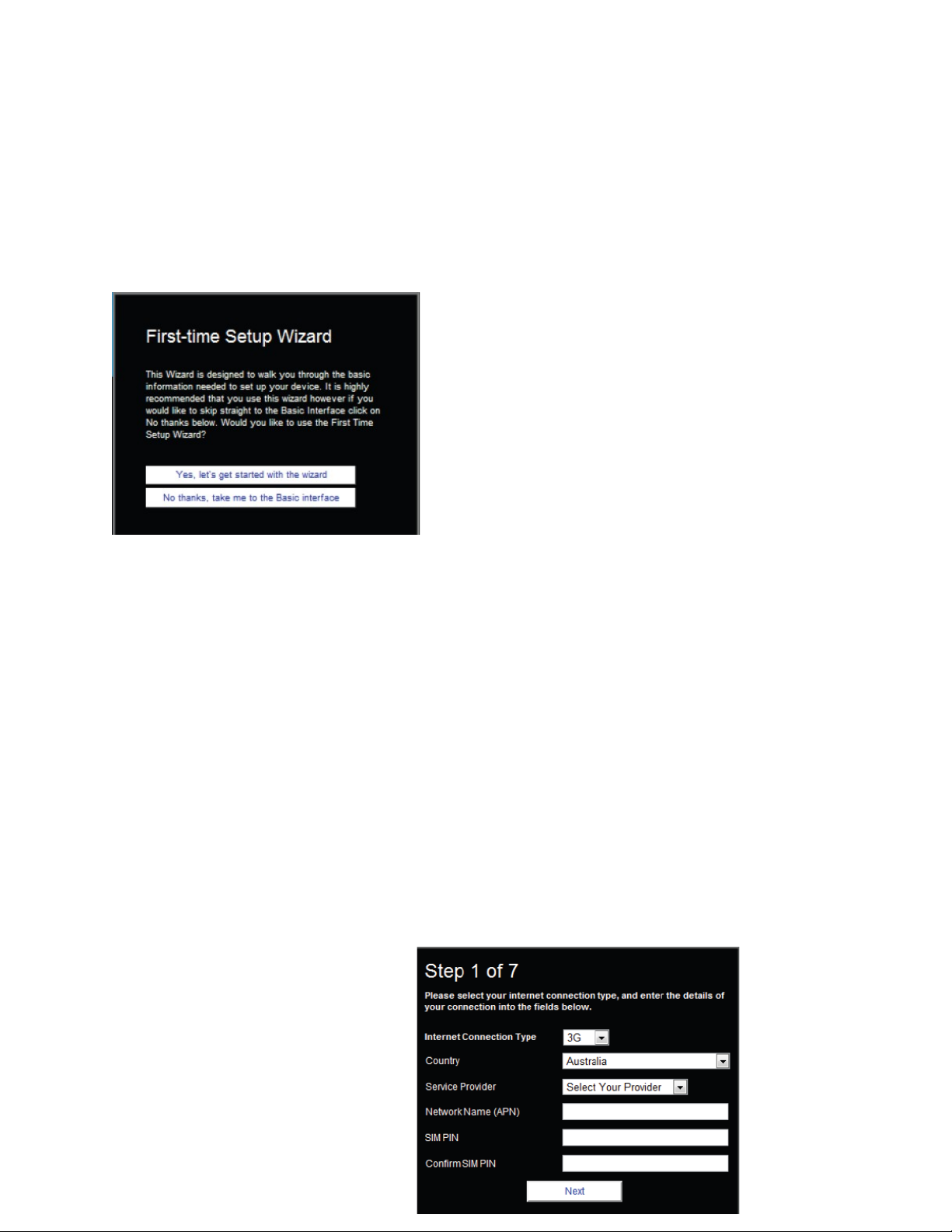

The “First-Time Setup Wizard” will then be displayed. Click on the “Yes, let’s get started with
the wizard” button to configure your device.
Router Setup – WAN
If connecting to an ADSL modem or a Fibre
termination device, select “WAN” as the
WAN interface.
Select “PPPoE” as the WAN type and press the “Next” button. And provide Radius login
credentials.
To enable a backup connection via 3G/4G, tick the checkbox and enter the appropriate
3G/4G connection information as supplied by your 3G/4G provider (see the instructions on
Step 5 of this quick start guide).
You will also need to enter a high availability website in the Remote Host box in order to
verify that your WAN based internet connection remains active.
Click “Next” to complete the wizard. Please see from step 6 in this quick start guide for how
to complete the wizard
3G/4G
Select the country of residence and service provider from the dropdown boxes and the
network name (APN) will automatically appear.
Please refer : http://exewiki.exetel.com.au/index.php?
title=Mobile_and_Mobile_Broadband_Email_and_APN_Settings
Enter username/password and SIM PIN if required as supplied by Exetel. Not all 3G/4G
providers require a username and password or a SIM PIN
Click “Next” to complete the wizard. Please see from step 6 in this quick start guide for how
to complete the wizard.

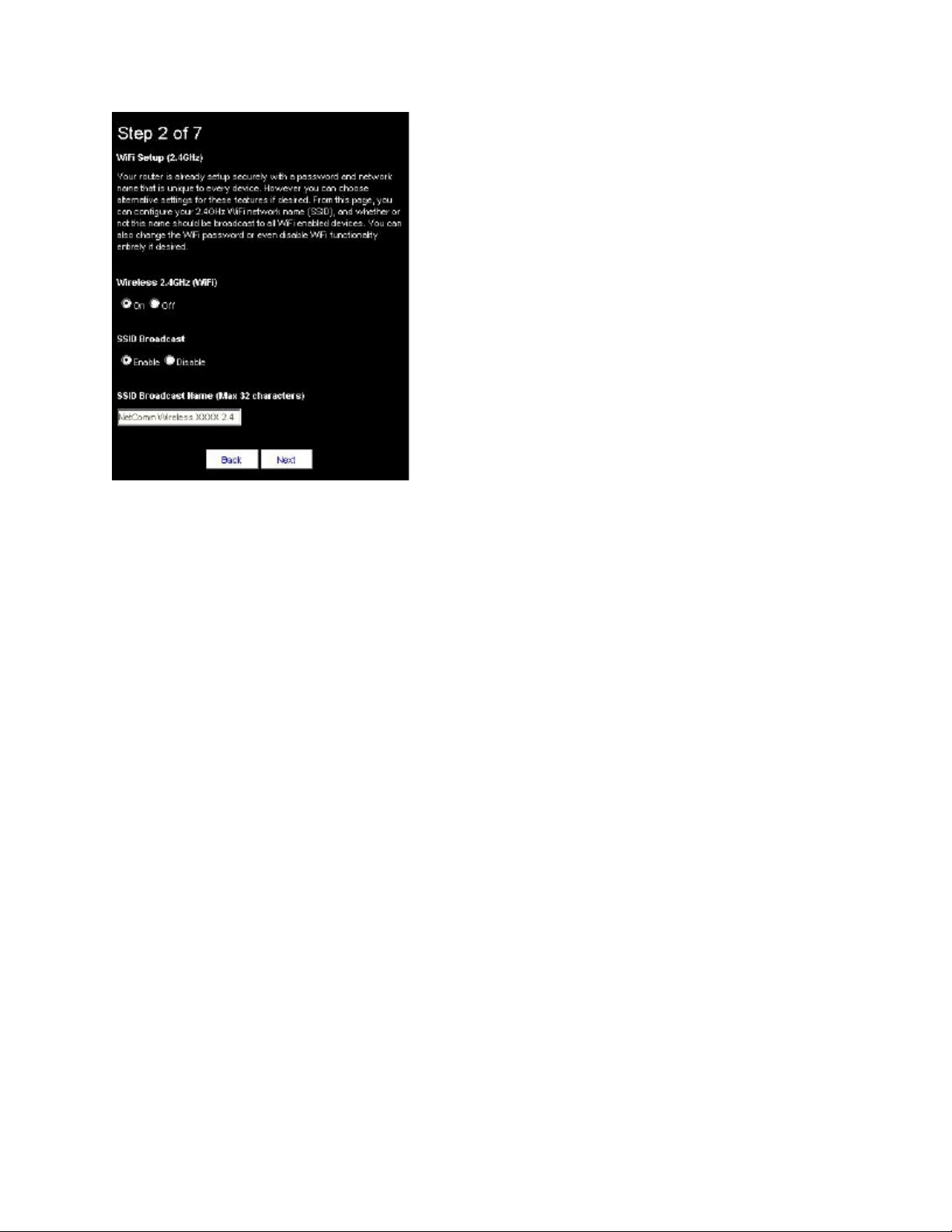

This page allows you to customize the 2.4GHz wireless setting of the NF2.
WiFi is set to “On” by default. Changing this option to “Off” will turn off the wireless feature
and you will not be able to connect to your NF2 via 2.4 GHz WiFi.
Select ‘Disable’ to hide the SSID of the NF2. If disabled, other people will not be able scan
and detect your NF2’s SSID.
SSID Broadcast Name (Max 32 Characters):
The SSID (Service Set Identifier) is the name of your wireless network. se a unique name to
identify your wireless network so that you can easily connect from your wireless clients.
This field is case sensitive and can be up to 32 characters. You should change the default
SSID for added security.
Click “Next” to continue.
