NetComm LIBERTY SERIES User manual

NETCOMM LIBERTY™ SERIES

3G Wireless N300

VoIP Router

1. Attach the supplied antenna to the circular antenna port on the back of the

NetComm 3G18WV (this should be attached onto the port in a clockwise

direction).

2. Connect a compatible 3G USB Modem to the “3G USB” port on the front of the

NetComm Router.

Please note: You can also connect an Ethernet cable from your ADSL/Cable modem’s LAN port to your 3G18WV’s WAN port for xed line connections.

3. Connect the power adapter to the power socket on the back of the NetComm

3G18WV.

4. Plug the power adapter into the wall socket and switch on the power.

5. Wait approximately 60 seconds for the NetComm 3G18WV to power up.

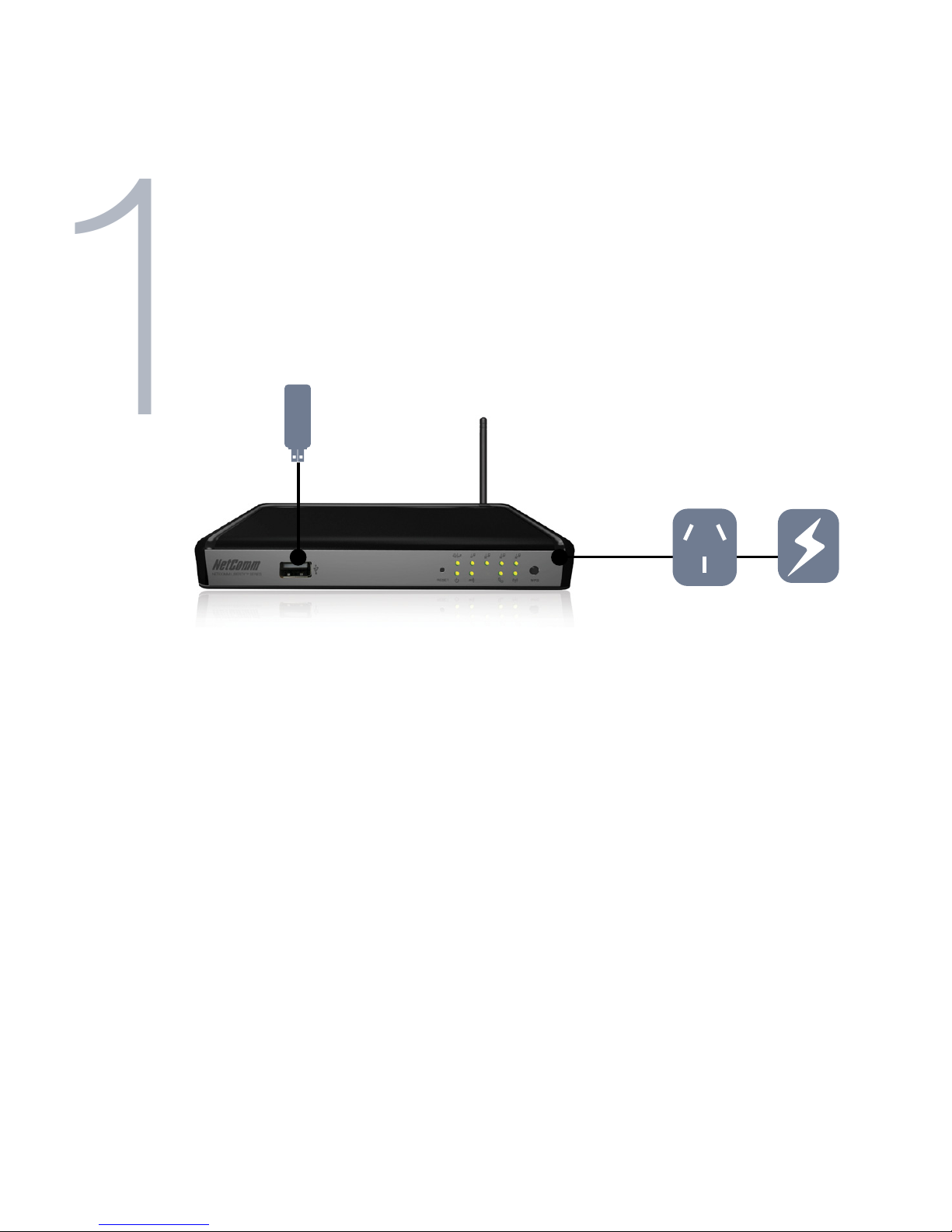

Hardware Installation

USB Modem

Power Point Power Connector

Connecting to the Router

via a Cable

1. Connect the yellow Ethernet cable provided to one of the ports labelled

“LAN1-LAN4” on the back of the NetComm 3G18WV.

2. Connect the other end of the Ethernet cable to your computer or to another

Ethernet-enabled device like a gaming console, a TV or a home cinema system.

3. Wait approximately 30 seconds for the connection to establish.

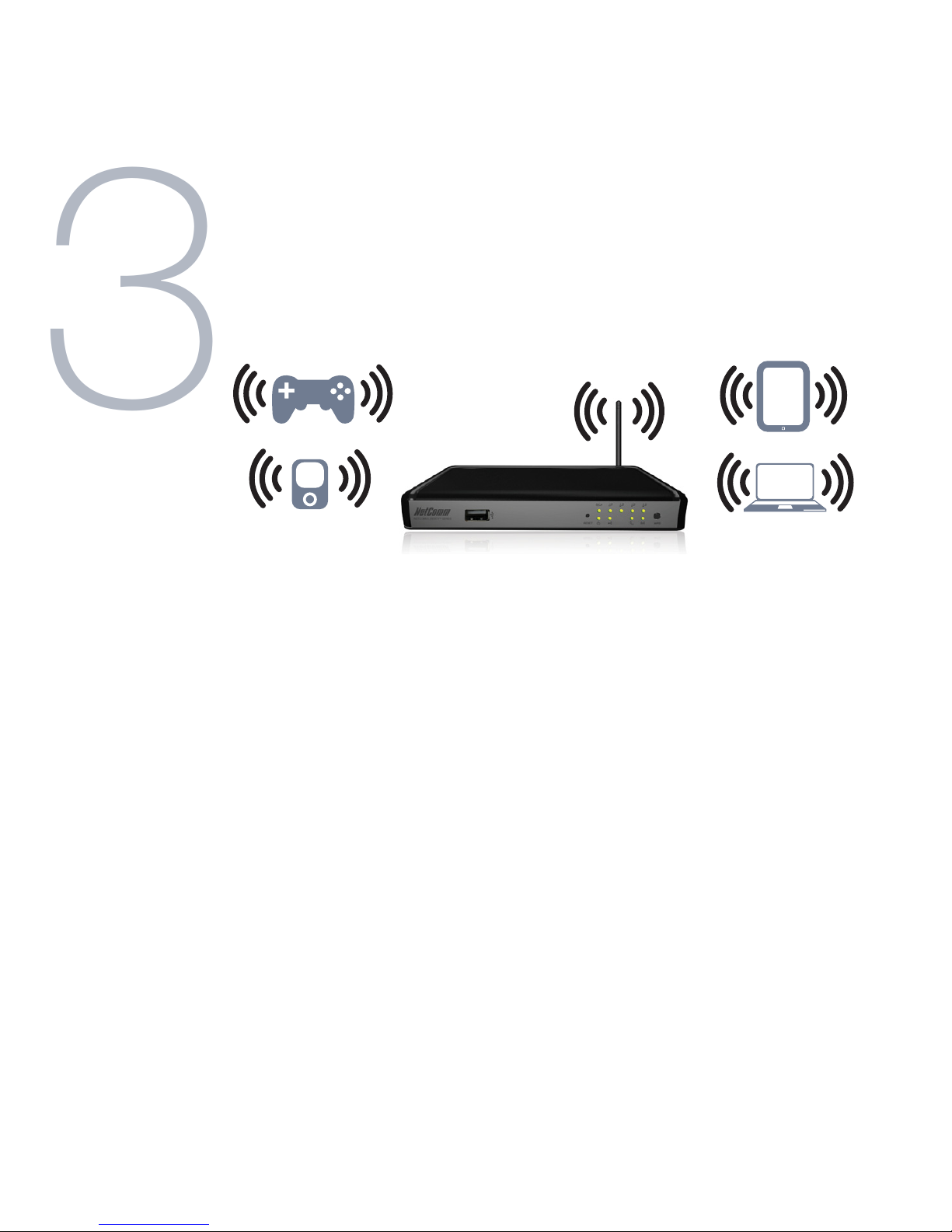

Laptop

You can connect multiple wireless devices, including laptops, desktops and PDA’s

to your router by following these two basic steps.

1. Using your wireless device, scan the wireless networks in your area and select

the network called NetComm Wireless, then click connect.

Please note: If you changed the wireless network name during set-up, select the new name

2. Enter the following default security key: a1b2c3d4e5.

Please note: If you changed the wireless security password during set-up, you will have to use the new password

To ensure wireless security, we recommend that you change the default settings

through the web Interface.

Connecting to the router

via Wireless

WiFi PDA

Online Gaming

Laptop

iPad

After completing the hardware installation, you will need to enter the necessary

settings to be able to connect to your applicable service provider. This is done with

an easy to use wizard that will guide you through the set-up process.

1. On your computer, open a web-browser (such as Internet Explorer, Firefox, or

Safari), type 192.168.20.1 into the address bar at the top of the screen and

press Enter.

2. At the login screen, type “admin” into the system password eld and then click

Connecting the Router

to the Internet

3. Follow the instructions to:

• Change the admin password so only you can access the routers settings.

• Select your time zone.

• Choose whether you want your WAN connection to auto detect or if you

would like to set it up manually.

• Select whether you would like to connect with 3G (Wireless WAN) or ADSL/

Cable (Ethernet WAN). If you select Ethernet WAN you can also select the

connection type. We recommend to keep the default settings (Auto-detect

WAN type) if you are unsure.

• If you select to use 3G you can choose to have your modem auto connect

or you can control the connection manually.

• If you select to use ADSL/Cable, you will be prompted to enter additional

information from your ISP.

• Select whether you want to use a wireless connection and what you would like

the wireless network name (SSID) to be. If you change the wireless network

name, make sure you remember it so you can connect to it later.

• Select your wireless security level. Again, if you change the wireless security

password, make sure you write it down so you can use these details to

connect wirelessly later.

• Setup your VoIP connection. Enter the information as supplied by your VoIP

Service Provider.

4. Once nished, click on Apply Settings and allow the router approximately

one minute to complete the conguration.

5. Click on Finish to restart the router.

If you are connected successfully to 3G Mobile Broadband, the 3G LED will

be lit.

You can also check on the status of your connection by clicking ”Status” after

logging in to the web based user interface.

List of Mobile Broadband Service Providers and APNs:

Mobile Service Provider APN - Access Point Name

AUSTRALIA

Telstra Telstra.internet

Telstra.pcpack

Telstra.datapack

Telstra.extranet

Optus – Postpaid connect

Optus – Prepaid preconnect

Three – Postpaid 3netaccess

Three – Prepaid 3services

Vodafone – Postpaid vnternet.au

Vodafone – Prepaid vfprepaymbb

Crazy John’s purtona.net

DoDo dodolns1

Blink splns888a1

Internode Internode

Primus primuslns1

TPG internet

Exetel Exetel1

Westnet Splns555a1

iiNet iiNet

NEW ZEALAND

Vodafone NZ www.vodafone.net.nz

CallPlus www.callplus.net.nz

Slingshot www.slingshot.net.nz

Telstra Clear www.telstraclear.net.nz

Telecom NZ XT internet.telecom.co.nz

2degrees internet

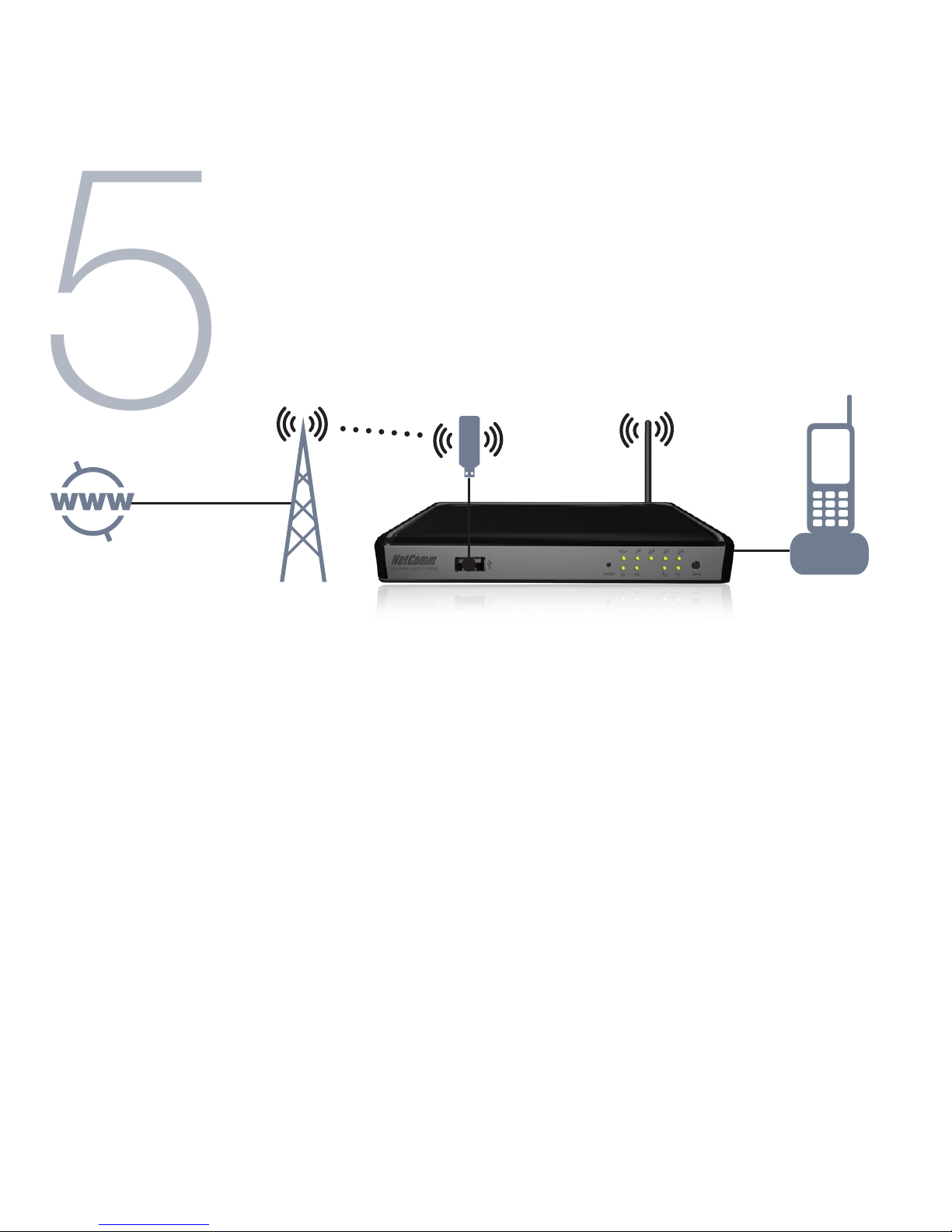

Making Calls over the Internet

Using VoIP Service

The NetComm 3G18WV allows you to make VoIP calls over the Internet by simply

plugging a standard analogue telephone into the router and using a VoIP Service

Provider (VSP).

Before you get started making a call, make sure you’ve checked the following:

1. Have you inserted your 3G USB modem into your 3G18WV router?

2. Have you set up a VoIP account with a VoIP service provider

(e.g. MyNetFone, Engin, ...)?

Note: The VoIP service provider will issue a phone number or Direct in dial number (DID) for inbound calls, so other people can reach you when calling

from their standard landline phone or a mobile phone.

3G Tower

3G USB Modem

DECT Phone

Note: VoIP calls originating from your connected analogue telephone will appear to callers as originating from this assigned number (Caller ID) if not

congured otherwise.

3. Have you registered your VoIP account in the router’s setting?

Note: As all Voice Service Providers use different settings, please refer to the Online User Manual for details on how to congure VoIP on your 3G18WV.

4. Is your router powered on?

5. Do you have your telephone connected (via a telephone cable) to the Line port

on the rear of the 3G18WV?

6. Is the phone LED light on and can you hear a dial tone when you pick up

your handset?

How to receive a call:

When an incoming call is received, the phone LED will start ashing and the

phone connected to the 3G18WV will ring.

For more detail on how to congure VoIP and other router settings, please refer to

the Online User Manual, which can be downloaded in PDF format from the website:

http://www.netcomm.com.au/3G18WV

Note: Please refer to your VoIP service provider for required settings and activation of your VoIP phone service and information about the call charges

that apply. For assistance with the operation of your telephone handset, please refer to the documentation provided by the manufacturer of your

analogue telephone.
