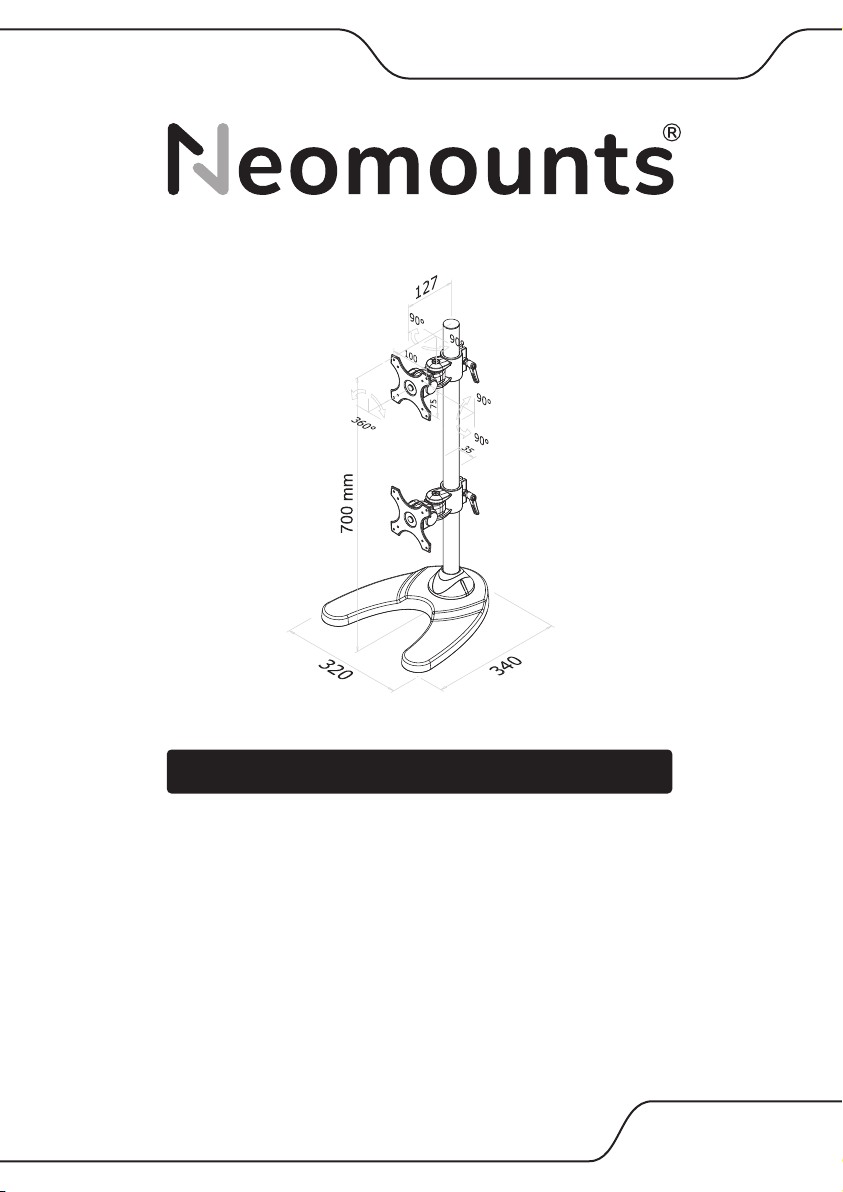

NeoMounts FPMA-D700DDV User manual

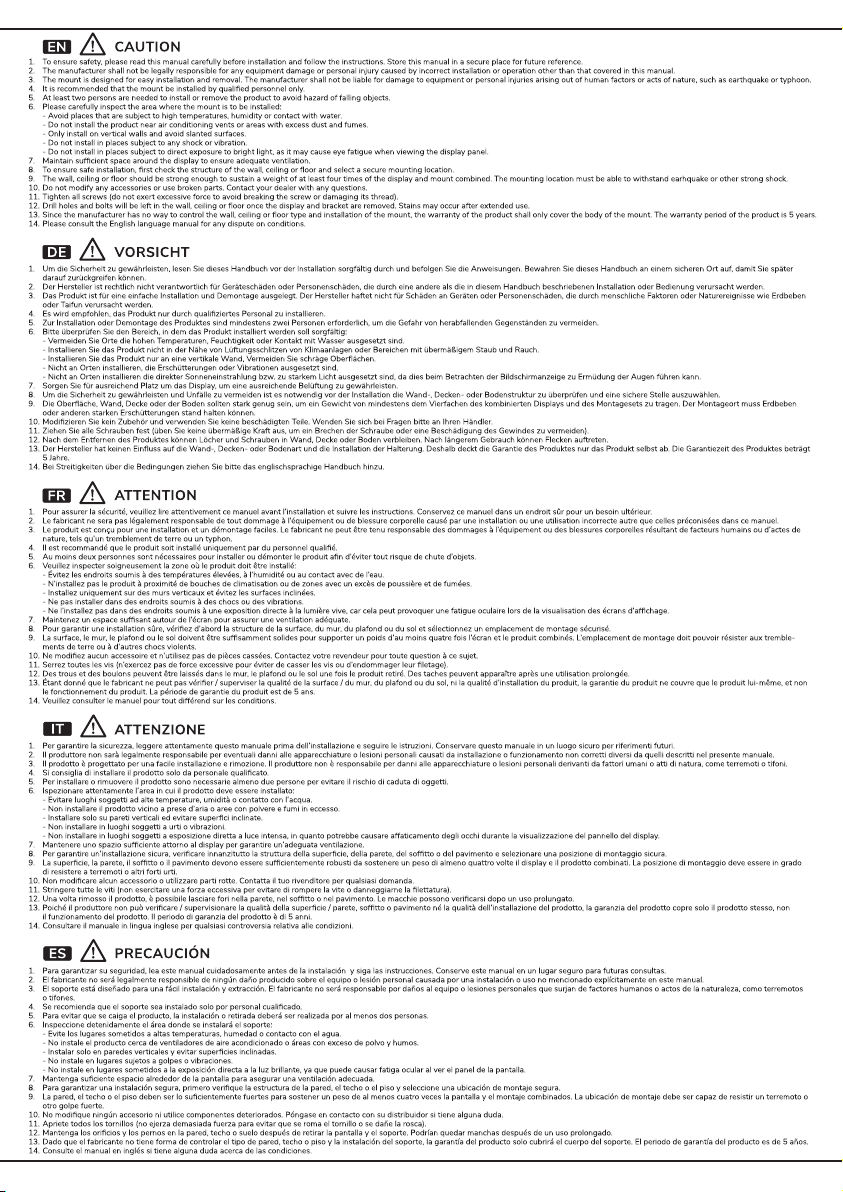

INSTRUCTION MANUAL

WWW.NEOMOUNTS.COM

FPMA-D700DDV

Monitor desk stand

Monitor bureausteun

Monitor Tischständer

Support moniteur de bureau

Supporto da scrivania per monitor

Soporte de escritorio para monitor

Suporte de mesa com base para

monitor

Bordstander skærm

Bordstativ til skjerm

Skrivbordsstativ för bildskärm

Näytön pöytäteline

Stojak na biurko

Stolní držák monitoru

Stolový stojan na monitor

Stativ de birou pentru monitor

Tool

Pencil Drill Tape measure

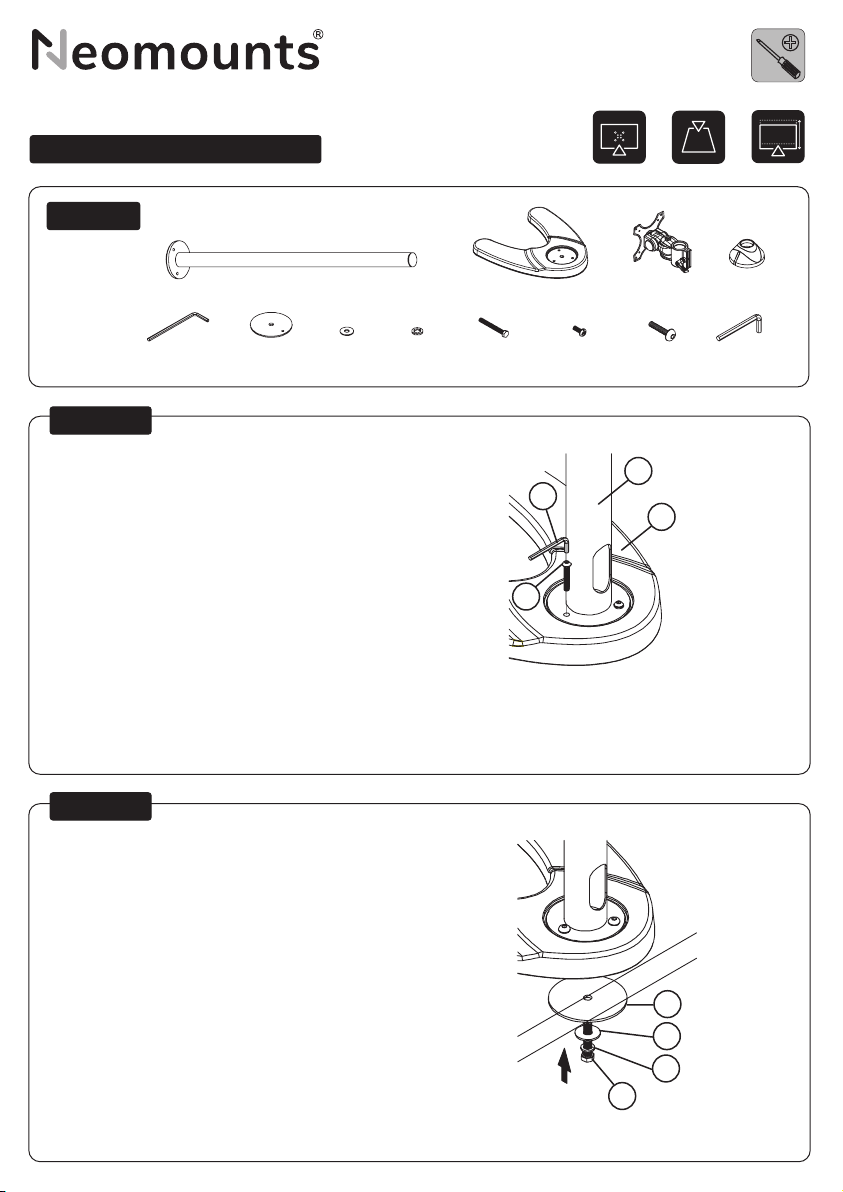

Mount the rod to the base

Bevestig de stang aan de voet

Befestigen Sie die Stange an der Basis

Fixer la tige à la base

Montare l’asta sulla base

Montar la varilla en la base

Montar a vara até à base

Zamontować pręt do podstawy

PARTS

FPMA-D700DDV

STEP 1

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

0-6 kg

(2x)

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

75x75 -

100x100 mm

A. (x1) B. (x1) C. (x2) D. (x1)

E. M6 (x1) F. (x1) G. 3/8″ (x1) H. 3/8″ (x1) I. 3/8″x3″ (x1) J. M4x10 (x8) K. M6x30 (x3) L. M4 (x1)

Desk

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

0-70 cm

Install the grommet through the desk and to the rod

Installeer de doorvoer in het bureau en aan de stang

Montieren Sie die Tülle im Schreibtisch und an der

Stange

Installer l’oeillet dans le bureau et sur la tige

Installare il gommino nella scrivania e sull’asta

Instale el pasacables en el escritorio y en la varilla

Instalar a argola na secretária e na barra

Zamontuj przelotkę w biurku i na drążk

OPTION

Attach the arms to the rod, adjust the height and tighten

Bevestig de armen aan de stang, stel de juiste hoogte in en

draai vast

Befestigen Sie des Arms an der Stange, stellen Sie die Höhe

ein und ziehen Sie ihn fest

Attachez le bras à la tige, réglez la hauteur et serrer

Collegare i bracci all’asta, regolare l’altezza e serrare

Fe los brazos a la varilla, ajuste la altura y apriete

Fixar os braços à haste, ajustar a altura e apertar

Przymocuj ramiona do drążka, wyreguluj wysokość i dokręć

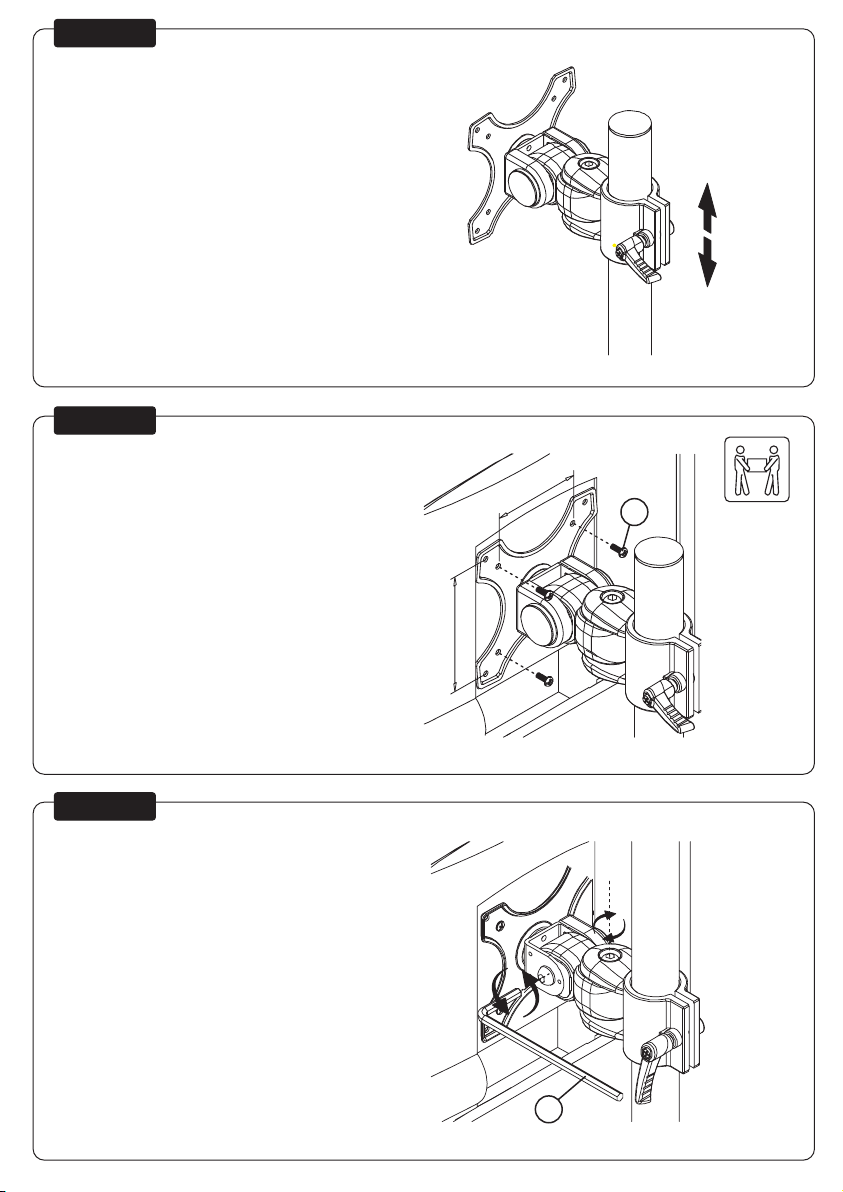

Attach the screens to the brackets and secure them

Bevestig de schermen op de beugels en zet vast

Befestigen Sie die Bildschirme an den Halterungen

und sichern Sie sie

Fixer les écrans aux supports et les sécuriser

Fissare gli schermi alle staffe e ssarli

Coloque las pantallas en los soportes y felas

Fixar os ecrãs nos suportes e xá-los

Przymocuj ekrany do wsporników i zabezpiecz je

Adjust the torque

Stel het koppel in

Einstellen des Drehmoments

Réglage du couple

Regolazione della coppia

Ajuste el tornillo

Ajustar os parafusos

Regulacja momentu obrotowego

STEP 2

STEP 3

STEP 4

75 mm

100 mm

24.02
