NCXX UX302NC User manual
1
UX302NC
User’s Manual
2
1 About WIRELESS USB MODEM
WIRELESS USB MODEM is a kind of online device which designed for the user who
may use mobile internet to get online, and the user may access to the internet at
anywhere and anytime.
2 Installation
Before installation, Please close the antivirus and security software.
To Insert (U)SIM Card
1. Unfold the protecting cover of the product;
2. Pull out the (U)SIM card socket;
3. Insert the (U)SIM card into the socket (the golden contact side is downward )
according to the direction indicated in the sketch, and confirm the (U)SIM card is
inserted completely.
3

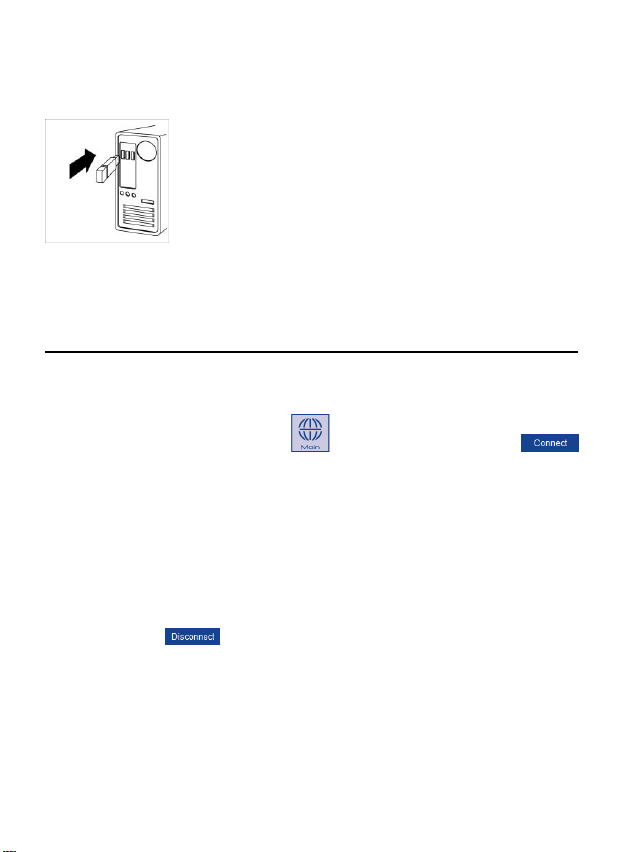

Connect the Computer and the WIRELESS USB MODEM
1. Insert MODEM device into the USB socket of the computer;
2. After correctly inserted, the installation procedure will
automatically operate; if installation procedure can not pop up
automatically, please open My Computer--- MODEM Disk and
then double click Modem_installation.exe to start installation.
Moreover, in the course of installation, please do not disconnect
the device;
3. After installation, restart the computer and click Run Icon to operate the procedure.
4. Users have to use the connection to USB interfaces with USB 2.0 version or higher.
3 Connect to the Internet
Set Up Connection
1. Click the button in the main window open network interface, click
connect to the network.
2. If connection fails, please check APN setting. (Reference help file of customize the
Internet Connection Configuration section).
Disconnection
Click the button of in main window to disconnect the network.
4
4 Indicating Light
Status of Indicating Light
Description
Colour Flashing Cycle
Searching Network
Red Slow Flashing
Abnormal of (U)SIM card or no
network
Luminous continuously
Data transmission
Green
HSPA
Blue
UMTS
Purple
EDGE
Yellow
GPRS
5 Notes
1. If SMS sending fails, please confirm whether the number of SMS Center is correct or
not.
2. If do not receive the SMS, please check whether the storage space of (U)SIM card is
full or not.
3. The device will be brought about normal heat phenomena if used under the long-time
working environment, weak signal or higher room temperature conditions, however, it
does not affect the use and life of the device.
4. Please avoid contacting with the skin directly for a long time.
5. The device could be used with a separation distance of 0.5cm to the human body.
6. Please make sure the temperature for device will not be higher than 55 ˚C
5
Assessment of compliance of the product with the requirements relating to the Radio
and Telecommunication Terminal Equipment Directive (EC Directive 1999/5/EC)
was performed by PHOENIX TESTLAB (Notified Body No.0700)
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
6
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves. This
device is designed and manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
Government. The exposure standard for wireless device employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is
1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by
the FCC with the device transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified power level,
the actual SAR level of the device while operating can be well below the maximum
value. This is because the device is designed to operate at multiple power levels so as to
use only the poser required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output. SAR compliance has been
established in the host product(s) (laptop computers), tested at 5mm separation distance
to the human body, and tested with USB slot configurations including Horizontal-UP,
Horizontal-Down, Vertical-Front, Vertical-Back. This device can be used in host
product(s) with substantially similar physical dimensions, construction, and electrical
and RF characteristics. The highest SAR value, tested per FCC RF exposure guidelines
7
for USB dongle, as described in this user guide, is 1.19 W/kg. The FCC has granted an
Equipment Authorization for this device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR information on this device is on
file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: SLKUX302NC
6 Remark
For MAC OS or more detailed information of the product, please click <Help> file of
the Setting Menu under the main window.
