Napoleon GLVF18N User manual

W415-0530 / 12.14.05

INSTALLATION AND

OPERATION INSTRUCTIONS

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada •(705)721-1212 •fax(705)722-6031

www.napoleonfireplaces.com •[email protected]

INSTALLER: THESE INSTRUCTIONS MUST BE CONVEYED TO AND REMAIN WITH THE HOMEOWNER.

CERTIFIED UNDER: ANSI Z21.11.2B-2004 GAS FIRED ROOM HEATER : VOLUME II, UNVENTED ROOM HEATERS AND

ANSI Z21.60-2002 / CSA 2.26-2002 DECORATIVE GAS APPLIANCES FOR INSTALLATION IN SOLID-FUEL BURNING APPLIANCES

WARNING

If the information in this manual is

not followed exactly, a fire or

explosion may result causing property

damage, personal injury or loss of

life.

Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

•Do not touch any electrical

switch; do not use any phone in

your building.

•Immediately call the gas supplier

from a neighbour's phone. Follow

the gas supplier's instructions.

•If you cannot reach your gas

supplier, call the fire department.

Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

If this unit is used as an unvented

gas-fired heater, it uses air (oxygen)

from the room in which it is installed.

Provisions for adequate combustion

and ventilation air must be provided.

Refer to "Installing in an unvented

application" section in this manual.

IMPORTANT: Read these instructions

carefully before trying to operate this

vent-free gas heater.

GVFL24N

NATURAL GAS

GVFL24P

PROPANE

GVFL30N

NATURAL GAS

GVFL30P

PROPANE

GVFL18N

NATURAL GAS

GVFL18P

PROPANE

These log sets can be installed in vented or unvented applications. See installation details for the particular application that applies.

W415-0530 / 12.14.05

TABLE OF CONTENTS

• Due to high temperatures, the appliance should be

located out of traffic and away from furniture and

draperies.

• Children and adults should be alerted to the

hazard of high surface temperatures and should

stay away to avoid burns or clothing ignition.

• Young children should be carefully supervised when

they are in the same room with the appliance.

• Do not place clothing or other flammable material

on or near the appliance.

• Any safety screen or guard removed for servicing

an appliance must be replaced prior to operating

the heater.

• Installation and repair should be done by a quali-

fied service person. The appliance should be in-

spected before use and at least annually by a pro-

fessional service person. More frequent cleaning

may be required due to excessive lint from carpet-

ing, bedding material, etc. It is imperative that con-

trol compartments, burners and circulating air pas-

sageways of the appliance be kept clean.

• Any change to this heater or it’s controls can be

dangerous.

• The fireplace and gas logs function as a system. If

the fireplace is not drafting properly and spilling into

the room (check with a match or a smoke stick),

reposition the damper clamp until a positive draft

is obtained by opening the damper. If negative

pressure in home prevents having a positive draft,

consult an air quality specialist.

• The gas log heater must be secured to the

fireplace floor to ensure that the position is

not changed while adjusting the controls.

• Sooting and an improper burn may result

from shifting of the gas logs by moving the

unit. A gas leak could be caused by moving

the grate.

• If you are installing the unit into a sunken

fireplace, you must raise the fireplace floor

to allow access to the gas log controls.

Raising the floor ensures adequate air flow

and guards against sooting. The fireplace

floor must be raised using noncombustible

materials.

• This appliance is for installation only in a

solid-fuel burning masonary or UL 127

factory-built fireplace or in a listed ventless

firebox enclosure. It has been design

certified for these installations. Exception:

DO NOT install this appliance in a factory-

built fireplace that includes instructions

stating it has not been tested or should not

be used with unvented gas logs.

• This appliance is only for use with the type

of gas indicated on the rating plate. This

appliance is not convertible for use with

other gases.

• A fireplace screen must be in place when

the appliance is operating and, unless other

provisions for combustion air are provided,

the screen shall have an opening for

introduction of combustion air.

• Any glass doors shall be completely opened

when the appliance is in operation.

• State or local codes may only allow operation

of this appliance in a vented configuration.

Check your state or local codes.

• Do not use a blower insert, heat exchanger

insert or any other accessory not approved

for use with this appliance.

2 Warnings

3 Warranty

4-5 General Instructions

General Information

Maintenance and Cleaning

Air Shutter

Minimum Fireplace Size

Andiron and Grate Assembly

Gas Piping

6-7 Installing In An Unvented Application

Combustion and Ventilation

Determining Confined or Unconfined

Space

7 Installing In A Vented Application

Damper Stop Installation

8-9 Operating / Maintenance

Operating Instructions

Lighting Instructions

ODS Pilot Cleaning

Match Lighting Instructions

10 Log Placement

Logo Placement

11 Finishing

Rating Plate

12 Replacement Parts

Accessories

WARNINGS

PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE

W415-0530 / 12.14.05

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO

9001:2000 Quality Assurance Certificate.

NAPOLEON products are designed with superior components and materials, assembled by trained crafts-

men who take great pride in their work. Once assembled the complete log set is thoroughly inspected by a

qualified technician before packaging to ensure that you, the customer, receive the quality product that you

expect from NAPOLEON.

ALL SPECIFICATIONS AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE DUE TO ON-GOING

PRODUCT IMPROVEMENTS. NAPOLEON® IS A REGISTERED TRADEMARK OF WOLF STEEL LTD. PATENTS

U.S. 5.303.693.801 - CAN. 2.073.411, 2.082.915. © WOLF STEEL LTD.

NAPOLEON GAS LOG SET LIMITED WARRANTY

ThePhazer™logs inyournewNapoleongaslogsetarewarranted againstdefects foras longasyouownthe

appliance.

Electrical (millivolt) components, burner and wearable parts such as the gas valve, thermal switch, switches,

wiring, remote control, ignitor, gasketing, and pilot assembly are covered and NAPOLEON will provide

replacement parts free of charge during the first year of the limited warranty.

CONDITIONS AND LIMITATIONS

NAPOLEON warrants its products against manufacturing defects to the original purchaser only -- i.e., the individual

or legal entity (registered customer) whose name appears on the warranty registration card filed with NAPOLEON

-- provided that the purchase was made through an authorized NAPOLEON dealer and is subject to the following

conditions and limitations:

This factory warranty is nontransferable and may not be extended whatsoever by any of our representatives.

Installation must be done in accordance with the installation instructions included with the product and all local and

national building and fire codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse

or neglect and parts installed from other manufacturers will nullify this warranty.

This limited warranty further does not cover any scratches, dents, corrosion or discolouring caused by excessive

heat, abrasive and chemical cleaners, mechanical breakage of PHAZER™ logs and embers.

In the first year only, this warranty extends to the repair or replacement of warranted parts which are defective in

material or workmanship provided that the product has been operated in accordance with the operation instructions

and under normal conditions.

Napoleon will not be responsible for installation, labour or any other expenses related to the reinstallation of a war-

ranted part and such expenses are not covered by this warranty.

Notwithstanding any provisions contained in this Limited Warranty, NAPOLEON’S responsibility under this warranty

is defined as above and it shall not in any event extend to any incidental, consequential or indirect damages.

This warranty defines the obligations and liability of NAPOLEON with respect to the NAPOLEON gas logs and any

other warranties expressed or implied with respect to this product, its components or accessories are excluded.

Napoleon neither assumes, nor authorizes any third party to assume, on it's behalf, any other liabilities with respect

to the sale of the product.

Any damages to burner and logs or other components due to water, weather damage, long periods of dampness,

condensation, damaging chemicals or cleaners will not be the responsibility of NAPOLEON.

The bill of sale or copy will be required together with a serial number and a model number when making any warranty

claims from your authorized dealer. The warranty registration card must be returned within fourteen days to register

the warranty.

NAPOLEON reserves the right to have its representative inspect any product or part thereof prior to honouring any

warranty claim.

W415-0530 / 12.14.05

Do not use this gas log set if any part has been under

water.

Call a qualified service technician to inspect the appliance

before operating.

Thoroughly clean the chimney, flue and fireplace before in-

stalling this appliance into it.

Do not burn solid fuels in any fireplace that is equipped with

this gas log set.

The installation of this appliance must conform with local

codes or in the absence of local codes, it must conform to

ANSI Z.223.1 or the CAN/CGA B149.

Do not operate appliance in the presence of gasoline or other

flammable liquids and vapours. Keep area clear of other

combustible materials.

Any guard or safety screen removed for servicing must be

replaced before the appliance is operated.

The appliance and its shut off must be disconnected from

the gas supply piping system before any pressure testing of

the system is done.

Installation practices vary from region to region and it is im-

portant to know the specifics that apply to your area,

for example: in Massachusetts State:

• The appliance off valve must be a “T” handle gas cock.

• The flexible connector must not be longer than 36 inches.

• The appliance is not approved for installation in a bedroom or

bathroom unless the unit is a direct vent sealed combustion

product.

• WARNING: This product must be installed by a licensed

plumber or gas fitter when installed within the commonwealth

of Massachusetts.

• Un-vented room heater shall be installed in accordance with

527 CMR 30.00 and 248 CMR 3.00 through 7.00.

• Sellers of un-vented propane or natural gas-fired space/room

heaters shall provide to each purchaser a copy of 527 CMR

30.00 upon the sale of the unit from

http://www.napoleonfireplaces.com/Webshare/i

nstallation_manuals/mass_requirements.pdf

• A carbon monoxide detector is required in all rooms containing

gas fired appliances.

Always shut off the appliance, gas to the appliance and

allow the appliance to cool before servicing it.

Visually inspect the appliance for carbon buildup.

Using a small whisk or brush, brush off the excess carbon

and vacuum up or sweep into the garbage.

Check the appliance for broken logs and corrosion of the

main burner base.

MAINTENANCE & CLEANING

GENERAL INSTRUCTIONS

FOR YOUR SATISFACTION, THIS FIREPLACE HAS BEEN

TEST-FIRED TO ASSURE ITS OPERATION AND QUAL-

ITY! Maximum input is 40,000 BTU/hr for natural gas and

propane.

Minimum inlet gas supply pressure is 4.5 inches water col-

umn for natural gas and 11 inches water column for pro-

pane. Maximum inlet gas pressure is 7 inches water column

for natural gas and 13 inches water column for propane.

Manifold pressure under flow conditions is 3.5 inches water

column for natural gas and 10 inches water column for pro-

pane.

No external electricity (110 volts or 24 volts) is required

for the gas system operation.

This heater is equipped with a pilot light safety

system referred to as an OXYGEN DEPLETION

SENSOR and is designed to turn off the heater

if not enough fresh air is available.

Use only accessories designed for and

listed with your specific fireplace.

Not designed for use with a glass door.

Screen must be closed when appliance is

in operation.

GENERAL INFORMATION

CARBON MONOXIDE POISONING

MAY LEAD TO DEATH

Early signs of carbon monoxide poisoning re-

semble the flu, with headache, dizziness and/

or nausea. If you have these signs, the heater

may not be working properly. Get fresh air at

once! Have heater serviced.

Some people---pregnant women, persons with

heart or lung disease, anaemia, those under

the influence of alcohol, those at high altitudes-

-- are more affected by carbon monoxide than

others.

W415-0530 / 12.14.05

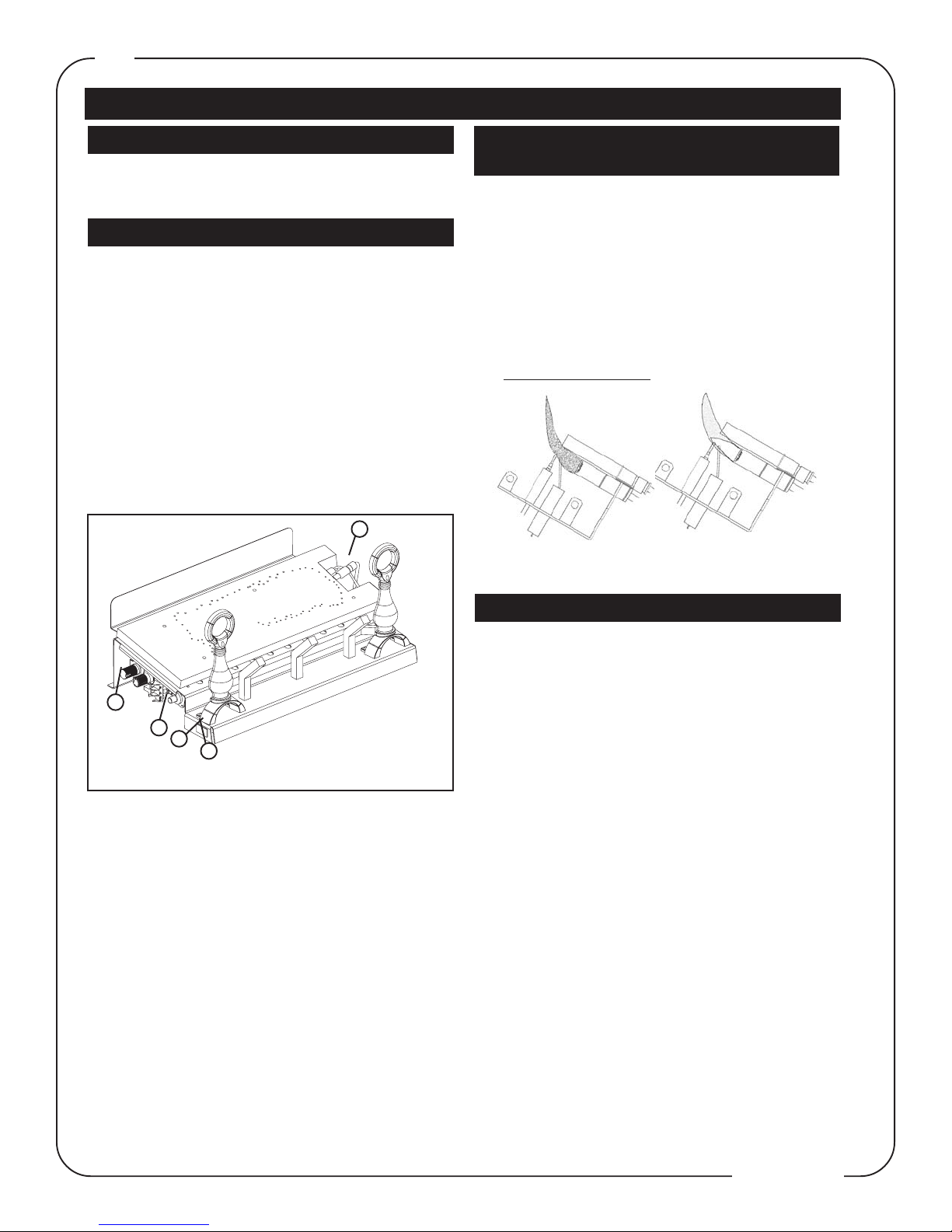

1. With the 2 andirons laying face down,

secure the grate overtop using 2x ¼-20

bolts (supplied in the manual baggie).

2. Install the grate/andiron assembly to the

burner base using 4x ¾” self tapping screws

(supplied in the manual baggie).

ANDIRON & GRATE ASSEMBLY

Use only accesso-

ries designed for and

listed with your

specific log set.

AIR SHUTTER

TESGOL RETTUHSRIA

LEUF GN PL

81LFVG

42LFVG

03LFVG

The air shutter settings are factory set for most installations.

However, adjustment may be required depending on fuel

type, vent performance and altitude.

Closing the air shutter will cause a more yellow flame, but

can lead to carboning. Opening the air shutter will cause a

more blue flame, but can cause flame lifting from the burner

ports. The flame may not appear yellow immediately; allow

15 to 30 minutes for the final flame colour to be established.

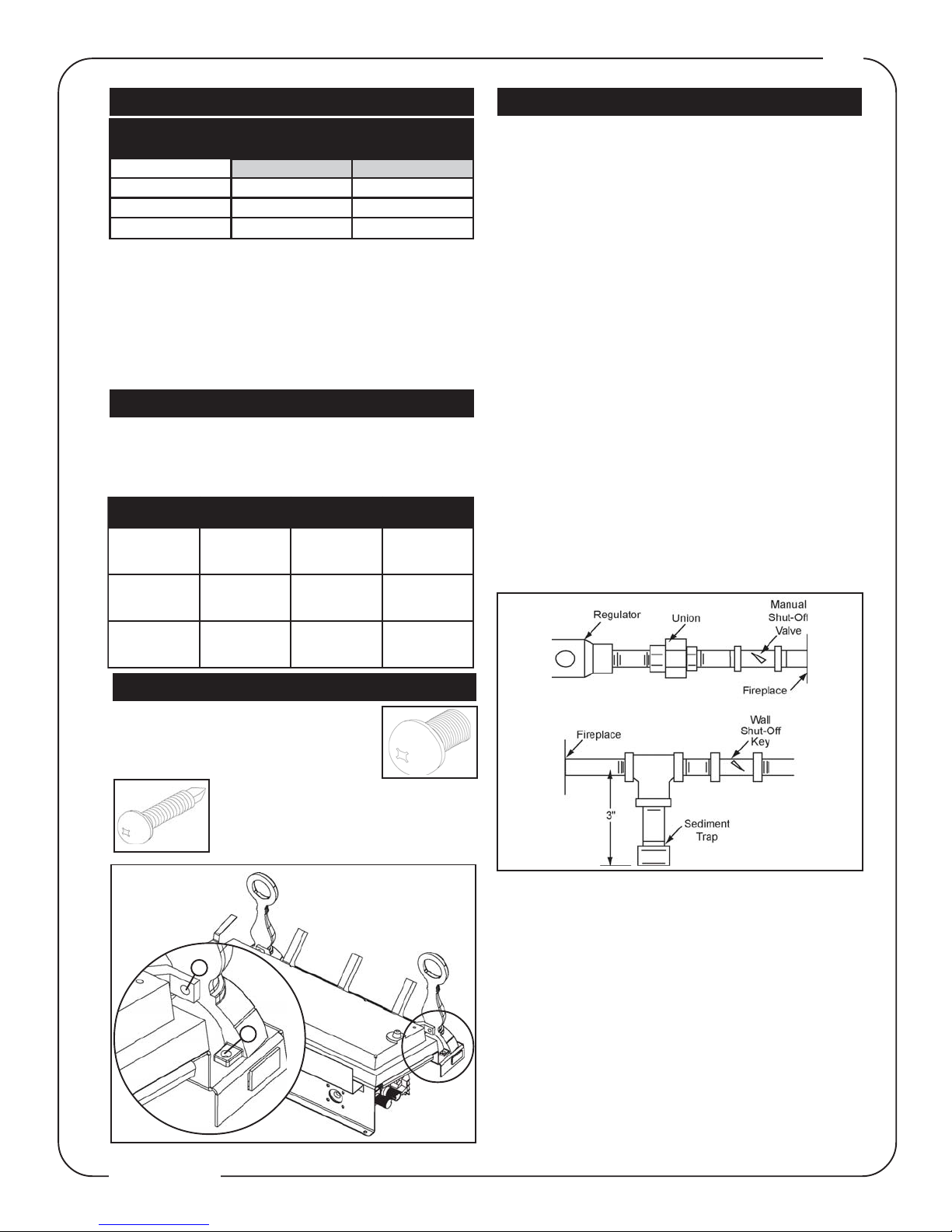

MINIMUM FIREPLACE SIZE

TESGOL THGIEH HTDIW HTPED

"81

81LFVG "81"22"41

"42

42LFVG "02"82"61

"03

03LFVG "22"43"02

Each gas log set must be installed into a fireplace cavity

with a minimum size.

Refer to the table below to determine the appropriate mini-

mum fireplace size.

This appliance must be isolated from the gas supply pip-

ing system by closing the individual manual shut off valve

during any pressure testing of the gas supply piping sys-

tem at test pressure equal to or less than ½ psi (3.5 kPa)

1. Centre the appliance in the fireplace opening, making

sure the appliance has enough room behind it for the gas

line to run behind the log set under the log support.

2. Route the gas line and sizing using piping ½” diameter

or greater to allow the full volume of gas to the appliance.

The routing of the gas line has to be done to local and / or

national codes.

3. When rigid pipe is used an ANSI approved manual shut

off and a union must be installed upstream within the fire-

place cavity.

4. To ensure the appliance operates reliably install a sedi-

ment trap upstream of the appliance within the structures of

the piping system.

5. When using propane, a regulator must be used between

the tank and the outside wall of the house to ensure the line

pressure does not exceed 14” w.c.

6. Check gas connections with a gas detection device to

test for leaks in the system. Soapy water mixture can also

be used to check for leaks.

7. Once all the gas connections are tested for leaks, start

the appliance. Follow the lighting instructions to ensure

the appliance is working properly before finishing.

GAS PIPING

W415-0530 / 12.14.05

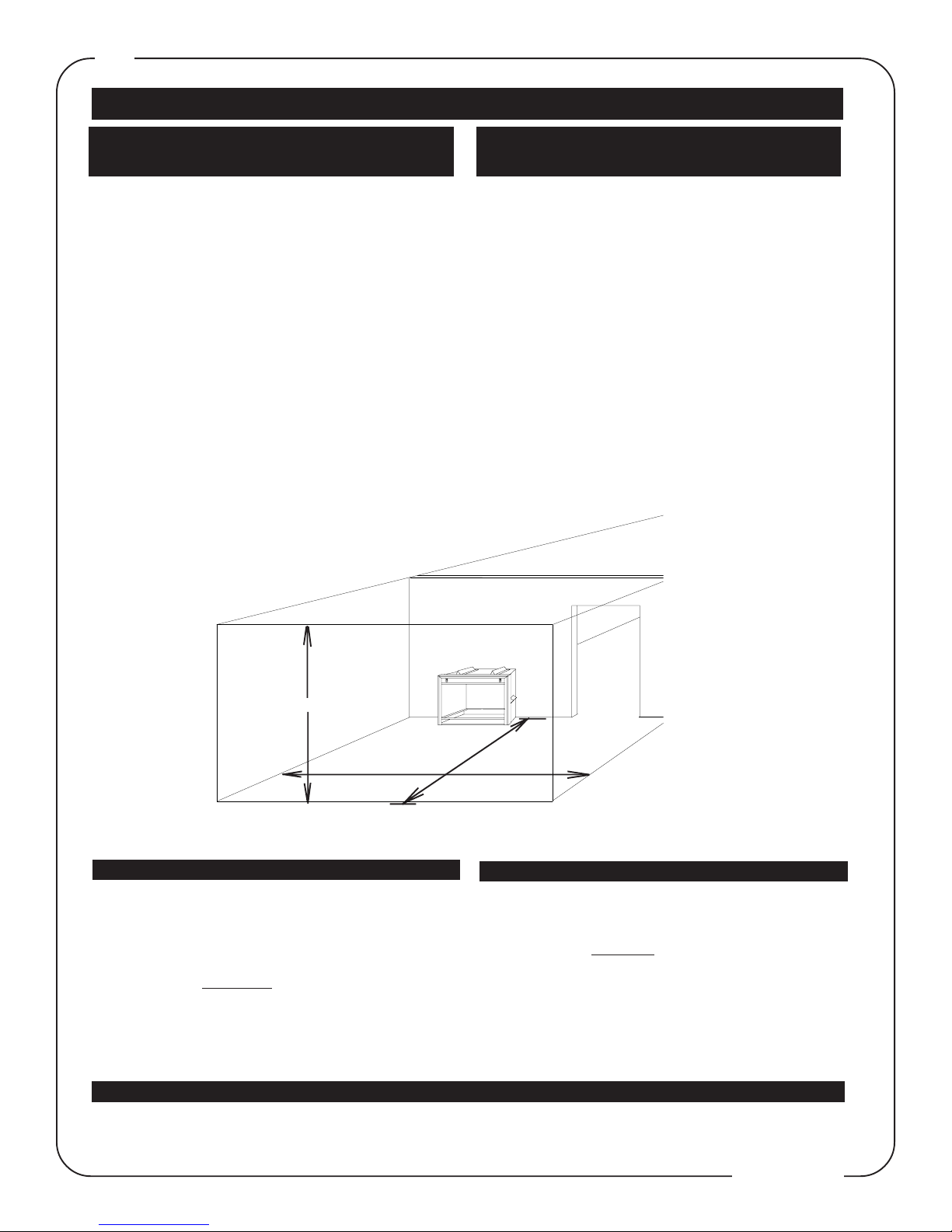

INSTALLING IN AN UNVENTED APPLICATION

This heater shall not be installed in a confined space or

unusually tight construction unless provisions are pro-

vided for adequate combustion and ventilation air.

In order to avoid the possibility of exposed insulation or

vapour barrier coming in contact with the fireplace body,

it is recommended that the walls of the fireplace enclo-

sure be 'finished', (i.e. drywall/sheetrock) as would any

other outside wall of the home. This will ensure that

clearance to combustibles is maintained within the cav-

ity.

The National Fuel Gas Code, ANSI Z223.1 defines a con-

fined space as a space whose volume is less than 50 cubic

feet per 1,000 Btu per hour (4.8 m3 per kW) of the aggregate

input rating of all appliances installed in that space and an

unconfined space as a space whose volume is not less than

50 cubic feet per 1,000 Btu per hour (4.8 m3 per kW) of the

aggregate input rating of all appliances installed in that space.

Rooms communicating directly with the space in which the

appliances are installed, through openings not furnished with

doors are considered a part of the unconfined space.

The GVFL18/24/30 are all rated at 40,000BTUs

per hour and therefore requires a minimum

unconfined space of 2,000 cubic feet.

To determine the volume of the room where the heater is to

be installed, multiply the width x the length x the ceiling height

of that room measured in feet. If any adjoining rooms are

connected by grills or openings such as kitchen pass-

throughs, etc., the volume of those rooms may be added to

the total.

Multiply the room volume by 1000 and divide this amount by

50 to determine the maximum Btu/hr that the space can sup-

port with adequate combustion and ventilation air.

Add the Btu/hr of all fuel burning appliances located within

the space such as gas furnace, gas water heater, etc. Do

not include direct vent gas appliances which draw their input

and output air from and to the outdoors.

WARNING: If the area in which the heater may be oper-

ated is smaller than that defined as an unconfined space or

if the building is of unusually tight construction, provide ad-

equate combustion and ventilation air by one of the meth-

ods described in the National Fuel Gas Code ANSI Z223.1,

Section 5.3 or the applicable local code.

figure 1

Room Volume = Length x Width x Height

Max BTU/hr = Room Volume x 1000 ÷ 50

If for example,

the length of the rooms is 10 feet,

the width of Room 1 is 10 feet,

the width of Room 2 is 15 feet

the height of the rooms is 8 feet.

The volume of Room 1: 10 x 10 x 8 = 800 cubic feet.

The volume of Room 2: 10 x 15 x 8 = 1200 cubic feet.

If in this example a solid door separates Room 1 from Room

2, the volume of Room 2 could not be used. In this case the

maximum BTU/h would be:

Maximum BTU/h: 800 x 1000 = 16,000 BTU/h

This would be considered a confined space since it can not

support the 30,000BTU/h input of the heater and it would be

necessary to provide adequate combustion and ventilation

air to Room 1.

In this example, because there is no door to the adjoining

room, the volume of the adjoining room may be added to the

volume of the room with the heater to get a total unconfined

space.

The total unconfined space: 800 + 1200 = 2000 cubic feet.

Maximum BTU/h: 2000 x 1000 = 40,000 BTU/h

If there are no more fuel burning appliances within this space

then the 30,000 BTU/h input of the fireplace is suitable to be

installed. This also assumes that the construction of this

space is not unusually tight.

COMBUSTION & VENTILATION

AIR PROVISIONS

DETERMINING CONFINED OR UNCONFINED

SPACE

EXAMPLE 1 EXAMPLE 2

ROOM 2

ROOM 1

HEIGHT

WIDTH

LENGTH

WARNING

Barriers such as the bottom of a glass door frame placed in front of a gas log set can change the air flow

characteristics of the fireplace which in turn can cause the unit to carbon or overheat and malfunction.

W415-0530 / 12.14.05

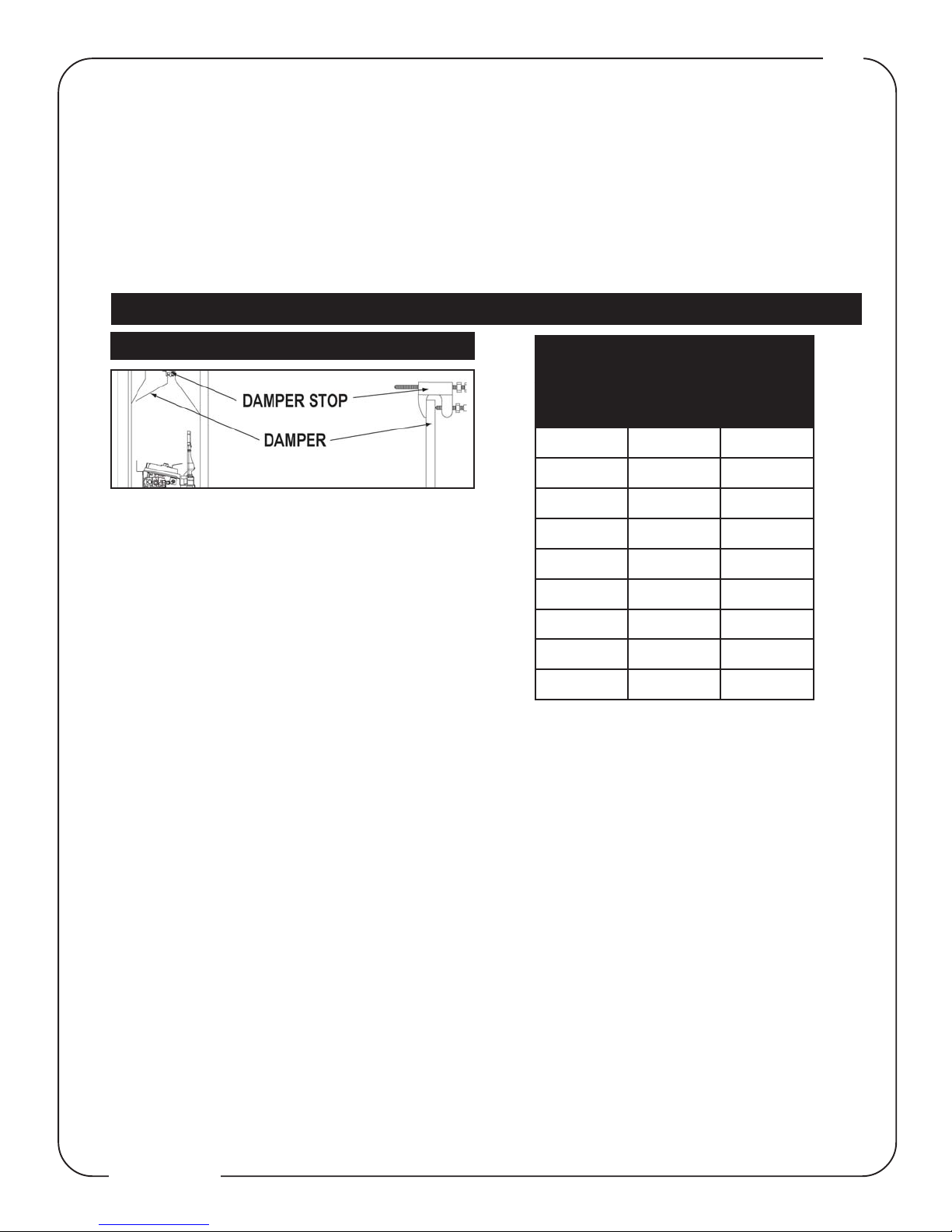

DAMPER STOP INSTALLATION

The damper must be permanately locked in position to

prevent full closure and to provide a minimum flue opening.

Various methods for locking the damper may be used but

may be restricted from region to region and it is important

to know the specifics that apply to your area. For your

convenience a damper stop is provided with the unit and

may be used where not prohibited by state or local codes.

Use the 3” adjustable bolt to adjust the damper to the correct

opening, based on the enclosed chart.

Should the damper stop not fit, or provide the required per-

manent opening from the Minimum Damper Opening ta-

ble, have the damper cut to provide a minimum permanent

opening or install an alternate stop.

GNINEPOREPMADMUMINIM

)sehcnierauqs(

yenmihC

thgieH

yrnosaM

ecalperiF

tliuByrotcaF

ecalperiF

6"8.33

8"2.13

01 "7.82"1.22

51 "1.62"3.71

02 "7.32"5.41

52 "7.22"6.21

03 "6.12"3.11

53 "8.01

04 "2.0

Creosote, ashes and loose paint must be cleaned from

the chimney flue and firebox by a qualified chimney

cleaner, before installing in a solid fuel burning fireplace.

Any outside air ducts and/or ash dumps in the fireplace

shall be permanently closed at time of appliance

installation.

INSTALLING IN A VENTED APPLICATION

Unvented gas heaters are a supplemental zone

heater. They are not intended to be the primary

heating appliance.

Unvented gas heaters emit moisture into the

living area. In most homes of average construc-

tion, this does not pose a problem. In houses of

extremely tight construction, additional me-

chanical ventilation is recommended.

During manufacturing, fabricating and shipping

various components of this appliance are

treated with certain oils, films or bonding

agents.

These materials may produce smoke and smells

as they are burned off during the initial

operation of the appliance; possibly causing

headaches or eye or lung irritation. This is a

normal and temporary occurance. Simply open a

window to ventilate the room during the burn off

period.

W415-0530 / 12.14.05

If heater shuts off, do not relight until you provide

fresh air. If heater keeps shutting off, have it serv-

iced. Keep burner and control compartment clean.

When lit for the first time, the fireplace will emit a slight

odour for a few hours. This is a normal temporary condition

caused by the curing of the logs and the "burn-off" of inter-

nal paints and lubricants used in the manufacturing proc-

ess and will not occur again. Open a window to ventilate

the room during this burn off period.

After extended periods of non-operation such as following

a vacation or a warm weather season, the fireplace may

emit a slight odour for a few hours. This is caused by dust

particles burning off. In both cases, open a window to suffi-

ciently ventilate the room.

Purge the gas line with the glass door open. Assure that

a continuous gas flow is at the burner before closing

the door.

CORRECT PILOT

FLAME

INCORRECT PILOT

FLAME

figures 32

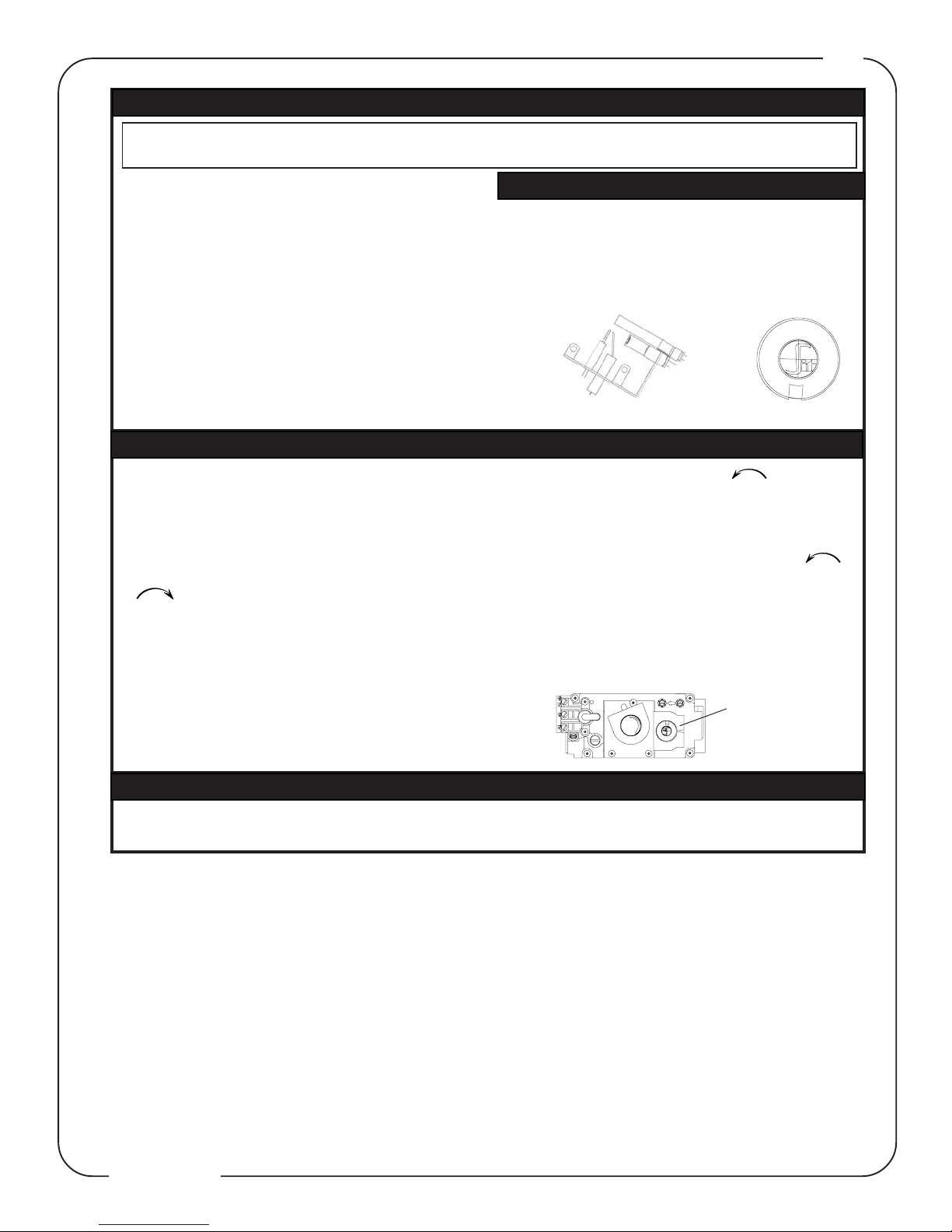

MATCH LIGHTING INSTRUCTIONS

1. Remove any items necessary for easy access to the

pilot (for example: logs, screens, etc.).

2. Follow appropriate lighting instructions found previously.

Instead of pushing and releasing the piezo button, light

a match and hold the flame to the end of the pilot and

ignite the pilot.

3. After control knob has been released and pilot stays lit,

reinstall any items that were removed for pilot access.

4. Call a qualified service technician for repair or replace-

ment of the piezo ignitor.

LIGHTING INSTRUCTIONS

OPERATING INSTRUCTIONS

IF THE FIREPLACE IS EQUIPPED WITH DECORATIVE GLASS

DOORS, THEY MUST BE FULLY OPENED WHEN OPERATING

THIS GAS LOG SET.

OXYGEN DEPLETION SENSOR PILOT

CLEANING

This procedure must be performed by a qualified

service person!

Inspect the pilot for any visible contamination or debris (usu-

ally lint, pet hair, spider webs, carpet fibre, etc.) and remove.

Disconnect the pilot from the pilot tubing line. Using a

”

wrench, remove the injector from the pilot housing. Blow out

the housing in the same direction as the gas flow.

Re-install the injector and the pilot tube, turn on the gas and

check for leaks.

If this does not improve the performance, replace the pilot

with an exact replacement. The device is tamper resistant

with no field serviceable parts.

1. Locate the pilot burner at the rear of the log set on the

right side.

2. Turn the gas control knob to the pilot setting (on the left

side of the appliance closest to the back).

3. With the control knob depressed, push the piezo igniter

continuously until the pilot lights.

Hold the control knob in for 1 minute and release.

If the pilot goes out, repeat steps 2 and 3.

4. Once the pilot stays burning, make certain that the on / off

switch is in the off position. Turn the control knob counter-

clockwise to the on position.

5. Turn the on / off switch to the on position to ignite the

burner.

OPERATION / MAINTENANCE

W415-0530 / 12.14.05

When lighting and re-lighting, the gas knob cannot be

turned from pilot to off unless the knob is depressed.

1. STOP! Read the above safety information on this la-

bel.

2. Set the thermostat to lowest setting.

3. Turn off all electric power to the fireplace.

4. Open the control door. Turn the gas knob clockwise

to off.

5. Wait five (5) minutes to clear out any gas. If you smell

gas including near the floor, STOP! Follow "B" in the

above safety information on this label. If you don't smell

gas go to the next step.

6. Find pilot located in front of the back log.

A. This fireplace is equipped with a pilot which must be lit

by hand while following these instructions exactly.

B. Before operating smell all around the fireplace area for

gas and next to the floor because some gas is heavier

than air and will settle on the floor.

C. Use only your hand to push in and turn the gas control

knob. Never use tools. If the knob will not push in and

turn by hand, do not try to repair it. Call a qualified serv-

ice technician. Force or attempted repair may result in a

fire or explosion.

D. Do not use this fireplace if any part has been under water.

Immediately call a qualified service technician to inspect

the fireplace and replace any part of the control system

and any gas control which has been under water.

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone

in your building.

• Immediately call your gas supplier from a neighbour's

phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire depart-

ment.

WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION

MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

gas knob

oxygen depletion sensor

7. Turn gas knob counter-clockwise to pilot.

8. Depress and hold gas knob while lighting the pilot

with the push button igniter. Keep knob fully depressed

for one minute, then release. If pilot does not continue

to burn repeat steps 3 through 7.

9. With pilot lit, turn gas knob counter-clockwise to

on. When the pilot has been turned off, ignition of the

main burner may be delayed from 1-2 minutes.

When the pilot has been left burning, ignition of the main

burner should occur almost immediatley.

10. If equipped with remote on-off switch, main burner may

not come on when you turn the valve to on. Remote

switch must be in the on position to ignite burner.

11. Turn on all electric power to the fireplace.

1. Turn off all electric power to the fireplace if service is to

be performed.

2. Push in gas control knob slightly and turn clock-

GAS KNOB AT OFF

FOR YOUR SAFETY READ BEFORE LIGHTING:

LIGHTING INSTRUCTIONS

TO TURN OFF GAS

WHAT TO DO IF YOU SMELL GAS:

W415-0530 / 12.14.05

½"

LOGO

½"

LOGO

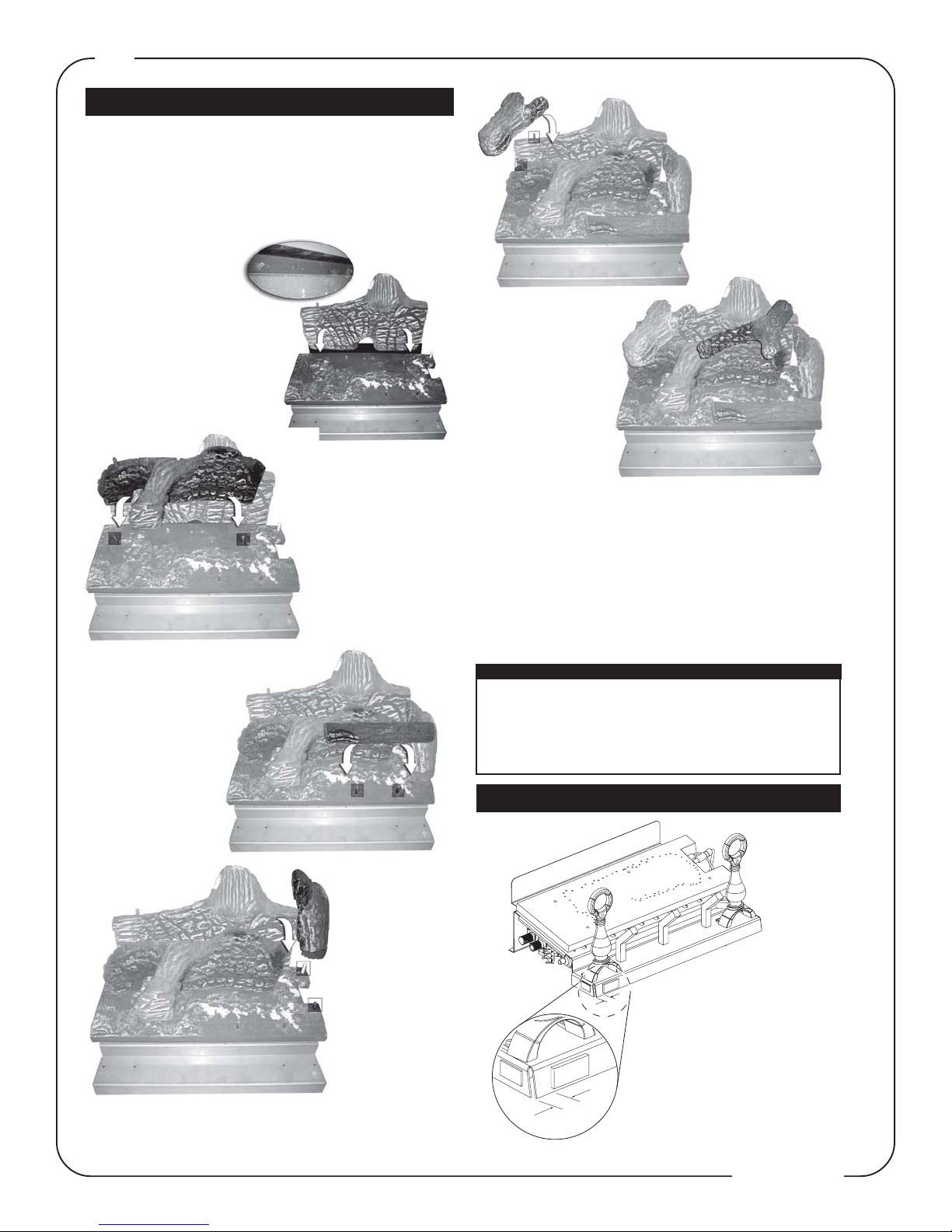

PHAZERTM logs, exclusive to Napoleon Fireplaces, provide

a unique and realistic glowing effect that is different in every

installation. These logs are fuel specific. Do not

interchange. Refer to the replacement parts list.

Failure to follow these log placement instructions may

cause sooting.

1. Place the rear log #1

onto the locating studs

on the rear log support.

2. Position the holes on

the bottom of log #2 onto

the pins shown.

3. Position the holes

on the bottom of log

#3 onto the pins

shown, with the

charred face forward.

4. Position the

holes on the

bottom of log #4

onto the pins

shown, with the

charred face

inward.

5. Position the holes on the

bottom of #5 on the pin on

the left end of log #1 and

the pin on the left end of

log #2.

6. Place the end of log

#6 on the right end

of log #1. The fork in

the log should

straddle the knot on

top of the log

#2. .

Log colours

may vary. During the initial use of the fire-

place, the colours will become more uniform

as colour pigments burn in during the heat

activated curing process.

Positioning the logs improperly will cause flame im-

pingement and carboning.

Blocked burner ports can cause an incorrect flame pattern,

carbon deposits and delayed ignition. PHAZERTM logs glow

when exposed to direct flame. Use only certified PHAZERTM

logs available from your Napoleon dealer.

LOG PLACEMENT

LOGO PLACEMENT

Remove the backing of the

logo supplied. Centre the logo

on the front of the appliance,

½” in from the left side, as

shown.

WARNING

Failure to position the parts in accordance with

these diagrams or failure to use only parts specifi-

cally approved with this heater may result in prop-

erty damage or personal injury.

This manual suits for next models

Table of contents

Other Napoleon Indoor Fireplace manuals

Napoleon

Napoleon GD36NTR User manual

Napoleon

Napoleon NEFE27-0815W User manual

Napoleon

Napoleon BGD36CFNTR User manual

Napoleon

Napoleon Ascent 30 B30NTR-1 User manual

Napoleon

Napoleon GD33NR User manual

Napoleon

Napoleon EF39HD User manual

Napoleon

Napoleon Vittoria GD19-2 User manual

Napoleon

Napoleon BGD40-P Owner's manual

Napoleon

Napoleon Plazmafire 48 User manual

Napoleon

Napoleon Stylus Cara User manual

Napoleon

Napoleon BGD36CFNTR User manual

Napoleon

Napoleon Torch GT8 User manual

Napoleon

Napoleon Ascent BX42 User manual

Napoleon

Napoleon GD 3200-N User manual

Napoleon

Napoleon HDX52NT User manual

Napoleon

Napoleon BL36NTEA-1 User manual

Napoleon

Napoleon Ascent BHD4PNA User manual

Napoleon

Napoleon NEFE27-0815W User manual

Napoleon

Napoleon Roxbury GI3600-4NSB User manual

Napoleon

Napoleon GD34-1NT User manual

Napoleon

Napoleon GDS 50-N User manual

Napoleon

Napoleon STARfire Series User manual

Napoleon

Napoleon 1600C-1 User manual

Napoleon

Napoleon Ascent BLP42NTE User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual

Miles Industries

Miles Industries Vogue 1300IRN Installation & operating instructions
