Napoleon PRPHD4 User manual

X2

1

2

X2

X12

PRPHD4 PORCELAIN REFLECTIVE RADIANT PANEL

INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION

DES PANNEAUX RÉFLECTEURS RADIANTS EN PORCELAINE PRPHD4

YOU WILL NEED:

VOUS AUREZ BESION DE:

34

1 2

:ROI6WHHO/WG1DSROHRQ5G%DUULH21/0*&DQDGD    ID[  ZZZQDSROHRQILUHSODFHVFRP

06.13.13

W325-0078

W325-0078

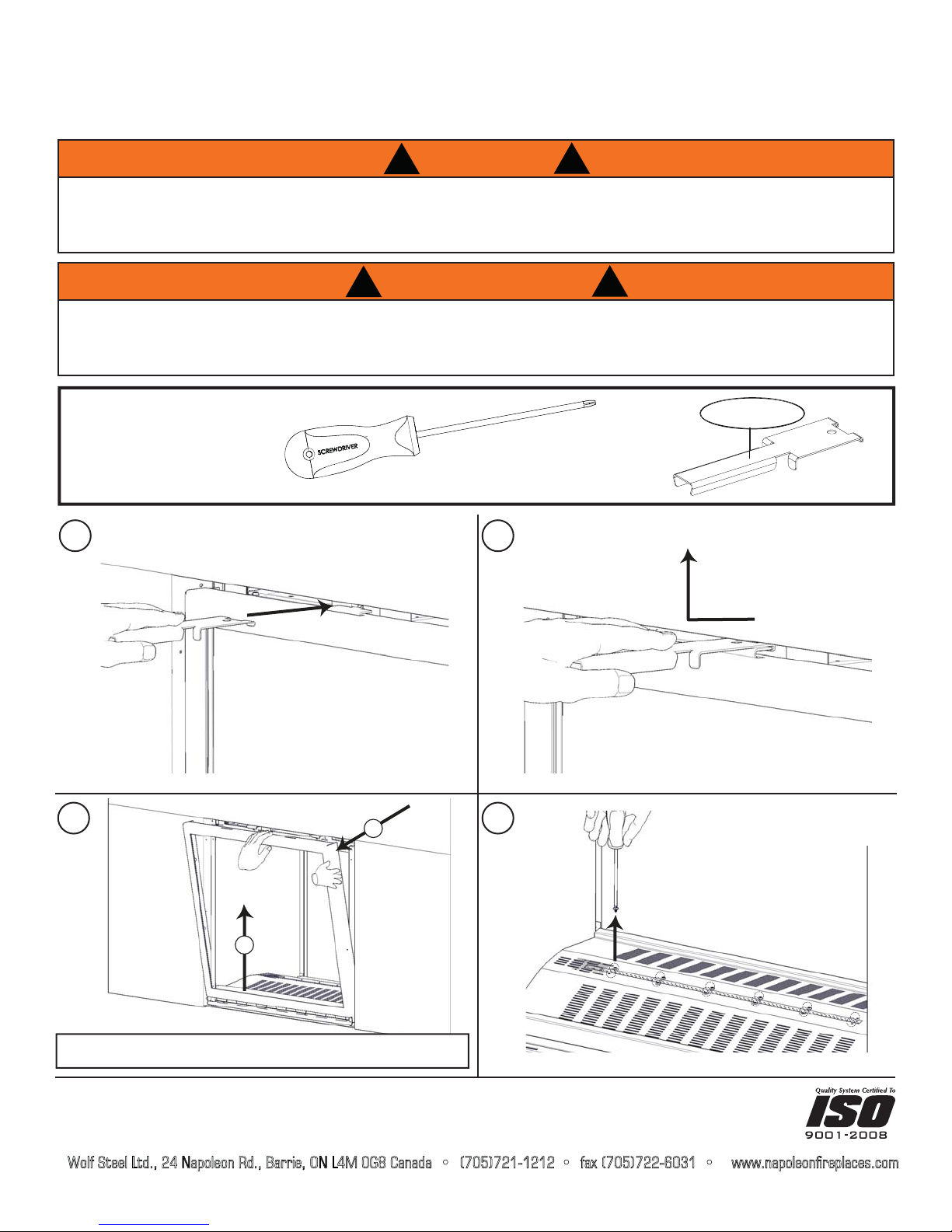

REPEAT DOOR REMOVAL PROCESS ON OPPOSITE SIDE.

RÉPÉTER L’ENLEVEMENT DU PORTE À L’AUTRE CÔTÉ.

PHILLIPS SCREWDRIVER

TOURNEVIS CRUCIFORME

!

!

WARNING

!

AVERTISSEMENT

!

ENSURE THE UNIT IS COMPLETELY COOL BEFORE STARTING INSTALLATION.

TO AVOID DANGER OF SUFFOCATION KEEP THE PACKAGING BAG AWAY FROM BABIES AND

CHILDREN. DO NOT USE IN CRIBS, BED, CARRIAGES OR PLAY PENS. THIS BAG IS NOT A TOY.

KNOT BEFORE THROWING AWAY.

ASSUREZ-VOUS QUE L’APPAREIL EST COMPLÈTEMENT REFROIDI AVANT DE COMMENCER L’INSTALLATION.

AFIN D’ÉVITER LES RISQUES DE SUFFOCATION, GARDEZ LE SAC D’EMBALLAGE LOIN DES BÉBÉS ET DES

JEUNES ENFANTS. NE LE LAISSEZ PAS TRAÎNER DANS LES BERCEAUX, LES LITS, LES POUSSETTES OU

LES PARCS DE JEU. CE SAC N’EST PAS UN JOUET. NOUEZ-LE AVANT DE LE JETER.

X2

X4

X12

2

1

X2

9 10

11

7 8

5 6

:ROI6WHHO/WG1DSROHRQ5G%DUULH21/0*&DQDGD    ID[  ZZZQDSROHRQILUHSODFHVFRP

06.13.13

TO VIEWA VIDEO OF THIS INSTALLATION VISIT OUR WEBSITE AT : www.napoleonﬁreplaces.com/productsupport/HD4/

POUR REGARDER UNE VIDÉO DE CETTE INSTALLATION VISITER NOTRE SITE WEB : www.napoleonﬁreplaces.com/productsupport/HD4/

1

2

REPEAT ON OPPOSITE SIDE, WHEN INSTALLING INTO A SEE-THRU

APPLIANCE, TWO KITSARE REQUIRED.

RÉPÉTER À L’AUTRE CÔTÉ, DEUX ENSEMBLES SONT REQUIS

QUAND VOUS INSTALLEZ DANS UNE APPAREIL BINAIRE.

SECURE THE PANEL USING 4 OF THE SCREWS SUPPLIED, AS

SHOWN BELOW. REPEAT ON OPPOSITE SIDE WHEN INSTALLING

INTO A SEE THRU APPLIANCE.

FIXEZ LE PANNEAU EN UTILISANT 4 VIS FOURNI, COMME ILLUSTRÉE

CI-DESSOUS. RÉPÉTEZ DE L’AUTRE CÔTÉ EN INSTALLANT DANS

UNE APPAREIL BINAIRE.

12
