© 2014 myPhone. All rights reserved. myPhone Iron ENG

USER MANUAL

Tech specification:

•RAM Memory: 1GB

•Dual Core Cortex A9 1.3GHz processor

•3,5” capac t ve touch screen w th 320 x 480 px resolut on

•4GB nternal memory

•1800mAh battery

•Frontal camera resolut on: 0.3 Mpx

•Rear camera resolut on: 2.0 Mpx

•nput and output charger parameters:

-nput: 100-240V AC, 50/60Hz, 200mA

-output: 5V DC, 1000mA

•Netto we ght: 157g, brutto we ght 206g

SIM card inserting

myPhone CUBE is a mobile phone using

Dual SIM technology. Dual SIM allows you to use two mobile

netwo ks at the same time. To inse t the SIM ca d co ectly follow

the inst uctions:

•Tu n off the phone, emove the back cove (unsc ew both bolts

located on back cove ) and pull out the batte y.

•Inse t the SIM ca d into the slot following the pictu es next to

the socket.

MICRO SIM ADAPTERS

Do not install hollow (with no ca d) mic o-SIM ca d adapte in you

sma tphone. This will cause a jam. Attempt to d aw jammed adapte

back f om the slot can cause mechanical damage of the phone. If

SIM ca d adapte deadlocks in the socket, you should contact an

autho ized myPhone se vice!

Memory card inserting

Use only memo y ca ds compatybile and app oved by myPhone.

Incompatible memo y ca d may damage itself and the device and

emove sto ed data. Incompatibility of memo y ca d can be caused

by inco ect ca d fo mat (mic o SD fo mat is equi ed) o

unsuppo ted ca d size (ove 32GB). To inse t the memo y ca d

co ectly follow the di ections:

•Tu n off the phone and take off the back cove (unsc ew both

bolts located on back cove ).

•The memo y ca d slot is located above the SIM slot on the

ight. Following the d awing inse t the memo y ca d into the

slot.

Battery inserting

To inse t the batte y:

•Tu n the phone back cove up.

•Take off the back cove (unsc ew both bolts located on back

cove ).

•Inse t the batte y (pay attention to the co ect o ientation of the

batte y contacts and phone contacts – these should be

adjacent to each othe ).

•Replace the back cove and tighten both sc ews.

Battery charging

The batte y should be cha ged p io to the fi st tu ning on the

device. Cha ge the batte y with the kit cha ge . The device has a

batte y capacity of 1800mAh. In case of any p oblems with the

batte y - the device must be p ovided to myPhone se vice cente .

Use only cha ge s and cables app oved by myPhone. Using

unapp oved cha ge s o cables could cause an explosion o

damage the batte y in othe way.

Phone design

The S M card must be inserted in such a manner as shown

in the figures above and below the S M socket.

Number Symbol Function

1 Touch screen 3,5"

2 Digital camera lens 0,3 Mpx

3 - Proximity and light sensor

4 nternal speaker

5 Microphone

6 Home button

7 Menu button

8 Back button

9 Search button

10 - On/off / keypad lock button

11 - Volume button

12 Multifunctional micro-B USB slot

13 Headphones slot mini jack 3.5mm

14 Digital camera lens 2,0 Mpx

15 LED light

16 External speaker

Turning on/off the phone

To turn on the phone press and hold (for about 3 seconds)the

keypad lock key. To turn the phone off press and hold (for

about 3 seconds) the keypad lock key and select: [Power off].

Indicator icons

con Description

Battery status

Active connection to a Wi-Fi network

New e-mail

New SMS

Network signal strength

Active 3G network

Active 2G network

Missed call

Active call

Held call

The device is connected to a computer

Active Bluetooth mode

Active alarm

Flying mode

Speakerphone

Sound profile set to vibrations

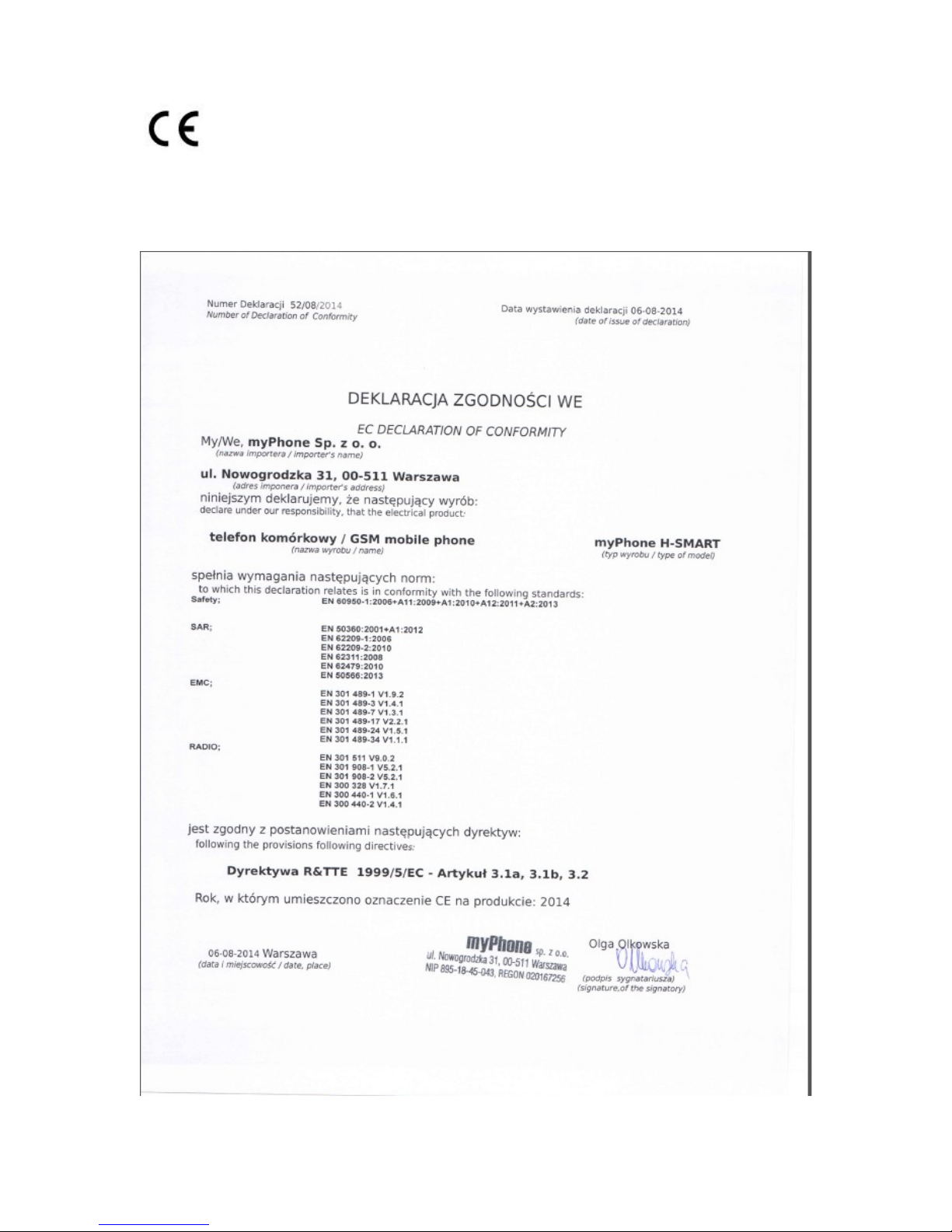

Declaration of conformity with EU Directives

myPhone Sp. z o.o. declares that this product is

compatible with the essential requirements and other

important recommendations of the European Directive

1999/5/EC – and all other EU directives.

Attention: Some of the alerts in your phone may appear in

English.
