DSU ProxyServer Quick Start Guide

Introduction

Welcome to Multi-Tech's new DSU ProxyServer, model

number MTPSR2-201, a single, secure gateway that provides

multiple LAN users with high performance Internet access

over a leased line. The DSU ProxyServer functions as a TCP/

IP proxy server that resides on the outer edge of your firewall

and provides up to 56K of bandwidth to LAN users. The DSU

ProxyServer features a 10BaseT port for local LAN

connection, a command port for configuration, a 56K bps DDS

4-wire WAN connection, and a RS232 port for auto-dial

backup in case the leased line connection is lost. System

management is provided through the command port using

bundled Windows® software which provides easy-to-use

configuration menus.

The MTPSR2-201 also supports dial-in Remote Access Server

(RAS) when the WAN 2 port is configured to support it. Refer

to the Software Installation section of this guide, and to your

ProxyServer User Guide for more details on RAS.

RD TD CL LK RD TD CD NS DS RD TD CD

V35

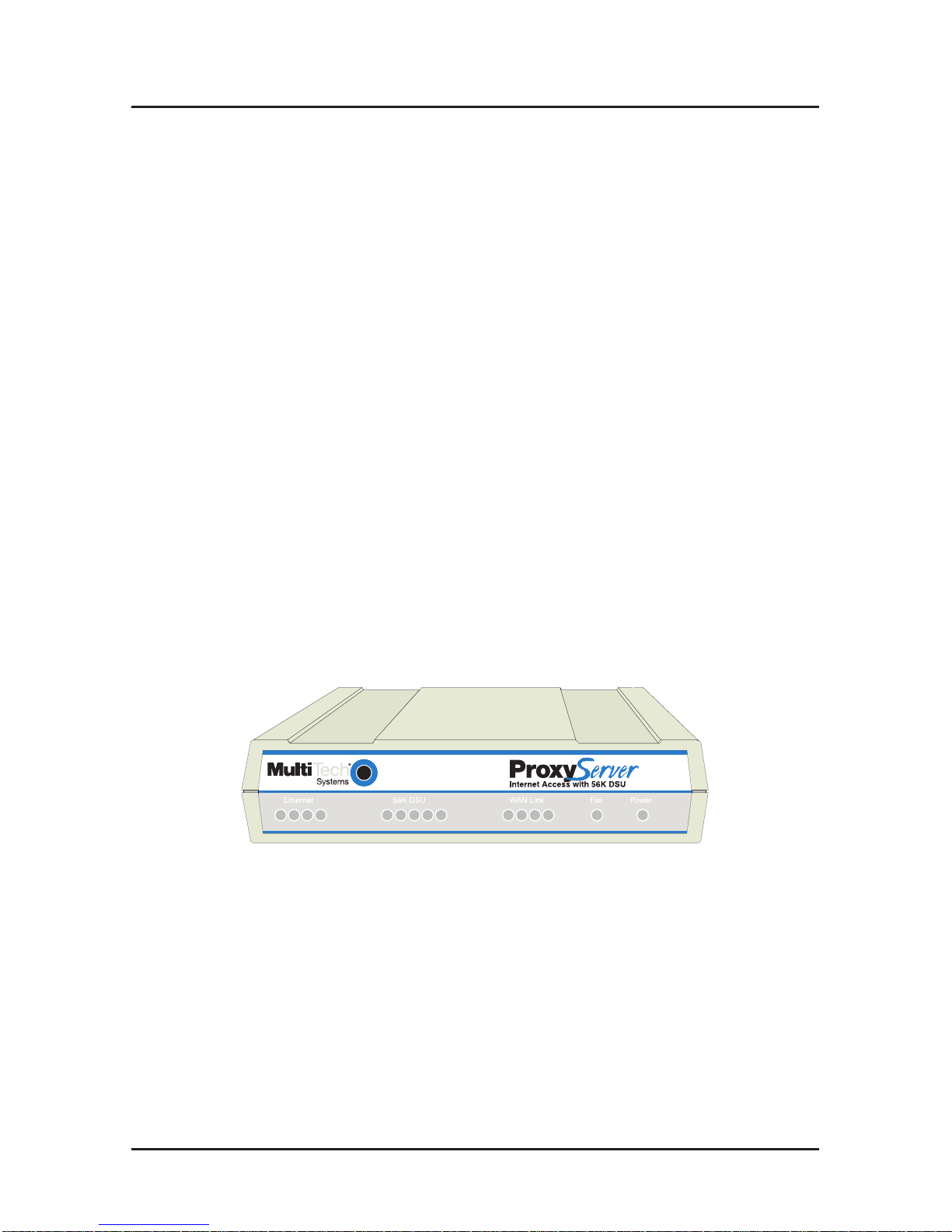

Figure 1. DSU ProxyServer

Introduction

Related Documentation

The DSU ProxyServer Quick Start Guide is intended to be

used by qualified systems administrators and network

managers. This quick start provides the necessary information

for a qualified person to unpack, cable, load software, and

configure the unit for proper opearation.

A detailed DSU ProxyServer User Guide is also provided with

your unit. This user guide provides in-depth information on the

features and functionality of Multi-Tech’s ProxyServer. The

User Guide is provided in diskette form and is also available

from our web site.

The diskette media is produced usingAdobeAcrobat for

viewing and printing the user guide. To view or print your copy

of a user guide, loadAdobeAcrobat Reader on your system.

AdobeAcrobat Reader can be downloaded fromAdobe’s web

Site at:

http://www.adobe.com/prodindex/acrobat/roadstep.html

Launch the Reader and select the .pdf file from the diskette.

Viewing and printing a user guide from the web also requires

that you have theAdobeAcrobat Reader loaded on your

system. The DSU ProxyServer User Guide is also available on

Multi-Tech’s WEB site at:

http://www.multitech.com

From the MTS homepage, click Support | Manuals |

ProxyServer and choose DSU ProxyServer to download the

.pdf file.

DSU ProxyServer Quick Start Guide

Safety Warnings

1. Never install telephone wiring during a lightning storm.

2. Never install telephone jacks in wet locations unless

the jack is specifically designed for wet locations.

3. Never touch uninsulated telephone wires or terminals

unless the telephone line has been disconnected at the

network interface.

4. Use caution when installing or modifying telephone lines.

5. Avoid using a telephone (other than a cordless type)

during an electrical storm. There may be a remote risk of

electrical shock from lightning.

6. Do not use the telephone to report a gas leak in the vicinity

of the leak.

Unpacking your ProxyServer

Remove all items from the box.

Quick Start Guide

RD TD CL LK RD TD CD NS DS RD TD CD

V35

Figure 2. Unpacking

V.35 Shunt Procedure

If you are using an external DCE device on the WAN 2 RS232/

V.35 port, and the connection will be a V.35 connection, the the

interal shunt must be moved from the RS232C (default)

position prior to cabling and power-up. The following steps

detail the procedures for switching the shunt.

Step Procedure

1 Ensure that the external power supply is disconnected

from the ProxyServer.

2 Turn the ProxyServer over and remove the cabinet

mounting screw from the chassis.

Front Panel Back Panel

Cabinet Mounting Screw

Figure 2-2. Cabinet Mounting Screw

3 Being sure to support the back panel, turn the

ProxyServer right-side-up, tilt the back panel down, and

slide the circuit board out of the chassis.

DSU ProxyServer Quick Start Guide

4 Place the unit on a flat, grounded surface, with the LED’s

facing you.

5 Pry the shunt out of the RS232 position, and insert it in the

V.35 position.

5678

V.35 Shunt Position

RS232C Shunt Position

Back Panel Connectors

8-Position DIP Switch

RAM Sockets

LEDs

Figure 2-3. Shunt Positions

6 Align the board with the guide slots on the inside of the

chassis and carefully slide the board back into the chassis.

7 Being sure to support the back panel, turn the

ProxyServer over again, and replace the cabinet mounting

screw.

8 Turn the ProxyServer right-side-up again and proceed to

the nect section to connect the cables.

Cabling

Cabling your ProxyServer

Cabling your ProxyServer involves making the proper Power,

Command Port, and DSU connections, and optionally, the

RS232/V.35 connection. Figure 3 shows the back panel

connectors and the associated cable connections. The table

that follows details the procedures for connecting the cables to

your ProxyServer.

Power Connection

PC Connection

10BASET COMMAND56K DSU POWER

OFF

RS232/V.35

Ethernet Connection

DDS WAN Connection

DCE Connection

Figure 3. Cable Connections

DSU ProxyServer Quick Start Guide

Cabling Procedure

Step Procedure

1. Connect one end of the power supply to a liveAC outlet

and connect the other end to the ProxyServer as shown in

Figure 3. The power connector is a 6-pin circular DIN

connector.

2. Connect the ProxyServer to a PC by using the short RJ45

to DB25 (female) cable provided with your unit. Plug the

RJ45 end of the cable into the Command port of the

ProxyServer and the other end into the RS232 cable from

the PC serial port. See Figure 3.

3. Connect a network cable to the ETHERNET 10BASET

connector on the back of the ProxyServer. Connect the

other end of the cable to your network.

4. Connect one end of the RJ48 cable to the 56K DSU

connector on the back of the ProxyServer. Connect the

other end to your DDS WAN connection.

5. If you wish to use the optional RS232 port for dial back-up,

connect one end of an RS232 cable to the RS232/V.35

connector on the back of the ProxyServer and connect the

other end of the cable to an external DCE device such as

a modem or T1 CSU.

5. Turn on power to the ProxyServer by placing the ON/OFF

switch on the back panel to the ON position. Wait for the

FAIL LED on the ProxyServer to go OFF before

proceeding. This may take a couple of minutes to go OFF.

At this time your ProxyServer is completely cabled. Proceed

to the next section to load the ProxyServer software.
