Moxa Technologies EDR-8010 Series User manual

P/N: 1802080100011

*1802080100011*

EDR-8010 Series

Quick Installation Guide

Moxa Industrial Secure Router

Version 1.1, August 2023

Technical Support Contact Information

www.moxa.com/support



- 2 -

Package Checklist

The EDR-8010 Series secure router is shipped with the items listed

below. If any of these items are missing or damaged, please contact

your customer service representative for assistance.

•1 Industrial secure router

•1 USB-C-to-DB9 cable

•Quick installation guide (printed)

•Protective caps for unused ports

•Warranty card

Features

Advanced Industrial Networking Capability

•All-in-one firewall/NAT/VPN/router/switch with 8 FE + 2 Gigabit

ports

•Visualize OT security with the MXsecurity management software

•Secure remote access tunnel with VPN

•Examine industrial protocol data with Deep Packet Inspection (DPI)

technology

•Easy network setup with Network Address Translation (NAT)

•RSTP/Turbo Ring for enhanced network redundancy

•Security features based on IEC 62443/NERC CIP

•Supports secure boot for checking system integrity

•-40 to 75°C operating temperature range (-T model)

- 3 -

Panel Views of EDR-8010 Series

EDR-8010 Series

Front Panel

Top Panel

Front Panel:

1. USB port for ABC-02-USB

2. 1G SFP port speed LED

indicator

3. 1G SFP ports

4. 1G SFP port speed LED

indicator

100 Mbps copper port speed

LED indicator

6. 10 Mbps copper port speed

LED indicator

7. 10/100 Mbps copper ports

8. Power input PWR1 LED

indicator

9. Power input PWR2 LED

indicator

10.

STATE LED indicator

11.

MSTR/H.TC LED indicator

12.

CPLR/T.TC LED indicator

13.

VRRP/HA LED indicator

14.

VPN LED indicator

15.

USB LED indicator

16.

Reset button

Top Panel:

1. Grounding screw

Terminal block with latch for

Power 2 input

3. Terminal

block with latch for

Power 1 input

Terminal block with latch for

digital input

Terminal block with latch for

relay output

6. Type-C serial console port

- 4 -

Rear Panel

Rear Panel:

1. DIN-rail mounting kit

- 5 -

Mounting Dimensions

EDR-8010 Series

DIN-rail Mounting (DNV-certified)

In the package, the metal DIN-rail mounting kit is fixed to the back

panel of the EDR-8010 Series with four screws (M3 x 6 mm). Mount the

EDR-8010 Series on a corrosion-free mounting rail that adheres to the

EN 60715 standard.

- 6 -

Suggested Installation Method

STEP 1:

Place

the upper lip of the DIN-rail

kit

onto the mounting rail.

STEP 2

Press the

EDR-8010 Series

towards

the mounting rail until it snaps into

place.

Suggested Removal Method

STEP 1:

Pull down the latch on the DIN

-rail

kit with a screwdriver.

STEPS 2 & 3

Slightly pull the

EDR-8010 Series

forward and lift

it up to remove it

from the mounting rail.

Wall Mounting

For some applications, you will find it convenient to mount the EDR-

8010 Series on the wall, as shown in the following illustrations.

STEP 1: Remove the aluminum DIN-rail attachment plate from the rear

panel of the EDR-8010 Series, and then attach both the wall-mounting

plates with four screws (M3 x 5 mm).

- 7 -

STEP 2: Mounting the EDR-8010 Series on the wall requires four

screws. Use the EDR-8010 Series with the wall mount plates attached

as a guide to mark the correct location of the four screws. The head of

the screws should be less than 7.0 mm in diameter, and the shaft

should be less than 3.5 mm in diameter.

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non

-hazardous. The

devices may only be connected to the supply voltage shown on

the type plate. The devices are designed for operation with a

Safety Extra

-Low

Voltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact with

the Safety Extra

-Low Voltages (SELV) in compliance with

IEC 60950-1/VDE 0805.

ATTENTION

This unit is a built

in type. When the unit is installed in another

piece of equipment, the equipment enclosing the unit must

comply with fire enclosure regulation

UL/IEC 62368-1 (or

similar regulation).

- 8 -

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your

EDR-8010 Series.

Calculate the maximum possible current in each power wire

and common wire. Observe all electrical codes dictating the

maximum current allowable for each

wire size.

If the current goes above the maximum ratings, the wiring

could overheat, causing serious damage to your equipment.

Please read and follow these guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power

wiring through the same wire conduit. To avoid interference, wires

with different signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb

is that wiring sharing similar electrical characteristics can be

bundled together.

•You should separate input wiring from output wiring.

•We advise that you label the wiring to all devices in the system.

•This product is intended for installation in Restricted Access

Location.

WARNING

Hot Surface. Do not touch.

ATTENTION

The SFP module only supports Laser Class 1 optical

transceivers.

Grounding the EDR-8010 Series

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from

the ground screw (M4 type) to the grounding surface prior to

connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface such as a metal panel.

Use the green-and-

yellow cable type AWG (American Wire Gauge) min.18 (0.75

mm2) for grounding.

- 9 -

Wiring the Redundant Power Inputs

The EDR-8010 Series has two sets of power inputs—power input 1 and

power input 2. The top and side views of the terminal block connector

are shown below.

The input terminal block (TB1) should be installed using 16-24 AWG

wires. The wiring for the input terminal block must be installed by a

skilled person. Wire Type: Cu

The power cord adapter should be connected to a socket outlet with an

earthing connection. The power cord and adapter must comply with

Class I construction.

Instructions

This product is intended to be supplied by a UL Listed Power Adapter or

DC power source marked ‘L.P.S’ or ‘Limited Power Source’, rated 12 to

48 VDC, 0.53 A (min.), and Tma 75°C (min.). If you require further

assistance, please contact your Moxa representative.

Top View

Right View

STEP 1:

Use a small flat

blade screwdriver

to press a wire locker.

STEP 2:

Insert a positive/negative DC wire

into the V+/V

terminals

respectively.

STEP 3:

Release the wire locker and check

whether the wire is fixed.

Communication Connections

Each EDR-8010 Series has three types of communication ports:

•1 Type-C console port (RS-232 interface, baud rate: 115200, 8-N-

•8 10/100BaseT(X) Ethernet ports

•2 1G SFP ports

TYPE-C Console Port Connection

The EDR-8010 Series provides one Type-C console port located on the

top panel. Connect the industrial secure router to a PC COM port using

the Type-C-to-DB9 connection cable, and then launch a console

terminal software, e.g. Moxa PComm Terminal Emulator, to access the

EDR-8010 Series’ console configuration utility.

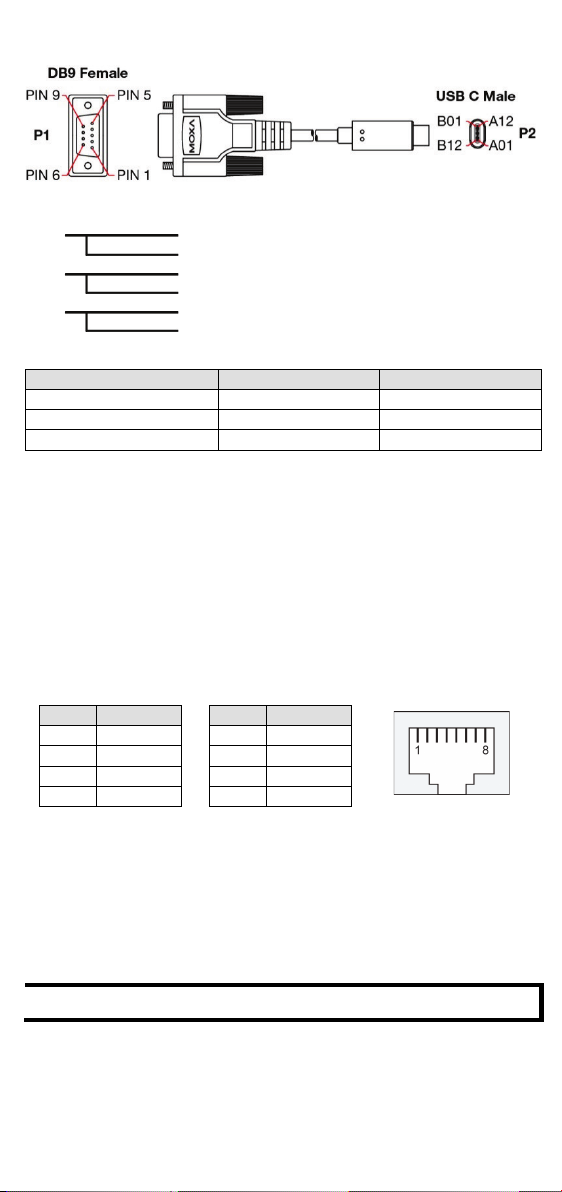

TYPE-C-to-DB9 Cable Wiring

- 10 -

BROWN

GREEN

RED

BLUE

ORANGE

PURPLE

PIN Definition

Description

TXD

A5, B5

RXD

A6, B6

GND

A7, B7

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the EDR-8010 Series front panel

are used to connect to Ethernet-enabled devices. Most users will choose

to configure these ports for Auto MDI/MDI-X mode, in which case the

port’s pinouts are adjusted automatically depending on the type of

Ethernet cable used (straight-through or cross-over), and the type of

device (NIC-type or HUB/Switch-type) connected to the port. No matter

which case you are connecting, we share pinouts for both MDI (NIC-

type) ports and MDI-X (HUB/Switch-type) ports.

10/100Base T(x) RJ45 Pinouts

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Tx-

Rx+

Rx-

Signal

Rx+

Rx-

Tx+

Tx-

The Reset Button

Using a pointed object such as a straightened paperclip or toothpick,

depress the Reset button for five seconds to load the factory default

settings. When pressing down, the STATE LED will start to blink about

once per second. Continue to depress until the STATE LED begins

blinking more quickly, indicating that the device is resetting and you

can release.

NOTE

DO NOT power off the device when loading default settings.

LED Indicators

The front panel of the EDR-8010 Series has several LED indicators. The

function of each LED is described in the following table:

Table of contents

Other Moxa Technologies Network Router manuals

Moxa Technologies

Moxa Technologies AirWorks AWK-1137C-EU User manual

Moxa Technologies

Moxa Technologies OnCell G4302-LTE4 Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-508 Manual

Moxa Technologies

Moxa Technologies ToughNet TN-5308-4 Manual

Moxa Technologies

Moxa Technologies EDS-405 User manual

Moxa Technologies

Moxa Technologies SDS-3008 Series User manual

Moxa Technologies

Moxa Technologies PowerTrans PT-7728 Manual

Moxa Technologies

Moxa Technologies EDR-G9010 Series User manual

Moxa Technologies

Moxa Technologies ToughNet User manual

Moxa Technologies

Moxa Technologies EtherDevice EDR-G902-T User manual

Moxa Technologies

Moxa Technologies IKS-6324 Series Manual

Moxa Technologies

Moxa Technologies SR3000 User manual

Moxa Technologies

Moxa Technologies MAR-2000 User manual

Moxa Technologies

Moxa Technologies NPort IA5150 series User manual

Moxa Technologies

Moxa Technologies SDS-3008 Series User manual

Moxa Technologies

Moxa Technologies ToughNet TN-5516 Series Manual

Moxa Technologies

Moxa Technologies WDR-3124A User manual

Moxa Technologies

Moxa Technologies EtherDevice Switch EDS-G205 Manual

Moxa Technologies

Moxa Technologies EDS-408A Manual

Moxa Technologies

Moxa Technologies PT-7528 User manual

Moxa Technologies

Moxa Technologies EtherDevice EDR-G903 User manual

Moxa Technologies

Moxa Technologies EtherDevice EDR-G903 Manual

Moxa Technologies

Moxa Technologies EDR-G9010 Series User manual

Moxa Technologies

Moxa Technologies ioLogik E2200Series User manual

Popular Network Router manuals by other brands

Allnet

Allnet ALL0333AU user guide

HomeSeer

HomeSeer HT-SEL Getting started guide

Sercomm

Sercomm Genesis OC3505D Quick installation guide

Billion

Billion BIPAC 5102 Series user manual

TP-Link

TP-Link TD-8817 QIG

Motorola

Motorola MR1900 user guide

Digi

Digi IX14 user guide

Cisco

Cisco NCS 540 Hardware installation guide

XAVi

XAVi X8821e user manual

BEC

BEC 6200WZL Quick installation guide

MikroTik

MikroTik hAP ac3 Series quick start

Korenix

Korenix JetNet 5428G Series user manual

NETGEAR

NETGEAR FS526T - Switch installation guide

Korenix

Korenix JetNet 5710G Series user manual

Automated Logic

Automated Logic ZN551 Technical instructions

Cisco

Cisco ASR 1000 Series Installation and configuration guide

EnGenius

EnGenius ESR-9710 quick start guide

Cisco

Cisco 805 Series Product overview
