Mounting Dream MD5425-03 User manual
MD5425-03 INSTALLATION INSTRUCTION
(DE-C1)
Für die Installationsanweisungen auf deutsch, Siehe Seite 9~10.
Pour l'instruction en français, veuillez vous reporter à la page 11~12.
Para las instrucciones de la instalación en español, favor vea la página 13~14.
Per le Istruzioni in italiano, vedi pagina 15~16.
If you have any questions, please contact our customer service.
Max：
20LBS
(9KG)
Before You Begin. Please check the following items:
□ The weight of your sound bar DO NOT EXCEED 9 KG (20 LBS).
□ You must verify that the total weight of your TV, sound bar, sound bar
mount and any accessories must be lower than the maximum
weight rating of your TV mount.
□ You read through the user manuals of your TV, sound bar and TV
mount for additional guidance.
□ You have the tools needed for installation.
● For wall mounted cases, the wall must be capable of supporting five times the weight of the TV, mount
and sound bar combined.
● Incorrect installation may result in product damage or body injury. Mounting Dream shall bear no
responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
● Do not apply this product to any purpose not indicated by Mounting Dream.
Safety Caution:
1

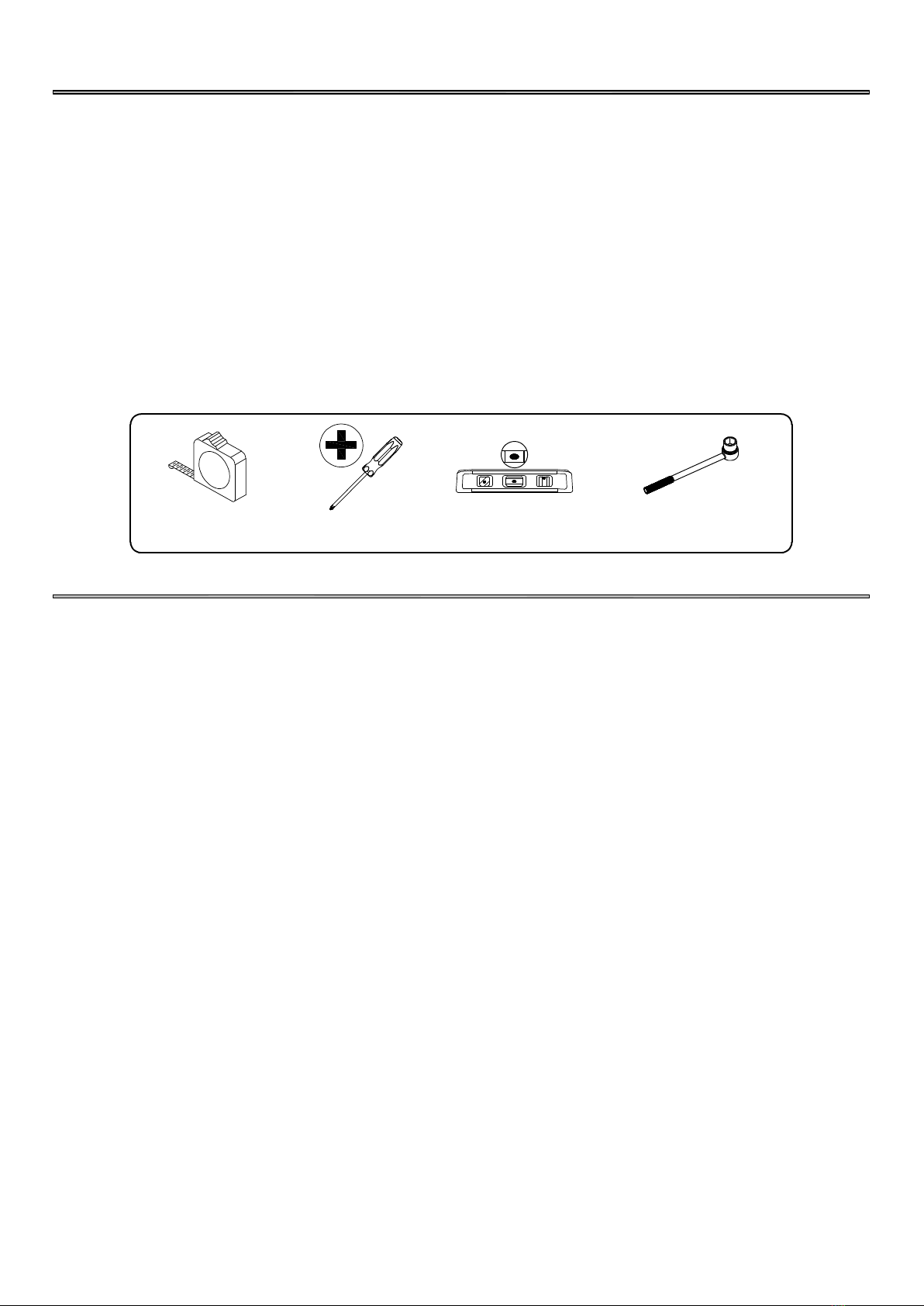

Band Tape
2m Screwdriver
2M2M
Bubble Level Socket Wrench
1/2" (13mm)
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the installation, assembly
or use of this product, please contact customer service.
2
Parts and Hardware
M5x8mm Bolt
x8
Allen Key
x1
Connection Plate
x1
Wall Plate
x2

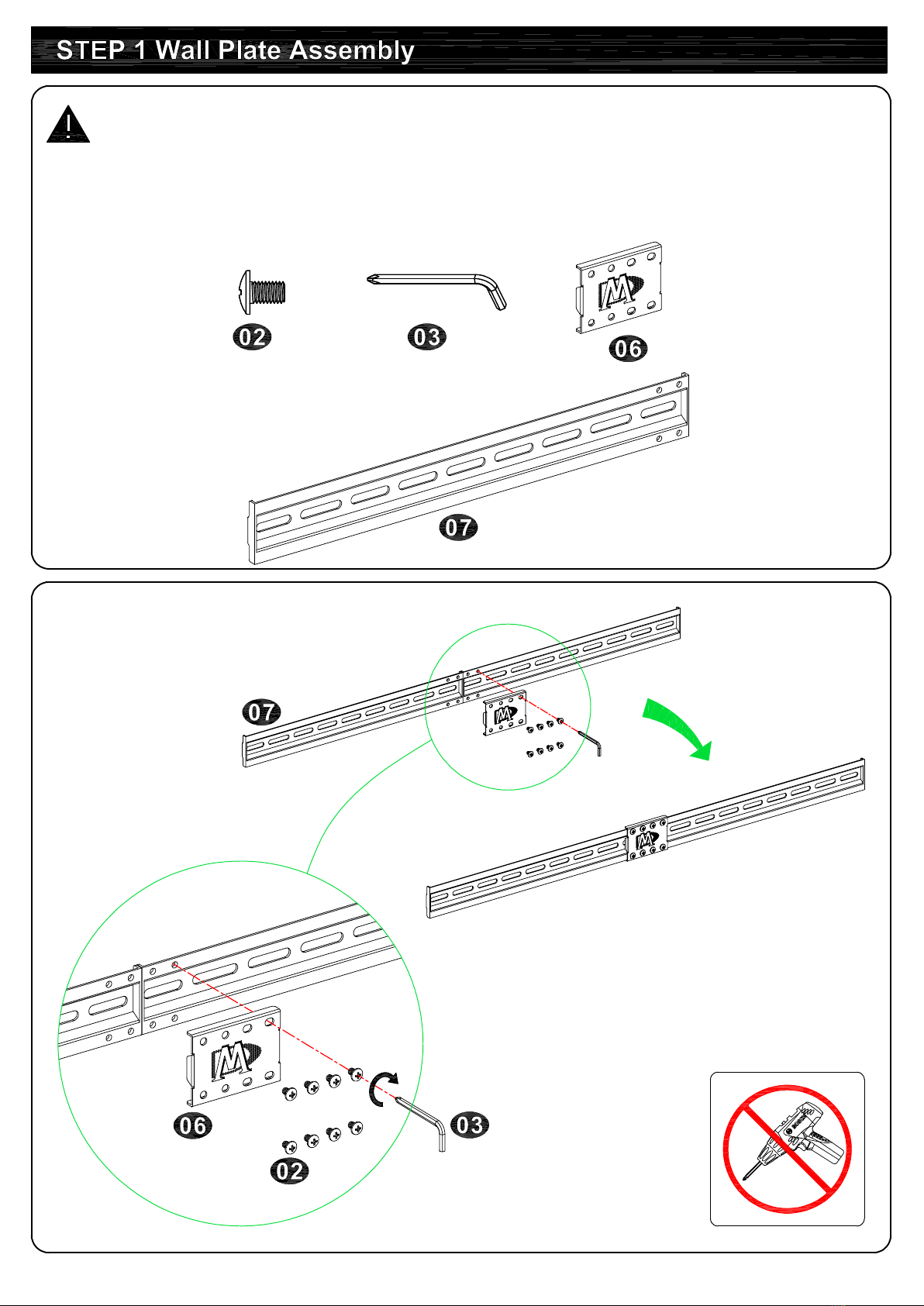

Wall Plate Unit
Wall Plate Assembly
No!
WARNING:This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged. For parts
shortage or damage, please contact customer service.
NOTE: Not all hardware included will be used.
Parts and Hardware
M6x10mm
x4
M6 Washer
x4
Bracket
(Left)
Bracket
(Right)
x1 x1
"L" Shaped Bracket
x2
M8x20mm
x4x4
M6x16mm
M8x30mm
x4x4
M6x25mm
M8x10mm
2.5mm
x4
x2
TV Screws Spacers
M6
x4
Washers
Install on TV Wall Mount
3
2A-1 Attach Brackets to Wall Plate
Horizontal distance
of TV mounting holes
Tips: Check the horizontal distance of TV mounting
holes before connecting the wall plate unit to the
brackets.
No!
Concrete Wall Anchor 2pcs
CAUTION:Do not use in drywall or wood
Fischer UX10x60 R
Lag Bolt M7x70mm
x2

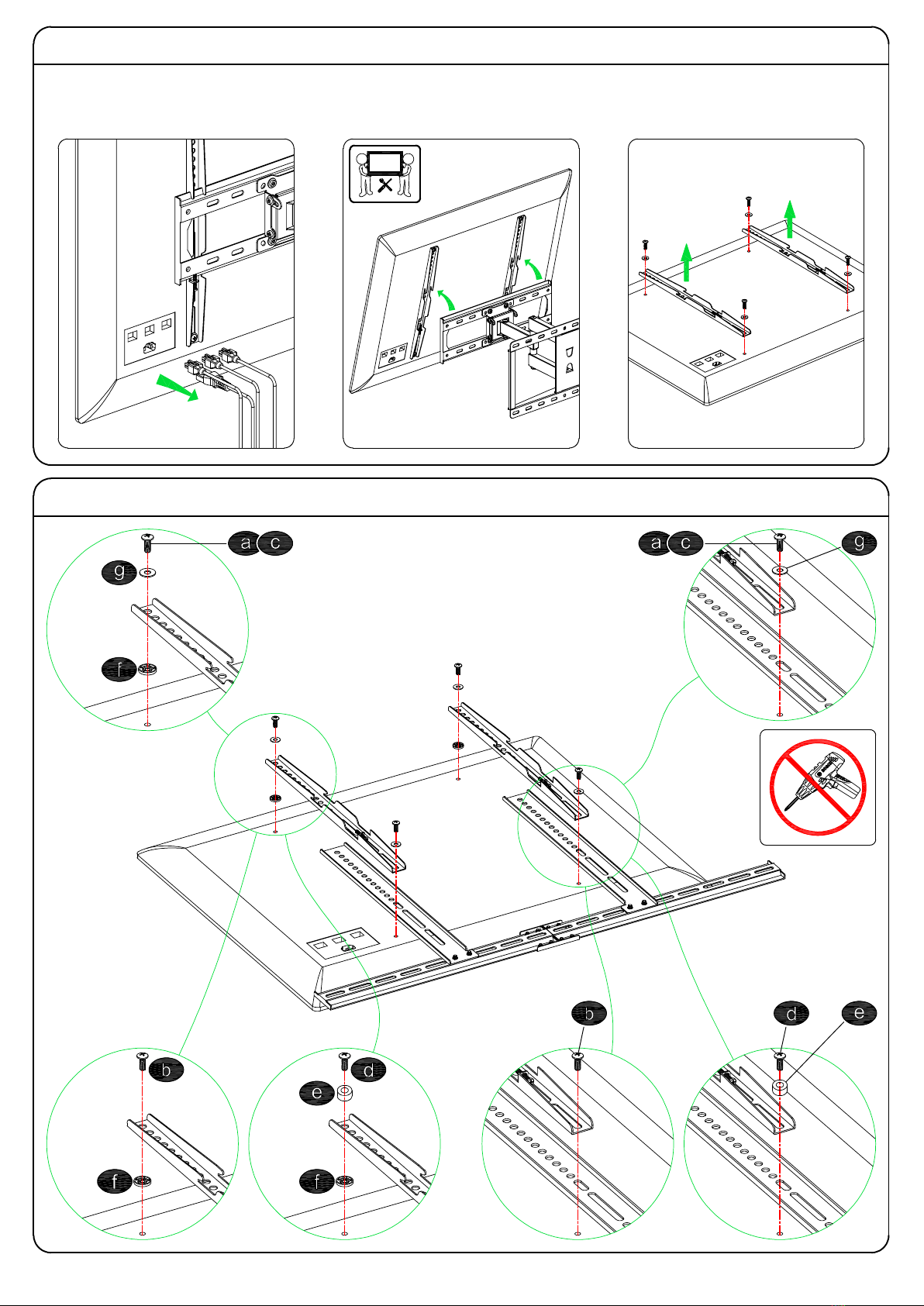

2A-2 Disassemble Your TV from the Mount
Ⅰ Remove all cables Ⅱ Take off the TV
from the mount
Ⅲ Remove the TV
brackets from your TV
2A-3 Attach the Assembled Brackets Unit to Your TV
4
Tips: No need to use washer (g)
when using M8 screw (b/d).
TV
1 2
No!
5
2A-4 Hang the Whole Assembled Unit to the Mount
TV
1 2
2A-5 Hang and Secure the 'L" Shaped Brackets
2A-6 Put the Soundbar on the "L" Shaped Brackets
For wood stud installation, follow Option 1
For concrete wall installation, follow Option 2 on PAGE 7
<16mm
(5/8") Max.
16"(406mm)
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
Wood Stud Installation
O
Centre Line
Install on the Wall
16"(406.4mm)
18"(457.2mm)
24"(609.6mm)
32"(812.8mm)
Centre
Line
6
Wall Plate
Unit
5/32"
(4mm)
2.9"(74mm)
7
CAUTION: To avoid potential personal injury or property damage:
All 2 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing
on to the next step.
No!
Lag Bolt
Go to Step 2A-5, 2A-6 on PAGE 5.
Solid Concrete Wall Installation
2.9"
(74mm)
Min.
8"(203mm)
3/8"
(10mm)
3/8"
(10mm)
DANGER
Wall Plate
Unit
8
Concrete Wall
Anchor
CAUTION: To avoid potential personal injury or property damage:
All 2 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing
on to the next step.
Lag Bolt
Wall Plate
Unit
No!
Go to Step 2A-5, 2A-6 on PAGE 5
.
MAX:800mm
MIN:200mm
48mm
mm
465mm
55mm
81.5mm
28.6mm
871mm
87.5~154mm
1.5mm
8mm
115mm
435mm
10mm 2mm 1.5mm
1.8mm
Bevor Sie beginnen. Bitte überprüfen Sie die folgenden Punkte:
□ Das Gewicht von Ihrer soundbar ist NICHT MEHR ALS 9 KG (20 LBS).
□ Sie müssen sicherstellen, dass das gesamte Gewicht von Ihrem TV,
soundbar, soundbar-Halterung und andere Zubehör kleiner als der
maximale Traglast der TV-Halterung sein müssen.
□ Sie haben die Anweisungen von Ihrem TV, soundbar und TV-Halterung
schon vollständig gelesen, um die zusätzliche Anleitungen zu bekommen.
□ Sie haben die Werkzeuge für die Installation.
● Für den Fernseher, der an der TV-Wandhalterung installiert wird, der Traglast der Wand muss
wenigstens fünffach von dem Gesamtgewicht von den zusammengesetzten Fernseher, TV-Halterung
und soundbar.
● Unsachgemäße Montage dieses Produkts kann zu Verletzungen und zu den Beschädigungen an Ihrem
Gerät führen. Mounting Dream haftet nicht für Schäden oder Verletzungen, die durch unsachgemäße
Montage, unsachgemäßen Zusammenbau oder unsachgemäße Verwendung verursacht wurden.
● Verwenden Sie dieses Produkt nicht für einen anderen Zweck als speziell von Mounting Dream
angegeben.
Sicherheitshinweise:
9
Bandmaß
2m Kreuzschlitz-
schraubendreher
2M2M
Wasserwaage Steckschlüssel
(13mm, 1/2”)
Bitte lesen Sie die Anweisung sorgfältig vor der Montage durch.
Falls Sie diese Anweisungen nicht verstehen oder Zweifel bezüglich der sicheren Montage, des
Zusammenbaus oder der Verwendung des Produkts haben, bitte kontaktieren den Kundenservice.
