Motorola PTP 600 Series Quick reference guide

PTP 600 Series

Deployment Guide

Contents

Protect Your Installation..............................................................................................................................2

Checklist, Site Survey and Tools................................................................................................................. 4

Bench Testing (Optional)............................................................................................................................. 5

Mast, Tower or Building Installation ............................................................................................................ 8

Installation Wiring...................................................................................................................................... 11

Cable Preparation and Installation............................................................................................................ 12

Testing and Fault Finding (Troubleshooting)............................................................................................. 15

User Information to be Recorded.............................................................................................................. 18

Installation and Commissioning................................................................................................................. 19

Registration Warranty and Ordering Information.......................................................................................22

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Protect Your Installation

Attention

ElectroMagnetic Discharge (Lightning)

Protect Your Installation!

EMD (Lightning) damage is not covered under warranty.

The recommendations in this guide and in the user manual, when installed correctly, give

the user the best protection from the harmful effects of EMD. However 100% protection is

neither implied or possible.

Fiber Connection to

Network

Where fitted

Copper Connection to

Network

PIDU Plus

LPU Surge Arrestor

LPU mounted at the same

height as the ODU

Screened CAT 5e cable

LPU Surge Arrestor

Grounding Stake

Grounding Cable

Power/Ethernet

Connection

Optional Ethernet Fibre

connection to ODU

ODU

LPU Surge Arrestor

Surge Arrestor

to ODU Ground

Connection

LPU Sur

e Arrestor

to ODU Ground

Connection

Typical Mast Installation Typical Wall Installation

Grounding Stakes

Fiber Connection to Network

Where fitted

Copper Connection

to Network

ODU

Optional Ethernet

Fibre connection to

ODU

Screened CAT 5e cable

PIDU Plus

Fitted inside building

Ground connections should

be less than 0.6 metres

(2 feet) long. All upper

tower grounds should be

within 0.3 metres (1 foot) of

the ODU bracket and on the

same metal

The recommended standard components for protecting installations are:

•Screened CAT 5e cable also known as Shielded CAT 5e or CAT 5e STP (Shielded Twisted

Pair)

•Surge Arrestor: type PTP-LPU: 4 or 8 per link (2 or 4 Motorola Kits Part Number

WB2907AA)

•Grounding Stake

•Grounding Cable: minimum size 8 AWG, preferably 6 or 4 AWG

•RJ45 screened connectors

•Andrew grounding assembly type 223158 or similar (if required by local regulations).

NOTE: If a coaxial (or other) cable is already cross-bonded to the mast or tower, the same

cross bonding points on the mast or tower must be used for the CAT 5e cable.

We recommend that the practices and procedures detailed in the Motorola manual R56

STANDARDS AND GUIDELINES FOR COMMUNICATION SITES (68P81089E50) be applied to

all new site build activities. This manual is provided on the PTP 600 CD-ROM.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Protect Your Installation

Lightning Protection Zones

When the ODU is installed on a mast, tower or wall, it may be in one of two possible lightning

protection zones:

•Zone A: In this zone a direct lighting strike is possible. Do not mount the ODU in this zone.

•Zone B: In this zone, direct EMD (Lightning) effects are still possible, but mounting in this

zone significantly reduces the possibility of a direct strike. Mount the ODU in this zone.

Zone AZone A

Recommended NOT Recommended

Zone BZone B

Zone A

Finial Recommended

Zone B

The following protection requirements are mandatory:

•The ODU must be earthed

•Screened CAT 5e cable must be used

•Surge arrestors of type PTP-LPU must be installed at both the ODU and building entry

•There must be an earth connection at building entry

More information: PTP 600 Series User Guide Section: “Lightning Protection”

Additional Grounding Requirements for Connectorized ODU

Connectorized ODU

ntenna Cable

Antenna Cable

Grounded to Tower

Antenna Cables

Grounded to Tower

Antenna Cable Grounded

to Tower.

Antenna cables should be grounded

within0.3 metres (1 foot) of theODU

and Antennas

Additional Grounding Requirements for Connectorized ODU

Note: Antenna cables grounded using

an Andrew grounding assembly type

223158 or similar.

More information: PTP 600 Series User Guide Section: “Connectorized PTP 600 Series Bridge”

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Checklist, Site Survey and Tools

CAUTION: Before performing an installation of a Motorola PTP 600 Series system, ensure

that you have read this entire guide and taken note of any safety information contained.

Checklist

•Check the contents of all packages against the packing list.

•Check the Web site for the latest software load.

List of Special Tools Required

•13mm wrench and 22 mm wrench for use with the glands

•RJ45 crimp tool (it must be the correct tool for the type of RJ45 being used)

•Personal Computer (PC) with 10, 100 or 1000 BaseT Ethernet

•Either Internet Explorer version 6 or higher, or FireFox 2.0 or higher are recommended.

•Ethernet patch cables

•Motorola PTP LINKPlanner report for this link

More information: PTP 600 Series User Guide Section: “Installation”

Pre-installation: Site Survey and Link Planning

A site survey must be performed to identify all the obstructions (such as trees or buildings) in the path and

to assess the risk of interference. This information is important if you are to achieve an accurate link

feasibility assessment.

The PTP 600 Series are designed to operate in Non-Line-of-Sight (NLoS) and Line-of-Sight (LoS)

environments. Link planning enables a link of known quality to be installed. This involves the acquisition of

path profile data (using Motorola’s free LINKPlanner utility). The LINKPlanner predicts data rates and

reliability over the path. It allows the user to try different antenna heights and RF power settings. When the

link is installed, the mean path loss can be checked to confirm that the predicted data rate and link reliability

is achievable. Motorola LINKPlanner is available to download from http://www.motorola.com/ptp/support.

More information: PTP 600 Series User Guide Section: “Site Planning”

Pre-installation: License Keys and Regulatory Conformity

If the units have been purchased as a pair (link) then the License Keys (at the end of this guide or

printed on a separate card in the box) will show how the units have been pre-configured to work as

a link. Software, license key, unit IP address, subnet mask, gateway address, target address,

master/slave and arming state are pre-configured.

CAUTION: Check that the link is configured with the correct Region Code. If Region Code

is incorrect, then re-configure the units with Alternative License Keys before installing and

commissioning the link. Refer to “Configuration Checks” for details on how to change the

License Key.

More information: PTP 600 Series User Guide Section: “Radio Link Planning and Regulations”

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Bench Testing (Optional)

It is advised that the link be configured and tested on a bench before the final installation of the

units on a pole or a mast. The following steps give details of how to connect an ODU to a PC in

order to check the configuration details, change the IP settings or modify the license key. For the

purpose of these tests, normal off-the-shelf Ethernet cables can be used.

Power Checks

Step 1: Connect the RJ45 at

one end of a cable to the ODU.

Step 2: Undo the retaining screw

of the PIDU Plus and hinge back

the cover.

Step 3: Plug in the ODU to

PIDU Plus Cable, ensuring

that it snaps home.

Step 4: Put the cover back

and tighten the screw.

Step 5: Plug in power lead using

a cable appropriate for the

installation.

Step 6: If the power LED

does not illuminate, remove

the power cable and the ODU

connection from the PIDU

Plus. Re-connect the power

lead and check the power

LED illumination (green). If

the power LED still does not

light then check the power

source.

Step 7: Connect a second

Ethernet cable (shown in

yellow) to the “LAN” socket of

the PIDU Plus.

Step 8: 45 seconds after

powering, the Ethernet LED

should be observed to flash

slowly 10 times. If the Ethernet

LED does not illuminate

(orange), then either the PIDU

Plus or the cable to the ODU

may be faulty. Replace cable

and/or PIDU Plus and repeat

from Step 1.

Step 9: Ensure PC is set to

correct IP address

169.254.1.x, where 2 < x <

254. Connect the LAN cable

to the PC.

If this IP address is not

recognised, try 10.10.10.11

(Master) and 10.10.10.10

(Slave), as some units may

have been pre-configured

with these addresses.

Step 10: If it is necessary to

use IP addresses 10.10.10.11

and 10.10.10.10, ensure that

the PC is configured with an IP

address of 10.10.10.n, where n

is any value between 2 and

254 but excluding 10 and 11,

to configure these units.

Step 11: Check that the Ethernet

LED is now ON. Step 12: If the LED does not

show any activity when

accessing web pages, refer to

the Troubleshooting section

in this guide.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Bench Testing (Optional)

CAUTION: Do not dress the RJ45 cables too tightly, as this may make the connections

unreliable.

More information: PTP 600 Series User Guide Section: “Connecting Up”

Configuration Checks

Step 1: Use a web browser to connect to IP address http://169.254.1.1 for Slave and

http://169.254.1.2 for Master units. Select System Administration and Login (the

password is empty for new units). We recommend that you change the password by

selecting “Change Password.

Step 2: If an upgrade to the software is required, select Software Upgrade and follow the

on-screen instruction. Latest software is available from our web site:

(http://motorola.motowi4solutions.com/software/#ptp)

Step 3: Check the License Key information and ensure you are using the correct the

Region Code. Otherwise, select License Key and replace with the alternate key supplied

and reboot the unit.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Bench Testing (Optional)

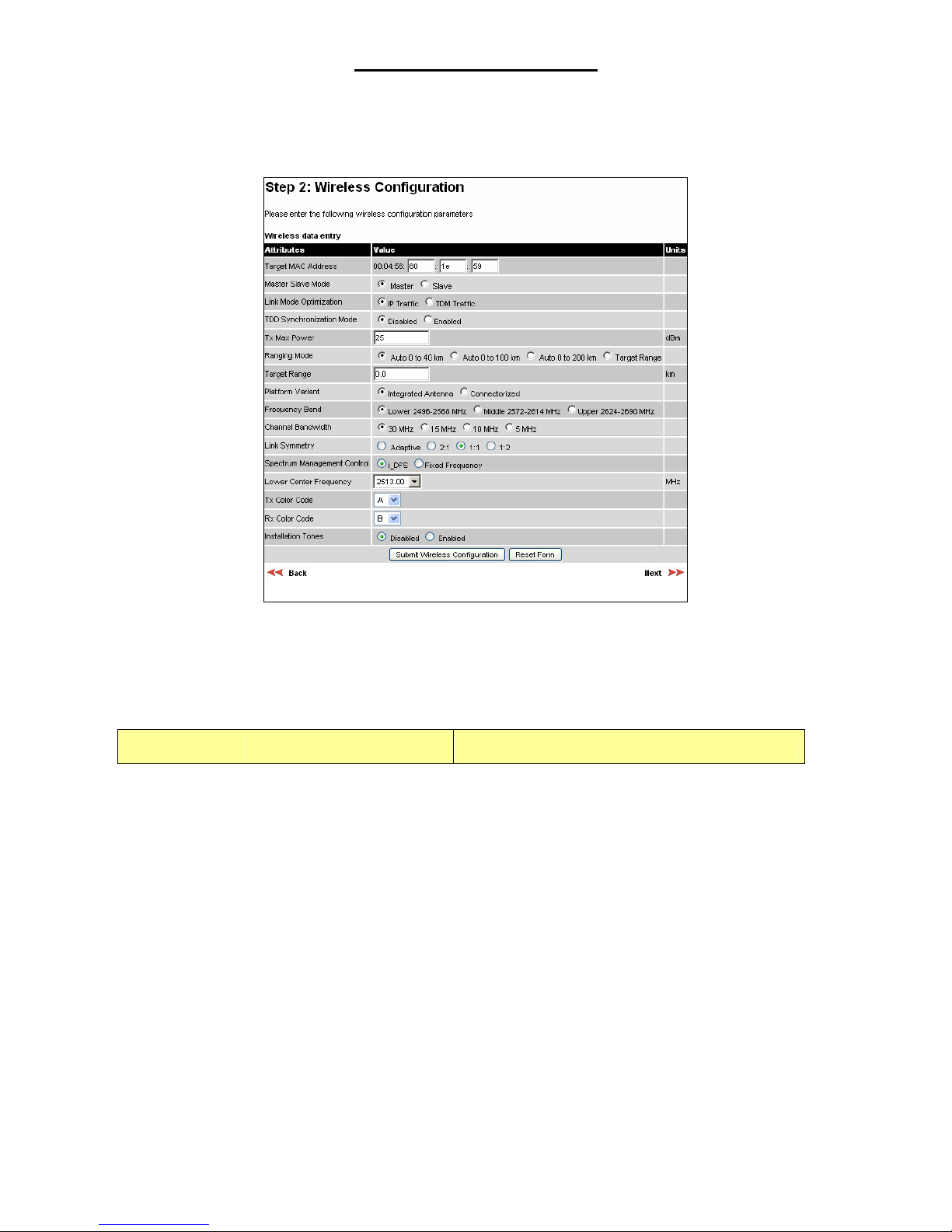

Step 4: Access the ‘Installation Wizard’ page. Confirm the target MAC Address,

Master/Slave choice, Symmetry, Max Transmit Power. Confirm installation configuration

and reboot.

Paired Unit

Repeat the Power Checks and Configuration Checks for the paired unit and check that the status

of the link shows UP on the ‘Status Page’.

More information: PTP 600 Series User Guide Section: “System Administration Pages”

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Mast, Tower or Building Installation

Hoist and Safety Loop

Use the integral safety loop for hoisting the ODU up a mast, tower or building. When the ODU is in

position, use the safety loop as a fixing point to secure a permanent lanyard from the mast, tower

or building to the ODU, as a precaution against mounting failure.

WARNING: The safety lanyard must not exceed 1m (approx 3 ft) in length. The lanyard

must be made from a material that does not degrade in an outdoor environment.

WARNING: The safety lanyard must be fixed to a separate fixing point that is not part of the

direct mounting system for the ODU.

WARNING: If the safety loop or its fixing is damaged in any way or has been exposed to a

shock loading due to a fall, replace it with a new one before undertaking any further

operations.

More information: PTP 600 Series User Guide Section: “Mounting the ODUs”

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Mast, Tower or Building Installation

Mast or Tower Installation Instructions

The ODU is pre-fitted with a mounting bracket (designed to ease installation) and with earth

bonding leads.

WARNING: When mounting the ODU, observe the following precautions against failure of

the assembly:

•Do not remove the pre-fitted mounting bracket from the ODU.

•Do not mount the ODU on poles with diameter less than 50mm (2”) or greater than

75mm (3”). The ODU mounting bracket is designed to work only with poles with

diameter in the 50 mm (2”) to 75 mm (3”) range.

•Do not over-tighten the bolts.

More information: PTP 600 Series User Guide Section: “Mounting the ODUs”

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Mast, Tower or Building Installation

The ODU must be mounted using the following steps, with cable entry at the bottom:

Step 1: Attach the bracket strap to the pole

using M8 x 70 mm bolts, M8 flat washers and

M8 coil washers. Tighten to ensure the

assembly grips but can be adjusted.

Step 2: Offer the ODU (with pre-fitted

mounting bracket) to the bracket strap and

affix using the captive M8 bolt.

Tighten to ensure the assembly grips, but can

be adjusted on the pole.

Step 3: Adjust the elevation and azimuth of

the unit before tightening to the required

torque settings of 14 Nm (11 lbft) for both

bolts.

Step 4: Attach the free end of one earth

bonding lead (large tag M10) to the tower

metal work.

CAUTION:

On no account must this be attached

to the mounting bracket bolts.

WARNING: A cable measuring card must NEVER be used at the ODU end connected to power

from the PIDU. It must only be used at the bottom of the mast with a multimeter. This is because

the PIDU voltage exceeds the limit allowed in some countries for safe handling in wet conditions and

therefore may create a safety hazard.

More information: PTP 600 Series User Guide Section: “Mounting the ODUs”

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Other manuals for PTP 600 Series

Table of contents

Other Motorola Network Hardware manuals

Motorola

Motorola M68MM01 User manual

Motorola

Motorola Vonage VT2142 User manual

Motorola

Motorola MotoWI4 PTP 600 Series User manual

Motorola

Motorola CB3000 - Client Bridge - Wireless Access... User manual

Motorola

Motorola Avigilon ACC VMA-RPA-RGD-8P2 User manual

Motorola

Motorola Avigilon HD-NVR3-VAL-3TB User manual

Motorola

Motorola 68436 - Vanguard 100I - Remote Access Server Manual

Motorola

Motorola PTP 58500 User manual

Motorola

Motorola Avigilon HD-NVR4-STD-16TB User manual

Motorola

Motorola MOTOWI 4 User manual

Motorola

Motorola MOTOMESH DUO 4300 User manual

Motorola

Motorola CPEi 825 Series Owner's manual

Motorola

Motorola W24 Manual

Motorola

Motorola DSR-4410MD Manual

Motorola

Motorola 5701BHDD - Canopy PTP 58100 Lite User manual

Motorola

Motorola MC9S12C-Family User manual

Motorola

Motorola Dimetra KVL 4000 Air User manual

Motorola

Motorola SC 4812T-MC Manual

Motorola

Motorola NE 1000 User manual

Motorola

Motorola DSP96002ADM User manual

Motorola

Motorola Canopy Powerline MU User manual

Motorola

Motorola MVME2300 Series User manual

Motorola

Motorola 68436 - Vanguard 100I - Remote Access Server Installation guide

Motorola

Motorola VAP2404 User manual

Popular Network Hardware manuals by other brands

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor

Yudor YDS-16 user manual

D-Link

D-Link ShareCenter DNS-320L datasheet

Samsung

Samsung ES1642dc Hardware user manual

Honeywell Home

Honeywell Home LTEM-PV Installation and setup guide

evertz

evertz 7700 Series manual

D-Link

D-Link ShareCenter DNS-343 Quick installation guide

Asante

Asante AsanteBridge 1012 user guide

FireBrick

FireBrick FB2700 user manual

Audiovox Electronics

Audiovox Electronics ARWH2T user manual

ADC

ADC DSX-1 Operational Procedures Guide

NetComm

NetComm NF2 user guide

Alcatel-Lucent

Alcatel-Lucent 5620 user guide

Dell EMC

Dell EMC XC6420 Series Solution guide

Lanner

Lanner NCA-1020A user manual

Allied Telesis

Allied Telesis AT-TN121-A Specifications

Arista

Arista CCA-ETM-Q12 quick start guide
