A NOTE TO YOU

Thank you for buying a MORRIS appliance.

MORRIS washers are easy to use, save time, and help you manage your home better.

This manual contains valuable information about how to operate and maintain your washer property and safely.

Please read it carefully.

󱇲Economic wash system

Using artificial intelligence, the washer uses minimum energy and water by

selecting optimal water lever and washing time.

󱇲Low noise system

The washer minimizes the washing and spinning noises by sensing the

amount of laundry.

󱇲Child-Lock

The Child-Lock system has been used to prevent children from pressing any

button to change the program during operation.

󱇲Nano-silver sterilization washing(Option)

By applying very fine silver particles on essential parts inside, the washer

sterilizes up to 99.9% as is done by boiling wash.

󱇲Air bubble washing(Option)

This is an advanced technology that generates millions of air bubbles inside the drum on washing sequence,

and the bubbles dissolve the detergent particles completely and cleanse all the soil in clothes gently and neatly.

PARTS AND FEATURES.................................................................................................................2

WASHER SAFETY...........................................................................................................................3

INSTALLATION INSTRUCTIONS....................................................................................................4

INLET HOSE CONNECTION...........................................................................................................5

ELECTRICAL REQUIREMENTS .....................................................................................................6

OPERATING YOUR WASHER........................................................................................................7

THE FUNCTIONS OF THE CONTROL PANEL...............................................................................9

WASHING PROGRAM...................................................................................................................11

WASHING PROCEDURE AND SELECTION ................................................................................12

GUIDE FOR OTHER USEFUL PROGRAMS.................................................................................23

MAINTENANCE .............................................................................................................................27

HOW TO CLEAN THE FILTER......................................................................................................28

REMOVING STAINS......................................................................................................................29

TROUBLE SHOOTING ..................................................................................................................30

SPECIFICATION............................................................................................................................31

CDS-1012

PARTS AND FEATURES

The parts and features of your washer are illustrated on the page.

Become familiar with all parts and features before using your washer.

Accessories

NOTE

The drawings in the book may vary from your washer model.

They are designed to show the different features of all models coverd by this book,

Your model may not include all features.

Hose drain Inlet hose Spanner Manual Cap holder

ADJUSTABLE LEG

CONTROL PANEL

DOOR

PUMP COVER

DETERGENT CASE

INLET HOSE

(HOT, OPTION) INLET HOSE

(COLD)

PANEL LOWER

POWER CORD

HOSE DRAIN

Save these instructions

Your safety is important to us.

To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the

following basic precautions.

Understanding your responsibilities

• Do not use chlorine bleach and ammonia or acid(such as vinegar or rust remover) in the same

wash. Hazardous fumes can form.

• Unplug power supply cord before attempting to service your washer.

• Do not wash fiberglass material.

Small particles can stick to fabrics washed in following loads and cause skin irritation.

• Do not spray water on the control panel of the washer.

It could cause fire or an electric shock.

• In case of the dual valve model, if you connect only cold water inlet valve, while water

temperature is selected as hot or warm, there can be water leakage from unconnected water

inlet valve.

• This appliance must be grounded.

To avoide electrical shock, use a metal pipe for the ground connection.

• Flammable fluids (dry-cleaning solvents,

kerosene, gasoline, etc.) should not be used

or stored in or near your washer.

Do not add flammable fluids to your wash

water.These substances give off vapors that

can create a fire hazard or explosion.

• After starting a cycle, do not reach into the

washer until all motions stop.

• Do not tamper with the controls.

• The appliance is not intended for use by

young children or infirm persons without

supervision.

• If the supply cord is damaged, it must be

replaced by the manufacturer, or its service

agent or a similarly qualified person in order

to avoid a hazard.

• If the appliance is supplied from a cord

extension set or electrical portable outlet

device it should be positioned so that it is not

subjected to splashing or ingress of

moisture.

Please ...

• Have only a qualified person install, repair,

or replace parts on washer.

• Maintain washer properly.

• Protect washer from the weather and keep

it where the temperature will not fall below

freezing.

• Do not install the washer at a place of

extremely high humidity. It could cause an

electric shock or a short circuit.

• Connect washer to the correct outlet,

electrical supply, water supply, and drain

supply.

WASHER SAFETY

Read all instructions before using your washer

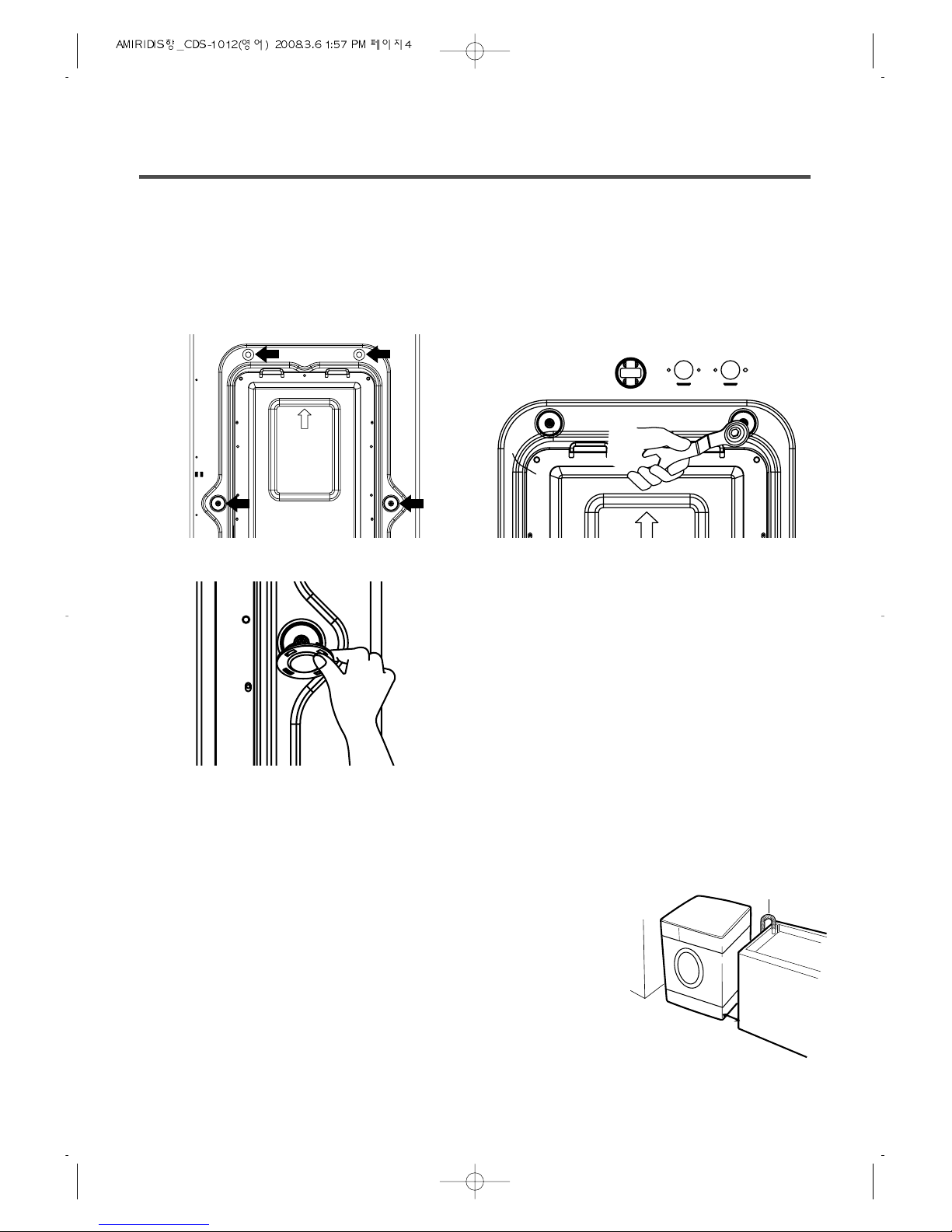

Removing transit bolts

1. Before operating the washer, remove the

transit bolts(4ea) along with the rubber.

• If the bolts are not removed, it may cause

heavy vibration, noise and malfunction.

2. Unscrew the 4 bolts with the spanner

supplied. Keep the 4 bolts and spanner for

future use.

• Whenever the appliance is transported, the

transit bolts must be refitted.

3. Close the holes with the cap holders supplied.

Location of washer

• Check location where the washer will be installed. Make sure you have everything necessary for

correct installation.

• Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.

• Do not place or store laundry products on top of washer at any times.

• Install the washer on the horizontal solid floor.

If the washer is installed on an unsuitable floor, it could make

considerable noise, vibrate severely and cause a malfunction. If the

washer is not level, adjust leg up or down for horizontal installation.

• Ventilation openings must not be obstructed by carpeting when the

washer is installed on a carpeted floor.

• Leave some space (right & left : 2cm, rear : 10cm).

• In case of built-in installation, the distance between top of the washer

and bottom of upper plate should be at least 3mm.

INSTALLATION INSTRUCTIONS

Laundry

Tub

Washer

approx.

2cm

Drain Hose

The washer should be connected to the water mains using new hose sets and old hose sets

should not be reused.

In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the

cold water inlet valve.

Option : Be careful not to confuse hot water inlet and cold water inlet.

For Ordinary Tap

For Screw-Shaped Tap

INLET HOSE CONNECTION

1Pull down the collar of the

inlet hose to separate it

from the water tap

adapter.

2Loosen the four screws

properly in order to fit into

water tap.

3Fit the water tap adapter

into the water tap and

tighten the four screws

evenly while pushing up

the adapter so that the

rubber packing can stick

to the water tap tightly.

4Remove the tape, and

screw connector B into

connect A tightly.

5Connect the inlet hose to

the water tap adapter by

pulling down the collar of

the hose end.

6Connect the inlet hose

adapter of the hose to the

water inlet of the washer

by turning it clockwise to

be fixed tightly.

• Please check the rubber

packing present inside the inlet

hose adapter of the hose.

1Connect the inlet hose to

the water tap by screwing

the connector tightly.

2Connect the connector-

inlet supplied if

necessary.

3Connect the inlet hose

adapter to the water inlet

of a washer and turn it to

be fixed.

*Check the packing in the inlet

TAPE

Connector B

Connector A

Connector

Rubber

Packing

Hose

Connector Rubber

Packing

Hose

Connector

inlet

Connector

ELECTRICAL REQUIREMENTS

•Electrical earth is required on this washer

•If it does not fit the outlet, have a proper outlet

installed by a qualified electrician.

•Don’t earth to a gas pipe.

•Don’t change the power supply cord plug.

•Check with a qualified electrician if you are not

sure the washer is properly earthed.

WARNING

Recommended earthing method

Electrical shock hazard : Failure to follow these instructions could result in

death or serious injury.

For your personal safety, this washer must be earthed.

This washer is equipped with a power supply cord ‘A’having a earthing plug ‘B’.

To minimize possible shock hazard, the cord must be plugged into a mating

earthing-type wall receptacle ‘C’. If a mating wall receptacle is not available,

it is the personal responsibility and obligation of the customer to have the

proper earthed wall receptacle installed by a qualified electrician.

Drain system

•Never forget to install drain hose before operating your washer.

•Open the packing box, and there is a drain hose inside the drum.

•Connect the drain hose to the drain outlet at the back side of the washer.

•

Top of laundry tub must be at least 60cm high and no higher than 100cm from bottom of washer.

•When installing the drain hose to tub(sink), secure it tightly with a string.

•Proper securing of the drain hose will protect the floor from damage due to water leakage.

•When the drain hose is too long, do not force it back into the washer.

This will cause abnormal noise.

Level adjustment

1If the washer is installed on an

unsuitable floor, it could make

considerable noise, vibrate and

cause a malfunction.

OPERATING YOUR WASHER

2Adjust the level of washer using adjustable legs.

•Please check if there is any gap between the

four adjustable legs and the floor.

•Turning adjustable legs by the enclosed

spanner, adjust the level of washer and make

it sure that there is no swaying of washer.

•After the adjustment is finished, turn the fixing

nuts up tightly so that the washer maintains

the adjustment.

3Make it sure that the washer does not sway when you press

down the four corners of the washer's top plate.

adjustable leg

Fixing Nut

NOTE

There should be no swaying of washer and all the

adjustable legs should stick to the floor closely.

To obtain the best washing results, you must operate your washer properly.

This section gives you this important information.

•Close zippers, snaps, and hooks to avoid

snagging other items.

Remove pin, buckles, and other hard

objects to avoid scratching the washer

interior.

•Empty pockets and pull them inside out.

•Turn down cuffs and turn synthetic knits

inside out to avoid pilling.

•Tie strings and sashes to avoid tangling.

•Treat spots and stains.

(See “Removing stains”on page 21)

Preparing clothes for washing

•Drop items into washer loosely. Items

should move easily through wash water for

best cleaning and wrinkle-free results.

•Load washer properly and select correct

load size setting.

Overloading and selecting a setting too

small for the wash load can :

- Cause poor cleaning

- Increase wrinkling

- Create excessive lint

- Wear out items faster (because of pilling)

•Mix large and small items in each load. Load

evenly to maintain washer balance.

An unbalanced load can make the washer

vibrate during spin.

•Reduce wash time when using a small load

size setting. Load with only a few small

items needs less wash time.

•Use a large load size setting to reduce

wrinkling with permanent press clothes and

some synthetic knits. These items should

have more room to move in the water than

heavy items. (towels, jeans)

1Detergent case 2Adding fabric softener

•If desired, add measured liquid fabric

softener to the softener inlet.

•Pour liquid fabric softener into the

dispenser using the amount

recommended on the package.

•Do not exceed the maximum fill line.

Overfilling can cause early dispensing of the

fabric softener which could stain clothes.

•Do not open the detergent case when

water is supplied.

•Avoid pouring fabric softener directly on

the clothes.

Adding detergent

•Separate heavily soiled items from lightly soiled ones, even if they would normally be washed

together.

•Separate dark colors from light colors, colorfast items from non-colorfast item.

Sorting

Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.

Color (White, Lignts, Darks) Separate white clothes from colored clothes.

Lint (Lint producers, Collectors) Wash lint producers and lint collectors separately.

Main wash Pre wash

Fabric softener

Press this switch to turn the power 'ON' or 'OFF'.

Operation and temporary stop is repeated as it is pressed. When you want to change program in

operating; Press the 'Start/Pause' button →Select the program that you want to change→Press the

'Start/Pause' button again.

You can select the course you want and each lamp is turned on when that course is selected.

You can select the spin speed you want and each lamp is turned on when that course is selected.

It can be used to pre-engage time for wash from 1 hr to 12 hrs.

You can select the dry condition you want and each lamp is turned on when that course is selected.

If you want to open Door intensionally during operation, press the 'Start/Pause' button and press again

'Door unlock' button.

In this case, signal will be appeared on PCB board, then you can open Door after cooling insideTub

temperature and draining water, also no button functions except Power button.

It can be used to adjust water temperature according to types of the load to be washed.

As this button is pressed, water temperature is selected by Cold

→

30°C

→

40°C

→

60°C

→

95°C.

You can select the wash course you want and each lamp is turned on when that course is selected.

As this button is pressed, the wash course is selected by 'Quick Wash'(proper load amount :1~2kg)

→

'Small'(proper load amount :2~3kg)

→

'Main Wash'

→

'Pre Wash'

→

'Soak'

→

'Quick Wash' .

You can select the rinse time(s) you want and each lamp is turned on when that course is selected.

As this button is pressed, the rinse time(s) is selected by '1'

→

'Rinse Hold'

→

'2'

→

'Rinse Hold'

→

... ...

→

'5'

→

'Rinse Hold'

→

'1'.

Use this function when you want to protect any accident occurring from handling of washer by a child.

During an operation of washer, press 'TEMP' and 'DRY' buttons simultaneously during 3 second.

If this mode will be set successfully, CHL and remain time will be showen on PCB board alternately.

In Child Lock mode, no button functions except Power button.

If you want to set this mode, press 'TEMP' and 'DRY' buttons simultaneously during 3 second.

And if you want to release this mode, press 'TEMP' and 'DRY' buttons simultaneously again during 3

second.

If you want to change to the desire program, while this mode is working;

1. Press 'TEMP' and 'DRY' buttons simultaneously again during 3 second.

2. Press the 'Start/Pause' button.

3. Select the desired program and press the 'Start/Pause' buttom again.

THE FUNCTION OF CONTROL PANEL(CDS-1012)

* The Child Lock will be cancelled when power is off.

Change

the desired

program

Press this switch to turn the power 'ON' or 'OFF'.

Operation and temporary stop is repeated as it is pressed. When you want to change program in

operating; Press the 'Start/Pause' button

→

Select the program that you want to change

→

Press the

'Start/Pause' button again.

You can select the course you want and each lamp is turned on when that course is selected.

You can select the wash course you want and each lamp is turned on when that course is selected.

You can select the rinse time(s) you want and each lamp is turned on when that course is selected.

You can select the spin speed you want and each lamp is turned on when that course is selected.

It can be used to pre-engage time for wash from 1 hr to 12 hrs.

It can be used to do only Rinse and Spin.

It you want to open Door intensionally during operation, press the 'Start/Pause' button and press again

'Door unlock' button.

In this case, signal will be appeared on PCB board, then you can open Door after cooling insideTub

temperature and draining water, also no button functions except Power button.

It can be used to adjust water temperature according to types of the load to be washed.

As this button is pressed, water temperature is selected by Cold

→

30°C

→

40°C

→

60°C

→

95°C.

Use this function when you want to protect any accident occurring from handling of washer by a child.

During an operation of washer, press 'TEMP' and 'RINSE+SPIN' buttons simultaneously during 3 second.

If this mode will be set successfully, CHL and remain time will be showen on PCB board alternately. In Child

Lock mode, no button functions except Power button.

If you want to set this mode, press 'TEMP' and 'RINSE+SPIN' buttons simultaneously during 3 second.

And if you want to release this mode, press 'TEMP' and 'RINSE+SPIN' buttons simultaneously again during

3 second.

If you want to change to the desire program, while this mode is working;

1. Press 'TEMP' and 'RINSE+SPIN' buttons simultaneously again during 3 second.

2. Press the 'Start/Pause' button.

3. Select the desired program and press the 'Start/Pause' buttom again.

THE FUNCTION OF CONTROL PANEL(WDS-1012)

* The Child Lock will be cancelled when power is off.

Change

the desired

program

This manual suits for next models

Table of contents

Other Morris Washer manuals

Morris

Morris WIW-91215 User manual

Morris

Morris WBW-91275/2 User manual

Morris

Morris WDS-10142 User manual

Morris

Morris PRESTIGE Series User manual

Morris

Morris WTL-80135 User manual

Morris

Morris WBW-91280 User manual

Morris

Morris WBW-91247 User manual

Morris

Morris WDW-91490 User manual

Morris

Morris WIW-91216 User manual

Morris

Morris PRESTIGE Series User manual

Morris

Morris WDW-91480 User manual

Morris

Morris CDR-13132 User manual

Morris

Morris WIW-91212 User manual

Morris

Morris WIW-81215 User manual

Morris

Morris WBW-71011/2 User manual

Morris

Morris PRESTIGE WIW-21530PG User manual

Morris

Morris WTL-80132 User manual

Morris

Morris CDR-12812 User manual

Morris

Morris WDW-91334 User manual

Morris

Morris WIW-10146 User manual

Morris

Morris WIW-81431PGS User manual

Morris

Morris WIW-81413S User manual

Morris

Morris WBS-91427 User manual

Morris

Morris WTL-80134 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
