Mopar JL CHMSL User manual
1
December 21, 2017
www.mopar.com
JL CHMSL Relocation Kit
K6862904
Important Notes:
Prior to beginning this or any installation read these instructions to familiarize yourself with the required
steps and evaluate if you are experienced and capable to personally perform these modifications. A
factory service manual should be used in conjunction with these installation instructions.
Refer to the parts list to ensure that all necessary components and hardware have been included. If any
parts are missing please contact your local Jeep dealership for assistance.
Not compatible with a spare tire cover.
Tools Needed:
Lug wrench
Torque wrench
Ratcheting wrench
13mm Socket
T25 Torx Head Driver
T45 Torx Head Driver
2
December 21, 2017
www.mopar.com
K6862904
Call Out
Description
Quantity
Supplier
Item Number
1
Relocation Bracket
1
B 2442
2
M14/M8 Dual Threaded Lug Bolt
2
PN 1228
3
M8x30mm T-45 Torx Head bolt
2
PN 1230
4
.25” Rubber Grommet
1
PN 1229
5
Wire Clip
2
PN 1239
3
December 21, 2017
www.mopar.com
K6862904
6
5
4
3
7x T25 Torx
4x T25 Torx
Loosen 8x 13mm hex bolt
1
2
Disconnect battery and
Retain all fasteners for reinstallation
4
December 21, 2017
www.mopar.com
K6862904
11A
11B
8
2x T25 Torx
9
10
7
Torque 8x 13mm hex bolt to
17.5N-m (13ft-lbs)
OR
Locking OEM lug without
Decorative cover
Non-locking OEM lug with
decorative cover
CAUTION: Gently
remove wire harness
1
2
5
December 21, 2017
www.mopar.com
K6862904
14
T45 Torx: Torque to 20
N-m (15 ft-lbs)
16
2x Item 2
1x Item 4
1x Item 1
13
12
Item 4
17
Torque 3x lugs to 80 N-m (59 ft-lbs)
15
2x Item 3
2x T8 Torx
from Step 5
2x T25 Torx
from Step 6
6
December 21, 2017
www.mopar.com
K6862904

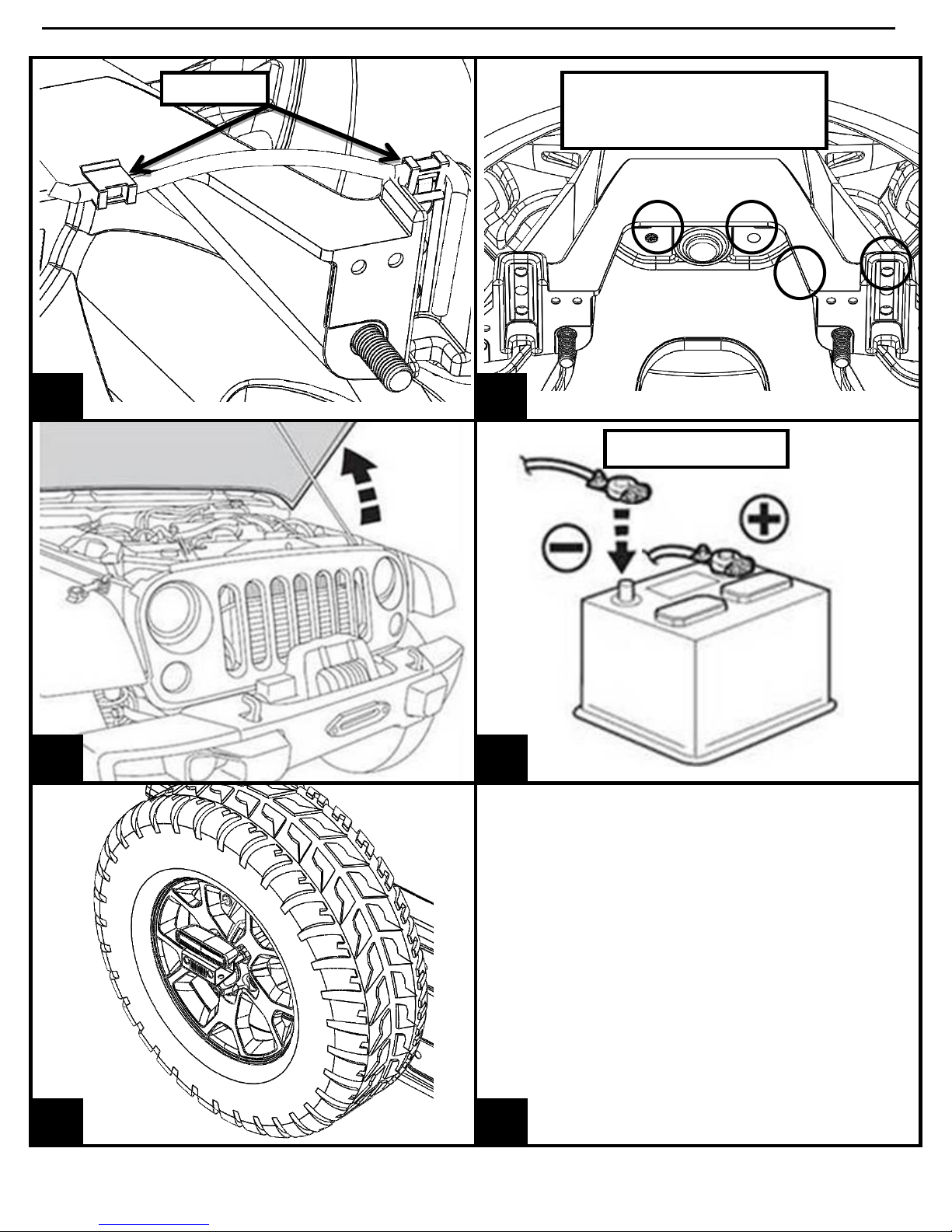

Ensure tire is firmly pressed
against the tire carrier or against
the factory tire bumpers on the
tailgate before operating the
vehicle
Fold and place this instruction
sheet in the vehicle glove box for
future reference
For customer service questions,
refer to your local Jeep
dealership
Suggested Item 5 locations.
Open swing gate for ease of
access
2x Item 5
18
19
23
22
20
21
Reconnect Battery
7
December 21, 2017
www.mopar.com
K6862904
Date
Section
Summary of Changes Made
Notes
Initial Release
Document Revision History
1
21 de diciembre de 2017
www.mopar.com
Kit de reubicación JL CHMSL
K6862904
Notas importantes:
Antes de comenzar con esta o cualquier instalación, lea estas instrucciones para familiarizarse con los
pasos necesarios y evaluar si tiene la experiencia y capacidad para realizar estas modificaciones
personalmente. Debe utilizarse un manual de servicio junto con estas instrucciones de instalación.
Consulte la lista de piezas para asegurarse de que se han incluido todos los componentes necesarios.
Si falta alguna pieza, contacte con su concesionario Jeep para obtener asistencia.
Incompatible con cubiertas de neumático de repuesto.
Herramientas necesarias:
Llave de cruceta
Llave dinamométrica
Llave de carraca
Llave de vaso de 13 mm
Destornillador Torx T25
Destornillador Torx T45
2
21 de diciembre de 2017
www.mopar.com
K6862904
N.º
Descripción
Cantidad
Número de artículo del
proveedor
1
Soporte de reubicación
1
B 2442
2
Tuerca de llanta M14/M8 de doble rosca
2
PN 1228
3
Tornillo M8x30mm de cabeza Torx T45
2
PN 1230
4
Ojete de goma de 1/4”
1
PN 1229
5
Pinza de cable
2
PN 1239
3
21 de diciembre de 2017
www.mopar.com
K6862904
6
5
4
3
7x T25 Torx
4x T25 Torx
Afloje las 8 tuercas
1
2
Desconecte la batería y
Mantenga todos los tornillos para la
reinstalación
