Before attempting to connect or operate this product,

please read these instructions completely.

Installation

Instructions

Outdoor Domed Housings

POD7C/POD7CW

Manufactured By:

TABLE OF CONTENTS

• CAUTION

1. PRECAUTIONS ON INSTALLATION

2. DESCRIPTION

3. INSTALLATION

3-1 Camera Installation

3-2 Dome Assembly

3-3 Wall Mount Bracket Installation

3-4 Dome Installation

3-5 Care and Maintenance

4. SYSTEM CONNECTION

5. SPECIFICATIONS

CAUTION

Thisunitmustbeproperlyandsecurelymountedtoasupportingstructurecapableofsustainingtheweight

of the bracket and camera assembly. Accordingly,

1. The installation should be made by a qualified installer.

2. The installation should be in compliance with local codes.

3. Care should be exercised to select suitable hardware to install the unit, taking into account both the

composition of the mounting surface and the weight the hardware will be required to sustain.

Be sure to periodically examine the unit and the supporting structure to make sure that the integrity of the

installation is intact.

Failure to comply with the foregoing could result in the unit coming loose from the support structure and

falling, with resultant damages or injury to anyone or anything struck by the falling unit.

PRECAUTIONS ON INSTALLATION

• Installation should be in accordance with all applicable local and National Electric codes. Only

approved materials should be utilized.

• This unit must be properly and securely mounted to a supporting structure that is capable of sustaining

the weight of the housing and dome along with the unitized camera.

• Read instruction completely before installation and operation.

DESCRIPTION

• Thisproducthasbeendesignedandengineeredforthecombinationcamera WV-CS604andWV-CS404

for ease of installation and service.

• This product is a discreet outdoor housing designed for pendant (POD7C) or wall mount (POD7CW)

applications.

- 2 -

Check all contents before beginning installation.

A. Housing Assembly (POD7C) Housing Assembly (POD7CW)

1. 2 1/4 Coupling w/ 2 set screws 1. Wall Mount Bracket

2. Coupling Gasket 2. Housing Gasket

3. Housing Mounting Bracket 3. White Upper Top

4. Housing Gasket

5. White Upper Top

B. Bracket Assembly

1. Upper Housing Bracket

2. Lower Housing Bracket

3. 24 VDC Blower

4. 24 VAC Heater

5. PC Board Assembly

C. Dome Assembly

1. 7" Clear Plastic Dome

2. (3) Security Fasteners

D. Housing Packet

1. Security Tool

2. (4) 8 x 32 Bolts

3. (2) Molex Connector w/ 6 Pins

4. Instruction Manual

5. 1/4" x 20 x 1/2" Bolt

6. 1/4" Flat Washer

7. 1/4" Lock Washer

8. Plastic Lanyard

- 3 -

- 4 -

2 1/4" Coupling*

Mounting Bracket*

Top Gasket

Housing top

Upper Housing Bracket

Lower Housing Bracket

Camera

7" Clear Dome

Housing Assembly

Bracket Assembly

Dome Assembly

* Or Wall Mount

Connect the power cable and video cable lines.

Loop excess cables through the cable clamp.

3-2 Dome Assembly

Use the black handle security tool to attach the

dome to the housing.

3-3 Wall Mount Bracket Installation

Note:Mountinghardwarenotincluded.Careshould

be exercised to select suitable hardware to mount

the unit.

Compatible brackets for POD7C/POD7CW:

• Parapet Mount Bracket - PSRCW-2000

• Corner Mount Bracket - PCA-2

• Pole Mount Bracket - PPM-3

- 5 -

-3. INSTALLATION

3-1 Camera Installations

Snap out the area "X" from the unitized camera for

thecablesexiting.Alongnoseplierisrecommended.

Note: Round off all sharp edges with file to avoid

injury.

Attach camera mount bracket of unitized camera

to dome bracket, using the standard screw (A).

Attach the unitized camera to dome bracket (first,

hang the safety wire to the camera bracket). Then

attach the safety screw to camera mount bracket,

using the standard screw (s).

Camera Mount Bracket

Connect

Safety Screw

Set Screw

"X"

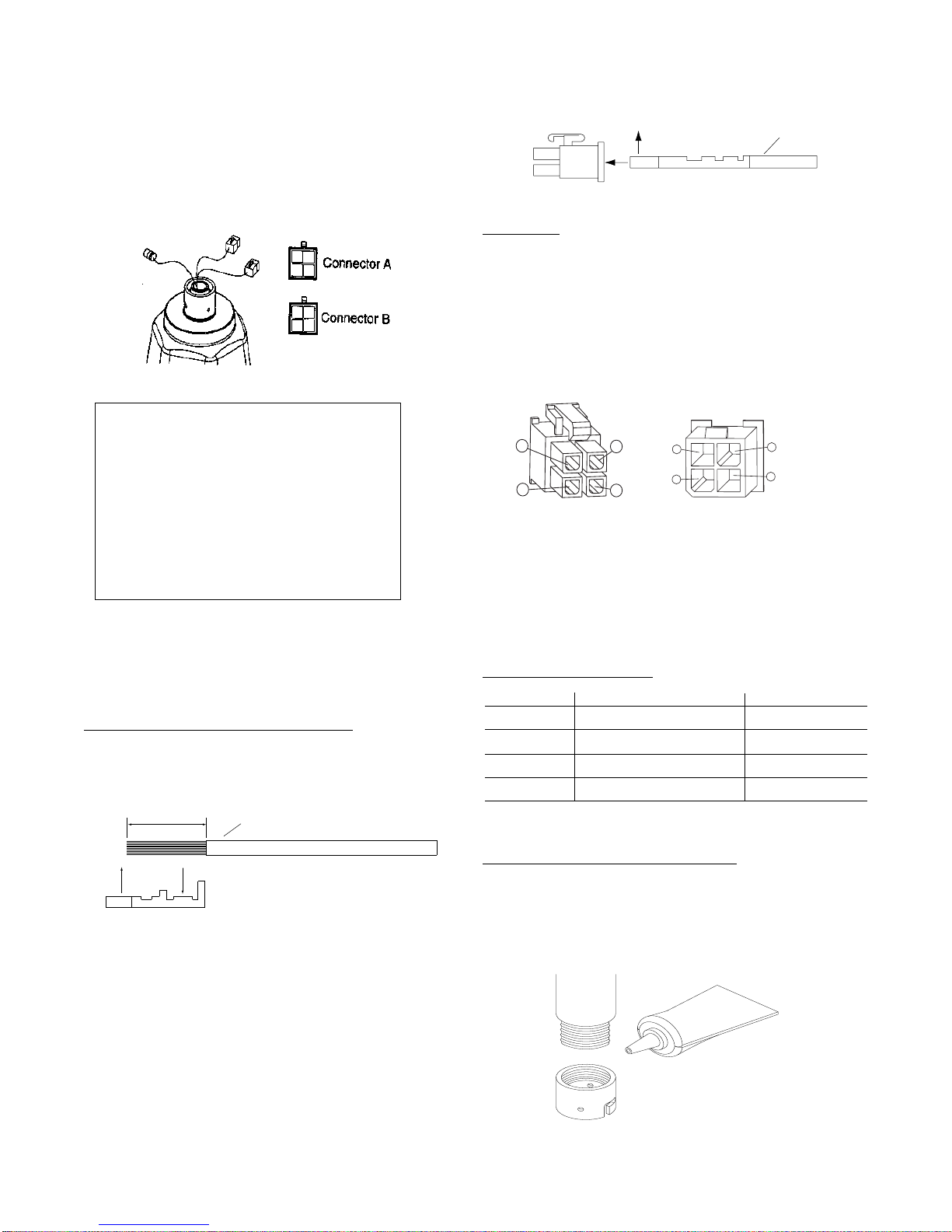

Assemble the power cable with the provided

connector (included in housing packet).

Frontviewofthefemaleconnectorinhousingcable.

Pin 1 is in the lower right hand corner.

Connector A - Camera Power

Connector B - Heater/Blower Power

Connector Information Pin

1. AC 24 VAC Live

2. AC 24 VAC Neutral

3. Not Used

4. Ground

CAUTION: For lightning protection of the camera

and heater/blower, the pin 3 of the connector must

be connected to real electrical ground.

HOW TO ASSEMBLE THE CONNECTOR

• Stripbackthecablejacket approximately 0.1 inch

(3 mm) and separate the individual conductors.

Prepare the individual conductors for clamping. If

clamping,use Molex brandtool part number57027-

5000 (for UL-listed-style cable UL1015) or 57026-5000

(for UL-listed-style cable UL1007).

After clamping the contacts, push them into the

properholesintheconnectorhousinguntiltheysnap

in place.

Approx. 0.1" Wire

Insert

Contact

Wire

Contact

- 6 -

CAUTIONS

• Shrinking the cable-entry seal is a onetime

procedure.Donotshrinkthecable-entrysealuntil

ithasbeendetermined that the unit isfunctioning.

•CONNECT THIS TO A 24 VAC CLASS 2 POWER

SUPPLY ONLY.

CAUTION: TO PREVENT FIRE OR SHOCK HAZARD, THE

UL-LISTED WIRE VW-1, STYLE 1007, SHOULD BE USED

FOR THE CABLE FOR 24 VAC INPUT TERMINALS.

OPERATING DISTANCES

Awg Size Impedance Max Distance

Awg #12 1.71 ohm/1000 ft. 440 ft.

Awg #14 2.73 ohm/1000 ft. 270 ft.

Awg #16 4.35 ohm/1000 ft. 170 ft.

Awg #18 6.92 ohm/1000 ft. 100 ft.

3-4 Pendant POD7C- Connections

Attachcouplingto11/2NPTthreadpipe.Note:Seal

thread with a bead of silicone sealer to ensure

water-tight fit.

Connect the power cable and video cable lines.

Attach dome assembly to coupling. Secure screws

Wire hook can be used as temporary support.

(C).

Securesafetyscrew(D)tohousingmountingbracket

with plane washer (G) and lock washer (F).

3-5 Care and Maintenance

• The lower dome is an optical surface. When

cleaning the inner surface of the dome, handle

- 7 -

with extreme care.

• If debris and dust accumulates on the dome's

inner surface, remove with clean air pressure.

Compressed air cans are available for this use at

most photography supply stores.

• If the surface doesn't clean properly with

compressedair,useanonabrasivecleanerthatis

acceptable for use on acrylic. Do not use any

other type of cleaner. This may result in scratches

to the dome's surface.

For service of Panasonic/Videolarm equipment

contact:

Panasonic Technical Center

52 West Gude Dr.

Rockville, MD 20850-1150

Phone: (301) 762-5125/ Fax: (301) 251-0347

4. System Connection

Example1:Connectthecoaxialcablebetweenthe

video output connector on the WV-CS404 and the

camera input connector on the WV-CU101.

Secure C

G F D

Video Monitor

WV-CU101

- 8 -

Example2:Connectthecoaxialcablebetweenthe

video output connector on the WV-CS404 and the

camera input connector on the WV-CU254.

Note: For the connections in the diagram, refer to

the operating instructions for each product.

Example3: Connectthecoaxialcablebetweenthe

videooutputconnectorontheWV-BS204,WV-CS404,

WV-CS604 and the camera input connector on the

WV-CU254.

SPECIFICATIONS

MECHANICAL/ELECTRICAL

Upper Housing - .25" high impact, UV-stable white plastic

Housing Bracket - 14- and 16-gauge steel

Lower Dome - 7" distortion-free acrylic

Unit Weight - Camera 4.4 lbs.; domed housing 6.6 lbs.

Environmental - -20°to 120°F

Heater - On at 40°F, off at 60°F (+/-5°) 60 vA

Blower - Continuous, .11A

Surge Protector:

Video clamping - Differential mode 27-36V

common mode 54-72 V

Power clamping - 240 - 300V

STANDARD CONFIGURATION

Item or Sub-Item Description

20-DCPOD7 7" CLEAR DOME POD7

21-TOPOD7 HOUSING TOP FOR POD7

30-VL1372 UPPER HOUSING BRACKET, POD-7C

30-VL1379 LANYARD ,7" DOMES

30-VL917 POD-12C 2 1/4" COUPLING

30-VL926 POD12C MOUNTING BRACKET

40-BRPOD7 BRACKET ASSY POD7

30-VL1371 LOWER HOUSING BRACKET, POD-7C

60-WPBNC1 BNC PLUG 75 OHM FOR RG 179

70-WPMX01 WM3701 (4) CIR/PLUG

70-WPMX02 Molex 39-00-0039 FEMALE PIN

71-BLEH24 24VDC Blower .11A

72-HTPOD12 24VAC Heater 50 Watts

76-PODPCB PC Board Assembly

90-BTRP19 8-32 X 3/8 RD HD PHIL SS

91-NTHH06 8-32 HEX NUT SS

92-WSTH02 #8 EXT TTH STAR L/W STAINLESS

94-FSCT01 CABLE TIE NYLON NAT.

94-FSSR03 HEYCO 1060 SR 2M-1 BLK STRAIN

95-MX2025 MOLEX RECEPTACLE

95-PCST02 TTW FASTEX PCB SUPPORTS

95-PCST03 ITW FASTEX 232-120207-30

40-CAPOD701 COAXIAL CABLE ASSY. FOR POD7

40-CAPOD702 POD-12C CABLE ASSY. B

40-PKPOD7 PACKET ASSY FOR POD7C

70-WPMX10 Molex 39-01-4030

90-BTHH32 1/4-20 X 1/2" HX HD SS MS

90-BTHH39 1/4-20 x 3/8" HX HD SS MS

90-BTSS05 1/4-20 x 1/2" SET SCREW

92-WSFL01 1/4 SAE FLAT WASHER 18-8 SS

92-WSSL01 1/4 SPLIT LOCKWASHER 18-8 SS

94-FSLG01 HEYCO WIRE HOLDER #3630 WT

94-FSRT01 RETAINER BLACK NYLON

95-FSSL03 HOOK LOOP CABLE POD12C

95-FSSL04 CABLE FERRULES

95-FSTS03 TOOLHEAD SCREW

96-PSGK04 VL-1433 POD-12C TOP GASKET

96-PSGK05 VL-1014 POD-12C BOTTOM GASKET

- 9 -

Rev. # 3029/0200

.114

7.000

2.08412.861

1.405

9.169

14.169

.089

7.000

3.432

Set Screws

Slot safety screw

(located on both sides)

Gasket

Coupling for 1 1/2" standard pipe
