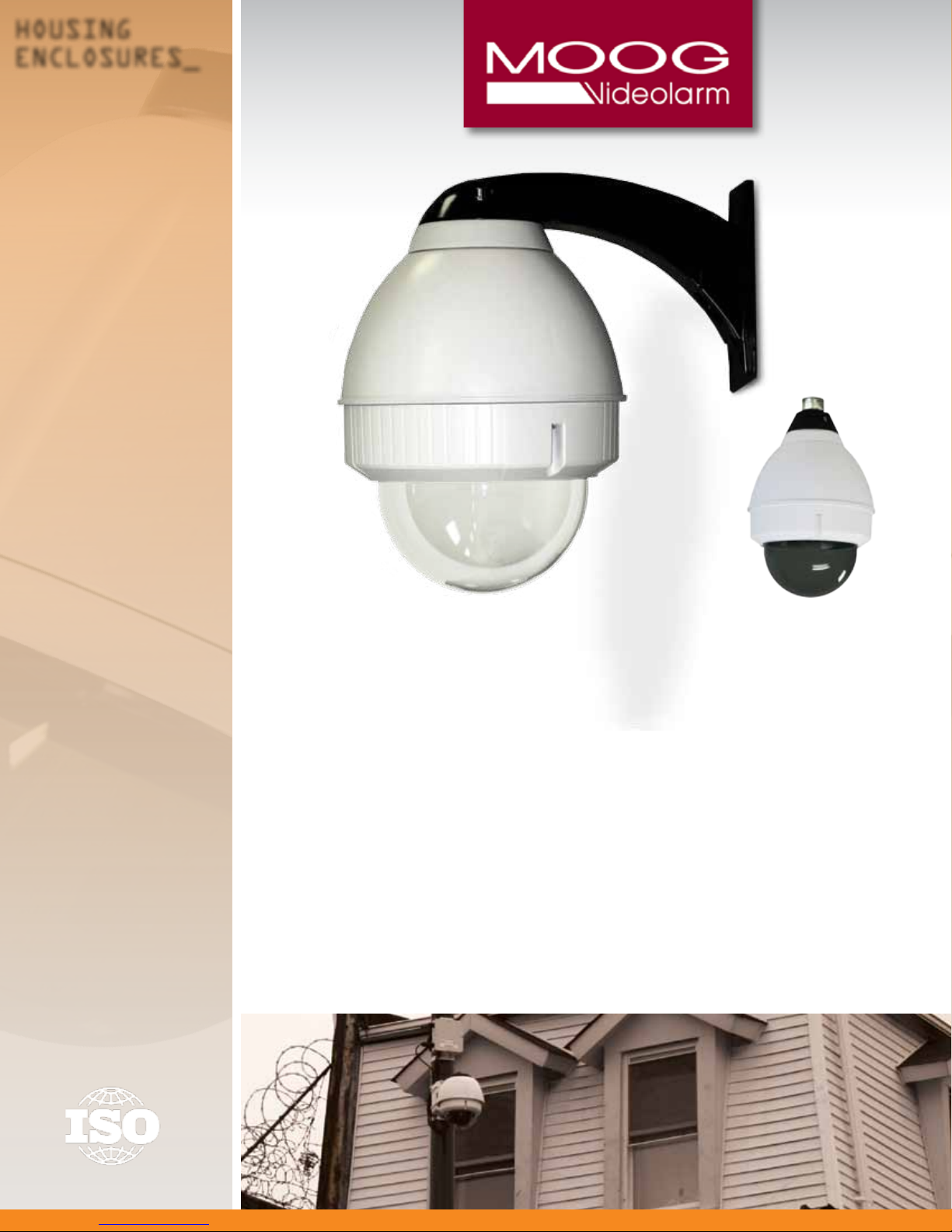

Moog Videolarm FusionDome FDW75C2N User manual

•

Universal mounting plate accepts most IP network and analog

camera systems

•

Durable engineered plastic top, 94V0 UV protected

•

IP66 rated

Key Features

With its attractive design and compact size, Moog Videolarm’s FusionDome offers versatility and added protection to your video surveillance system.

Compatible with most of today’s leading IP and analog camera manufacturers, the FusionDome is constructed of a durable engineered plastic top,

94V0 UV protected, and includes an enhanced optical dome. To better meet the demands of your particular surveillance application, the FusionDome

is available with several unique options: pendant or wall mount, 12VDC input, heater/blower, xed or PTZ camera bracket, and more.

•

Thermostatically controlled 12VDC or 24VAC

heater and surge protection (outdoor models only)

•

Integrated wall mount standard; pendant mount available

(1½” pipe thread)

•

Enhanced optically clear lower dome for increased visibility

HOUSING

ENCLOSURES_

CERTIFIED

FusionDome

FDW75

FDW75_

Outdoor / Indoor (PTZ) Housings:

The FDW75C2N is a IP network ready 7” outdoor dome housing with wall mount,

clear polycarbonate dome, with 24VAC input, heater/blower, for an IP network PTZ

camera, 120 to 24VAC transformer.

IFDP75TN is a indoor dome housing with pendant mount, tinted dome, for an IP

network PTZ camera, no electronics.

FDW75C12N is a 12VDC version of the FDW75C2N

Outdoor / Indoor (Fixed) Housings:

The FDW75F2N is a IP network ready 7” outdoor dome housing with wall mount,

clear polycarbonate dome, with 24VAC input, heater/blower, for an IP xed

camera, 120 to 24VAC transformer.

IFDP75TF is a indoor dome housing with pendant mount, tinted dome, for an IP

network xed camera, no electronics

SPECIFICATIONS:

Mechanical Specications

Size (h*w*d):

14.7” x 8.2” x 14.5” (374 x 208 x 369mm)

Weight:

11 lbs (5kg)

Construction TOP:

3mm engineered plastic

Construction DOME:

Polycarbonate

Mount Bracket:

Machined & cast aluminum

Electrical Specications

Power Requirements:

24VAC 55W (Heater/Blower 27W)

Dome 24VAC model:

12VDC, 50W

Dome 12VDC model:

(includes 20W for heater)

Environmental Specications

Operating Temperature:

-20° F to 120° F (-29° C to + 49° C)

Dimensions / Architectural Drawings

Shipping Specications

MODEL SHIPPING WEIGHT BOX DIMENSIONS

FDW75

110 lbs (49.9 kg) 17 x 14 x 17 (431.8 x 355.6 x 431.8 mm)

Dimensions are in inches

Certications and Ratings

UL Listed WEEE CE RoHS

Accessories:

Wall Mounts and Pendant Mounts available specify “W” for

Wall Mount or “P” for Pendant Mount

Tinted and Clear domes available specify “C” for Clear or “T” for Tinted

Product and company names listed are trademarks or trade names of their respective companies.

APM3

Aluminum pole

mount bracket with

female inserts

PB24L

Rugged outdoor wireless

box, 220/110VAC input and

24VAC output for camera

PRM50G

Heavy-duty aluminum

parapet mount bracket

with 20” extension,

includes 1 1/2” NPT

3.19

(80.9)

10.27

(260.9)

7.00

(177.8)

5.50

(139.7)

14.65

(372.1)

15.03

(381.7)

4.16

(105.6)

Compatible Cameras:

ACM-8201/8211,ACM-8511, CAM-6510 iCanView 250/252

213, 214, 215, 232D+, 233D

VB-C10, VB-C300, VB-C50i,

VB-C60, VC-C50i

PTC-200C, PTC-400C, PTC-401C IP

IK-WB21A

SND-3080, SND-5080, SND-560

SNP-3301/3370, SNP-1000A

2564

VN-C625U, VN-V685U,

VN-C655U, VN-V686BU,

VN-V686U

WV-NS202A, WV-NF284

WV-NS202A,WV-NS954

WV-NF302 , WV-NW502S

WV-SF336, KX-HCM180

SNC-RH124, SNC-RS44/46,

SNC-RX530/550/570

SNC-RZ25, SNC-RZ30,

SNC-RZ50

CAN

To view the latest listing of compatible cameras please visit

www.videolarm.com/thirdparty.jsp

PTZ:

FIXED COMPATIBLE CAMERAS ALSO AVAILABLE

For detailed list see web site****

Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA + 1.800.554.1124 www.videolarm.com

500-672 + 09-03-2010
