Montpellier MON-CKH60 User manual

Installation

and

Operating

Instructions

Model: MON-CKH60

60cm Ceramic Black Hob with Knob Controls

Please read these instructions carefully before attempting to install or use this appliance.

It is advisable to keep these instructions in a safe place for future reference.

N.B. Should your appliance require attention, our service agents will not be able to book

a service call without your unique serial number which can be found on the last page of

this manual.

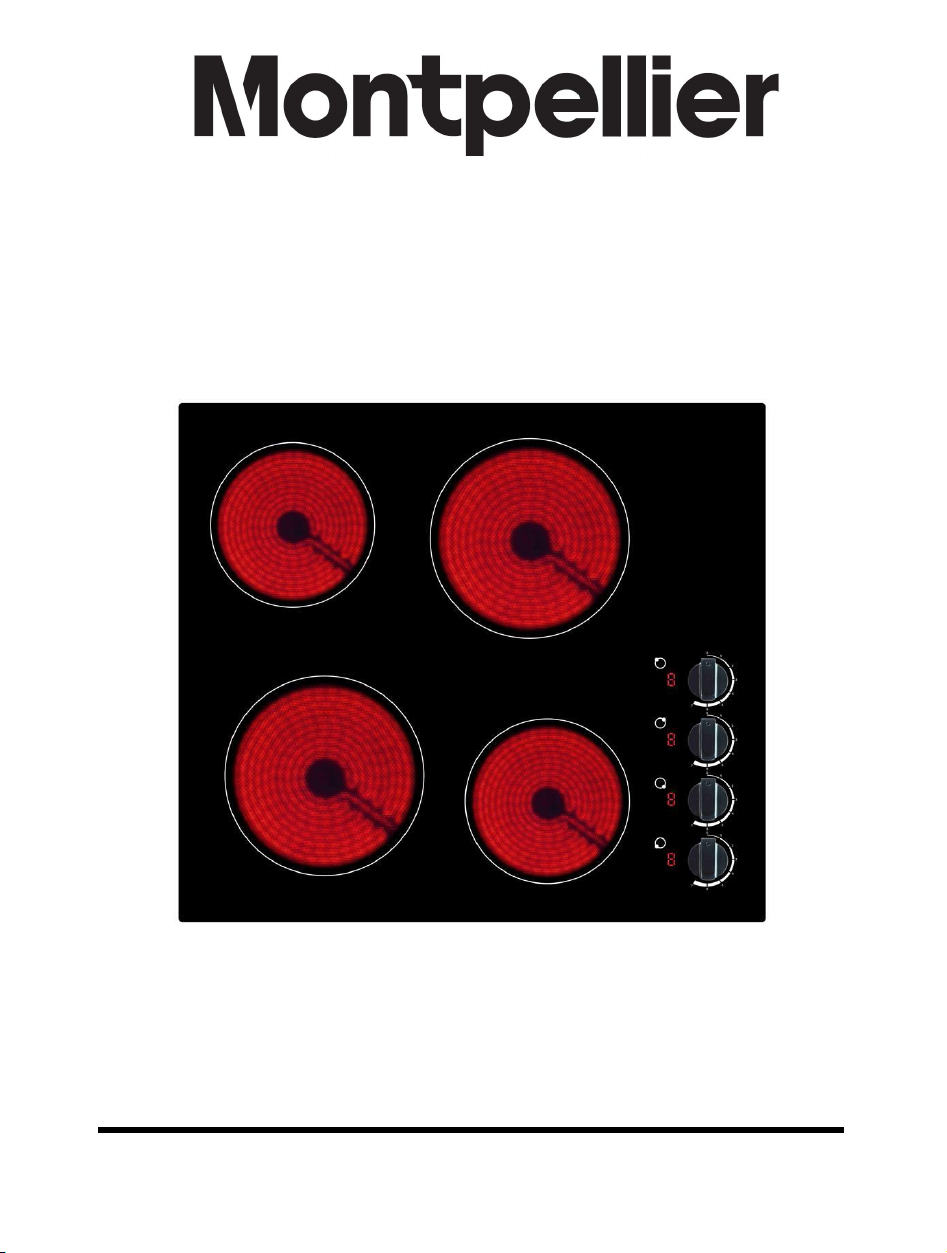

(Picture indicative of model supplied)

roduc

ion

Thank you for choosing this Montpellier branded appliance.

It has been designed to give years of trouble-free use provided

it is installed and maintained correctly.

Please read these instructions carefully before installing or

using your appliance. It is advisable to keep your purchase

and

installation receipts with these instructions in a safe place for

future reference. Included is some important safety informat

ion

in addition to guidelines and recommendations that will enab

you to take full advantage of all the functions available.

This quality appliance has been tested and certified to meet all

applicable UK electrical and safety standards.

This appliance must be installed and connected in

accordance with current regulations.

After unpacking the appliance ensure that there is no visible

damage. If the appliance has been damaged during transit, do

not use it, contact your retailer immediately.

Your 2 year Manufacturer's guarantee

THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Your new Montpellier appliance carries a free guarantee which protects you

against the cost of repairs during the first 24 months from date of purchase

provided that:

Any claim is accompanied by evidence of the model reference, model serial

number and proof of purchase, such as a Sales Receipt, showing that the

appliance was purchased within the 24 months prior to the date of claim.

What is not covered under the Guarantee:

Any appliance not correctly installed and operated in accordance

with the manufacturer's instructions.

Any appliance that is used for anything other than domestic

purposes.

Any defect caused by accident, misuse, unauthorized modification or

inexpert repair.

Cost of Call-out where a fault cannot be found with the appliance.

Cost of Call-out for work covering routine maintenance, such as, but

not exclusively, cleaning of filters or defrosting.

Cost of Call-out for work required to correct the alignment of doors

following door reversal procedures carried out by you.

Use of the appliance by anyone other than the Householder.

Use in any commercial environment.

Consumable items, such as, but not exclusively, fuses in plugs,

bulbs and breakable items which require routine replacement.

Repair costs incurred that have not been authorised by Repairtech

and/or carried out by a non-approved Repairtech engineer.

YOUR GUARANTEE IS VALID ONLY IN THE UK.

To Register your Appliance simply complete the card in your appliance pack and return it

with a stamp affixed or Alternatively you can Register online at www.repairtechuk.com

SERVICE HELP-LINE

Should your appliance develop a fault, please call the

Repairtech Service Helpline on:

01527-888133

Description

The

Appliance

1. 1800W Cook Zone

2. 1200W Cook Zone

3. Function Controls

4. Ceramic Glass Plate

(Picture indicative of model supplied)

2.4.

CONTENTS:

Section 1. Installation

Sect

n 2.

Safety

Section 3. Operating the Appliance

Section 4. Maintenance

Section

Installation

-Remove all packaging, protective film and securing tape from

the appliance.

-Position the appliance in a dry atmosphere.

-The following dimensions are provided as a guide for

installation – your installer will carry out the installation in

accordance with the current regulations.

-Your installer will connect the power cable in accordance with

the current regulations.

To install this appliance, please proceed as follows:

1.1. Work-Surface Cut-Out

-Cut out the work-top as shown in the drawing below, ensuring

that the actual sizes used are as per the chart below.

-For installation and use, a minimum of 5cm must be

maintained around the cut-out.

-The work surface must have a thickness of at least 30mm.

-The work surface must be heat resistant.

L(mm)

W(mm)

H(mm)

D(mm)

A(mm)

B(mm)

X(mm)

590

520

490

50 mini

1.2. Space to Rear or Side Wall

A = 760mm B = 50mm (min) C = 20mm (min)

D = Air Gap/Intake E = Air Exit (5mm)

1.3. Fixing Brackets

-Fix the brackets as shown below:

a) Screw b) Bracket c) Screw Hole d) Base of hotplate

1.4. Electrical Connection

This appliance has a total Power Rating of 6000W and must

be ‘hard wired’ into a suitable fused spur adjacent to the

appliance housing. The product must be installed by a

Qualified Electrician.

Please note that a switchable spur should be accessible

above the work surface in order that the power can be turned

off.

Hob voltage Total power

4 Zone 220-240 6.0KW

Section 2. Safety Advice

-Please read this booklet thoroughly before installing and

switching on the appliance. The manufacturer accepts no

responsibility for incorrect installation and usage.

-This appliance is guaranteed for Domestic Use Only.

This appliance shall not be used by children aged from 8

years and above and persons with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction on how

to use the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children

without supervision.

-This appliance must only be used for cooking/heating foods

and liquids. Do not use it for any other purpose.

-It is important that you use only metal pans specifically

designed and/or approved for use on Ceramic Hobs. Never

allow melamine or plastic containers to come in contact with

the heat zones.

-If using an adaptor, this must be used in accordance with the

manufacturers instructions and ensure that the electrical

circuit is not overloaded as this could cause overheating.

-Do not twist or bend the cables, and keep them away from hot

surfaces. Following installation make sure that the power

cable is not trapped underneath the appliance.

-Keep the appliance surfaces clean. Failure to do this could

lead to the appliance malfunctioning.

-The surface of this appliance will get extremely hot during use.

The surface of this appliance will remain hot after it has been

turned off. Do not touch or clean the heating zone until it has

completely cooled down.

-If the power supply cord is damaged, it must be replaced by

the manufacturer, it’s service agent or similarly qualified

persons in order to avoid a hazard.

Section 3. Operating the Appliance

3.1. Control Panel

3.2. Power and Cooking Functions

3.2.1. Setting the Zone Temperature

Place the pan on the required Heat Zone.

Now turn the required heat zone control knob clockwise to the

required heat level. Power settings range from ‘1’ lowest to ‘9’

highest setting.

Turn the heat zone control knob anti-clockwise to ‘0’ (Off) when

you have finished.

1. Heat Zone Indicator

2. Heat Indicator Lamps

3. Knob Controls

(Image shown for indicative purposes only)
