Montigo B34-DV-2 Manual

B-Series

Available at: Printed in Canada

P/N XB0108 091511

Ferndale, Washington

TF 1.800.789.6236

FX 1.866.300.0927

Langley, British Columbia

TF 1.800.378.3115

FX 1.604.607.6462

C US

Consult the owner’s manual for complete installation instructions and proper clearances to

combustible surfaces prior to installing ﬁreplace.

All speciﬁcations, framing dimensions, product designs, materials and colors are subject to

change without notice. The actual ﬂame pattern and color may vary slightly from the illustrations.

Diagrams and illustrations are not to scale.

Options & accessories may have associated surcharge.

Warranty: The manufacturer warrants this ﬁreplace to be free from defects in materials and

workmanship at the time of manufacture. There is a limited 10 year warranty on the ﬁrebox; 5 year

limited warranty on the burner and 1 year limited warranty on the pilot burner assembly and fan

motors (if included). The valve carries a limited 1 year warranty unless otherwise speciﬁed in the

installation manual. Glass, plated/painted ﬁnishes and refractory lining are exempt.

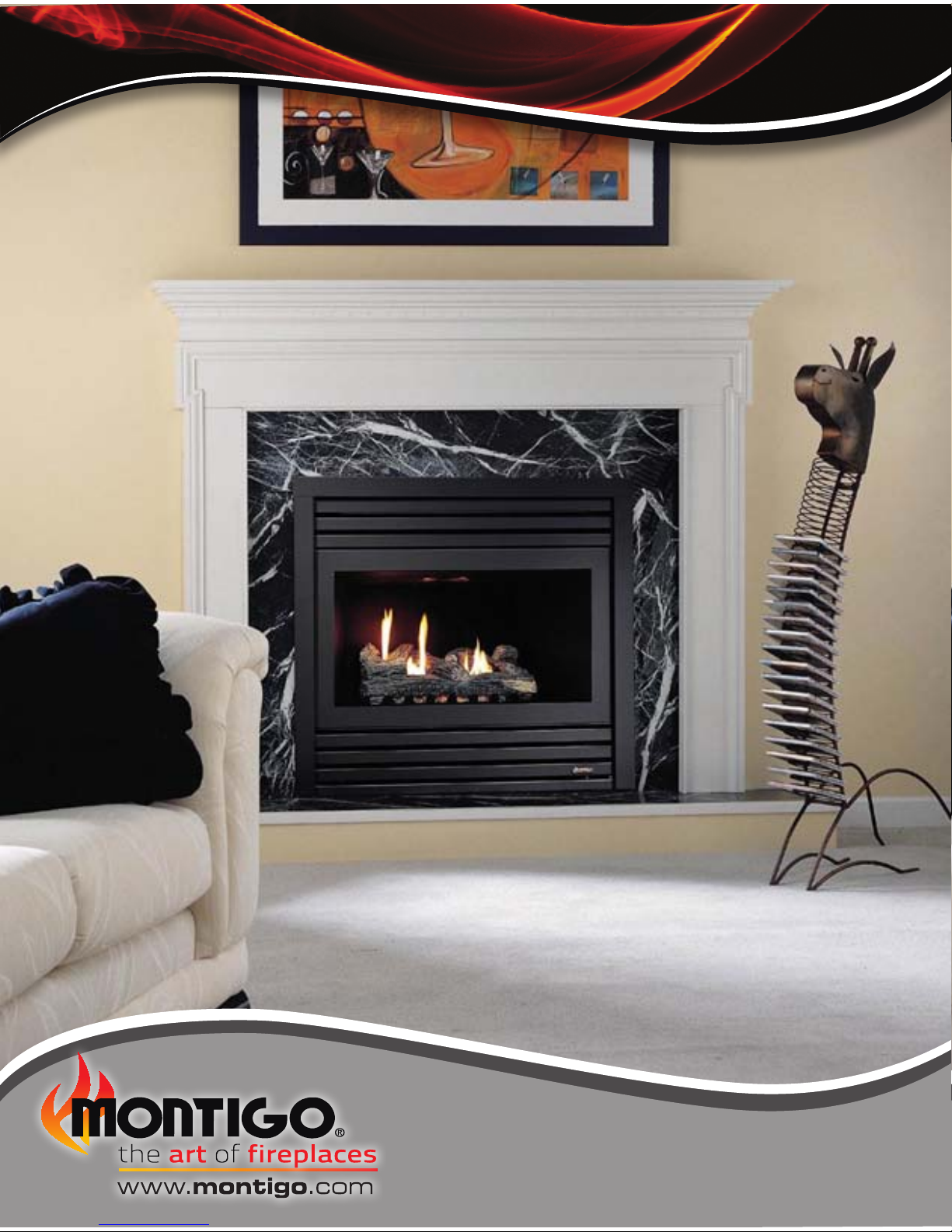

B-Series Direct Vent

Single Sided Fireplace

Features:

❏ Ceramic fibre logset with glowing embers that

emulate a wood burning fire

❏ Available in 4"/7" Top or Rear vent

❏ Double burner

❏ Horizontal trims in satin black, stainless steel or

polished brass

❏ Snap-Lock door system

❏ Hi/Lo control for adjusting flame level

❏ Millivolt control with Piezo spark ignition allows for

continuous operation, even during a power failure

❏ 100% fail-safe shut-off valve

Fireplace BTU/H Input

Model# Natural Gas Liquid Propane

B34DV-2 18,000 18,000

B38DV-2 21,000 21,000

Satin Black trim with optional brick lining

‡ Go to www.montigo.com for colour images

Options:

❏ 50 and 100-CFM fan kits to increase heat circulation

with optional heat activated control

 Choose from 2 styles of brick lining‡

❏ Choose from 2 door covers‡

❏ Digital Thermostat

❏ Various Remote Control options

❏ Safety door screen

❏ IPI Electronic Ignition with optional control for flame

modulation, thermostatic control & battery backup

Optional arched door cover with

stainless steel trim and starburst

door cover with polished brass trim D

Front View

Side View

2" clearance

to corners only

Unit Dimensions

A B C D E F G H I J

B34DV 33¾" 31½" 31" 18" 13¾" 8" 21¾" 25¼" 4" 7"

B38DV 37¾” 34½" 34¾" 21" 15¾" 9" 24⅛" 28⅜" 4" 7"

Framing Dimensions

M N O P Q

B34DV 36¾" 33" 15½" 50” 35⅜"

B38DV 39¾" 37" 17⅝" 56" 39⅝"
