MinkaAire Zen User manual

CERTIFICATE

This product is protected by United States and/or State Law,including Patent, Trademark and/or Copyright laws.

Manual design is protected by United State Federal and/or State Law, including Patent. Trademark and/or Copyright laws.

Minka-Aire warrants to the original owner that this fan will be free from defects in material and workmanship for one year

from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan shall be free

from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in the original

installation.

This is a limited warranty. Minka-Aire ’s only obligation under this limited warranty is to replace or repair, or refund the purchase price, in Minka-

R R

Aire ’s sole discretion without charge to the original owner, of the fan once Minka-Aire confirms that the fan has a defect covered by this limited

Call our customer service department at 1-800-307-3267 to obtain the name of the

contact us through our web site, www.minkagroup.net and write to: Ask Mr.Minka if you have any questions or require further assistance.

Minka-Aire authorized dealer closest to your location, or

To obtain warranty service, the owner should return the fan along with proof of purchase to a

authorized dealer shall then, at its sole discretion: repair the fan, replace the fan,refund the purchase price less the amount directly attributable to the

R R

consumer’s prior usage of the fan, or if necessary instruct the consumer to contact Minka-Aire directly for warranty service. Minka-Aire will be

responsible for the cost of any repair, or replacement for any warranty service provided by a Minka-Aire authorized dealer for product under warranty.

R R

Minka-Aire authorized dealer. The Minka-Aire

You may also at your preference obtain warranty service by returning the fan directly to

return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire will be the original

owner’s responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that proves

to be defective during the warranty period to the following address:

Minka-Aire along with proof of purchase, your name and

Minka-Aire -Warranty Service,1151W.Bradford Court,Corona,CA 92882

This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as result of the removal

of the fan from the original installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which

the fan was not designed. The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan,or any other costs.

This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and

Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some states do not allow the exclusion of or

limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. We encourage you to promptly

complete and return the enclosed warranty registration card.However, return of the warranty registration card is not a condition of this warranty.

Date Purchased Store Purchased Model No. F514 Serial No.

CONTENTS

INSTALLING THE SWITCH BOX PLATE 8

INSTALLING THE LIGHT KIT ASSEMBLY 9

INSTALLING THE GLASS SHADE & LIGHT BULB 10

FAN WITHOUT LIGHT KIT ASSEMBLY 11

OPERATING THE REMOTE CONTROL/WALL CONTROL 12

CARE OF YOUR FAN 13

TROUBLESHOOTING 14

SPECIFICATIONS 15

SAFETY RULES

PACKAGE CONTENTS 2

INSTALLING THE FAN 3

HANGING THE FAN 4

ELECTRICAL CONNECTIONS 5

FINISHING THE INSTALLATION 6

BLADE INSTALLATION 7

E163438

SAFETY RULES

1 1.

2. Be cautious!Read all instuctions and safety information before installing your new fan. Review accompanying assembly diagrams.

3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes.Hire a qualified electrician or

consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring.

4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet

from the floor and 18 inches from the top of the blades to the wall.

5. If you are mounting the fan to a ceiling fan outlet box, use a U.L Listed metal octagonal outlet box marked"Acceptable For Fan Support".

Secure the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at

least 50 pounds). Do not use a plastic box.

6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with

the fan.

7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).

8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.

9. Do not insert anything into the fan blades while the fan is operating.

10. To operate the reverse function on this fan, press the reverse button while the fan is running.

Before you begin installing the fan, shut power off the circut breaker of the fuse box.

NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and

situations that may occur. It must be understoood that common sense,caution and care are factors which can not be built into

this product. These factors must be spplied by the person(s) installing, caring for and operating the unit.

NOTE: READ AND SAVE ALL INSTRUCTIONS!

WARNING

TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L LISTED OUTLET BOX OR SUPPORTING

SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE

LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXS COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT

ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED. CONSULT A QUALIFIDE ELECTRICIAN IF IN DOUBT.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING BALANCING THE BLADES OR CLEANING

THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device, If lamping exceeds

190watts, the ceiling fan’s light kit will shut off automatically.

PACKAGE CONTENTS

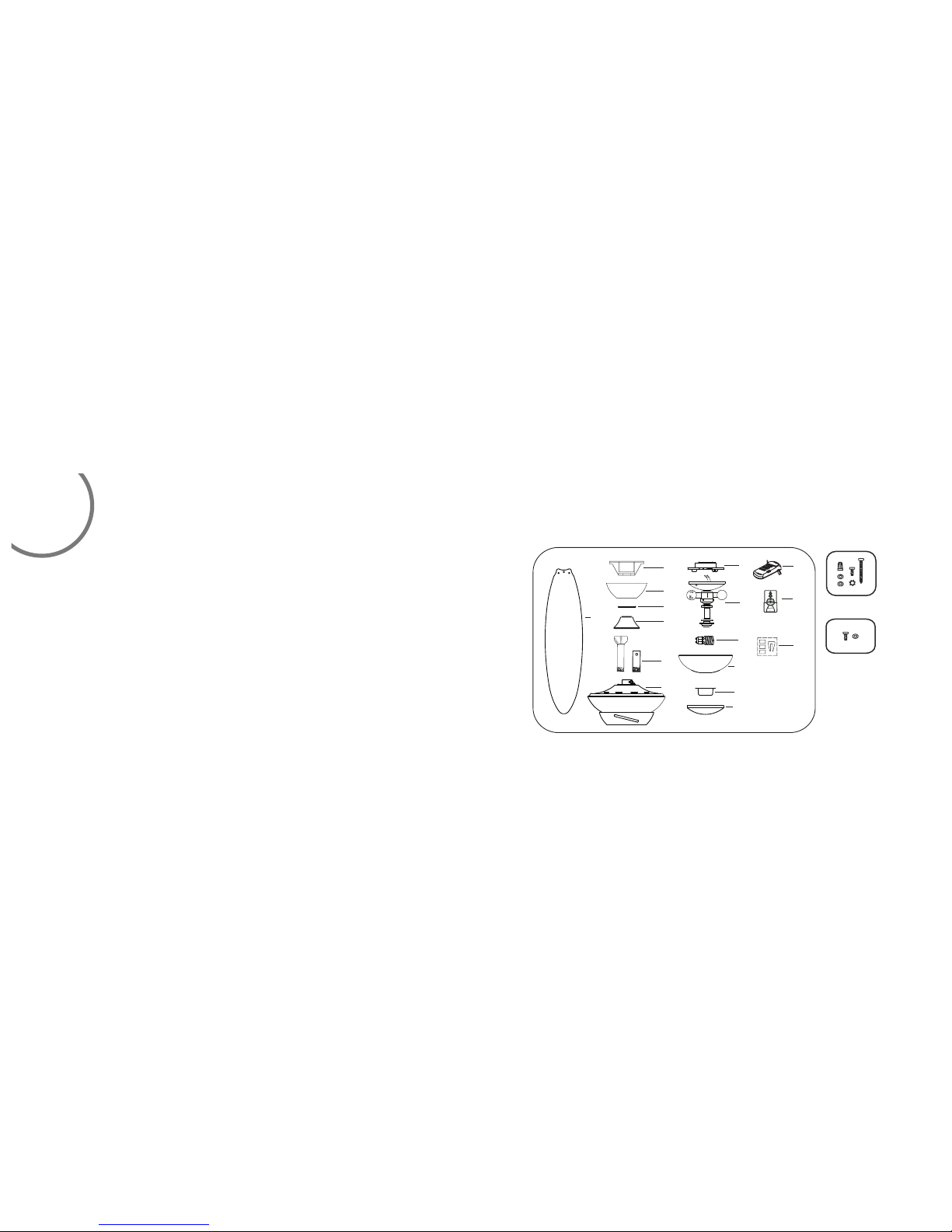

Unpack your fan and check the contents.You should have the following items:

A. Mounting hardware:

Wire nuts(3)

Machine screws (2)

Wood screws (2)

Star washers (2)

Lock washers (2)

Spring washers (2)

B. Blade attatchment hardware:

3/16*11mm Screws(13)

Paper washers(13)

Fan blades(4)

anger bracket

anopy

Canopy cover

Coupling cover

6. Standard downrod assembly(6")

Minimum-length downrod(3.5")

7. Fan motor/housing assembly

8. Switch box plate

9. Light kit assembly

10. 13W GU24 bulb(2)

1 1. Glass shade

12. Wire cover

13.Switch cup

4 .

Receiver with 6 wire nuts

15 .Transmitter+holder+2 mouting

screws

16 .Balancing kit

INSTALLING THE FAN

MOUNTING OPTIONS

If there isn't an existing mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and

building mateials. The outlet box and its support must be able to fully support the moving

weight of the fan (at least 50 lbs.).Use a UL listed metal outlet box. Do not use a plastic

outlet box.

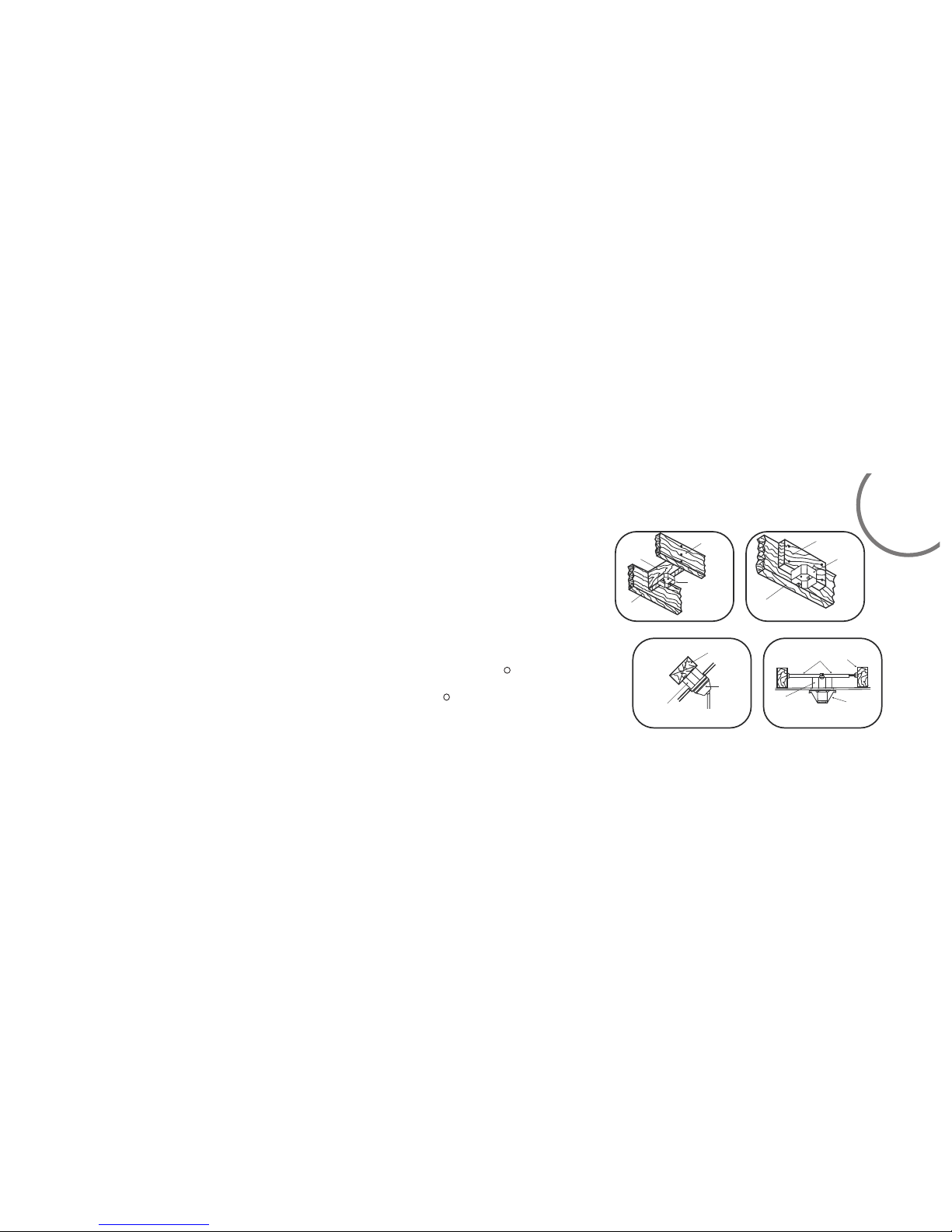

Figure1,2 and 3 are examples of different ways to mount the outlet box.

Note: You may need a longer downrod to maintain proper blade clearance when installing on

a steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.

To hang your fan where there is an existing fixture but no ceiling joist, you may need to

install a hanger bar as shown in Fig.4(available at your Minka Aire dealer or local hardware

store)

Tools Required: Philips screw driver, slotted screw driver,step-ladder, wire cutters,electrical tape.

FIG. 1

CROSS B RACE

CEILING

JOIST

CEILING

jOIST

OUTLET

BOX

FIG. 2

PARALL EL

WOOD BR AC E

(MIN. 2’’ THICK )

OUTLET

BOX

CEILING

JOIST OR

CROSS B RACE

FIG. 3

ANGLE D CEILI NG

MAXIM UM 20°ANG LE

PROVI DE

STRON G

SUPPO RT

RECES SED

OUTLE T

BOX

HANGE R

OPENI NG

must be

FACING

UPSIDE

FIG. 4

CEILING

JOIST

OUTLE T BOX

HANGE R BA R

(OPTI ONAL)

HANGE R

BRACKET

4 HANGING THE FAN

WARNING: All of the parts, hardware and components such as the

hanger bracket and hanger ball have been provided for your safety and

the proper installation of your new ceiling fan. The use of other

parts,hardware or components not supplied by Minka Aire with the fan

will void the Minka Aire Warranty.

REMEMBER to turn off the power. Follow the steps below to hang your

fan properly:

Stpe 2.Lossen the two set screws and remove the hitch pin and lock pin

from the top coupling of the motor assembly.(Fig 6)

Step 3.Remove hanger ball from downrod assembly by loosening set

screw,removing the cross pin, and sliding ball off rod.(Fig 7)

Step 1.Secure the hanger bracket to the ceiling outlet box using screws

and washers included with mounting hardware.(Fig.5)

Step 4.Carefully feed fan wires up through the downrod(Fig 8).

Thread the rod into the coupling, next line up holes and replace lock

pin and hitch pin. Tighten set screws.

NOTE:DO NOT INSTALL THE COUPLING COVER IF YOU PLAN TO USE

THE MINIMUM LENGTH DOWNROD.

Step 6. Now lift motor assembly into position and place hanger ball

into hanger bracket. Rotate until the check groove has dropped into

the registration slot and seats firmly.(Fig 10)Rod should not rotate

if this is done correctly.

Step5.Slip coupling cover, canopy cover, and canopy onto downrod

(Fig.9).Carefully reinstall hanger ball onto rod being sure that cross

pin is in the correct position, set screws are tighten and wires are

not twisted.
