MinkaAire 52" User manual

Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

Minka-Aire®warrants to the original owner that this fan will be free from defects in material and workmanship for one

year from the date of purchase, excluding the motor. Minka-Aire®warrants to the original owner that the motor in this fan

shall be free from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in

the original installation.

This is a limited warranty. Minka-Aire's®only obligation under this limited warranty is to replace or repair, or refund the purchase price, in

Minka-Aire's®sole discretion without charge to the original owner, of the fan once Minka-Aire®confirms that the fan has a defect covered by this

limited warranty.

Call our customer service department at 1-800-307-3267 to obtain the name of the Minka-Aire®authorized dealer closest to your location, or

contact us through our web site, www.minkagroup.net and write to: Ask Mr. Minka if you have any questions or require further assistance.

To obtain warranty service, the owner should return the fan along with proof of purchase to a Minka-Aire®authorized dealer. The Minka-Aire®

authorized dealer shall then, at its sole discretion: repair the fan, replace the fan, refund the purchase price less the amount directly attributable to the

consumer's prior usage of the fan, or if necessary instruct the consumer to contact Minka-Aire®directly for warranty service. Minka-Aire®will be

responsible for the cost of any repair, or replacement for any warranty service provided by a Minka-Aire®authorized dealer for product under warranty.

You may also at your preference obtain warranty service by returning the fan directly to Minka-Aire®along with proof of purchase, your name and

return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire®will be the original

owner's responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that proves to

be defective during the warranty period to the following address:

Minka-Aire®- Warranty Service, 1151 W. Bradford Court, Corona, CA 92882

Date Purchased Store Purchased Model Number Serial Number

F637

This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal

of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the

fan was not designed. The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan, or any other costs.

This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and

Minka-Aire®shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or

limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. We encourage you to promptly

complete and return the enclosed warranty registration card. However, return of the warranty registration card is not a condition of this warranty.

CONTENTS

SAFETY RULES...................................................................................

PACKAGE CONTENTS.....................................................................

INSTALLING THE FAN....................................................................

HANGING THE FAN........................................................................

ELECTRICAL CONNECTIONS......................................................

FINISHING THE INSTALLATION................................................

ATTACHING THE FAN BLADES..........................................................

LIGHT KIT INSTALLATION...................................................................

OPERATING YOUR FAN........................................................................

CARE OF YOUR FAN..............................................................................

TROUBLESHOOTING.............................................................................

SPECIFICATIONS.....................................................................................

LISTED

E75795

1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267

SAFETY RULES

1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.

2. Be cautious!

Be cautious!

Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.

3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a

do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.

4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the

floor and 18 inches from the tip of the blades to the wall.

5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure

the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50

pounds) Do not use a plastic box.

6. Caution:

Caution:

To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.

7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).

8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.

9. Do not insert anything into the fan blades while the fan is operating.

10. Turn the fan off and wait for the blades to stop completely before proceeding with maintenance or cleaning.

NOTE:

The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may

occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be

supplied by the person(s) installing, caring for and operating the unit.

NOTE:

READ AND SAVE ALL INSTRUCTIONS!

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN

CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF

LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING

THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

ATTENTION:

The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the

ceiling fan's light kit will shut off automatically.

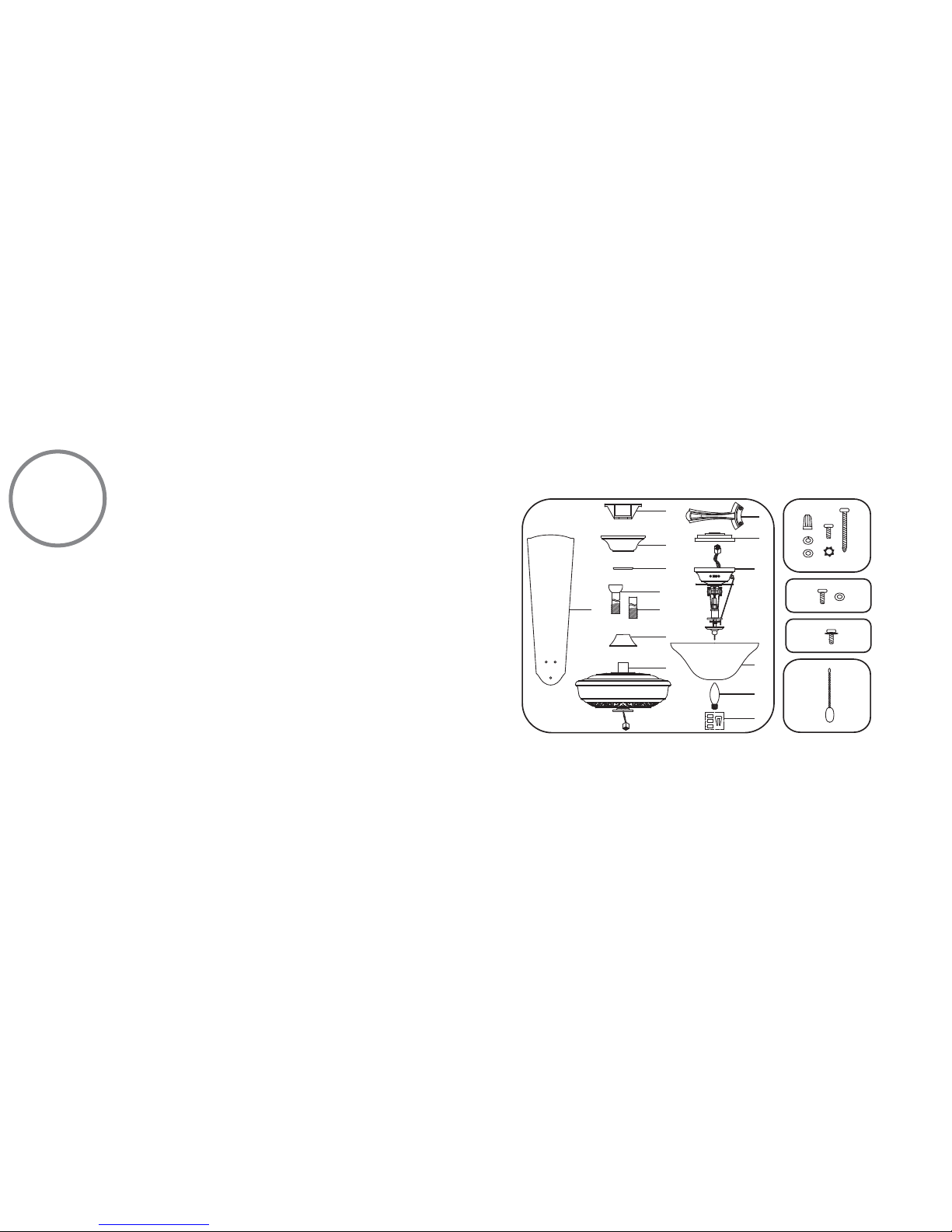

1. Fan blades (5)

2. Hanger bracket

3. Canopy

4. Canopy cover

5a. Standard downrod assembly

5b. Minimum-length downrod (for close

to ceiling mounting only)

6. Coupling cover

7. Fan motor/housing assembly

8. Blade holders (5)

9. Light kit mounting plate

10. Light kit

11. Glass shade

12. 60W candelabra bulbs (3)

13. Balancing kit

A. Mounting hardware:

#10 x 1.5" Wood screws (2 PCs.)

#8 x 3/4" Machine screws (2PCs.)

Lock washers (2 PCs.)

4mm star washers (2 PCs.)

Wire nuts (3 PCs. )

Washers (2 PCs.)

B. Blade attachment hardware:

3/16" x 7.5 mm screws (16 PCs.)

Fiber washers (16 PCs.)

C. Blade holder hardware:

1/4" x 1/2" Screws with lock washers

(11 PCs.)

D. Switch cup hardware:

Pull chain fob (2 PCs.)

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.

INSTALLING THE FAN

MOUNTING OPTIONS

If there isn't an existing mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and building

materials. The outlet box and its support must be able to fully support the moving weight of

the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.

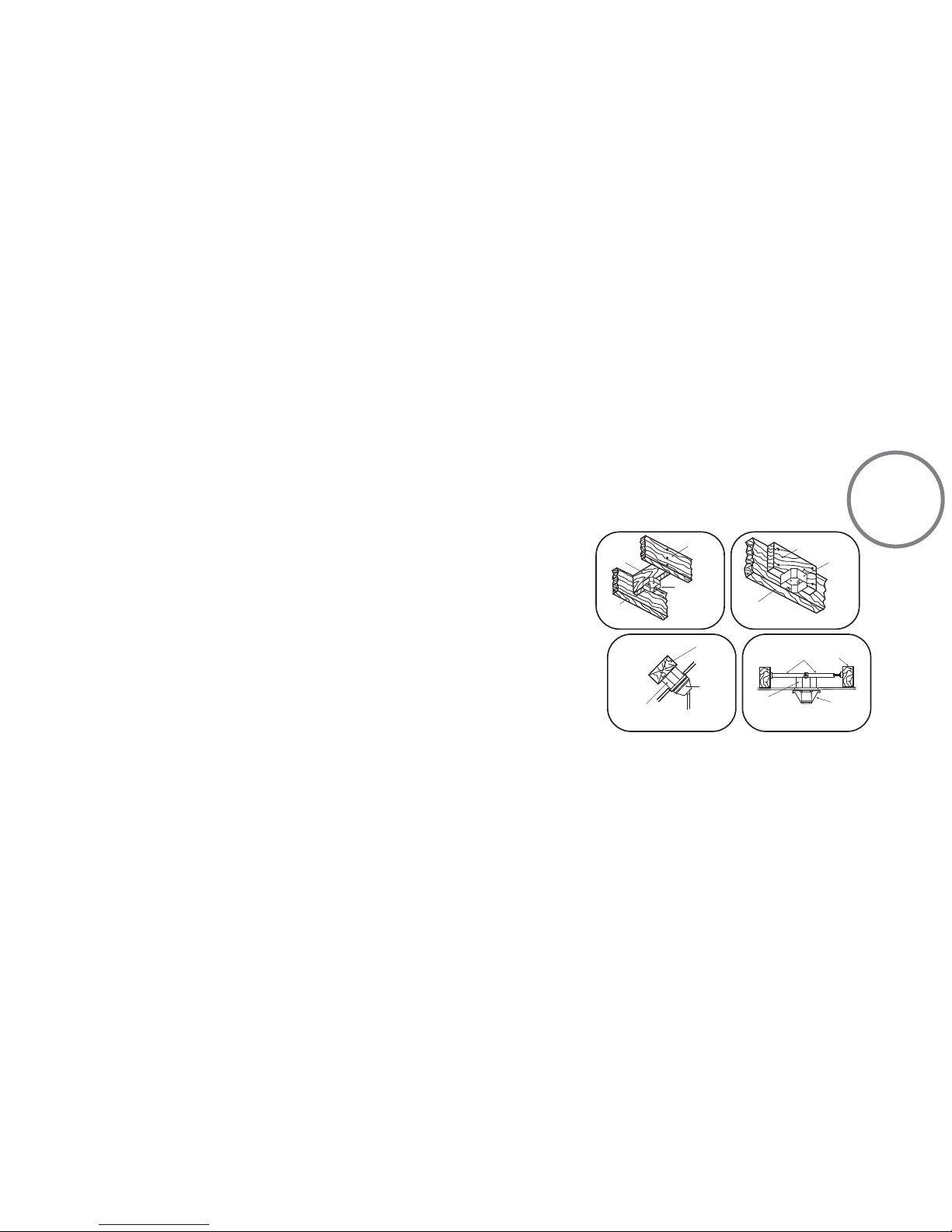

Figure 1, 2 and 3 are examples of different ways to mount the outlet box.

Note:You may need a longer downrod to maintain proper blade clearance when installing on a

steep, sloped ceiling. Longer downrods are available from your Minka-Aire®dealer.

To hang your fan where there is an existing fixture but no ceiling joist, you may need to install

a hanger bar as shown in Fig. 4 (available at your Minka-Aire®dealer).

FIG. 1

FIG. 3

FIG. 2

FIG. 4

CROSS

BRACE

CEILING

JOIST

CEILING

jOIST

CEILING

JOIST

OUTLET BOX

PARALLEL WOOD BRACE

(MIN. 2" THICK)

OUTLET

BOX

OUTLET BOX

CEILING JOIST

OR CROSS BRACE

ANGLED CEILING

MAXIMUM 29°

ANGLE

PROVIDE

STRONG

SUPPORT

RECESSED

OUTLET BOX

HANGER

OPENING

MUST BE

FACING

UPSIDE

HANGER BAR

(OPTIONAL)

HANGER

BRACKET

WARNING:

All of the parts, hardware and components such as the hanger

bracket and hanger ball have been provided for your safety and the proper

installation of your new ceiling fan. The use of other parts, hardware or

components not supplied by Minka Aire®with the fan will void the Minka

Aire®Warranty.

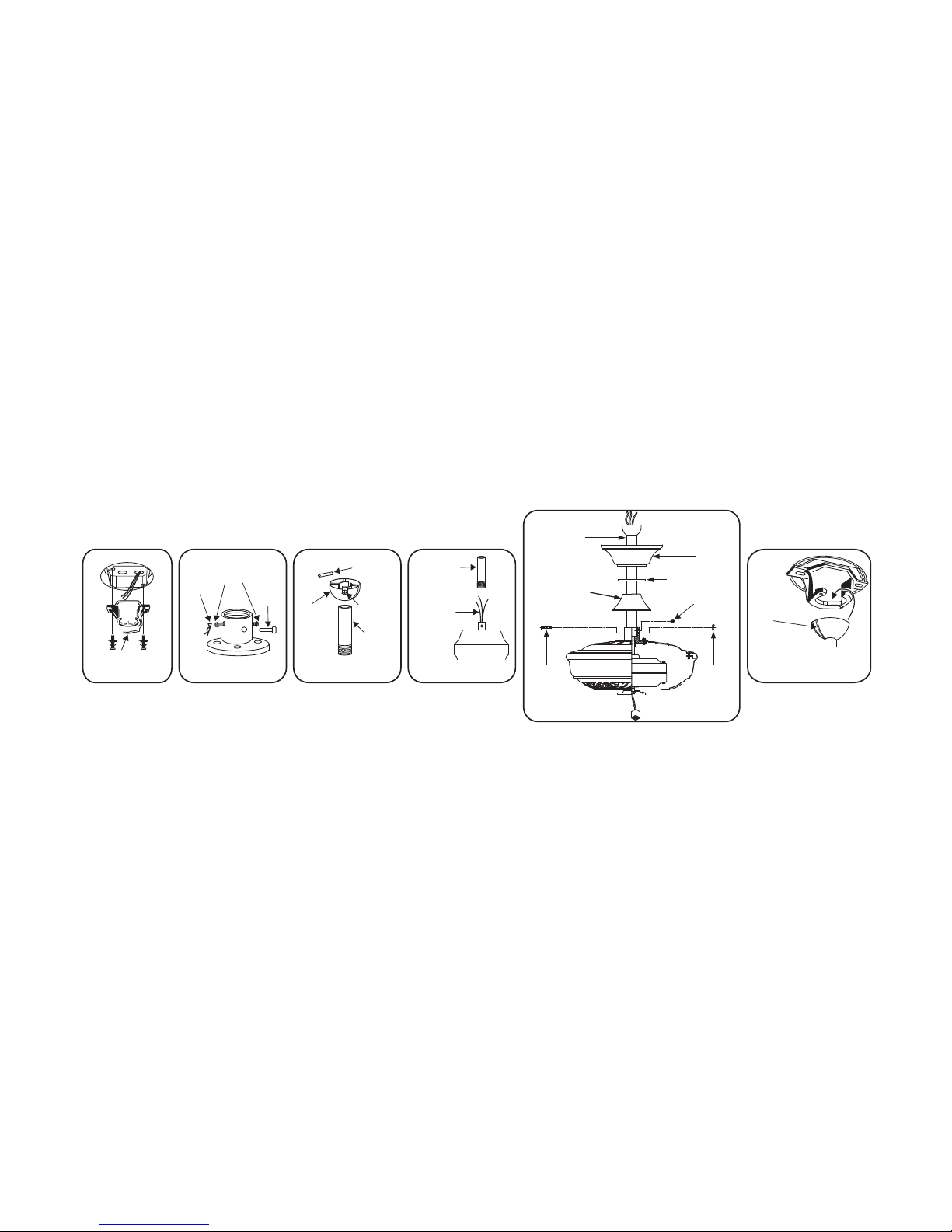

REMEMBER

to turn off the power. Follow the steps below to hang your fan

properly:

Step 1. Secure the Hanger Bracket to the ceiling outlet box using the screws

provided with your outlet box in conjunction with the lock-washers provided

with the fan. (Fig. 5)

Step 2. Loosen the two Set Screws and remove the Hitch Pin and Lock Pin

from the coupling located on the top of the Motor Assembly. (Fig. 6)

Step 3. Remove the Hanger Ball from the Downrod Assembly by loosening

the Set Screw and removing the Cross Pin. (Fig. 7)

Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) Thread

Downrod into the Coupling until the holes are lined up and secure with

the Lock Pin and Hitch Pin previously removed, tighten Set Screws. (Fig. 9)

Step 5. Slip Coupling Cover and Canopy onto Downrod. Carefully re-install

the Hanger Ball onto the Downrod being sure that it's properly positioned

over the Cross Pin and the wires are not twisted, tighten Set Screw. (Fig. 9)

Step 6. Lift the Motor Assembly and place the Hanger Ball into the Hanger

Bracket. Rotate the Motor Assembly as needed until the check groove from

the Hanger Ball rests firmly over the registration tab from the Hanger

Bracket. Motor Assembly should not rotate if this is done correctly. (Fig. 10)

HANGING THE FAN

OUTLET BOX

HANGER BRACKET

DOWNROD

SUPPLY

WIRES

Fig. 5 Fig. 7 Fig. 8Fig. 6

Fig. 10

REGISTRATION

SLOT

CROSS PIN

HANGER

BALL

DOWNROD

HITCH PIN LOCK

SET SCREWS

SET SCREW

Fig. 9

DOWNROD

CANOPY COVER

SET SCREWS

HITCH PIN LOCK PIN

COUPLING

*OMIT COUPLING

COVER WHEN

THE MINIMUM-LENGTH

DOWNROD

CANOPY
