Minka-Aire LINEAGE User manual

LLIINNEEAAGGEETM

U.S. PATENTS D528,652; D531,298; D532,098; D533,292; D535,012; D563,540

This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

Manual design is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

Minka-Aire®warrants to the original owner that this fan will be free from defects in material and workmanship for one

year from the date of purchase, excluding the motor. Minka-Aire®warrants to the original owner that the motor in this fan

shall be free from defects in This is a limited warranty. Minka-Aire®only obligation under this limited warranty is to replace

or repair, or refund the purchase price, in Minka-Aire®sole discretion without charge to the original owner, of the fan once Minka-Aire®confirms that

the fan has a defect covered by this limited warranty.

Call our customer service department at 1-800-307-3267 to obtain the name of the Minka-Aire®authorized dealer closest to your location, or

contact us through our web site, www.minkagroup.net and write to: Ask Mr. Minka if you have any questions or require further assistance.

To obtain warranty service, the owner should return the fan along with proof of purchase to a Minka-Aire®authorized dealer. The Minka-Aire®

authorized dealer shall then, at its sole discretion: repair the fan, replace the fan, refund the purchase price less the amount directly attributable to

the consumer's prior usage of the fan, or if necessary instruct the consumer to contact Minka-Aire®directly for warranty service. Minka-Aire®will be

responsible for the cost of any repair, or replacement for any warranty service provided by a Minka-Aire®authorized dealer for product under

warranty.

You may also at your preference obtain warranty service by returning the fan directly to Minka-Aire®along with proof of purchase, your name

and return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire®will be the

original owner's responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that

proves to be defective during the warranty period to the following address:

Minka-Aire®- Warranty Service, 1151 W. Bradford Court, Corona, CA 92882

This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal

of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the

fan was not designed. The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan, or any other costs.

This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and

Minka-Aire®shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or

limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. We encourage you to promptly

complete and return the enclosed warranty registration card. However, return of the warranty registration card is not a condition of this warranty.

Date Purchased Store Purchased Model No. F812 Serial No.

CONTENTS

1151W. Bradford Court, Corona CA 92882 For Customer Assistance Call: 1-800-307-3267

SAFETY RULES 1

PACKAGE CONTENTS 2

BEGIN INSTALLATION 3

HANGING THE FAN 4

ELECTRICAL CONNECTIONS 5

INSTALLING THE WALL TRANSMITTER 6

FINISHING THE INSTALLATION 7

ATTACHING THE BLADES 8

INSTALLING THE LIGHT BULB & GLASS SHADE 9

OPERATING THE REMOTE CONTROL / WALL CONTROL 10

CARE OF YOUR FAN 11

TROUBLESHOOTING 12

SPECIFICATIONS 13

1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.

2.Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.

3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes.

Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.

4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from

the floor and 18 inches from the tip of the blades to the wall.

5. NOTE: THIS CEILING FAN EXCEEDS THE MAXIMUM WEIGHT SPECIFIED BY UL FOR HANGING FROM A STANDARD OUTLET BOX. SPECIAL

REINFORCEMENT OF THE CEILING IS REQUIRED FOR INSTALLATION.

6. CAUTION: Use the wood screws provided for fan installation. The wood screws must go through the outlet box via the knock outs and secured

directly to the building joist.

7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).

8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.

9. Do not insert anything into the fan blades while the fan is operating.

10.Turn the fan off and wait for the blades to stop before performing any cleaning or maintenance.

SAFETY RULES

WARNING

SUPPORT DIRECTLY FROM BUILDING STRUCTURE.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY. MOUNT FAN DIRECTLY TO THE BUILDING JOIST USING THE

WOOD SCREWS AND WASHERS PROVIDED WITH THE FAN. THE WOOD SCREWS MUST GO THROUGH THE OUTLET BOX VIA THE KNOCK

OUTS. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES, OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

NOTE:The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may

occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be

supplied by the person (s) installing, caring for and operating the unit.

NOTE: READ AND SAVE ALL INSTRUCTIONS!

ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling

fan’s light kit will shut off automatically.

1. Fan motor housing

2. Glass

3. Light kit

4. Canopy

5. Coupling cover

6. Standard downrod ass'y

7. Minimum-length

downrod (for close to

ceiling mounting only)

8. 15w bulb (6 pcs)

9. Fan blade (5 pcs)

10a.Hanger bracket plate

10b.Hanger bracket

11. Canopy cover

12. Blade holder (5 pcs)

13. Receiver with 6 wire

nuts

14a.Wall plate (includes 2-

6x8mm mounting screws)

14b.Wall Transmitter Incl. 2

Mounting Screws and 3

Wire Nuts

15. Top plate

16. Balancing kit

17. 60W bulb (2pcs)

A. Blade Attachment Hardware :

3/16x9mm screws (16

pcs)

Fibre washers (16 pcs)

B. Mounting Hardware :

(3 pcs)

ﬂ6.5x19mm Flat washers

(3 pcs)

Star washers (3 pcs)

Wire nuts (3 pcs)

Hex nuts (3 pcs)

3/16" spring washers (3

pcs)

ﬂ5x14mm Flat washers

(3 pcs)

C. Blade Holder Hardware :

1/4x11mm screws (11

pcs)

D. Allen Wrench (M4)

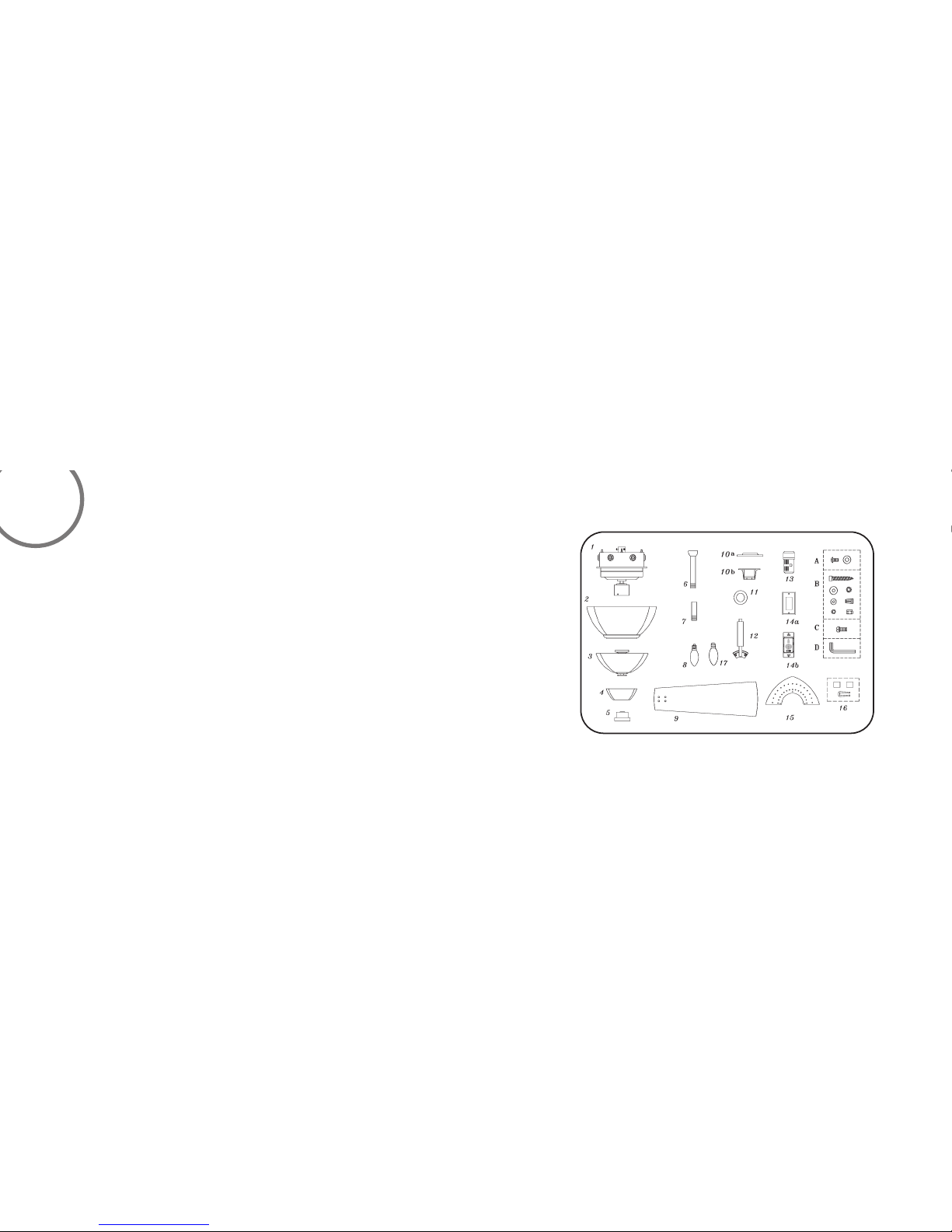

PACKAGE CONTENTS

M6.5x89mm wood screws

BEGIN INSTALLATION

MOUNTING OPTIONS

If there isn't an existing mounting box, then read the following instructions. Shut the

power off at the circuit breaker or fuse box.

Secure the hanger bracket directly to the building structure via the knock outs from

the outlet box. The building joist and its support must be able to fully support the

moving weight of the fan. Figures 1,2 and 3 are examples of different ways to mount

the outlet box. Note: You may need a longer downrod to maintain proper clearance

when installing on a steep, sloped ceiling,. Longer downrods are available from your

Minka-Aire®dealer.

To hang your fan where there is an existing fixture but no ceiling joist, you may need

to install a hanger bar as shown in Fig. 4 (available at your Minka-Aire®dealer.)

Tools Required: Phillips screw driver; slotted screw driver; pliers; wire cutters; electrical tape.

CEILING JOIST

CEILING

JOIST

OUTLET BOX

CROSS BRACE

PARALLEL WOOD BRACE

(MIN. 2" THICK)

OUTLET

BOX

CEILING JOIST

OR CROSS BRACE

Fig.1 Fig.2

Fig.3 Fig.4

ANGLED CEILING

MAXIMUM 29

ANGLE

PROVIDE STRONG

SUPPORT

HANGER

OPENING

MUST

BE FACING

UP-SIDE

RECESSED

OUTLET BOX OUTLET BOX

HANGER BAR

(OPTIONAL)

CEILING

JOIST

HANGER

BRACKET

HANGING THE FAN

REMEMBER To turn off the power. Follow the steps below to hang your

fan properly.

Step 1. Remove two knock-outs from the outlet box to expose the joist. (Fig. 5)

Step 2. Use the two wood screws and washers to secure the hanger

bracket plate directly to the building joist via the knock-out holes from

the outlet box. (Fig. 6)

CAUTION! THE HANGER BRACKET PLATE MUST BE INSTALLED DIRECTLY TO THE

BUILDING JOIST USING THE TWO WOOD SCREWS AND WASHERS PROVIDED.

Step 3. Secure hanger bracket to hanger bracket plate using the two hex

nuts and washers provided, make sure nuts are securely tighten. (Fig. 7)

Step 4. Remove the 3 screws from glass shade. Install the fan motor

into the glass shade using the screws removed. (Fig. 8)

Step 5. Install 6X15w bulb into the socket. (Fig. 9). Remove the 6 thumb

screws from motor.

WARNING: All of the parts, hardware and components such as the

hanger bracket and hanger ball have been provided for your safety

and the proper installation of your new ceiling fan. The use of other parts,

hardware or components not supplied by Minka Aire with the fan will

void the Minka Aire Warranty.

Step 6. Place the top plates over the motor and secure with the 6

thumbs screws previously removed. (Fig. 10)

Step 7.Loosen the two set screws from the motor coupling.(Fig.11)

Step 8.Remove hanger ball from downrod assembly by loosening set

screws, removing the cross pin, and sliding ball off rod. Then remove the

hitch pin and lock pin from downrod. (Fig.12)

Step 9.Carefully feed fan wires up through the downrod. (Fig.13) Thread

the rod into the motor coupling, next line up holes and replace the lock

pin and hitch pin. Tighten set screws.

Step 10.Slip coupling cover, canopy cover and canopy onto downrod.

(Fig.13) Carefully reinstall hanger ball onto rod being sure that the cross-pin

is in the correct position, set screws are tighten and wires are not twisted.

Step 11.Now lift the motor assembly into position and place the hanger

ball into hanger ball into hanger bracket. Rotate until the check groove

has dropped into the registration slot and sits firmly (Fig. 14). Rod
