Minka-Aire Delano User manual
INSTRUCTION MANUAL WARRANTY CERTIFICATE
DELANO
BY
U.S. Patents: D453,218; D457,235; D458,363
This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.
This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs
excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling
fan (excluding wall controls and electrical components), to the original purchaser or user.
* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…
* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.
* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific) other than the hanger bracket supplied & installed
with this specific fan.
Date Purchased Store Purchased Model Number Serial Number
F701
Warranty Service Information
To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of
purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty
claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a
limited warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.
To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or
contact Minka-Aire® through www.minkagroup.net and write to: “Ask Mr. Minka” to answer any questions or if you require assistance.
CONTENTS
SAFETY RULES....................................................................................
PACKAGE CONTENTS.....................................................................
INSTALLING THE FAN.....................................................................
ASSEMBLING THE FAN..................................................................
HANGING THE FAN.........................................................................
ELECTRICAL CONNECTIONS.......................................................
INSTALLING THE WALL TRANSMITTER.................................
FINISHING THE INSTALLATION.......................................................
BLADE INSTALLATION..........................................................................
INSTALLING THE LIGHT BULBS & GLASS SHADE...................
OPERATING YOUR WALL TRANSMITTER...................................
CARE OF YOUR FAN..............................................................................
TROUBLESHOOTING............................................................................
SPECIFICATIONS.....................................................................................
1
2
3
4
5
6
7
8
9
10
11
12
13
14
UL
LISTED
E75795
R
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267
R
SAFETY RULES
1
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the
floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure
the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds)
Do not use a plastic box.
6. Caution:
Caution:
To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before changing the fan direction.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE
FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED.
CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE MR36T SOLID-STATE SPEED CONTROL WITH TR111A WALL CONTROL ONLY.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!
ATTENTION:
ATTENTION:
The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the
ceiling fan's light kit will shut off automatically.
2
1. Fan blades (5 )
2. Hanger bracket
3. Canopy
4. Canopy cover
5a. Standard downrod assembly
5b. Minimum-length downrod (for close
to ceiling mounting only)
6. Coupling cover
7. Upper housing
8. Bulb holder assembly
9. Fan motor/housing assembly
10. Blade holders (5)
11. 50W Halogen bulb (2)
12. Glass shade
13. Light kit stem
14a.Wall Transmitter Incl. 2 Mounting
Screws and 3 Wire Nuts
14b.Wall Plate w/2 Mounting screws
15. Receiver with 7 wire nuts
16, Extra Wall Plate w/2 Mounting screws
17. Balancing kit
A. Mounting Hardware:
#10 x 1.5" Wood Screws (2 PCs.)
#8 x 3/4" Machine screws (2 PCs.)
Lock washers (2 PCs.)
4mm Star washers (2 PCs.)
Wire nuts (3 PCs. )
Washers (2 PCs.)
B. Blade Attachment Hardware:
3/16" x 7.5 mm Screws (16 PCs.)
Fibber Washers (16 PCs.)
C. Bracket Holder Hardware:
3/16" x 3/4" Screws with lock washers (11 PCs.)
PACKAGE CONTENTS
3
1
2
5a
5b
9
10
11
12
13
15
16
17
14a
14b
4
6
7
8
A
B
C
Unpack your fan and check the contents.
You should have the following items:
3
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
INSTALLING THE FAN
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building
materials. The outlet box and its support must be able to fully support the moving weight of
the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.
Figure 1, 2 and 3 are examples of different ways to mount the outlet box.
Note:You may need a longer downrod to maintain proper blade clearance when installing on a
steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.
To hang your fan where there is an existing fixture but no ceiling joist, you may need to install
a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer).
R
R
FIG. 1
FIG. 3
FIG. 2
FIG. 4
CROSS BRACE
CEILING
JOIST
CEILING
JOIST
CEILING
JOIST
OUTLET BOX
PARALLEL WOOD BRACE
(Min. 2" Thick)
OUTLET
BOX
OUTLET BOX
CEILING JOIST OR
CROSS BRACE
ANGLED CEILING
MAXIMUM 29 ANGLE PROVIDE
STRONG
SUPPORT
RECESSED
OUTLET BOX
HANGER
OPENING
MUST BE
FACING
UPSIDE
HANGER BAR
(OPTIONAL)
HANGER
BRACKET
4

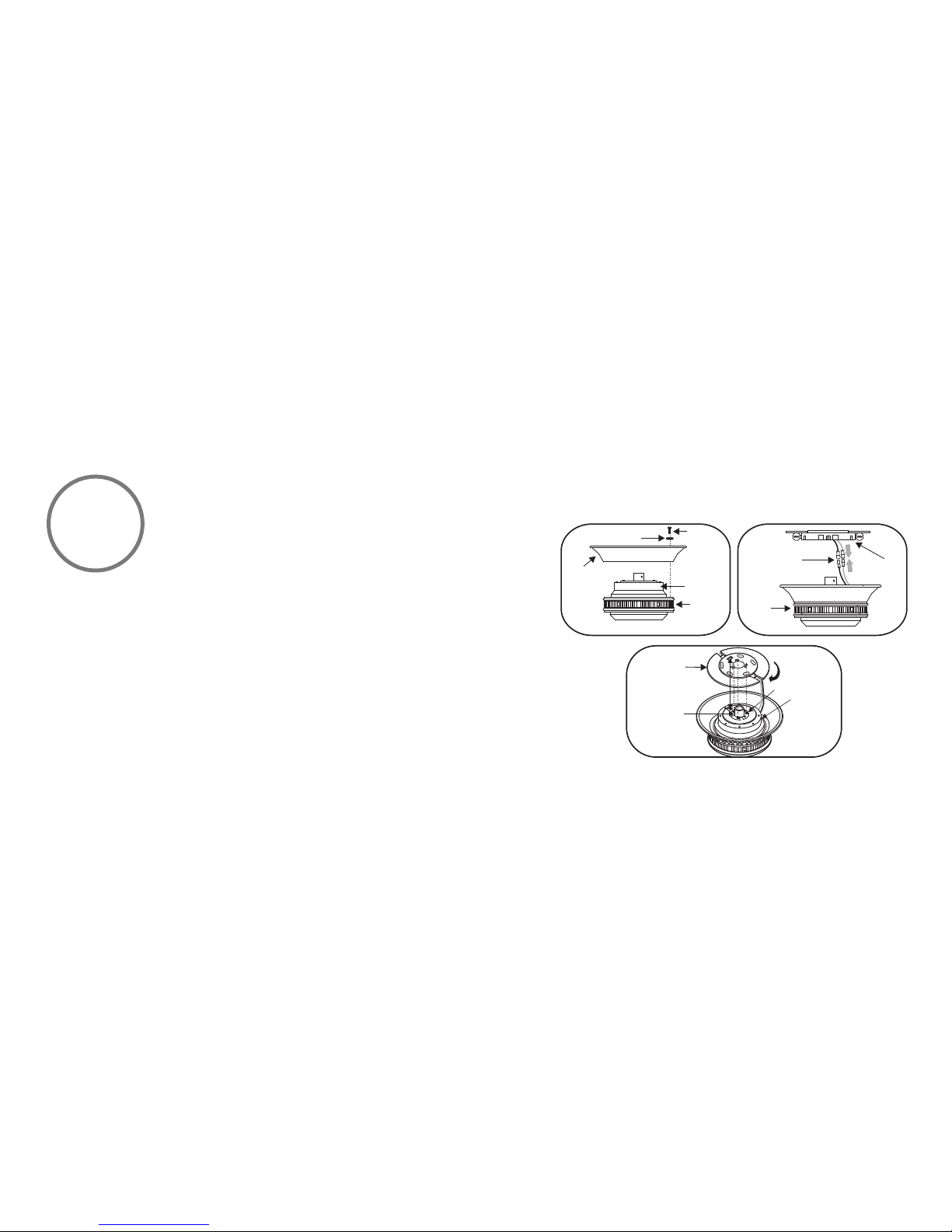

Your fan is packed with the motor and Upper Housing unassembled, proceed
the following steps for fan assembly:
Step1. Remove the two screws and rubber washers from the top of the motor
center band. Place the upper housing over the motor center band and secure it
with the two screws and rubber washers previously removed. (Fig.5)
Step2. Engage the white wire connectors from the motor and the bulb holder
assembly make sure the connection is secured Follow the same procedure for the
orange and black wire connectors.(Fig.6)
Step3. Loosen the three screws (do not remove) from the motor coupling. (Fig. 7)
Step4. Place the bulb holder assembly key holes over the 3 screws previously
loosened from the motor coupling, turn the bulb holder assembly until it locks in
place at the narrow section of the key holes. Secure by tightening the three
screws previously loosened. (Fig.7)
ASSEMBLING THE FAN
Fig. 5
Top motor
Motor
center
band
Screw
Upper housing
Fig. 6
Wire
connectors Bulb holder
assembly
Motor
Rubber
washers
Screws
Fig. 7
Motor
Motor
coupling
Bulb holder
assembly
