Mini Gadgets BB3Smoke User manual
1 Version 1.3
BushBaby Smoke Detector
BB3Smoke
2 Version 1.3
THANK YOU FOR PURCHASING THE BUSHBABY
SMOKE DETECTOR
Please read this manual before operating the BushBaby
Smoke Detector and keep it handy.
The BushBaby Smoke Detector is a camera disguised as
a smoke detector. Although not a functioning smoke
detector, this product will provide you with a great,
covert option for all your surveillance needs.
The BushBaby Smoke Detector features high resolution
video, simple remote control operation, three
recording modes, and a sleek and realistic design.
Your purchase should include:
1 x BushBaby Smoke Detector
1 x DVR Remote
1 x USB Cable
1 x Instruction Manual
3 Version 1.3
GET FAMILIAR WITH YOUR OMNIBOTTLE HIDDEN
CAMERA
On/OFF Switch
4 Version 1.3
OPERATING THE BUSHBABY SMOKE DETECTOR
IMPORTANT NOTICE: Allow the device to charge 4 –6
hours before using.
HOW TO CHARGE YOUR BUSHBABY SMOKE DETECTOR
1. Open the back of the BushBaby Smoke
Detector by gently twisting the back until it is
removed
2. Insert the USB Cable into the AC Adapter
3. Insert the opposite end of the USB cable into
the BushBaby Smoke Detector
4. Plug the AC Adapter into a wall outlet
HOW TO TURN ON THE BUSHBABY SMOKE DETECTOR
1. Press the A button
Your device is on when you see a red
light on the front of the smoke
detector
5 Version 1.3
HOW TO RECORD VIDEO ON THE BUSHBABY SMOKE
DETECTOR
1. Press C button on the remote control
The red indicator light on the front of
the device will flash two times to
show the device is recording
HOW TO STOP RECORDING
1. Press the C button to stop recording
HOW TO SET UP MOTION DETECTION
1. Press the D button on the remote
The red indicator light on the front of
the device will flash two times to
show the device is recording
HOW TO SET UP PICTURE MODE
1. Press the B button on the remote
The red indicator light will flash once
to indicate that a photograph has
been taken
6 Version 1.3
RETRIEVE THE FILES TO YOUR PC
1. Plug the device into your PC using the USB
Cable
2. Locate “Removable Disk” inside the (My)
Computer folder
AutoPlay Removable Disk > Open
folder to view files
Or…

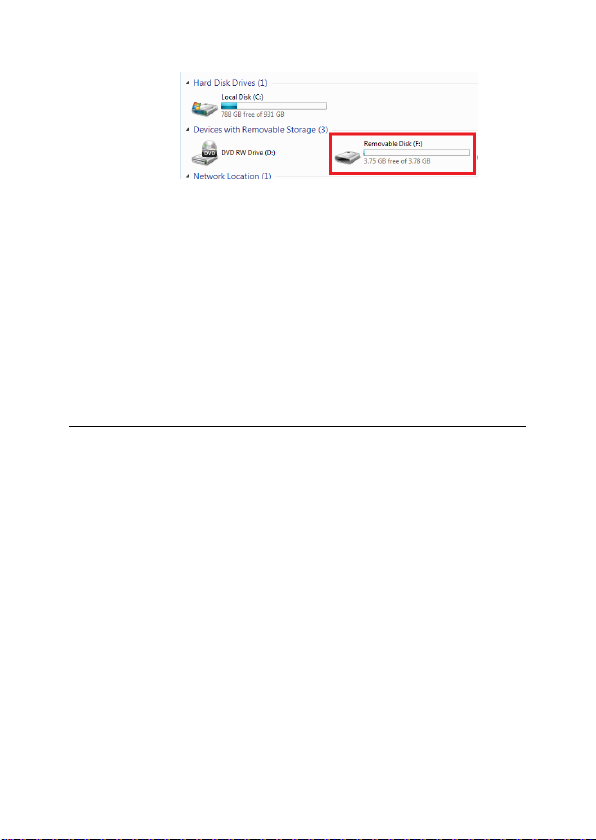

Go to Start > Computer > Removable
Disk
7 Version 1.3
3. Open the Removable Disk drive
4. Open the [folder name] folder
5. Double click the file you want to view
VLC Player is recommended for
watching videos
TROUBLESHOOTING
THE DEVICE WON’T TURN ON
Unplug the device from your PC and reboot
your PC
Try using a different USB slot on your PC
Replace the USB cable
THE SOUND OR VIDEO IS UNCLEAR
The device needs charging
8 Version 1.3
OTHER PROBLEMS
Call our technical support at 770–694–6923
9 Version 1.3
SPECIFICATIONS
Video Resolution
720p HD (1280*720) @ 30fps
Video Format
.AVI
Photo Resolution
4032*3024
Photo Format
.JPG
Vision Angle
62°
Minimal Illumination
1LUX
Remote Operating
Distance
25 meters
Scope for Sound
40 meters
Supported Operating
Systems
Windows XP & Up
Mac OSX 10.5 & Up
Video Recording Files
Full Video: 20 minute files
Motion Video: 3 minute files
Memory
MicroSD Card or Internal
Storage
SD Card Format
FAT32
Recommended Speed
Class 6 or above
Storage Consumption
1GB/20 minutes
Charging Time
Approx. 4 hours
10 Version 1.3
QUALITY CONTROL CHECKLIST
☐Remote
☐Wall AC Adapter
☐USB to Mini-B Cable
☐BB3Smoke
QC Tech: ___________________________________
Date: ____________________________________
