1. QUICK INSTALLATION GUIDE

For use only with Ei Electronics Easi-fit Mains Powered Smoke & Heat Alarms. The

Ei168RC RadioLINK Base must be installed by a qualified electrician.

1.1) Install each RadioLINK Base in the centre of the ceiling at

least 0.30m from light fittings (as per the smoke/heat alarm

instructions) and connect to nearest mains circuit (see page 3).

1.2) Slide alarm on to the Ei168RC RadioLINK Base. This will

automatically activate the rechargeable back-up cells in the base.

Repeat this procedure for all alarms in the system (see page 5).

1.3) To House Code, insert a small screwdriver into the House

Code switch slot of each unit in succession. This must be

completed as quickly as possible (within 15 minutes) to activate

the House Code mode and ensure the system only

communicates with itself and not neighbouring systems (see

page 6). It is essential that the RadioLINK Bases are House

Coded.

1.4) Button test each alarm to ensure that they are all

communicating.

Thisguideisforquickreferencingonly.Yo umustreadtheusermanualthoroughlybefore

installationanduse.

B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 3

2. INTRODUCTION

The Ei168RC RadioLINK Base transmits a Radio Frequency (RF) alarm signal

when the unit attached to it senses fire. When it receives an RF alarm signal from

another Ei168RC Base, the attached smoke or heat alarm will sound. It therefore

eliminates the need to run long interconnect wires between all the smoke/heat

alarms on different floors and in different rooms.

It is designed for use with ‘RC’ Mains Powered Smoke/Heat Alarms (Ei161RC,

164RC & 166RC). The base can also be used with Ei141, Ei144 & Ei146 Easi-fit

alarms provided that a Remote Control device (Ei410 or Ei411H) is not used in the

system.

The RadioLINK Base, is mains powered and has rechargeable lithium cells for

back-up in the event of mains failure. The RadioLINK Base will normally be wired

to the nearest mains circuit in the ceiling (usually the lighting circuit, provided

unswitched live is available). The Smoke/Heat Alarm is then slid on to the

RadioLINK Base. Up to 12 units can be RF interconnected in this way.

It is essential to House Code the RadioLINK Bases to ensure they will not

accidently communicate with nearby systems. This is easily done as

explained in Section 3 overleaf.

(As a safety feature the units will all communicate with each other (provided they are within range) as installed

i.e. without any House Coding. The repeater function is disabled when units are not House Coded).

Various optional RadioLINK accessories are available, including the Ei411H

Remote Control (for use with ‘RC’ alarms only). This wall-mounted device allows the

B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 4

user to Locate the triggering alarm both when all

units are sounding and when they have previously

sounded (memory function - useful for

troubleshooting), Hush any nuisance alarms and

Test the system from a remote location.

3. INSTALLATION

WARNING: Mains operated products should be

installed by a qualified electrician as per the

Requirements for Electrical Installations published as

IEE Wiring Regulations – BS7671 current edition.

Failure to install this unit correctly may expose the user

to shock or fire hazards.This unit is not waterproof and

must not be exposed to dripping or splashing.

Up to twelve Ei168RC RadioLINK Bases can be RF

interconnected in one system.

1. Select a location complying with the advice in the

Smoke/Heat Alarm instruction leaflet.

2. Disconnect the AC mains supply from the circuit

that is going to be used.

3. Carefully align the RadioLINK Base and screw into

place as shown in Figure 1.(It is advisable at this time to

use only one screw (as shown) as it allows the base to be

Figure 1

Figure 2

B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 5

rotated later if required. If you use only one screw,

ensure the base is secure on the ceiling before

proceeding further with the installation. Remember to

complete the installation by securing with the second

screw after the system has been checked).

4. Lift off the wiring cover as shown in Figure 2.

5. If the mains wires are recessed (coming

through a hole in the ceiling), bring the wires

to the terminal block through the rear hole in

the mounting plate as shown in Figure 3.

Ensure the rear foam gasket seals around the edge of the hole in the ceiling. This

is to prevent air draughts affecting the smoke or heat entering the alarm. If the hole

is too large it should be sealed with silicone rubber or equivalent (when the rest of

the installation is complete).

If the mains wires are being brought along the surface:

(a) position the mounting plate so the cable trunking is as shown in Figure 3.

(b) Carefully cut and trim the knockouts in the RadioLINK Base side walls to blend

with the contours of the trunking.

Important: Only cut the thinned down knockout section and leave the top intact as

shown. There is only one position suitable for the surface wiring to enter the alarm.

6. The house wiring must then be connected to the terminal block on the Ei168RC

RadioLINK Base as follows (see Figure 3):

REMOVEABLE

TRUNKING DOOR FOR

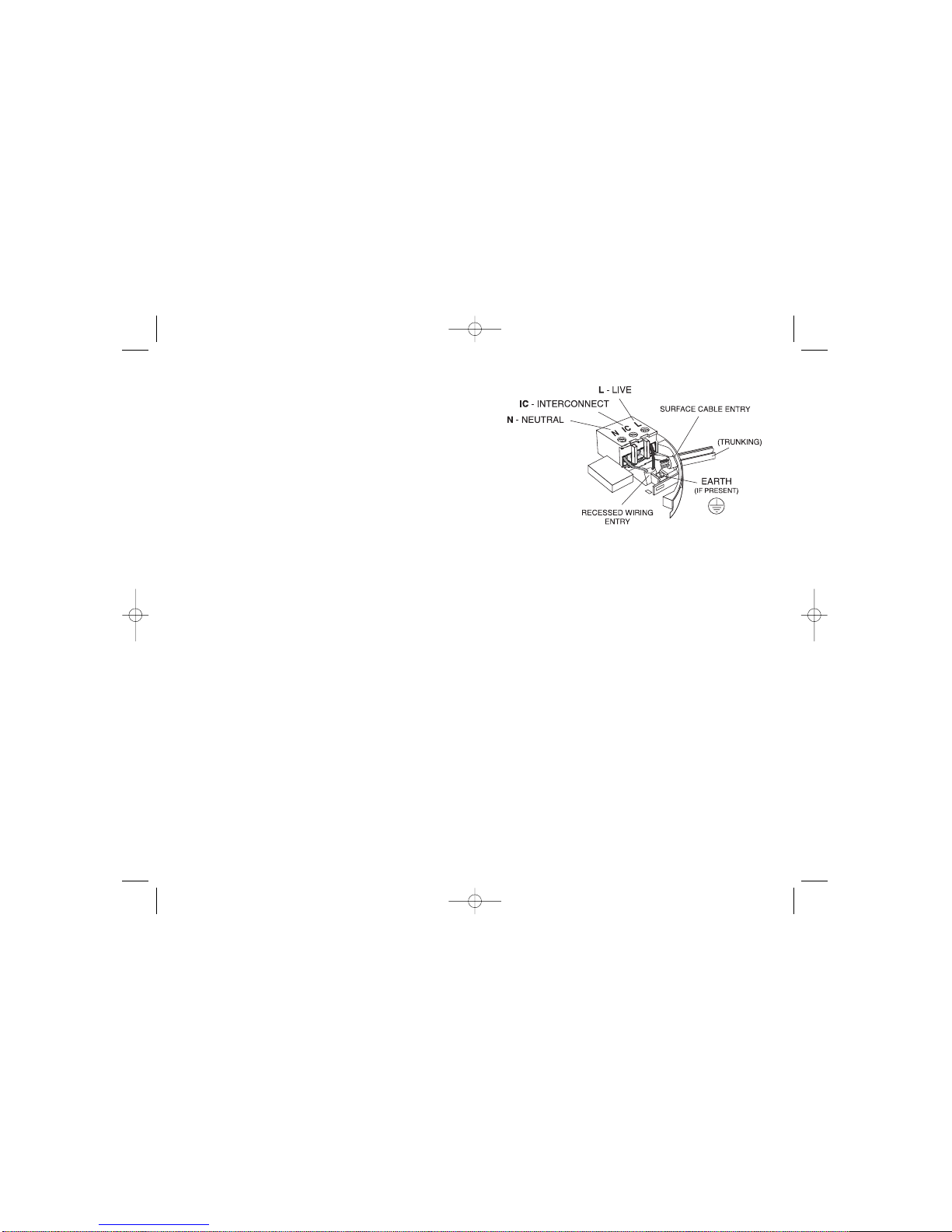

Figure 3

B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 6

L: Live - connect to the house wires coloured

brown, or marked L.

N: Neutral - connect to the house wires coloured

blue, or marked N.

IC: (Hardwire Interconnect- normally not used except

to hardwire interconnect to mains Smoke/Heat Alarms

which don't have an Ei168RC RadioLINK Base)

The alarm does not need to be earthed. However the

earth terminal is provided for the convenience of the

installers so that any earth wire or cable coloured green

& yellow, can be safety terminated.

Note: House wiring should not be “bunched up” in the

area of the alarms but quickly and neatly directed

away. This will minimize their effect on the radio aerial.

7. Replace the wiring cover.

8. Remove the required Smoke/ Heat Alarm from the

box (discard the mounting plate supplied). Carefully

line up the Smoke/Heat Alarm on the Ei168RC

RadioLINK Base and slide it on (see Figure 4).

9. Connect the mains power to the alarm circuit.

Check the green light is on. If the amber light

flashes every 10 seconds, remove the alarm (see

Figure 5

Figure 4

B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 7

Figure 5) and manually depress the rechargeable

cell "on" switch as shown in Figure 7 and refit the

alarm. If there is still a problem the cells may be

depleted so leave the unit on mains power for 2

hours to charge and test again.

Similarly, install all the other Smoke/Heat Alarms

with their Ei168RC RadioLINK Bases.

10. Press and hold the House Code switch on the

side of any one of the RadioLINK Bases with a

small screwdriver (as shown in Figure 6) until the

amber light illuminates.

11. Immediately release the switch and the amber

light will flash quickly a few times. The amber light

will then flash every 5 or 10 seconds (depending on

number of units coded - see below). Repeat this

action on all other RadioLINK Bases in the

property as quickly as possible (within 15 minutes).

(If any other RadioLINK accessories are to be used

they must also be put into the house code mode at this

time – see their instructions leaflets for details).

12. Check that all RadioLINK Bases have House

Coded and communicate with each other by counting the number of times the amber

light flashes on each base in turn. For example, 3 units in the system should give 3

short flashes every 5 seconds, 4 units should give 4 short flashes and so on, up to 12

RECHARGEABLE

CELL "ON" SWITCH

Figure 7

Figure 6

B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 8

units. There is a long flash at 10 units to make counting easier and a further long flash

at 20 units (e.g. for systems of 12 Ei168RC Bases and 8 other RadioLINK devices such

as Ei407 Manual Call Point and/or Ei411H Remote Control Switch). After 12 units, the

flashes are shown every 10 seconds. For example, with 13 units in the system there

should be 9 short flashes + 1 long flash + 3 short flashes, every 10 seconds. It may take

up to 30 minutes for all the units in the system to be House Coded correctly. If at the

end of this period certain units do not show the correct number of flashes, repeat the

process (from point 10 above) once more and if this fails see Section 5.

13. The units will automatically exit the House Code learn mode after 30 minutes

however we recommend that you manually exit the House Code mode by re-

pressing and holding the House Code switch on one of the units in the system until the

amber light turns on, then release. The amber light should stop flashing and an 'exit

House Code' signal will be sent to all other units. Check that the amber lights on all other

units have stopped flashing. (If some units are still flashing it may indicate a problem

with the radio communication from this unit to the other units). Repeat the process once

more and if this fails see Section 5. Manually exiting the House Code mode reduces the

risk of accidentally House Coding your RadioLINK Bases with nearby systems.

14. Check the communication by pressing the test/hush button for up to 20 seconds

on each unit in turn. The alarm will sound and the amber light on the RadioLINK Base

sidewall will illuminate continuously for around 3.5 seconds. All other alarms should

sound (this may take up to 20 seconds as the message may need to be relayed

through repeaters). Release the test button. The local alarm will cease and you should

then be able to hear the other alarms sounding in the distance and then stopping. This

may take up to 20 seconds (if any of the alarms do not sound, see Section 5).

B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 9

When button testing units in sequence it is important to wait 15 seconds plus a further

6 seconds per repeater between button tests (e.g. for a system with 10 repeaters,

time to wait: 15 seconds + 10 x 6 seconds = 75 seconds between button tests).

Finally attach the label provided to the distribution board to identify the alarm circuits.

(Note: To clear House Codes see section 10 - Technical Specification)

4. THE “REPEATER” FUNCTION

All Ei168RC Bases are set as “Repeater” Bases

as supplied. The function of a Repeater Base is

to receive and then re-transmit the RF signals.

This provides multiple signal paths throughout

the installation to give improved RF signal

reliability (with 3 or more RadioLINK Bases).

Note the “Repeater” function is not operational

until all the units are put in to House Code mode.

The operation of the “Repeaters” can be

observed as each unit turns on its amber light as

a RadioLINK message is being repeated.

A maximum of ten RadioLINK Bases can be set

as ‘“repeaters” in any one system. If more than

ten units are being installed, some of the units

in the system must have their “repeater” mode

de-activated. The units to de-activate should

Figure 8

Figure 9

B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 10

Other manuals for Ei Ei168RC

This manual suits for next models

Table of contents

Other Ei Electronics Smoke Alarm manuals

Ei Electronics

Ei Electronics Ei144 Heat User manual

Ei Electronics

Ei Electronics Ei3105RF Optical User manual

Ei Electronics

Ei Electronics Ei650iW User manual

Ei Electronics

Ei Electronics Ei128R User manual

Ei Electronics

Ei Electronics Ei140RC Series User manual

Ei Electronics

Ei Electronics Ei603MRF User manual

Ei Electronics

Ei Electronics Ei141RC - Ionisation User manual

Ei Electronics

Ei Electronics Ei 100TYC Ionisation User manual

Ei Electronics

Ei Electronics EI 100C Interconnect User manual

Ei Electronics

Ei Electronics EI 159 User manual

Ei Electronics

Ei Electronics RadioLINK Ei170RF User manual

Ei Electronics

Ei Electronics Ei100R User manual

Ei Electronics

Ei Electronics Ei603 Series User manual

Ei Electronics

Ei Electronics RadioLINK Ei 405TY Manual

Ei Electronics

Ei Electronics Ei 105R Optical User manual

Ei Electronics

Ei Electronics Ei3100RF? Ei3500RF Manual

Ei Electronics

Ei Electronics Ei141 Ionisation User manual

Ei Electronics

Ei Electronics Ei 156TLR Optical User manual

Ei Electronics

Ei Electronics Ei650 Series User manual

Ei Electronics

Ei Electronics BROOKS EIB160e Series User manual

Ei Electronics

Ei Electronics Ei3024 User manual

Ei Electronics

Ei Electronics Ei605 Series User manual

Ei Electronics

Ei Electronics MCP401RC User manual

Ei Electronics

Ei Electronics EI 100B Standard Manual

Popular Smoke Alarm manuals by other brands

x-sense

x-sense SD19-W user manual

BRK electronic

BRK electronic First Alert P1010 quick start guide

FireAngel

FireAngel Thermoptek ST-622 user manual

teko

teko Astra-42A user guide

Safetec

Safetec SDS-2/6 Additional Fault Finding Instructions

Siemens

Siemens PE-11C installation instructions

System Sensor

System Sensor DH500ACDC Installation and maintenance instructions

Resolution Products

Resolution Products RE612 CryptiX quick start guide

First Alert

First Alert PC900V user manual

Eminent

Eminent EM6590 E-Domotica user manual

Carrier

Carrier Kidde Quell Q301 user manual

VESDA

VESDA VLF-500 Product guide

ELRO

ELRO FS8110 instruction manual

Heiman

Heiman SMOKI NS-626PHS user manual

Regin

Regin SDD-S65 instruction manual

Family Gard

Family Gard FG225 user manual

Greystone

Greystone DSD120 Installation and maintenance instructions

Aparton

Aparton ASD-10 Instructions for use
