Milesight EM320-TILT User manual

Tilt Sensor

Featuring LoRaWAN®

EM320-TILT

User Guide

Safety Precautions

Milesight will not shoulder responsibility for any loss or damage resulting from not following the

instructions of this operating guide.

The device must not be disassembled or remodeled in any way.

In order to protect the security of the device, please change device password when first

configuration. The default password is 123456.

Do not place the device close to objects with naked flames.

Do not place the device where the temperature is below/above the operating range.

The device is not intended to be used as a reference sensor, and Milesight will not should

responsibility for any damage which may result from inaccurate readings.

The battery should be removed from the device if it is not to be used for an extended period.

Otherwise, the battery might leak and damage the device. Never leave a discharged battery

in the battery compartment.

Make sure all batteries are newest when install, or battery life will be reduced.

The device must never be subjected to shocks or impacts.

Declaration of Conformity

EM320-TILT is in conformity with the essential requirements and other relevant provisions of the

CE, FCC, and RoHS.

All information in this guide is protected by copyright law. Whereby, no organization or individual

shall copy or reproduce the whole or part of this user guide by any means without written

authorization from Xiamen Milesight IoT Co., Ltd.

For assistance, please contact

Milesight technical support:

Email: iot.support@milesight.com

Support portal: support.milesight-iot.com

Tel: 86-592-5085280

Fax: 86-592-5023065

Address: Building C09, Software Park III,

Xiamen 361024, China

Revision History

Date

Doc Version

Description

Feb.14, 2023

V 1.0

Initial version

Contents

1. Product Introduction ......................................................................................................................... 5

1.1 Overview ...................................................................................................................................5

1.2 Features ................................................................................................................................... 5

2. Hardware Introduction ...................................................................................................................... 5

2.1 Packing List ..............................................................................................................................5

2.2 Hardware Overview ................................................................................................................. 6

2.3 Dimensions(mm) .....................................................................................................................6

3. Operation Guide .................................................................................................................................7

3.1 NFC Configuration ................................................................................................................... 7

3.2 LoRaWAN Settings .................................................................................................................. 8

3.3 Basic Settings ........................................................................................................................10

3.4 Threshold Settings ................................................................................................................ 11

3.5 Maintenance .......................................................................................................................... 13

3.5.1 Upgrade ....................................................................................................................... 13

3.5.2 Backup .........................................................................................................................14

3.5.3 Reset to Factory Default .............................................................................................15

4. Installation ....................................................................................................................................... 15

5. Device Payload ................................................................................................................................ 16

5.1 Basic Information .................................................................................................................. 16

5.2 Sensor Data ........................................................................................................................... 17

5.3 Downlink Commands ............................................................................................................ 18

1. Product Introduction

1.1 Overview

EM320-TILT is an LoRaWAN®tilt sensor mainly for angle measurement and asset movement

detection. With a compact size and 3-axis accelerometer, EM320-TILT can be installed to the

objects easily to measure its X,Y,Z tilt angles. In addition, EM320-TILT supports customizing

initial position to detect movement based on angle changes and send threshold alarms.

Compliant with Milesight LoRaWAN®gateway and Milesight IoT Cloud solution, users can know

the angles and tilt threshold alarms in real-time via browser or mobile app remotely.

EM320-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.

1.2 Features

Built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects

Flexible threshold condition settings, suitable for different kinds of applications

Easy to install, suitable for various types of objects as trees, poles, grounds, etc.

IP67 waterproof enclosure for outdoor applications

Anti-theft design on back cover to secure firm and sturdy installation

Ultra-wide-distance wireless transmission up to line of sight of 15km

Equipped with NFC for one touch configuration

Function well with standard LoRaWAN®gateways and network servers

Compliant with Milesight IoT Cloud

2. Hardware Introduction

2.1 Packing List

1 × EM320-TILT

Sensor

2 × Wall

Mounting Kits

1 × Fixing Screw

1 × Quick Start

Guide

1 × Warranty

Card

If any of the above items is missing or damaged, please contact your sales Representative.

2.2 Hardware Overview

When you install EM320-TILT on site, below is the angle number you can expect with

corresponding device gesture.

2.3 Dimensions(mm)

2.4 Power Button

The LED indicator and power button are inside the device. Switch on/off and reset can also be

configured via NFC.

Function

Action

LED Indication

Turn On

Press and hold the button for more than 3 seconds.

Off →On

Turn Off

Press and hold the button for more than 3 seconds.

On →Off

Reset

Press and hold the button for more than 10 seconds.

Blink 3 times.

Check

On/Off Status

Quickly press the power button.

Light On: Device is on.

Light Off: Device is off.

3. Operation Guide

3.1 NFC Configuration

EM320-TILT sensor can be monitored and configured via NFC. Please refer the following steps

to complete configuration.

1. Download and install “Milesight ToolBox” App from Google Play or Apple App Store.

2. Enable NFC on the smartphone and launch Milesight ToolBox.

3. Attach the smartphone with NFC area to the device to read device information. Basic

information and settings of the device will be shown on ToolBox App if it’s recognized

successfully. You can read and configure the device by tapping the Read/Write device on the

App. In order to protect the security of the device, please change password when first

configuration. The default password is 123456.

Note:

1) Ensure the location of smartphone NFC area and it’s recommended to take off phone case.

2) If the smartphone fails to read/write configurations via NFC, keep the phone away and back

to try again.

3) EM320-TILT sensor can also be configured by dedicated NFC reader, which can be

purchased from Milesight IoT.

3.2 LoRaWAN Settings

LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN®network.

Basic LoRaWAN Settings:

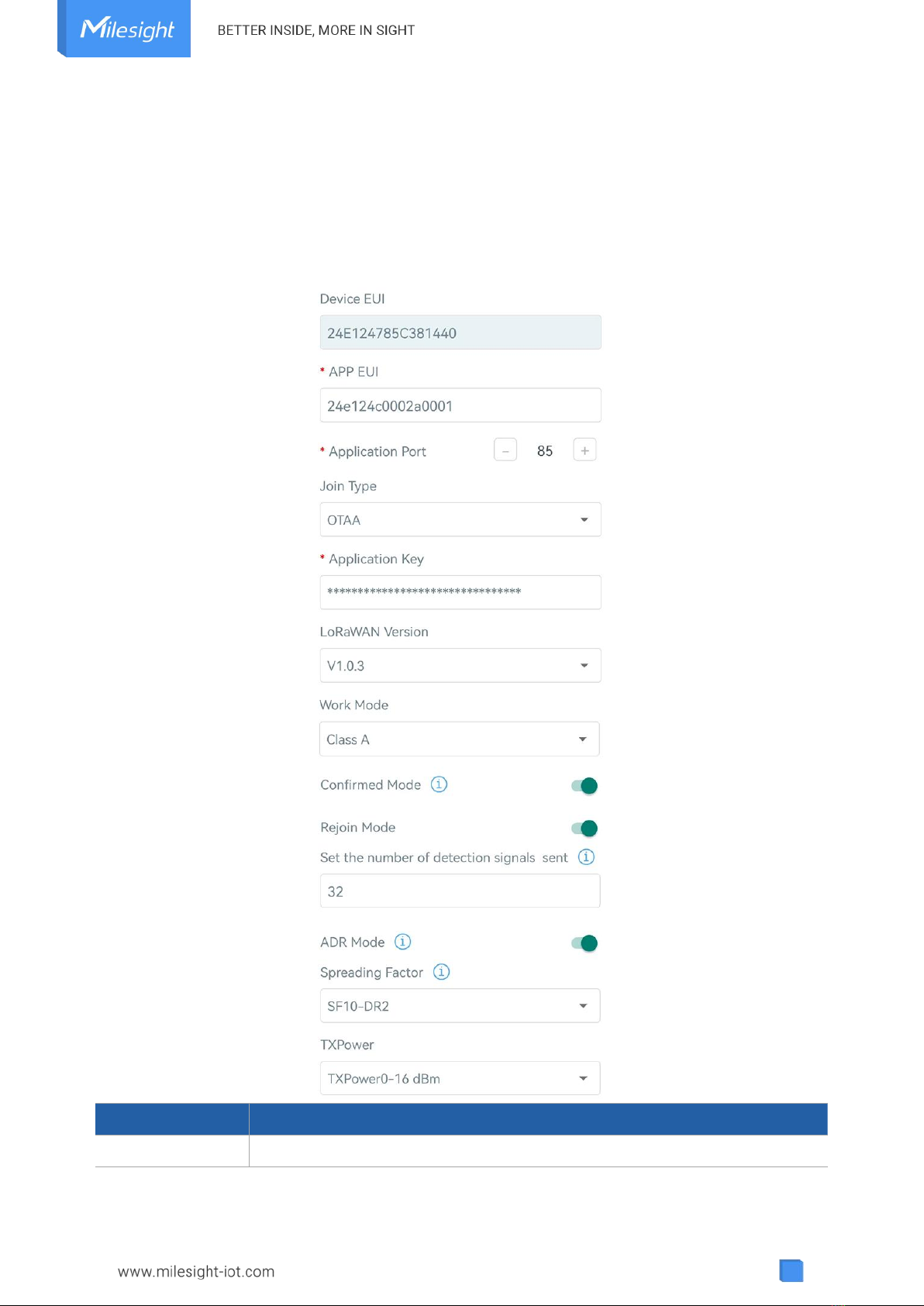

Go to Device > Settings > LoRaWAN Settings of ToolBox App to configure join type, App EUI, App

Key and other information. You can also keep all settings by default.

Parameters

Description

Device EUI

Unique ID of the device which can also be found on the label.

App EUI

Default App EUI is 24E124C0002A0001.

Application Port

The port is used for sending and receiving data, default port is 85.

Join Type

OTAA and ABP mode are available.

Application Key

Appkey for OTAA mode, default is 5572404C696E6B4C6F52613230313823.

Device Address

DevAddr for ABP mode, default is the 5th to 12th digits of SN.

Network Session

Key

Nwkskey for ABP mode, default is 5572404C696E6B4C6F52613230313823.

Application

Session Key

Appskey for ABP mode, default is 5572404C696E6B4C6F52613230313823.

LoRaWAN Version

V1.0.2, V1.0.3 are available.

Work Mode

It’s fixed as Class A.

RX2 Data Rate

RX2 data rate to receive downlinks.

RX2 Frequency

RX2 frequency to receive downlinks. Unit: Hz

Spread Factor

If ADR is disabled, the device will send data via this spread factor.

Confirmed Mode

If the device does not receive ACK packet from network server, it will resend

data once.

Rejoin Mode

Reporting interval ≤ 30 mins: the device will send a specific number of

LinkCheckReq MAC packets to the network server every 30 mins to validate

connectivity; If there is no response, the device will re-join the network.

Reporting interval > 30 mins: the device will send a specific number of

LinkCheckReq MAC packets to the network server every reporting interval to

validate connectivity; If there is no response, the device will re-join the

network.

Set the number of

packets sent

When rejoin mode is enabled, set the number of LinkCheckReq packets sent.

ADR Mode

Allow network server to adjust data rate of the device.

Tx Power

Transmit power of the device.

Note:

1) Please contact sales for device EUI list if there are many units.

2) Please contact sales if you need random App keys before purchase.

3) Select OTAA mode if you use Milesight IoT cloud to manage devices.

4) Only OTAA mode supports rejoin mode.

LoRaWAN Frequency Settings:

Go to Settings > LoRaWAN Settings to select supported frequency and select channels to send

uplinks. Make sure the channels match the LoRaWAN®gateway.

If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you

want to enable in the input box, making them separated by commas.

Examples:

1, 40: Enabling Channel 1 and Channel 40

1-40: Enabling Channel 1 to Channel 40

1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60

All: Enabling all channels

Null: Indicates that all channels are disabled

3.3 Basic Settings

Go to Device > Settings > General Settings to change the reporting interval, etc.
