Miele ESW 47XX User manual
Installation Instructions
ESW 47xx
ESW 48xx en_CA
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation instructions.
,CAUTION: Before servicing,
disconnect the power supply by
either removing the fuse, shutting off
the power main or manually
"tripping" the circuit breaker.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and service by unqualified
persons could be dangerous and
the manufacturer will not be held
responsible.
Before connecting the appliance to
the power supply, make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This
data must correspond to prevent
machine damage. Consult an
electrician if in doubt.
Only operate the warming drawer
after it has been installed into the
countertop.
Installer:
Please leave these instructions with
the consumer.
Power supply
This appliance is equipped with a 5 ft
(1.5 m) long power cord with a
three-prong grounding plug ready for
connection to a 120 V, 15 A, 60 Hz
power supply.
Further installation details are on the
wiring diagram.
Electrical connection
25
Installation tips
– The warming drawer should be
placed at a convenient height for
easy access.
– The drawer should be installed clear
of drafts caused by open doors and
windows.
– Proper clearance must be allowed
for the warming drawer to open with
out interference.
– The warming drawer must be
secured to cabinetry to prevent the
drawer from tipping when loaded.
– The warming drawer should be level
to prevent the drawer from sliding
open or closing on its own.
The drawer cannot be leveled after it
has been installed.
If necessary install a shelf within the
cabinetry to support the drawer.
Steam from the vents can damage
the cabinetry surrounding the
warming drawer.
Solo Installation:
A minimum gap of 2" (5 cm) must be
present between the upper edge of
the warming drawer and the
cabinetry.
Installation in combination with an
oven:
A minimum gap of 1" (2.5 cm) must
be present between the upper edge
of the warming drawer and the oven.
This gap should be sealed with a
moisture resistant sealing material.
Installation
26

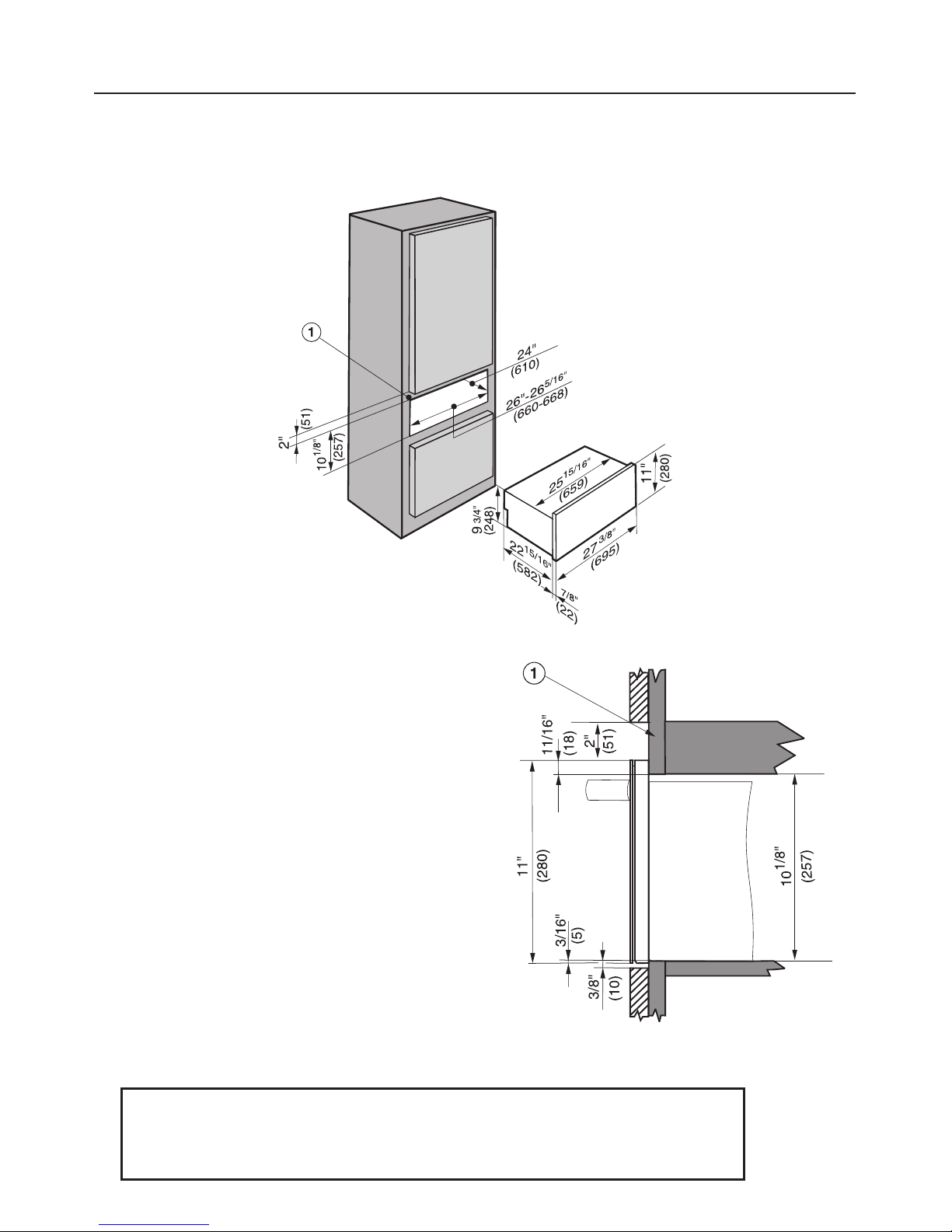

Dimensions for Solo Installation
ESW 47x0
aMaterial must be moisture resistant
Installation
27
Miele appliances can be installed ush or proud. Discuss your
installation requirements with you architect, designer and installer.

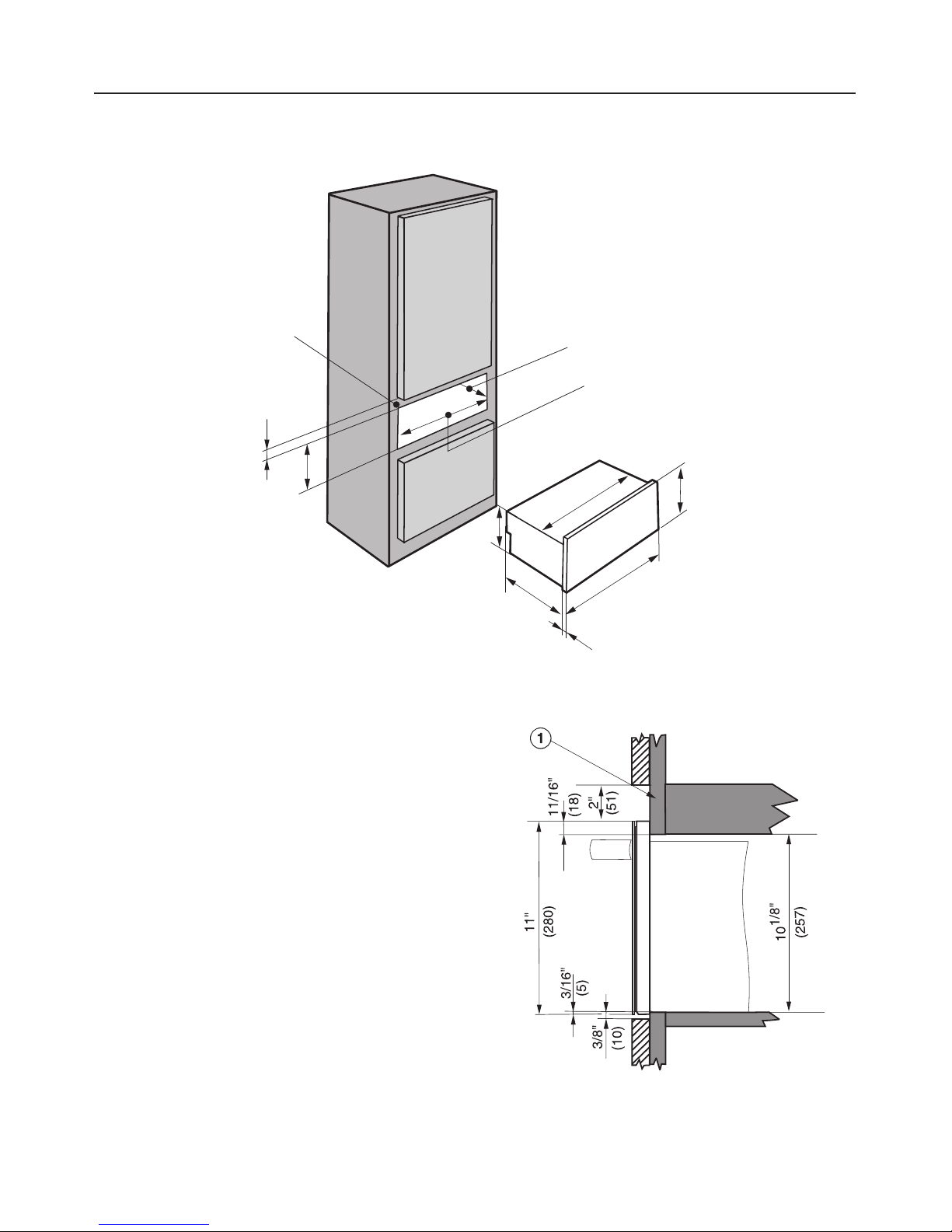

ESW 48x0
aMaterial must be moisture resistant
Installation
28
(26)
(757)
(248)
(582)
(280)
(659)
(257)
29
10
1/8"
11"
13/16"
15/16"
25
15/16"
22
1"
9
3/4"
(51)
(610)
2"
(660-724)
1/2"
26"- 28
24"
a

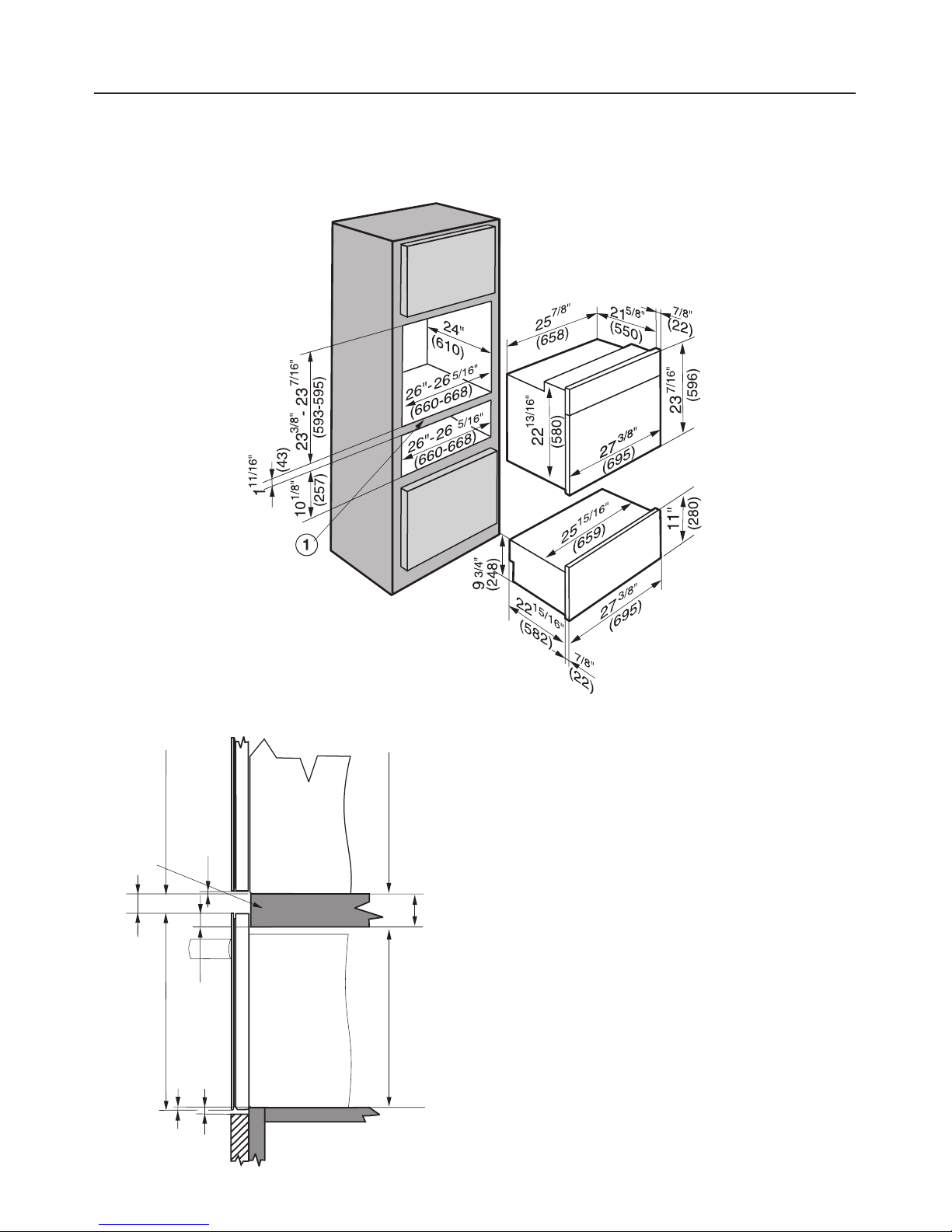

Dimensions for a combination installation with an oven
ESW 47x0
aMaterial must be moisture resistant
Installation
29
(25)
(596)
23
7/16"
(580)
(280)
11"
(5)
3/8"
(10)
1"
(2,8)
(43)
22
(257)
a
13/16"
11/16"
1
11/16"
1/8"
3/16"
(18)
10
1/8"

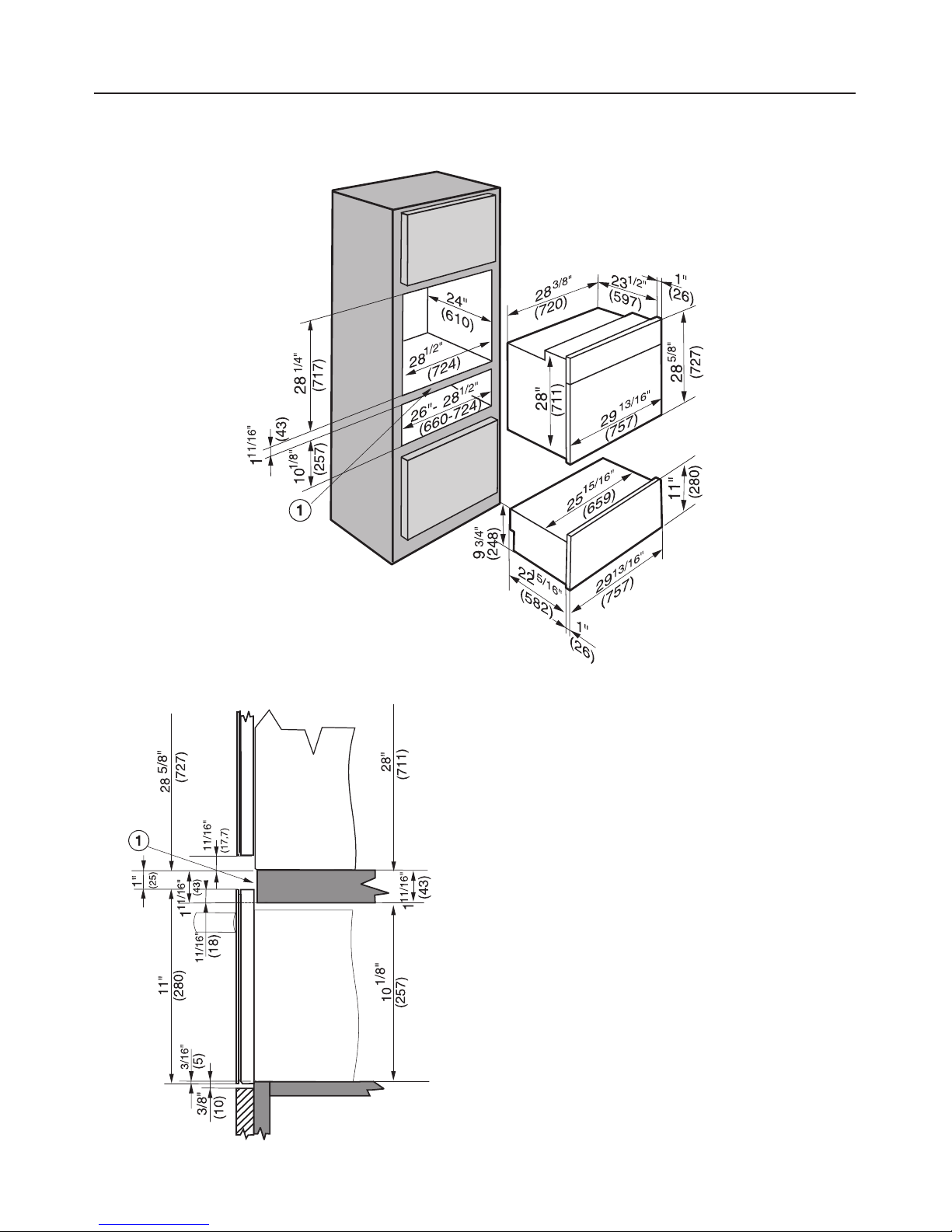

ESW 48x0
aMaterial must be moisture resistant
Installation
30

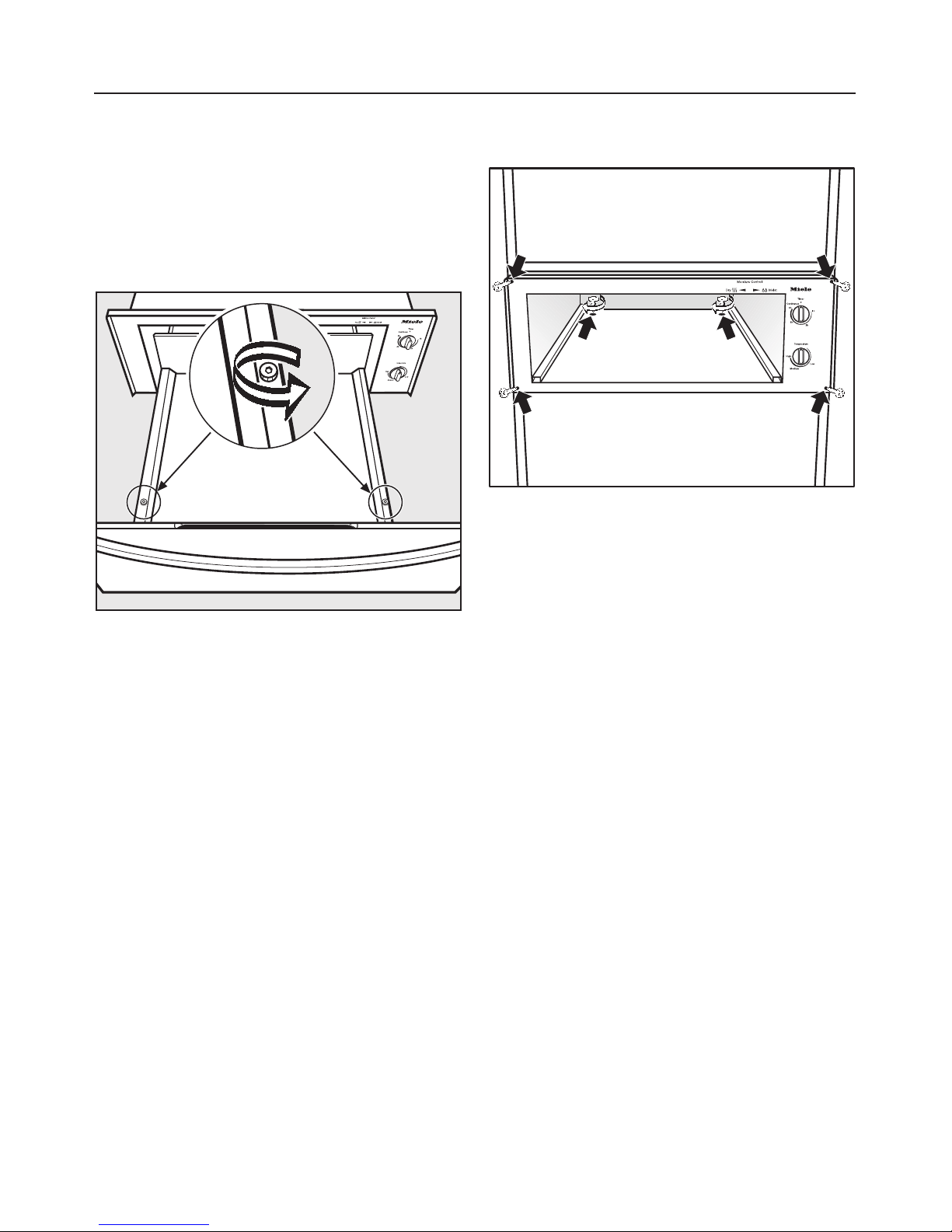

Installing the warming drawer
^Remove the drawer from the casing
before installing the appliance into
the cabinetry.
Removing the drawer
^Pull the drawer completely out and
loosen the nuts.
^Carefully lift the drawer and pull it
slowly out.
Set the drawer down on a flat, stable
surface.
^Push the casing in the cabinetry.
^Secure the casing in the cabinetry
with the six screws.
Inserting the drawer
^Pull out the telescopic skis from the
casing.
^Set the drawer on the telescopic skis
and secure with the two nuts.
Installation
31
Integrated installations
Models 4700 FB and 4800 FB
Custom made front panels can be
installed with models 4700 FB and
4800 FB.
Panel dimensions
4700 FB
Width 27 3/8" (695 mm)
Height 11" (279 mm)
4800 FB
Width 29 13/16" (757mm)
Height 11" (279 mm)
The custom panel must be atleast 3/8"
(10 mm) thick and made of heat resist-
ant material140 °F (60 °C).
aInstall a handle to the custom front
panel using counter sunk screws.
bRemove the drawer from the casing.
See "Removing the drawer".
The panel attached to the warming
drawer front can be used as the drilling
template for the custom panel.

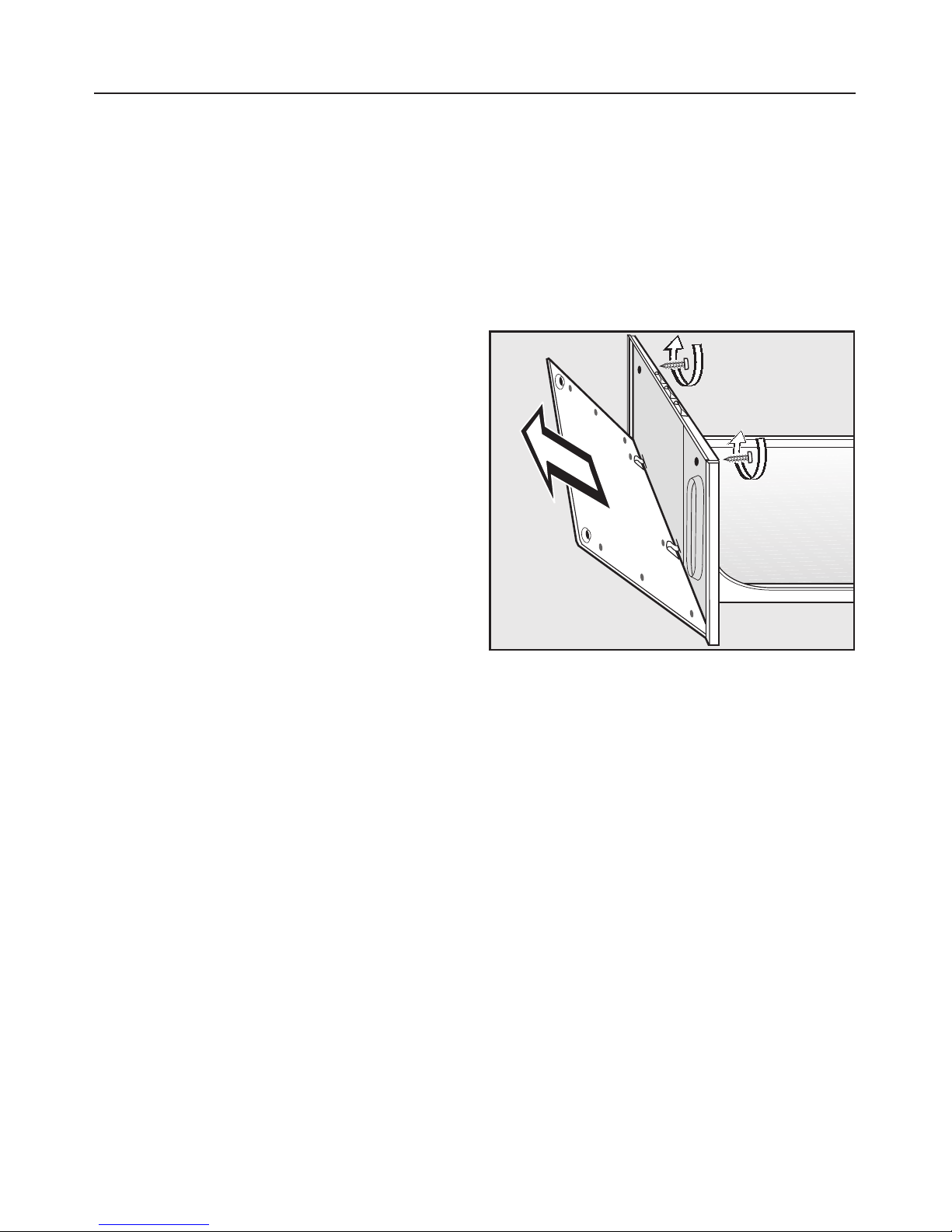

cLoosen the two screws on the inner
side of the drawer and remove the
panel from the appliance front.

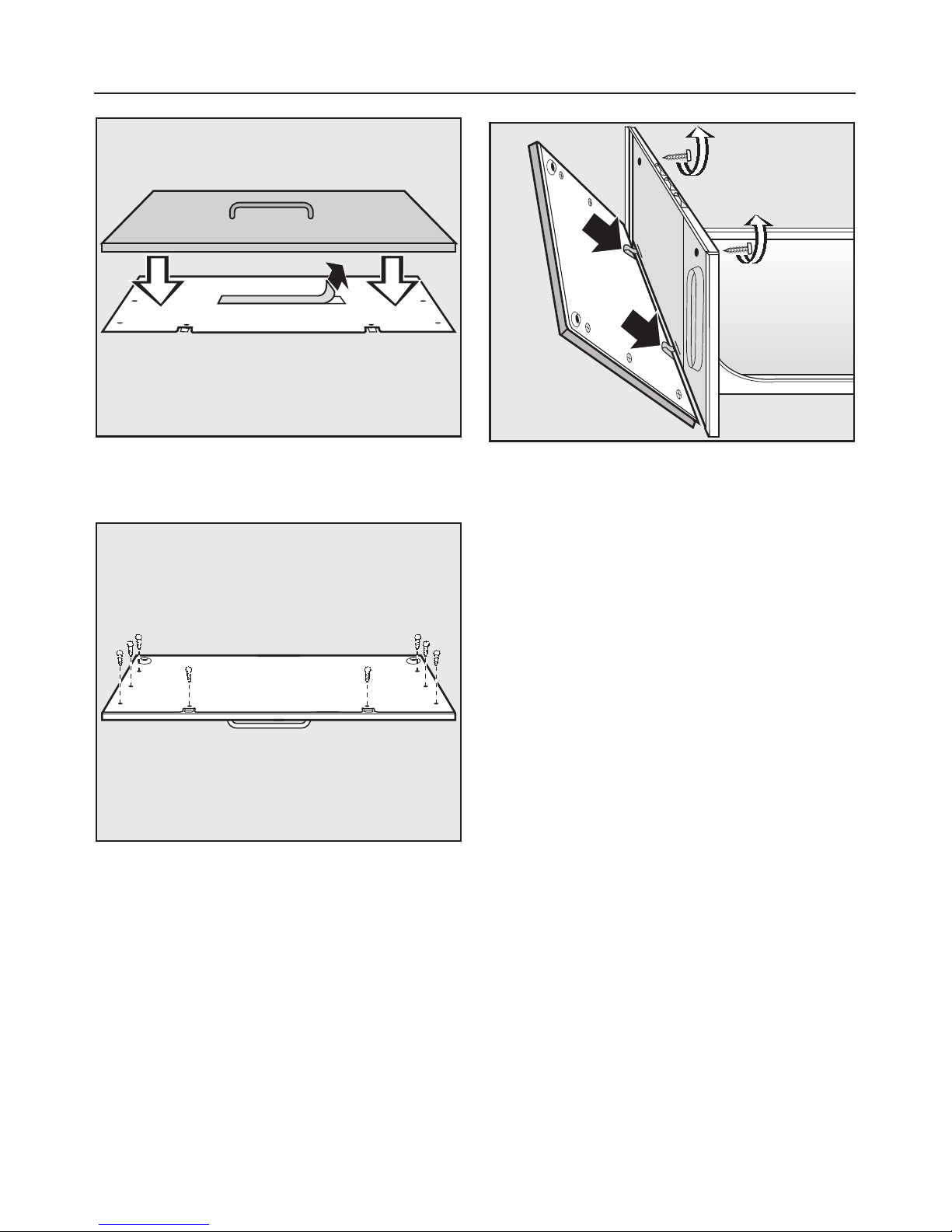

dPlace the panel on a firm surface
with the adhesive tape facing up.
Peel the backing from the adhesive
tape.
ePosition the custom panel over the
removed panel using the tape to hold
it in place.
Installation
32
fPress the custom panel tightly onto
the removed panel.
gScrew the removed panel to the
custom panel with the eight screws.
hHook the panels into the bottom on
and secure at the top with two
screws making sure the seal is
seated correctly.
Installation
33
