Miele ESW700-25 FB User guide

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 011204

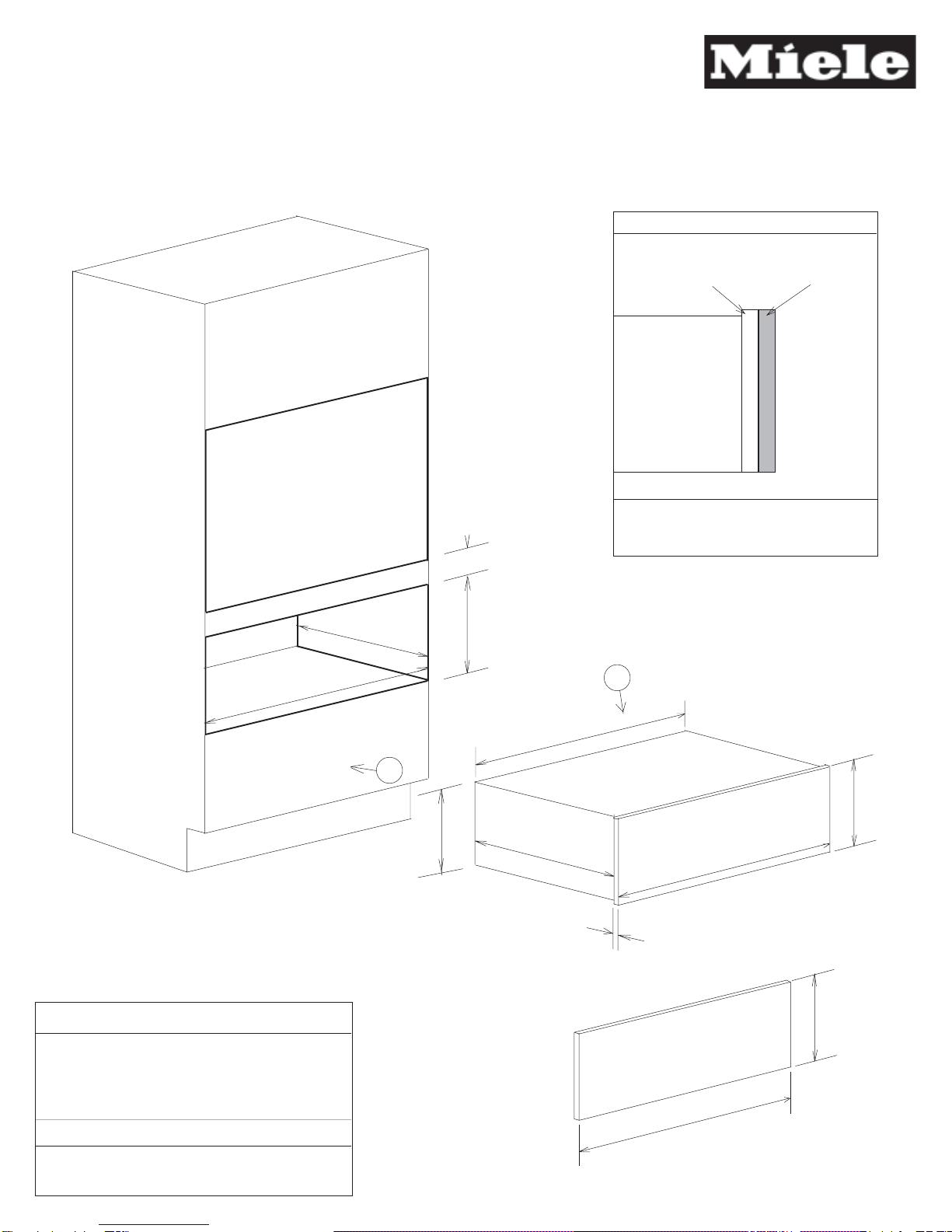

Product and Cutout Dimensions

70cm Warming Drawers

ESW700-25

24" min.

22 15/16"

27 3/8"

1"

10 7/8"

O

10 1/8"

26 - 26 1/4"

5 foot cord and plug connects upper

rear right side

120 Volt 15 Amp service

Location must be accessible

E -

O -

Location Codes

25 15/16"

E

• All installations must be done in

accordance with local codes.

Notes

9 3/4" 2"

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 011204

Product and Cutout Dimensions

70cm Warming Drawers

ESW700-25 FB

24" min.

22 15/16"

27 3/8"

1"

10 7/8"

O

10 1/8"

26 - 28 1/2"

5 foot cord and plug connects upper

rear right side

120 Volt 15 Amp service

Location must be accessible

E -

O -

Location Codes

25 15/16"

E

• All installations must be done in

accordance with local codes.

Notes

9 3/4" 2"

Must accept a custom front panel

27 3/8" - 27 7/16"

10 7/8"

custom front panel

3/4" Thick

Profile Detail

Unit

Housing

Unit

Frame Custom

Panel

Note:

Custom front panel will stand

proud of the unit frame by 3/4"
