Miele H394B Parts list manual
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 070103

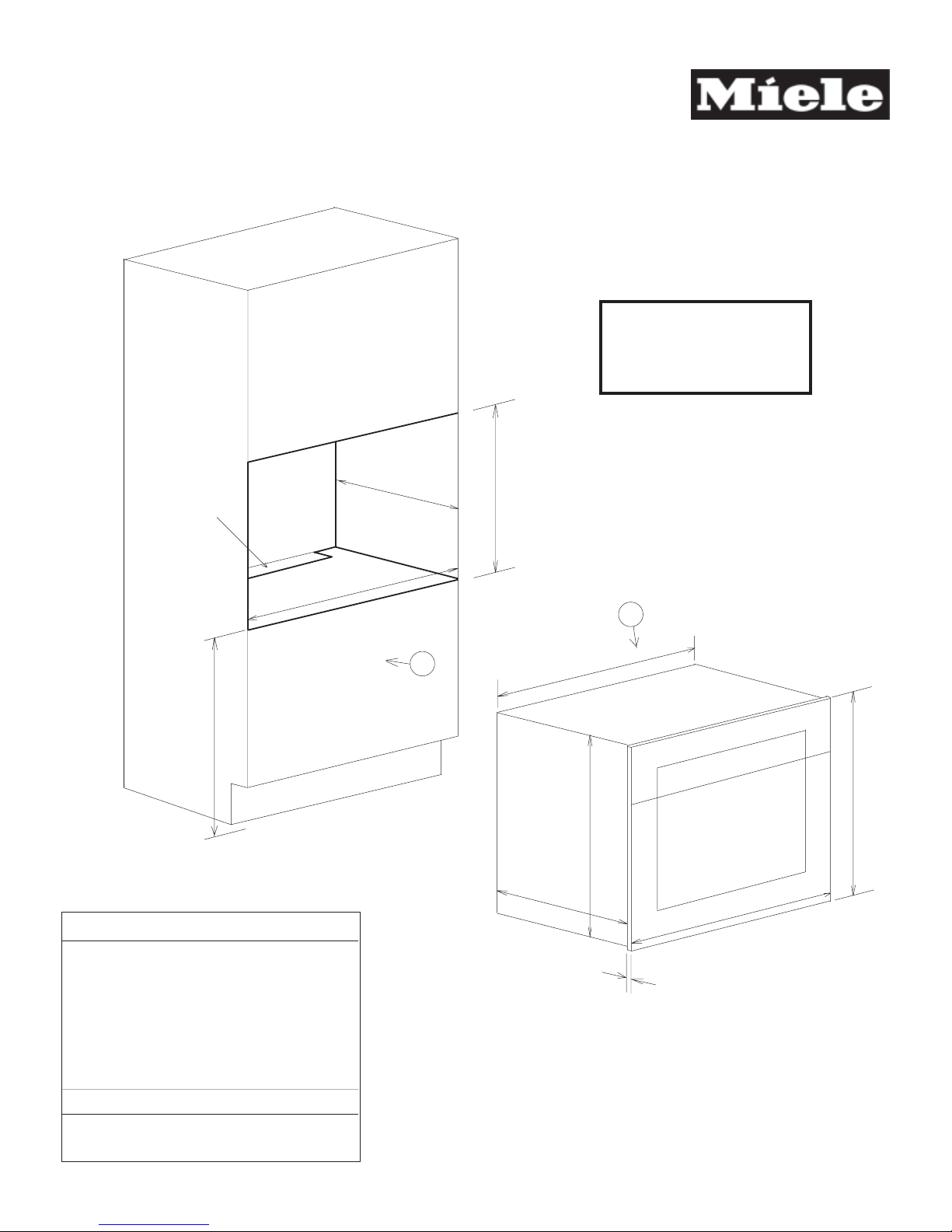

Product and Cut-out Dimensions
30" Single Oven
H394B / H396B / H396BP
24" min.
28 "
23 1/2"
29 13/16"
1"
28 5/8"
O
28 1/4"
A
28 1/2"
5 foot electrical main pigtail connects
upper rear right side
208 Volt or 240 Volt 30 Amp service
4 wires (2 lives / neutral / ground)
Location must be accessable
Height to base of oven
Locate 30" - 33" from floor
Based on user height of 5'6" to 5'10
E -
O -
A -
Location Codes
28 3/8"
E
• All installations must be done in
accordance with local codes.
Notes
See
Info Box
IMPORTANT INFORMATION
For proper heat ventilation
a 12" x 2" opening (24 sq inch)
must be placed to the rear
of the platform under the oven
