Miele KM 6200 User manual

Installation instructions

Ceramic hobs

KM 6200 / 6202 / 6203

KM 6204 / 6206 / 6207 / 6208

KM 6212 / 6213 / 6215 / 6216

To avoid the risk of accidents or

damage to the appliance it is

essential to read these instructions

before it is installed and used for the

first time. M.-Nr. 09 198 690

en-GB

Safety instructions for installation....................................3

Hob with frame or bevelled edge .....................................8

Building-in dimensions ..............................................8

KM 6200 / KM 6202 ..............................................8

KM 6204 .......................................................9

KM 6206 ......................................................10

KM 6207 ......................................................11

KM 6208 ......................................................12

KM 6212 ......................................................13

KM 6213 ......................................................14

KM 6216 ......................................................15

Installation .......................................................16

External mains connection box .......................................19

Flush-fitted hobs .................................................20

Building-in dimensions .............................................20

KM 6203 ......................................................20

KM 6215 ......................................................21

Installation .......................................................22

Electrical connection..............................................25

Wiring diagram ...................................................26

Contents

The appliance must only be installed

and connected to the electricity

supply by a suitably qualified and

competent person in strict

accordance with current national

and local safety regulations.

Fit the wall units and extractor hood

before fitting the hob to avoid

damaging the appliance.

~The veneer or laminate coatings of

worktops (or adjacent kitchen units)

must be treated with 100 °C

heat-resistant adhesive which will not

dissolve or distort.

Any backmoulds must be of

heat-resistant material.

~This appliance must not be used in

a non-stationary location (e.g. on a

ship).

~The hob may not be built in over a

fridge, fridge freezer, freezer,

dishwasher, washing machine or

tumble dryer.

~After installing the hob, ensure that

the connection cable cannot come into

contact with the underside of the

appliance. Make sure that there is no

mechanical obstruction, such as a

drawer, which could damage it.

~Observe carefully the safety

distances given on the following pages.

All dimensions in this instruction booklet

are given in mm.

Safety instructions for installation

Safety distance above an interim

shelf

It is not necessary to fit an interim shelf

underneath the hob.

If an interim shelf is fitted underneath

the hob, a minimum safety distance of

110 mm must be maintained between

the top of the worktop and the top of

the interim shelf.

A gap of at least 10 mm must be

provided between the rear edge of the

interim shelf and the back panel of the

housing unit to allow the mains cable to

be fed through.

If the hob has an external mains

connection box, this gap must be at

least 30 mm.

Safety distance above the hob

A minimum safety distance must be

maintained between the appliance and

the cooker hood above it. See the

cooker hood manufacturer's operating

and installation instructions for details.

If the manufacturer's instructions are

not available for the cooker hood, a

minimum safety distance of at least

760 mm must be maintained. For any

flammable objects, e.g. utensil rails,

wall units etc. a minimum distance of at

least 760 mm must be maintained

between them and the appliance

below.

When two or more appliances are

installed together below a cooker

hood, e.g. a gas wok and a ceramic

hob, which have different safety

distances given in the installation

instructions, you should select the

greater distance of the two.

Safety instructions for installation

Safety distances to the sides and

back of the hob

Ideally the hob should be installed with

plenty of space on either side. There

may be a wall at the rear or a tall unit or

wall on one side (right or left) (see

illustrations).

aMinimum distance at the back of the

worktop cut-out to the rear edge of

the worktop: 50 mm

bMinimum distance to the right of the

worktop cut-out to the nearest piece

of furniture (e.g. tall unit) or wall:

50 mm

cMinimum distance to the left of the

worktop cut-out to the nearest piece

of furniture (e.g. tall unit) or wall:

50 mm = KM 6200 / 6202 / 6203

100 mm = KM 6204 / 6206

KM 6207 / 6208 / 6212

KM 6213 / 6215 / 6216

Not allowed

Recommended

Not recommended

Safety instructions for installation

Safety distance when installing the appliance near a wall with additional

niche cladding

A minimum safety distance must be maintained between the worktop cut-out and

any niche cladding to protect it from heat damage.

If the niche cladding is made from a combustible material (e. g. wood) a

minimum safety distance eof 50 mm must be maintained between the cut-out

and the cladding.

If the niche cladding is made from a non-combustible material (e. g. metal,

natural stone, ceramic tiles) a minimum safety distance eof 50 mm less the

thickness of the cladding must be maintained between the cut-out and the

cladding.

Example: 15 mm niche cladding

50 mm - 15 mm = minimum safety distance of 35 mm

Flush-fitted hobs Hob with frame or bevelled edges

aMasonry

bNiche cladding

Dimension x = thickness of niche cladding material

cWorktop

dWorktop cut-out

eMinimum safety distance

for combustible materials is 50 mm

for non-combustible materials is 50 mm less dimension x

Safety instructions for installation

Hob with frame or bevelled

edges

Seal between the hob and the

worktop

The sealing strip under the edge of the

top part of the appliance provides a

sufficient seal for the worktop.

The hob must not be sealed with

sealant (e.g. silicone).

This could result in damage to the

hob or the worktop if the hob ever

needs to be removed for servicing.

Tiled worktop

Grout lines aand the hatched area

underneath the hob frame must be

smooth and even. If they are not the

hob will not sit flush with the worktop

and the sealing strip underneath the

hob will not provide a good seal

between the hob and the worktop.

Safety instructions for installation

Building-in dimensions

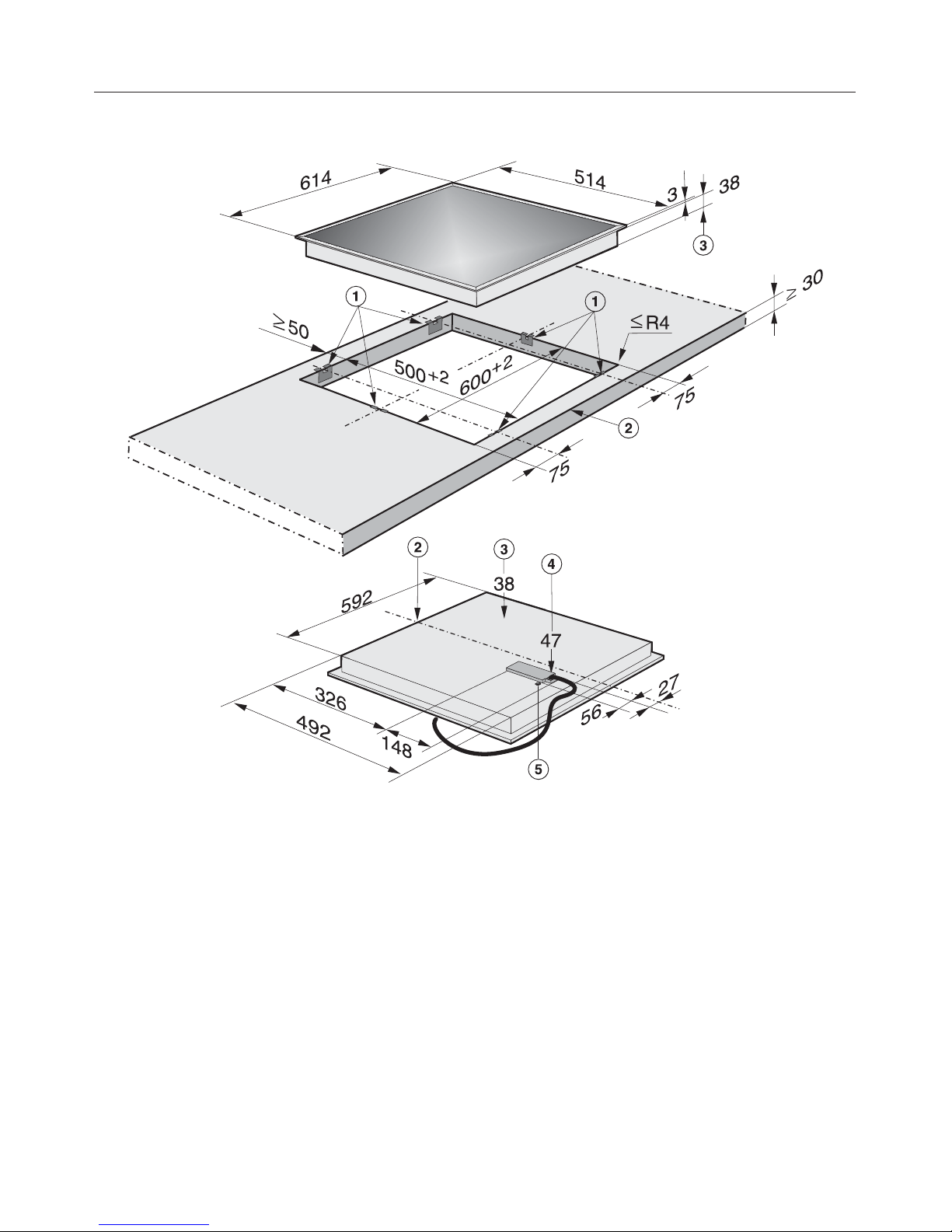

KM 6200 / KM 6202

aSpring clamps

bFront

cCasing depth

dCasing depth including mains connection box with mains connection cable,

L = 1440 mm

eConnection for Miele|home

Hob with frame or bevelled edge

KM 6204

aSpring clamps

bFront

cCasing depth

dCasing depth including mains connection box with mains connection cable,

L = 1440 mm

eConnection for Miele|home

Hob with frame or bevelled edge

KM 6206

aSpring clamps

bFront

cCasing depth

dCasing depth including mains connection box with mains connection cable,

L = 1440 mm

eConnection for Miele|home

Hob with frame or bevelled edge
