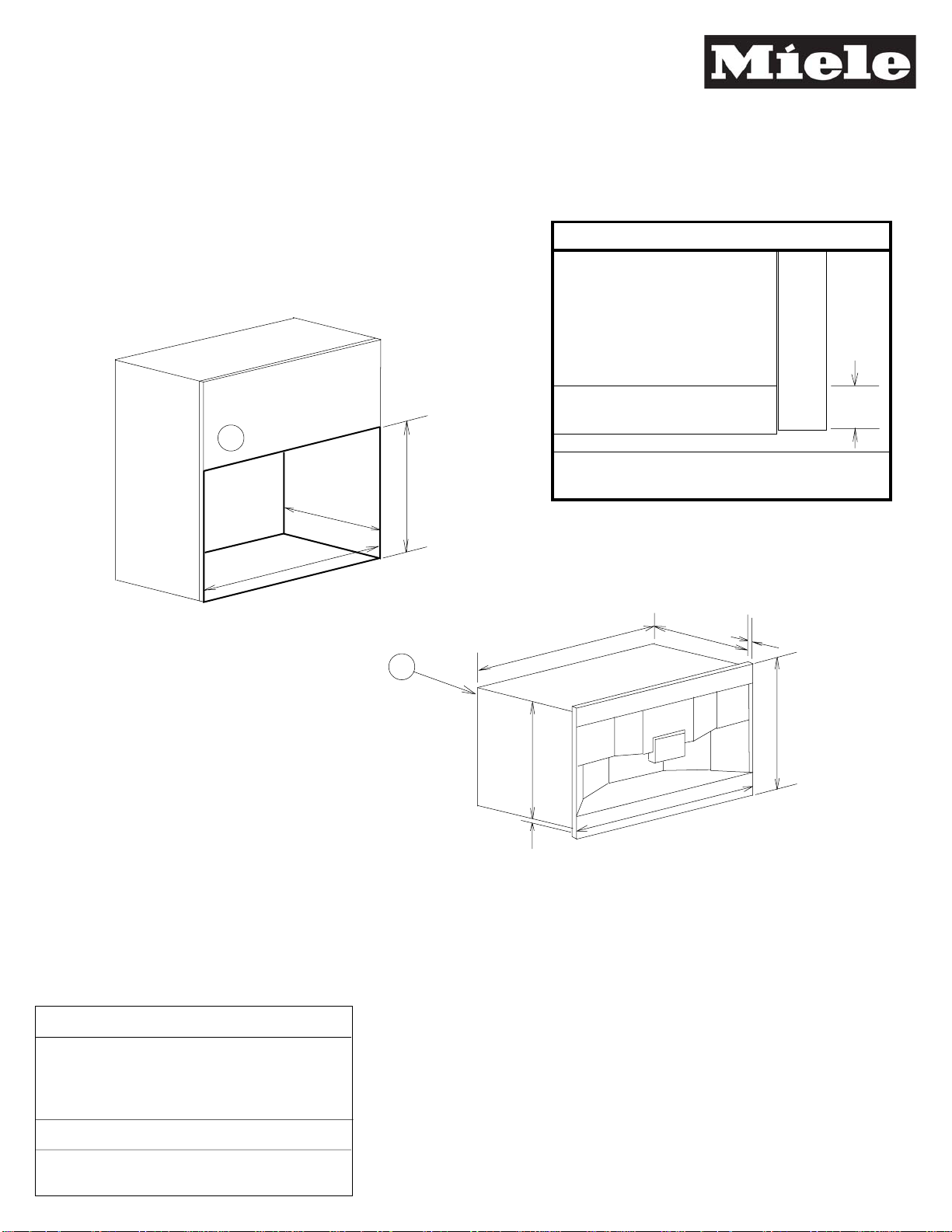

NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010405
Product and Cut-out Dimensions
Built-in Coffee System
CVA 2650 - Wall cabinet installation
E -
O -
5 foot - 120 Volt - 15 Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
Location must be accessible.
Location Codes
Notes
• All installations must be done in
accordance with local codes.
12" min.
13 3/4"
11 5/ 8"
19 1/2"
7/ 8"
14 5/ 8"
O
13 3/ 4"
See Detail
18 1/ 8" - 18 3/ 8"
18 1/16""
E
1/ 2"
Lower Edge Detail - Full overhang
CVA Housing
Cabinet base
Front of Unit
5/8"
Unit should be installed without removable feet.
Unit will overhang cabinet base
www.dexpress.com Page 2 of 105 12/31/2010
www.dexpress.com Page 2 of 105 12/31/2010
CVA2650
CVA2650
Mfr Guide
Mfr Guide
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010405
Product and Cut-out Dimensions
Built-in Coffee System
CVA 2650 - Tall cabinet installation
E -
O -
5 foot - 120 Volt - 15 Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
Location must be accessible.
Location Codes
Notes
• All installations must be done in
accordance with local codes.
12" min.
13 3/4"
11 5/ 8"
19 1/2"
7/ 8"
14 5/ 8"
O
14 3/16"
See Detail
18 1/8" - 18 3/ 8"
18 1/16"
E
1/ 2"
Lower Edge Detail - Limited overhang
CVA Housing
Cabinet Shelf
Front of Unit
Removable feet (4)
1/4"
Unit should be installed with removable feet in
place to prevent contact with cabinet doors
www.dexpress.com Page 3 of 105 12/31/2010
www.dexpress.com Page 3 of 105 12/31/2010
CVA2650
CVA2650
Mfr Guide
Mfr Guide
The coffee system comes equipped
with a 6 ft. (1.8 m) power cord with a
NEMA 5-15P molded plug for
connection to a 120 V, 15 A, 60 Hz
power supply.
Connection should be made via a
suitable isolator, with an on-off switch
which should be easily accessible for
servicing work.
Installation, repairs and other work by
unqualified persons could be
dangerous. The manufacturer cannot
be held responsible for unauthorized
work.
Verify that the voltage, load and circuit
rating information found on the data
plate match that of the household
electrical supply before installing the
coffee system.
If there is any question concerning the
electrical connection of this appliance
to your power supply, please consult a
licensed electrician or call Miele’s
Technical Service Department.
U1-800-999-1360
V1-800-565-6535
Electrical connection
56
www.dexpress.com Page 4 of 105 12/31/2010
www.dexpress.com Page 4 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst
Installation options
A countertop option for the CVA 2650 is possible with the CVSG 50 casing.
The coffee system is designed to be built into cabinetry.
Installation
57
www.dexpress.com Page 5 of 105 12/31/2010
www.dexpress.com Page 5 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst
Installation
58
www.dexpress.com Page 6 of 105 12/31/2010
www.dexpress.com Page 6 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst
Installation
59
www.dexpress.com Page 7 of 105 12/31/2010
www.dexpress.com Page 7 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst
To install the CVA 2650 below a hanging cabinet a CVUG 50 casing (optional
accessory) is required.
Installation
60
www.dexpress.com Page 8 of 105 12/31/2010
www.dexpress.com Page 8 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst
Installation
Make sure power is not supplied to
the appliance while installation or
maintenance work is performed.
Disconnect the power supply to the
work area by unplugging the unit,
tripping the circuit breaker or
removing the fuse. The coffee
system must be properly installed
before being used.
^Plug the appliance into the electrical
outlet.
^If you have a cabinet with 3/4"
(19 mm) side panels, you will need to
drill four holes first.
– Center the machine in the
cabinet.
– Tighten the screws just so they
leave a mark in the panel.
– Remove the machine from the
cabinet and drill four holes 1/16"
(2 mm) with a diameter of 3/16"
(4.5 mm).
^Level the machine with the four
height adjustable feet.
The feet can be turned out up to 3/8"
(10 mm).
^Push the appliance all the way back
into the cabinet.
^Open the door and partially tighten
the screws by hand. Do not use an
electric screwdriver.
^Carefully turn the lower screws to
center the machine.
^To fix the machine in the cabinet,
tighten the upper screws.
Installation
61
www.dexpress.com Page 9 of 105 12/31/2010
www.dexpress.com Page 9 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst
Operating instructions
Coffee System
CVA 2650
To prevent accidents
and machine damage
read these instructions
before
installation or use.
UV
M.-Nr. 06 221 360
