Midea LUNAR 01 User manual

SAFETY INSTRUCTIONS

Safety Instructions ..................................................

INSTALLATION

Product Description ................................................

Installation ...........................................................

OPERATIONS

Quick Start .............................................................

Before Each Washing ..............................................

Detergent Dispenser ...............................................

Control Panel .........................................................

Option....................................................................

Other Functions .....................................................

Programmes ..........................................................

MAINTENANCES

Cleaning And Care .................................................

Trouble Shooting ....................................................

Technical Specifications .........................................

Product Fiches ........................................................

CONTENTS

Safety Instructions

For your safety,the information in this manual must be followed

to minimize the risk of fire or explosion, electric shock, or to

prevent property damage, personal injury or loss of life.

Explanation of the symbols:

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

• If the supply cord is damaged, it must be replaced by the

The electric shock!

SAFETY INSTRUCTIONS

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

death or serious injuries unless it’s avoided.

Warning!

！

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

slight or minor injuries.

Note!

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

slight or minor injuries or damage to property and the

environment.

Caution!

Warning!

！

• The new hose-sets supplied with the appliance are to be

used and that old hose-sets should not be reused.

• Before any maintenance the device, unplug the

appliance from the mains.

• Always unplug the machine and turn off the water

supply after use. The max. inlet water pressure, in

pascals. The min. inlet water pressure, in pascals.

• To ensure your safety, power plug must be inserted into

an earthed three-pole socket. Check carefully and make

sure that your socket is properly and reliably earthed.

• Make sure that the water and electrical devices must

be connected by a qualified technician in accordance

with the manufacturer's instructions and local safety

regulations.

Risk to children!

from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way

and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance

shall not be made by children without supervision.

•

• Children of less than 3years should be supervised to

ensure that they do not play with appliance.

• Animals and children may climb into the machine. Check

the machine before every operation.

• Kids should be supervised that they do not play with

the appliance.

EN countries: the appliance can be used by children aged

SAFETY INSTRUCTIONS

• Remove all packages and transport bolts before using

the appliance. Otherwise, serious damage may result.

• Glass door may be very hot during the operation. Keep

kids and pets far away from the machine during the

operation very wet rooms as well as in the rooms with

explosive or caustic gas.

• Plug must be accessible after installation.

Risk of explosion!

•

Do not wash or dry articles that have been cleaned in, washed

in, soaked in, or dabbed with combustible or explosive

substances( such as wax, oil, paint, gasoline, degreasers,

dry-cleaning solvents, kerosene, etc.) This may result in

fire or explosion.

Before hand thoroughly rinse items of washing by hand.

• This washing machine is for indoor use only.

• It isn't intended to be built-in using.

• The openings must not be obstructed by a carpet.

• Washing machine shall not be installed in bath room or

very wet rooms as well as in the rooms with explosive

or caustic gases.

• The washing machine with single inlet valve only can be

connected to the cold water supply. The product with

double inlet valves should be correctly connected to the

hot water and cold water supply.

• Plug must be accessible after installation.

Installing the product!

SAFETY INSTRUCTIONS

Caution!

• Remove all packages and transport bolts before using

the appliance. Otherwise, serious damage may result.

Risk of damaging appliance!

• Your product is only for home use and is only designed

for the textiles suitable for machine washing.

• Do not climb up and sit on top cover of the machine.

• Do not lean against machine door.

• Cautions during Handling Machine:

1.Transport bolts shall be reinstalled to the machine by

a specialized person.

2.The accumulated water shall be drained out of the

machine.

3.Handle the machine carefully. Never hold each protruded

part on the machine while lifting. Machine door can

not be used as the handle during the conveyance.

4.This appliance is heavy. Transport with care.

• Please do not close the door with excessive forces. If it

is found difficult to close the door, please check if the

clothes are put in or distributed well.

• It is forbidden to wash carpets.

Operating the appliance!

• Before washing the clothes at first time, the product

shall be operated in one round of the whole procedures

without the clothes inside.

• Flammable and explosive or toxic solvents are forbidden.

Gasoline and alcohol etc.Shall not be used as detergents.

Please only select the detergents suitable for machine

washing, especially for drum.

SAFETY INSTRUCTIONS

• Make sure that all pockets are emptied. Sharp and rigid

items such as coin,brooch,nail,screw or stone etc. may

cause serious damages to this machine.

• Please check whether the water inside the drum has

been drained before opening its door.Please do not open

the door if there is any water visible.

• Be careful of burning when the product drains hot

washing water.

• Never refill the water by hand during washing.

• After the program is completed, Please wait for two

minutes to open the door.

This marking indicates that this product should not be

disposed with other household wastes throughout the

EU.To prevent possible harm to the environment or

human health from uncontrolled waste disposal,recycle

it responsibly to promote the sustainable reuse of

material resources.To return your used device, please use

the collection systems or contact the retailer where the

product was purchased. They return and can take this

product for environmental safe recycling.

Packaging/Old appliance

SAFETY INSTRUCTIONS

Accessories

Product Description

Transport

plughole

Supply hose hot

water (optional)

Supply hose

cold water

Drain hose

(optional

support

)

• The product line chart is for reference only, please refer to real product as

standard.

Note!

Drum

Power supply cord

Control panel

Detergent dispenser

Service filter

Door

Water supply hose

Top cover

Drain hose

Owner’s manual

INSTALLATION

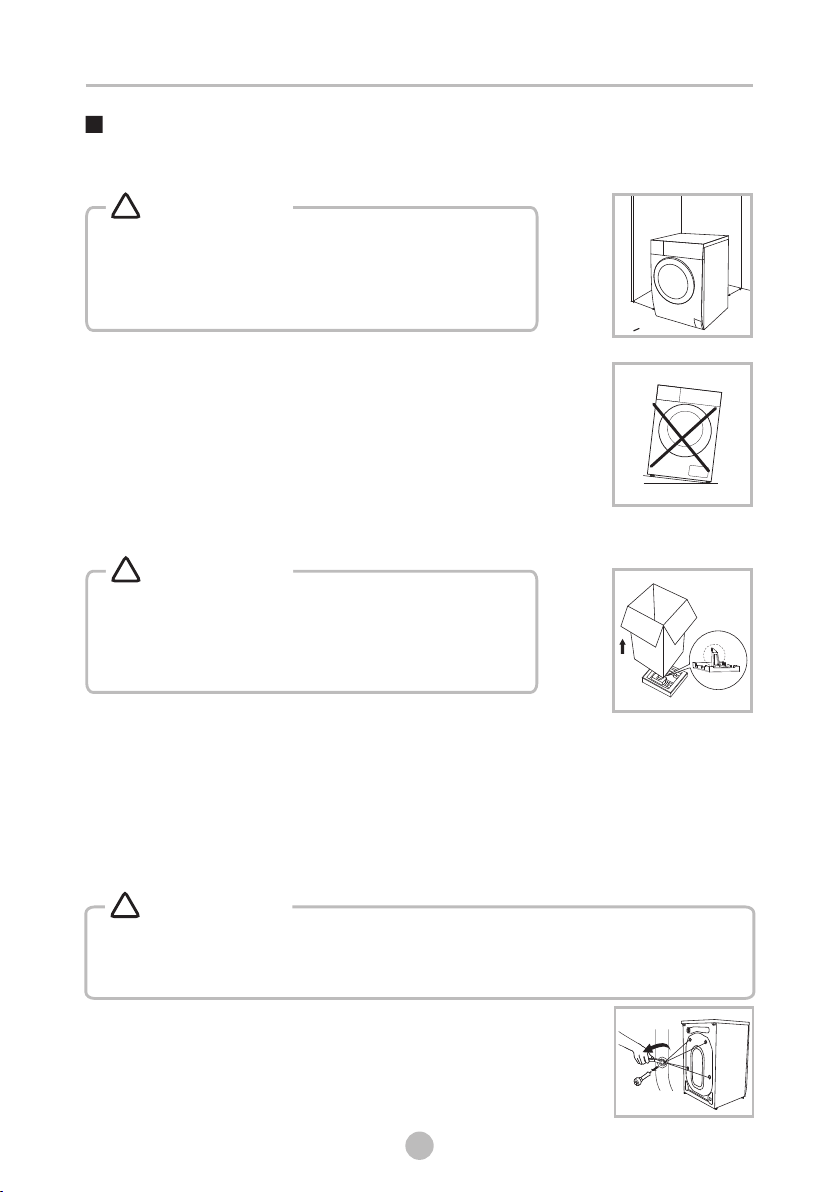

Installation

Before installing the machine, the location characterized

follows shall be selected:

1.Rigid, dry, and level surface

2.Avoid direct sunlight

3.Sufficient ventilation

4.Room temperature is above 0℃

5.Keep far away from the heat resources such as coal or gas.

Unpacking the washing machine

1. Remove the cardboard box and styrofoam packing.

2. Lift the washing machine and remove the base packing.

3. Remove the tape securing the power supply cord and drain hose.

4. Remove the inlet hose from the drum.

Make sure the small triangle

foam is removed with the bottom one together. If not, lay the unit down with side

surface, then remove the small foam from the unit bottom manually.

Please take the following steps to remove the bolts:

1.Loosen 4 bolts with spanner and then remove them.

2.Stop the holes with transport hole plugs.

3.Keep the transport bolts properly for future use.

Remove transport bolts

•

Stability is important to prevent the product from

wandering!

Make sure that the product should not stand on

the power cord.

Warning!

！

•

Packaging material (e.g. Films, Styrofoam) can be

dangerous for children.

There is a risk of suffocation ! Keep all packaging

well away from children.

Warning!

！

•

• product

you

You must remove the transport bolts from the backside before using the product.

You’ll need the transport bolts again if you move the , so make sure

keep them in a safe place.

Warning!

！

W> 20mm

Installation area

INSTALLATION

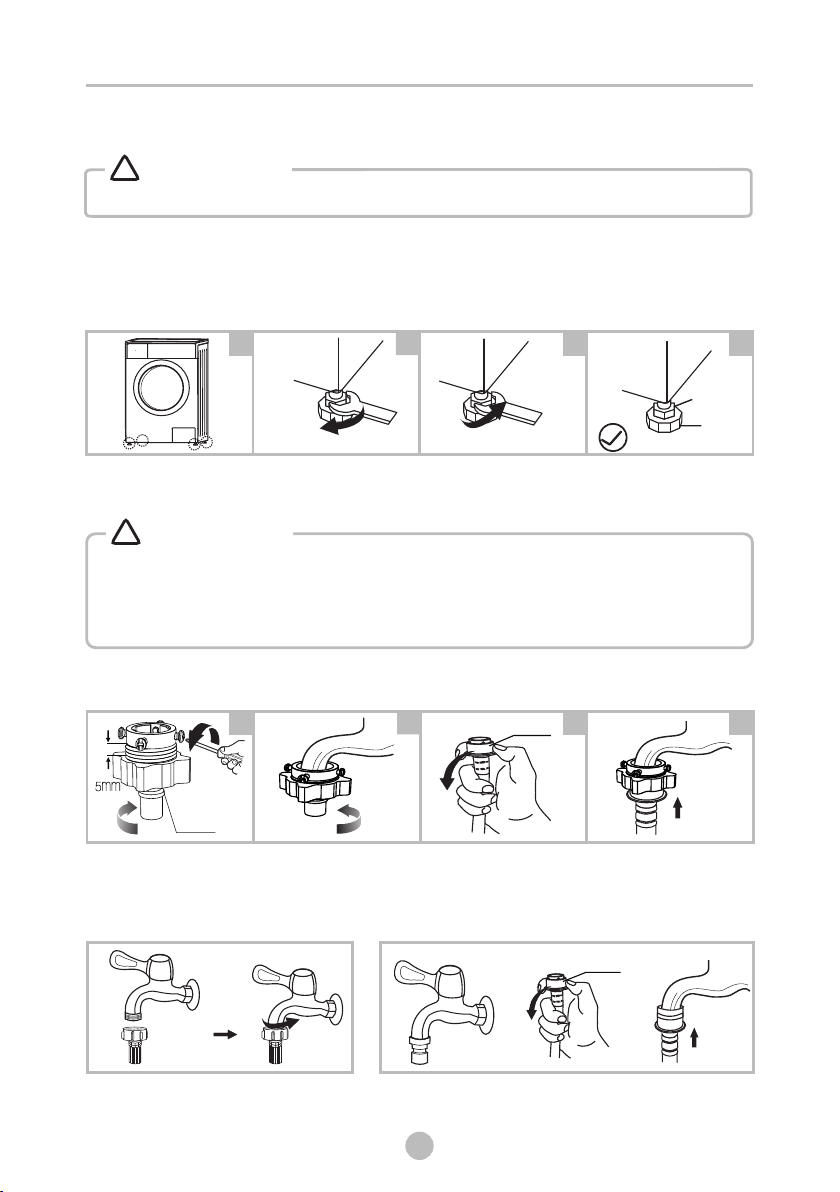

1.Check if the legs are closely attached to the cabinet. If not, please turn them to

their original positions tighten the nuts.

2.Loosen the lock nut turn the feet until it closely contacts with the floor.

3.Adjust the legs and lock them with a spanner, make sure the machine is steady.

Levelling the washing machine

• The lock nuts on all four feet must be screwed tightly against the housing.

Connect Water Supply Hose

Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.

1.Connection between ordinary tap and inlet hose.

• To prevent leakage or water damage, follow the instructions in this chapter

Do not kink, crush, modify or sever .

• water inlet hose

• For the model equips hot valve,connect it to hot water tap with hot water supply

hose. Energy consumption will decrease automatically for some program.

234

Raise Lower

Lock nut

foot

Warning!

！

Warning!

！

Loosen clamp nut and

four bolts

Tighten clamp nut Press slide bushing,

insert inlet hose into

connecting base

slide bushing

2341

Connection finished

clamp nut

Tap with threads and inlet hose Special tap for washing machine

2.Connection between screw tap and inlet hose.

slide bushing

INSTALLATION

Warning!

！

Drain Hose

There are two ways to place the end of drain hose:

1.Put it into the water trough. 2.Connect it to the branch drain pipe of

the trough.

•

• If drain hose is too long, do not force it into washing machine as it will cause

abnormal noises.

When installing drain hose, fix it properly with a rope.

•

• Position drain hose properly ,otherwise damage might result of water leakage.

Do not kink or protract the drain hose.

Water

trough

Min.60cm

100cm

Max.

Trough

Hose Retainer

Bind

Max.100cm

Min.60cm

Max.100cm

If the machine has • drain hose support, please install it like the following .

Warning!

！Warning!

！

Note!

water supply hose

water Inlet valve

Connect the other end of inlet pipe to the inlet valve at the backside of product

and fasten the pipe tightly clockwise.

This manual suits for next models

Table of contents

Other Midea Washer manuals

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
