Midea FS40-19PRD User manual
OWNER’S MANUAL
Inverter Cooling Fan
FS40-19PRD
READ AND SAVE THESE INSTRUCTIONS
Attention: Pictures in the IM are for reference only.
GD Midea Environment Appliances MFG. Co.Ltd.
No.28,Dong Fu Road,HeSui East Industrial Area,Dong Feng Town,
ZhongShan,GuangDong,China.
1
Read Rules for Safe Operation and Instructions Carefully.
CAUTION
1. If the supply cord is damaged, it must be replaced by manufacturer
or its service agent or a similarly qualified person in order to avoid
a hazard.
2. Indoor use only.
3. To protect against the risk of electrical shock, do not immerse the
unit, cord or plug in water or other liquid.
4. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety
Children should be supervised to ensure that they do not
play with the appliance.
5. When the appliance is not in use and before cleaning, unplug the
appliance from the outlet.
6. When the fan was assembled, the rotor blade guard shall not be
taken off anymore.
7. Correct Disposal of this product
This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this
product for environmental safe recycling.
WARNING
1. Never insert fingers, pencils, or any other object through the grille when fan is
running.
2. Disconnect fan when moving from one location to another.
3. Be sure fan is on a stable surface when operating to avoid overturning.
4. DO NOT use fan in window, rain may create electrical hazard.
5. Household use only.
RULES FOR SAFE OPERATION
INSTALLATION INSTRUCTIONS
Name of components
Pole
Motor
Rear grill
Tighten
knob
Install by
aligning
Base
2
Right-angle bolt
Considerate Hint:
Remove parts from the
component before performing
installation.

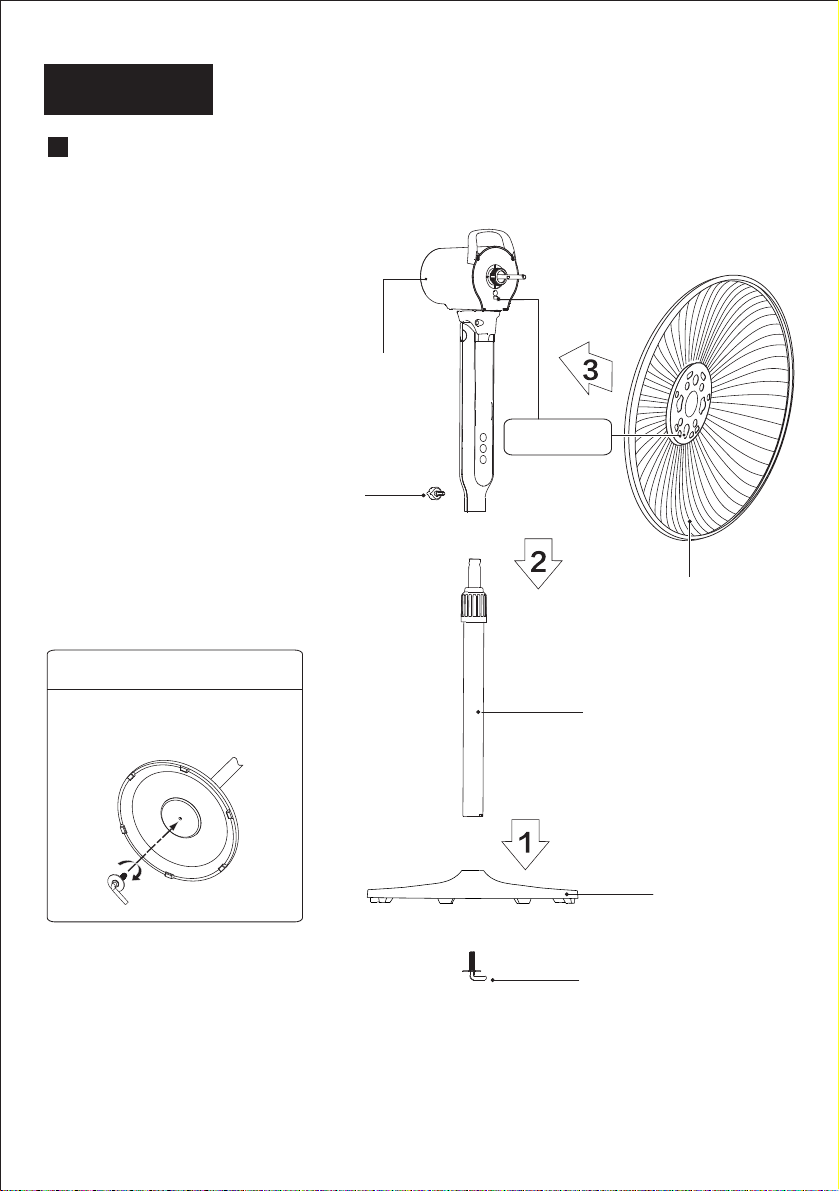

Base Installation
Align the column with the
groove on the base and
fix them together using a
right-angle bolt.
Lock nut of grill
Lock nut of blade
Blade
Screw the lock nut of grill clockwise,
and in the meantime, fix the rear grill.
Lock nut of blade
anticlockwise,
and then install the
front fan cover.
Pull the blade to rotate after installing,
so as to ensure that the blade can be
normally rotated.
Front grill
Guard
Catch
1
2
3
1
2
3
Align Catch of the Front Guard
with the illustrated position of
the Rear Guard.
Press guards sequentially
with both hands.
Self-Catch Installation.
Front and Rear Guard Installation
3
Instructions for key of remote controller
INSTRUCTIONS FOR USE
4
Considerate Hint:
Effective Range of Remote Control: within 5 m distance and
30-degree deflection in front of Product.
Use manganese or alkaline batteries of type "AAA". Do not
use rechargeable batteries.
“ON/OFF” key
“TIMER”key
“Speed” key
“Osc” key
AAA Battery, 1.5v
Instructions for operation of body
INSTRUCTIONS FOR USE
Body Control
5
Turn counterclockwise and loosen for
performing height adjustment.
Height Adjustment
Height Adjustment Key
6
The fan requires little maintenance. Do not try to fix it by yourself. Refer it to
qualified service personnel if service is needed.
1. Before cleaning and assembling, fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the
motor free of dust. Do not disassemble the fan to remove dust.
3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.
4. Do not use any abrasive detergent or solvents to avoid scratching the surface.
Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid into the motor housing or interior parts.
MAINTENANCE INSTRUCTION
CLEANING
1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with a soft cloth moisten with mild soap.
Thoroughly remove soap film with dry cloth.
此图纸不作印刷，仅用于产品使用说明。说明书中图片仅为示意图，若有变动，请以实物为准！
美的电风扇
使用说明书
FS40-19PRD
1
后网罩
安 装 说 明
各部件名称
请按顺序安装
紧固旋钮
七字螺钉
对准安装
立柱
底盘
电机
安装前，先将零件从部件上
旋出，再进行安装。
温馨提示:
底盘安装
将立柱和底盘的卡位对准,再用
7字螺栓来固定。
2
网罩锁母 风叶锁母风叶
顺时针旋紧网罩
锁母，同时固定
后网罩。
逆时针旋紧风叶锁母，
然后安装前网罩。
安装风叶后，用手
拨动风叶旋转，确
保风叶能正常转动。
前网罩
前网罩卡扣对准后网罩
的图示位置。
双手按顺序按压网罩。 自扣式安装。
1
2
3
1
2
3
前后网罩安装
网扣
