1

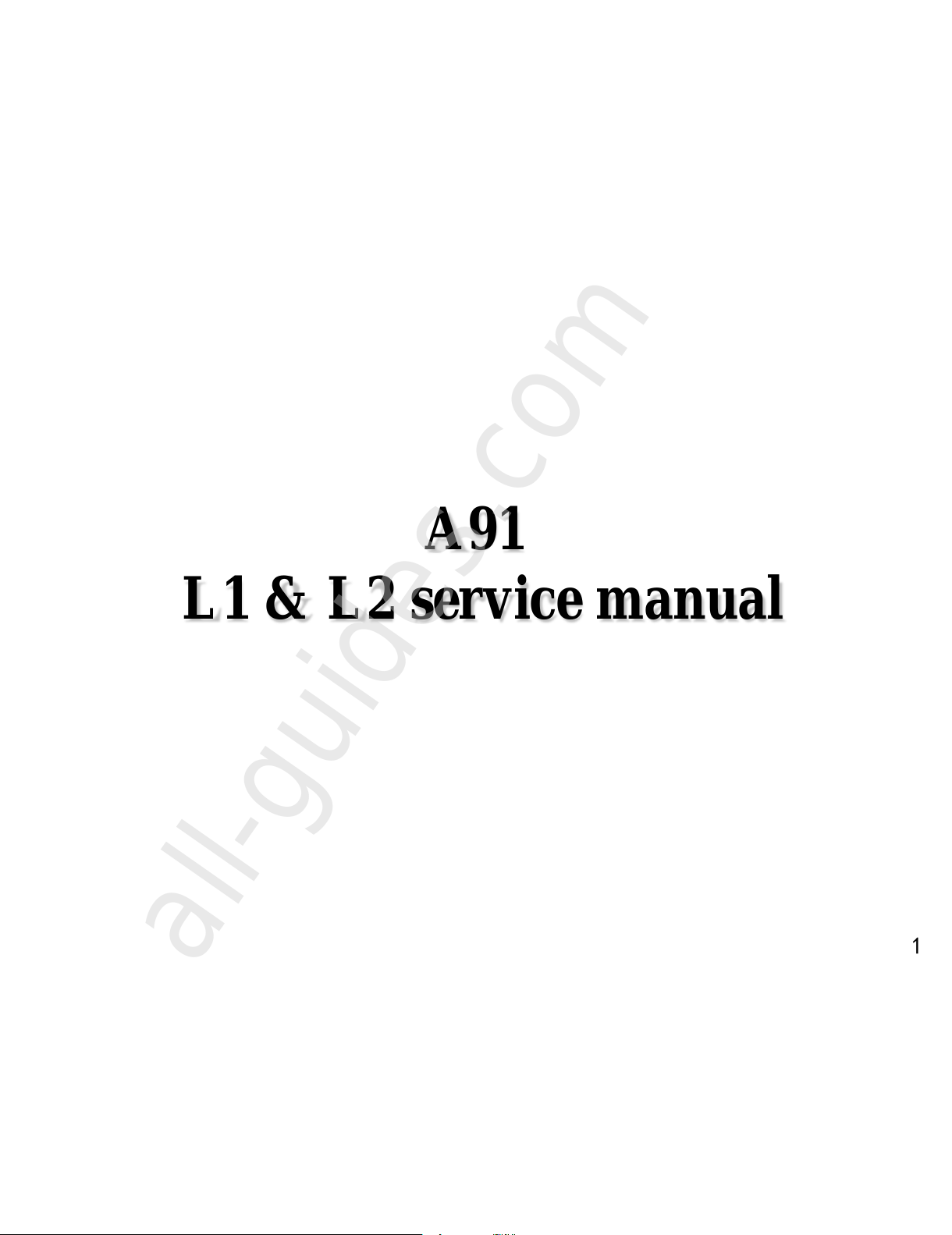

A91

L1 & L2 service manual

All manuals and user guides at all-guides.com

all-guides.com

2

content

1、Product introduce..………..p3-p4

2、Disassembly guide ……….p5-p19

3、Structure parts diagram…..p20-p21

4、Repairing guide …………...p22-p32

All manuals and user guides at all-guides.com

3

Product introduce

All manuals and user guides at all-guides.com

4

Product introduce

Model ：

Product size：130×66×10mm

Platform：MTK 6577 ，dual-core 1.0GHz

Memory：4GB+512MB (Nand&sdram+RAM）

System：Android 4.0

Frequency band:dual-SIM WCDMA：2100MHz，GSM900/1800/1900 MHZ

Battery：1800mAh

charger: Travel charger

USB cable: MICRO 5PIN

earphone：3.5jack

LCD&TP：4.5FWVGA,TN, resolution:480*854，Capacitance TP multi-point

touch（2 point）

Camera：0.3M and 5.0M CMOS

Support：GPS，BT3.0，WIFI，FM。

Support：accelerator sensor, distance sensor, light feeling sensor。

All manuals and user guides at all-guides.com

5

Hot gun

Tweezer

Solder iron

Tommy bar

Cross Screw driver

1. Tools list

Tweezer /Cross screw driver/ Solder/Tommy bar/hot gun

Disassembly guide

All manuals and user guides at all-guides.com

6

2. Battery caver disassembly

open the battery cover，as the Fig. 1

Fig. 1

Disassembly guide

Battery

cover

All manuals and user guides at all-guides.com

all-guides.com

7

3. Back caver disassembly

1）Unscrew 10 screws in back cover ，as the Fig.2；

Fig. 2

Disassembly guide

All manuals and user guides at all-guides.com

8

Fig. 3

2）Disassemble back cover with Tommy bar ，as the Fig.3；

Disassembly guide

Back

cover

SPK

All manuals and user guides at all-guides.com

9

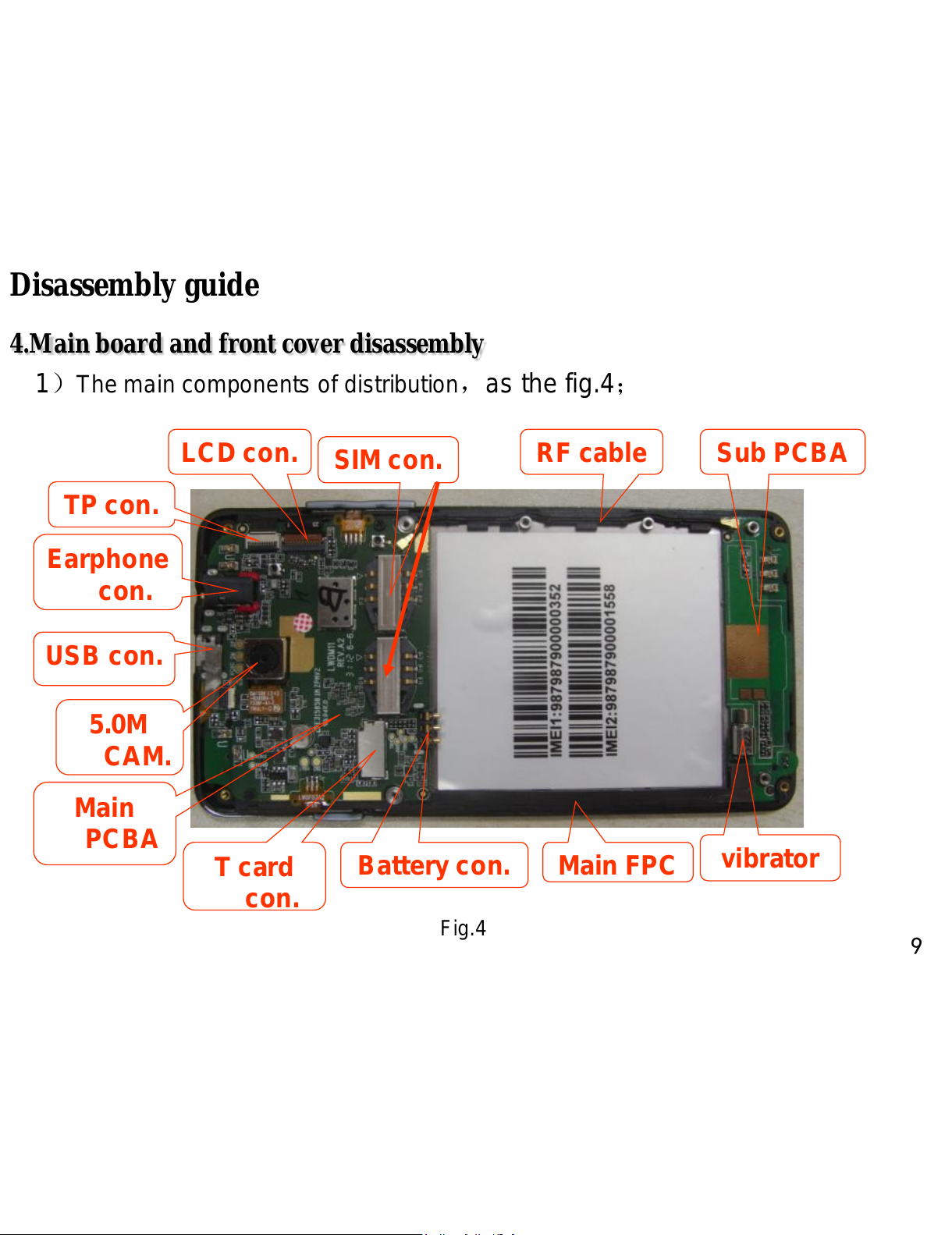

4.Main board and front cover disassembly

1）The main components of distribution，as the fig.4；

Fig.4

Disassembly guide

Sub PCBARF cable

SIM con.

LCD con.

TP con.

Earphone

con.

USB con.

5.0M

CAM.

Main

PCBA T card

con. Battery con. Main FPC vibrator

All manuals and user guides at all-guides.com

2）remove two screws and open the volume key FPC & LCD con.& TP con. ，

as the fig.5；

10

Fig.5

Disassembly guide

LCDcon. TPcon.

Volume key

FPC
