Metrologic MS7120 Series User manual

METROLOGIC INSTRUMENTS, INC.

MS7120 Series Fixed Projection

Laser Scanner

Installation and User’s Guide

MLPN 2408

Printed in USA

December 1998

Locations

USA Corporate Headquarters Europe

Metrologic Instruments, Inc. Metrologic Instruments GmbH

90 Coles Road Dornierstrasse 2

Blackwood, NJ 08012 82178 Puchheim b.

Customer Service: 1-800-ID-METRO Munich, Germany

Tel: 609-228-8100 Tel: 49-89-89018-0

Fax: 609-228-6673 Fax: 49-89-89019-200

[email protected] [email protected]

www.metrologic.com

ASIA

South America Metrologic Asia (PTE) Ltd.

Metrologic Instruments 31, Khaki Bukit Road 3

Rua Flórida, 1.821-5°Andar-Brooklin #05-08 Techlink

CEP 04571-090, São Paulo-SP, Brasil Singapore 417818

Outside Brazil: Tel: 65-842-7155

Tel: 55-11-5505-6568 Fax: 65-842-7166

Fax: 55-11-5505-1681 [email protected]

[email protected]

In Brazil:

Tel: 55-11-5505-2396

Fax: 55-11-5507-2301

[email protected]

be reproduced, transmitted, or stored in any form or by any means without prior written

consent, except by reviewer, who may quote brief passages in a review, or provided for

in the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of their

respective companies.

iii

Table of Contents

Introduction ................................................... 1

Scanner and Accessories ......................................... 2

Quick Start .................................................... 3

Operational Test ............................................... 4

Scanner Installation: Powered by External Power Supply ............... 5

Scanner Installation: Powered by the Host Device ..................... 6

Scanner Installation: to the PC for the Scanner with built-in

PC Keyboard Wedge Interface .................................... 7

Scanner Parts .................................................. 8

Audible Indicators ............................................. 9

Failure Modes ......................................... 10

Visual Indicators .............................................. 11

Labels ....................................................... 12

Depth of Field Specifications .................................... 13

Optimal Low Density Depth of Field ...................... 13

Optimal High Density Depth of Field ...................... 13

Close Depth of Field .................................... 14

Normal Depth of Field .................................. 14

Far Depth of Field ...................................... 15

Minimum Bar Code Element From Scanner Face .................... 16

Optimal Low Density Depth of Field ....................... 16

Optimal High Density Depth of Field ...................... 17

Close Depth of Field .................................... 18

Normal Depth of Field .................................. 19

Far Depth of Field ...................................... 20

Maintenance .................................................. 21

Troubleshooting Guide ...................................... 22-26

RS-232 Demonstration Program .................................. 27

Application and Protocols ....................................... 28

Table of Contents (continued)

Appendix A

Design Specifications 29, 30

Appendix B

Default Settings 31-35

Appendix C

Pin Assignments 36-38

Appendix D

Warranty and Disclaimer 39, 40

Appendix E

Notices 41, 42

Index 43, 44

Introduction

Orbit™ is an aggressive, omnidirectional laser bar code scanner. Light-weight

and rugged, Orbit is small in size, but BIG in performance. Designed for

applications where counter space is limited, Orbit is the ideal presentation

scanner for retail, convenience, liquor and specialty stores. In addition, Orbit’s

unique, contoured shape allows it to be picked-up and used as a hand-held

scanner when scanning large or bulky items.

Engineered with a large, easy-to-find optimal scan area, Orbit increases the

first pass read rate for maximum productivity. The scanning head can be tilted

vertically a full 30 for added flexibility when scanning various sized objects.

These features increase the scanning throughput without increasing the

scanner size.

SCANNER INTERFACE

7120-41 Full RS-232C and Light Pen Emulation

7120-47 Keyboard Wedge, Stand-Alone Keyboard and

RS-232 Transmit/Receive

7120-9 OCIA and RS-232 Transmit/Receive

7120-11 IBM 46XX/RS-232C

7120-67 Full RS-232C and Light Pen Emulation

Orbit offers a great deal of features to the consumer:

‚Fully automatic scanning operation

‚PowerLink compatible

‚Data editing

‚7 beeper tones

‚Programmable depth of field

‚Easy programming

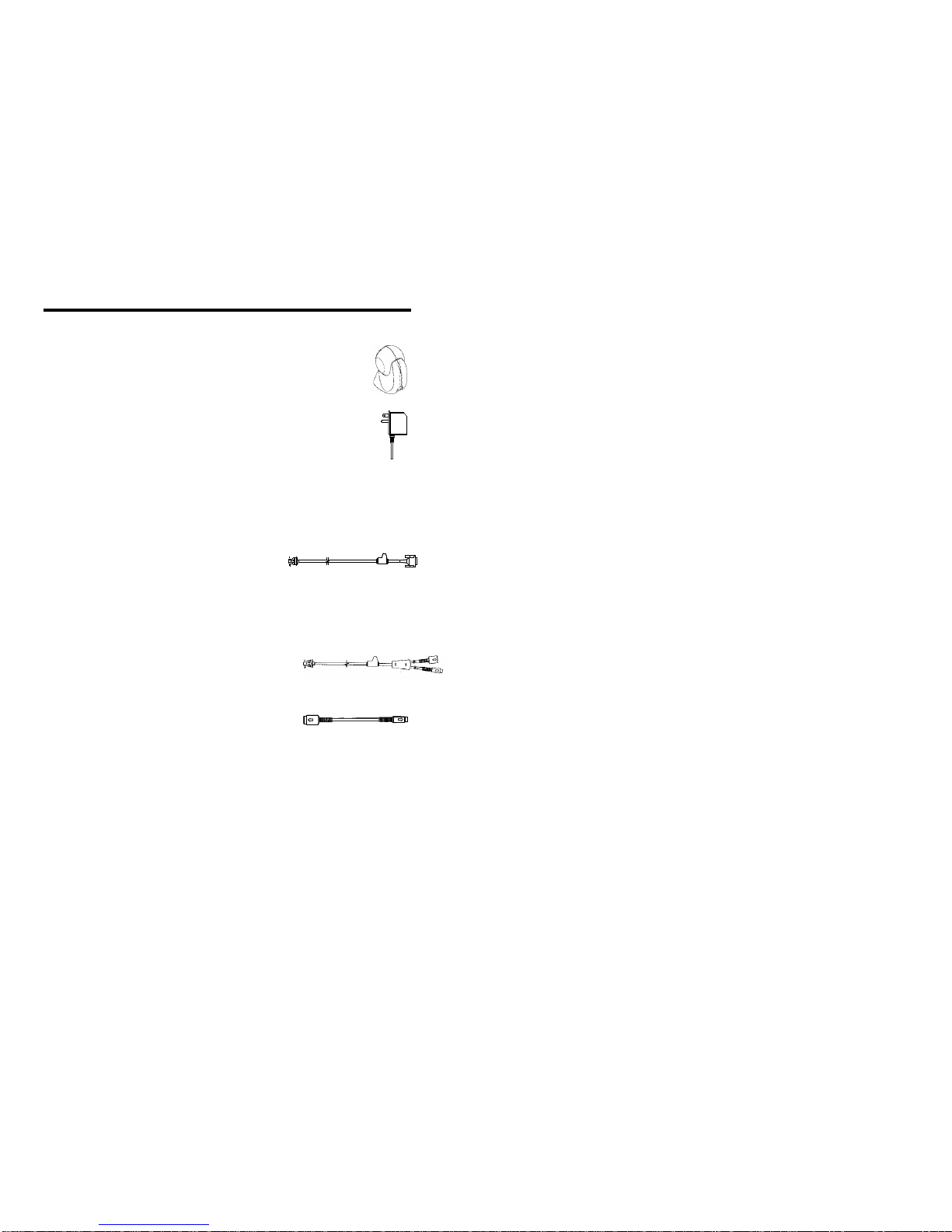

Scanner and Accessories

The following is a list of the parts included in the MS7100 kit.

!MS7120 Laser Scanner - Refer to page 28 for available

communication protocols

!Power Transformer AC in 120V, 220V- 240V Continental

European or 220V- 240V UK. DC in regulates 5.2V@650mA

(MLPN45593/45591/45592)

RS-232, Light Pen, OCIA and 46xx scanners:

!PowerLink cable with built in power jack:

Standard - MLPN 54xxx* - 2.1m (7') straight cord, short strain relief

Optional - MLPN 53xxx* - 2.7m (9') coiled cord, long strain relief

*xxx specifies connection to the host

Keyboard Wedge Scanners:

!Keyboard Wedge PowerLink Cable with a 5-pin

DIN female connector and a 6-pin mini DIN male

connector (MLPN 19763)

!Adapter Cable with a 5-pin DIN male

connector and a 6-pin mini DIN female

connector (MLPN 19716)

Available on the Metrologic Website (www.metrologic.com):

!MetroSelect Programming Guide (MLPN 2407)

!MS7120 User’s and Installation Guide (MLPN 2408)

Options

!Counter/Wall Mount Kit (MLPN 45619)

Other items may be ordered for the specific protocol being used. To order additional

items, contact the dealer, distributor or call Metrologic’s Customer Service Depart-

ment at 1-800-ID-METRO or 1-800-436-3876.

Quick Start

1.) Plug in the scanner. When the MS7120 is ready to scan,

the green LED will turn on, then the red LED will flash

and the scanner will beep once. (the red LED will

remain on for the duration of the beep).

2.) The scanner is shipped from the factory programmed with

default settings. To configure the MS7120 scanner to

meet the host system’s specific needs, refer to the Metro-

Select Programming Guide (MLPN 2407) for instructions

on how to enter the program mode and to select the

appropriate bar codes.

Operational Test

Metrologic recommends using the external power supply provided with the

scanner when operating the MS7120. When using power supplied by the host,

the host system should supply a minimum of 250 mA of current @ 5VDC.

Keyboard Wedge Scanners:

1. Connect the 10-pin modular plug of the PowerLink cable into the

scanner jack. Connect the other end of the PowerLink Y-type cable

to the PC. Connect the 5-pin female DIN side of the Y-type cable

into the keyboard connector on the PC and connect the 6-pin male

mini-DIN side into the PC.

2. Check the AC input requirements of the power supply to make sure the

voltage matches the AC outlet. Connect AC power to the transformer.

3. Listen for a single beep that indicates the scanner is ready for use.

(steady green LED and the red LED will flash once)

RS-232, Light Pen, OCIA and 46xx scanners:

1. Connect the 10-pin modular plug of the PowerLink cable into the scanner

jack. Connect the other end of the PowerLink cable (the 9-pin D-type

connector) to the PC.

2. Check the AC input requirements of the power supply to make sure the

voltage matches the AC outlet. Connect AC power to the transformer.

3. Listen for a single beep that indicates the scanner is ready for use.

(steady green LED and the red LED will flash once)

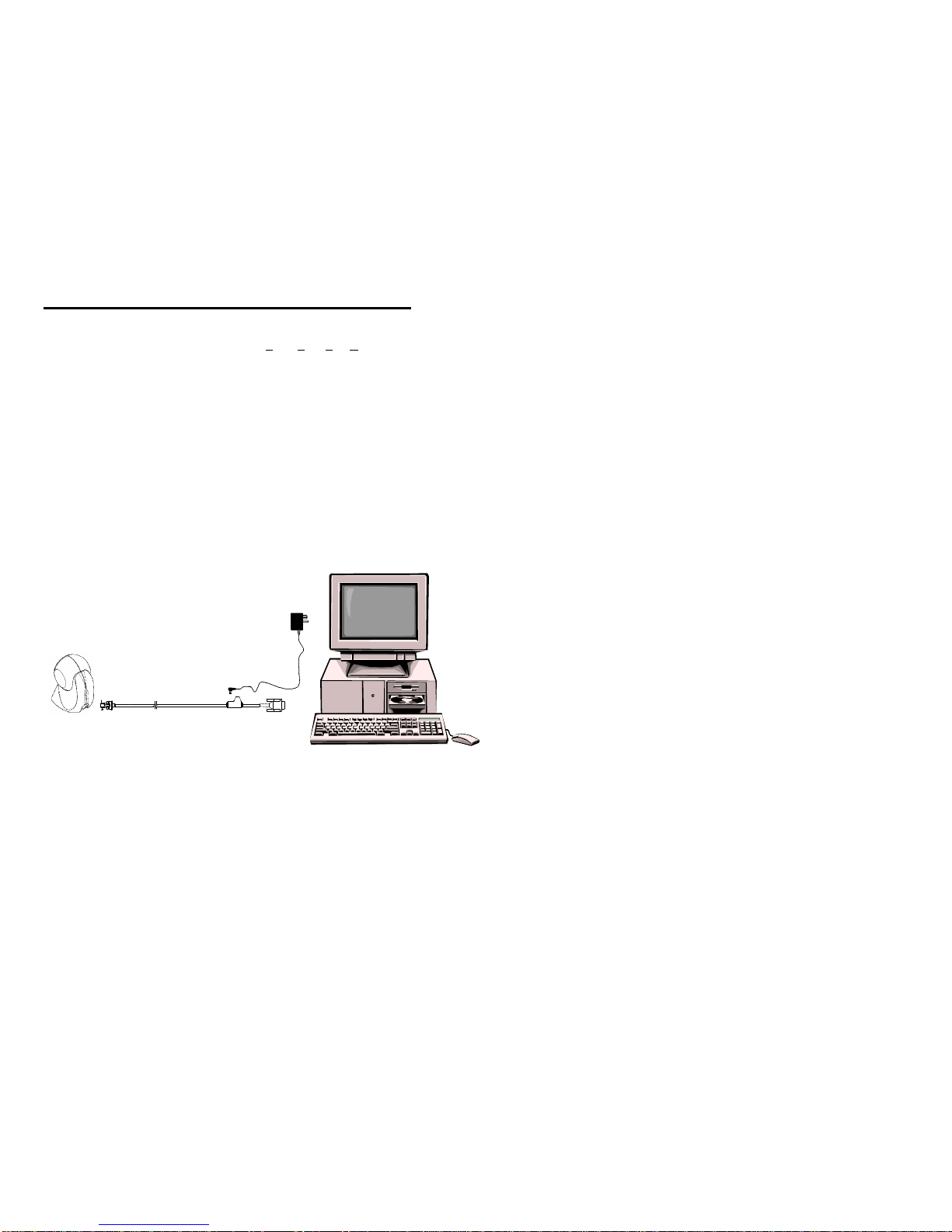

Scanner Installation: Powered by External Power Supply

To maintain compliance with applicable standards, all circuits connected to the

scanner must meet the requirements for SELV (Safety Extra Low Voltage)

according to EN 60950.

1. Turn off the host system.

2. Make the necessary PowerLink cable connections to the scanner and

the host.

3. Connect the external transformer into the power jack on the Power Link

cable.

4. Check the AC input requirements of the power supply to make sure the

voltage matches the AC outlet. (the socket-outlet shall be installed near

the equipment and shall be easily accessible.) Connect AC power to the

transformer.

5. Turn on the host system.

NOTE:

a. When the scanner first receives power, the green LED will

turn on. Then the scanner will beep once and the red LED

will flash simultaneously.

b. Plugging the scanner into the serial port of the PC does not

guarantee that scanned information will appear at the PC. A

software driver and correct configuration setting are also

required for proper communication to occur.

Scanner Installation: Powered by Host Device

The MS7120 scanner interfaces terminate to a 10-pin modular jack. Connect

the 10-pin modular plug of the PowerLink cable into the jack then connect the

other end of the PowerLink cable to the host. Refer to Appendix C page 36 for

pin assignments.

1. Turn off the host system.

2. Make the necessary PowerLink cable connections to the scanner and the

host.

3. Turn on the host system.

NOTE:

a.When the scanner first receives power, the green LED will turn

on. Then the scanner will beep once and the red LED will

flash simultaneously.

b.Plugging the scanner into the serial port of the PC does not

guarantee that scanned information will appear at the PC. A

software driver and correct configuration setting are also

required for proper communication to occur.
