Metra Electronics 99-6543HG User manual

REV. 5/22/2017 INST99-6543HG

INSTALLATION INSTRUCTIONS FOR PART 99-6543HG

CAUTION!

All accessories, switches, climate controls panels,

and especially air bag indicator lights must be connected before

cycling the ignition. Also, do not remove the factory radio with

the key in the on position, or while the vehicle is running.

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

•

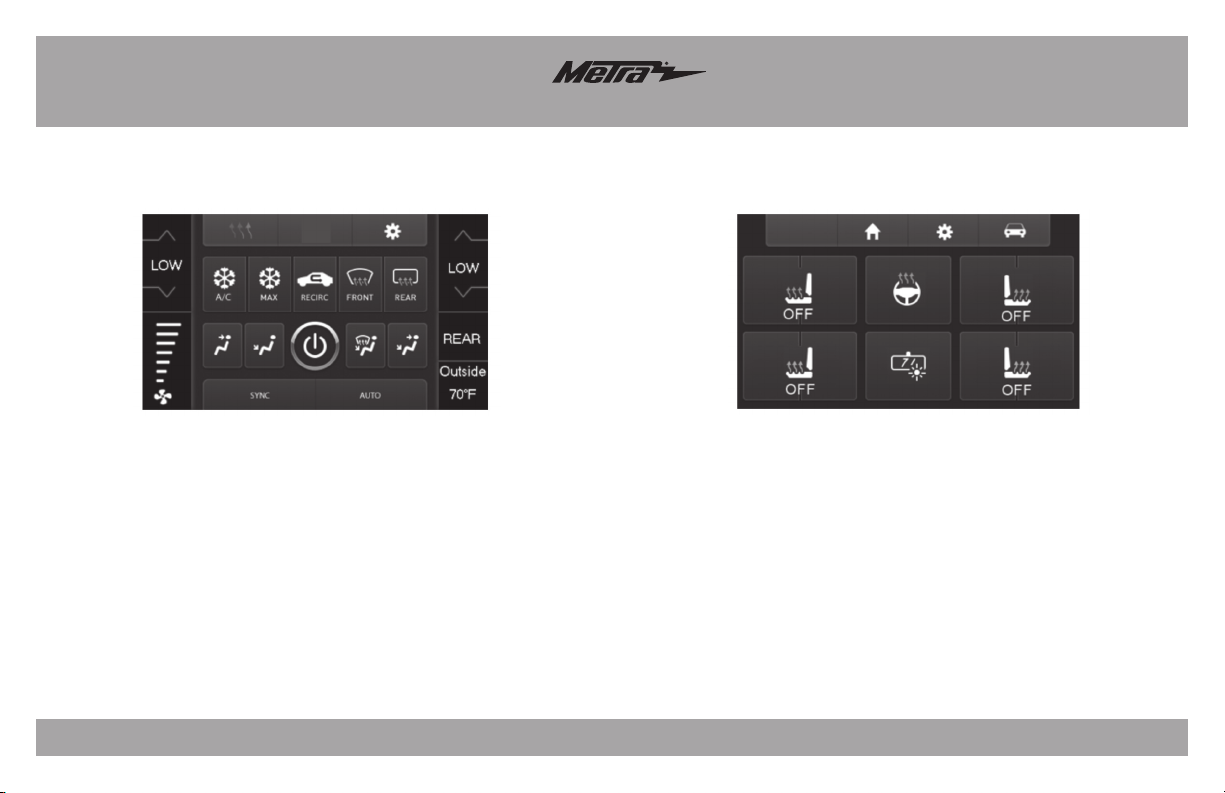

Touchscreen display for climate and personalization features

•

Painted high gloss black

Note: Does not support surround camera (360) switching.

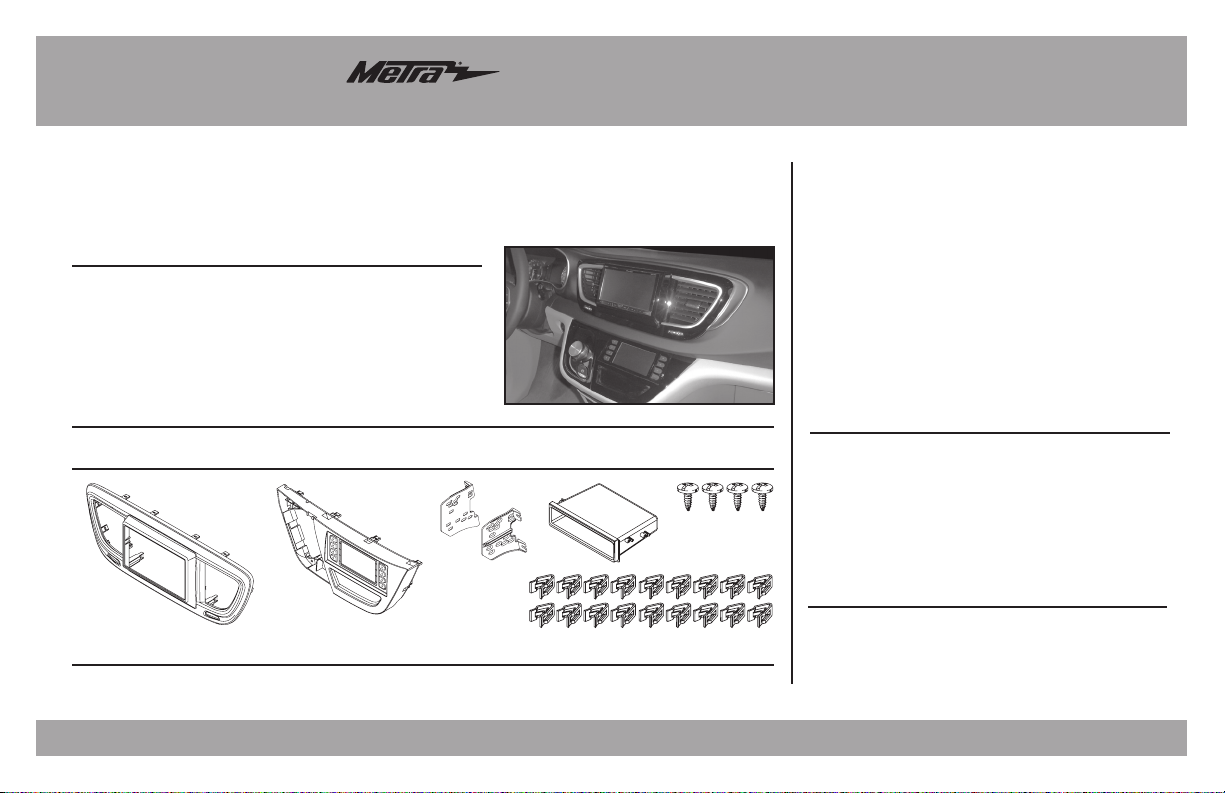

• A) Radio trim panel • B) Climate control panel with touchscreen display • C) Radio brackets • D) Pocket

• E) (4) #8 x 3/8” Phillips screws • F) (18) panel clips

KIT FEATURES

KIT COMPONENTS

• Panel removal tool • Phillips screwdriver

• Cutting tool

TOOLS REQUIRED

Chrysler Pacifica 2017-up

99-6543HG

Table of Contents

A CB D E

Dash Disassembly ................................................. 2

Kit Preparation....................................................... 3

Kit Assembly

–ISO DIN radio provision with pocket...................... 4

–ISO DDIN radio provision ...................................... 4

Axxess Interface Installation ........................... 5-14

WIRING & ANTENNA CONNECTIONS

Wiring Harness: • Axxess interface and harness included Antenna Adapter: • 40-EU55 (sold separately)

99-6543HG

Dash Disassembly

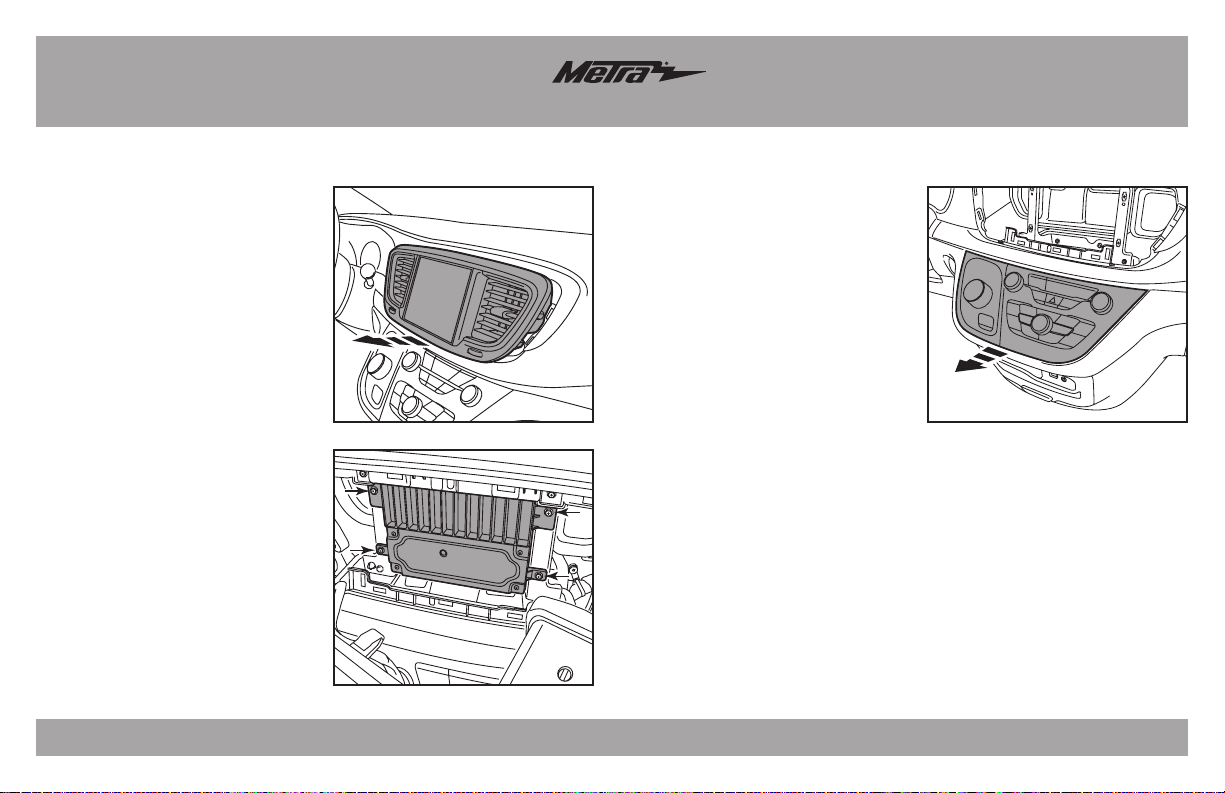

1. Unclip and remove the trim panel

surrounding the radio/screen

including the A/C vents, and then

unplug and remove. (Figure A)

2. Remove the (4) Phillips screws

securing the radio chassis, and

then unplug and remove.

(Figure B)

3. Unclip and remove the climate

control panel, and then unplug and

remove. (Figure C)

Continue to Kit Preparation

(Figure B)

(Figure A) (Figure C)

99-6543HG

(Figure B) (Figure D)

(Figure A) (Figure C)

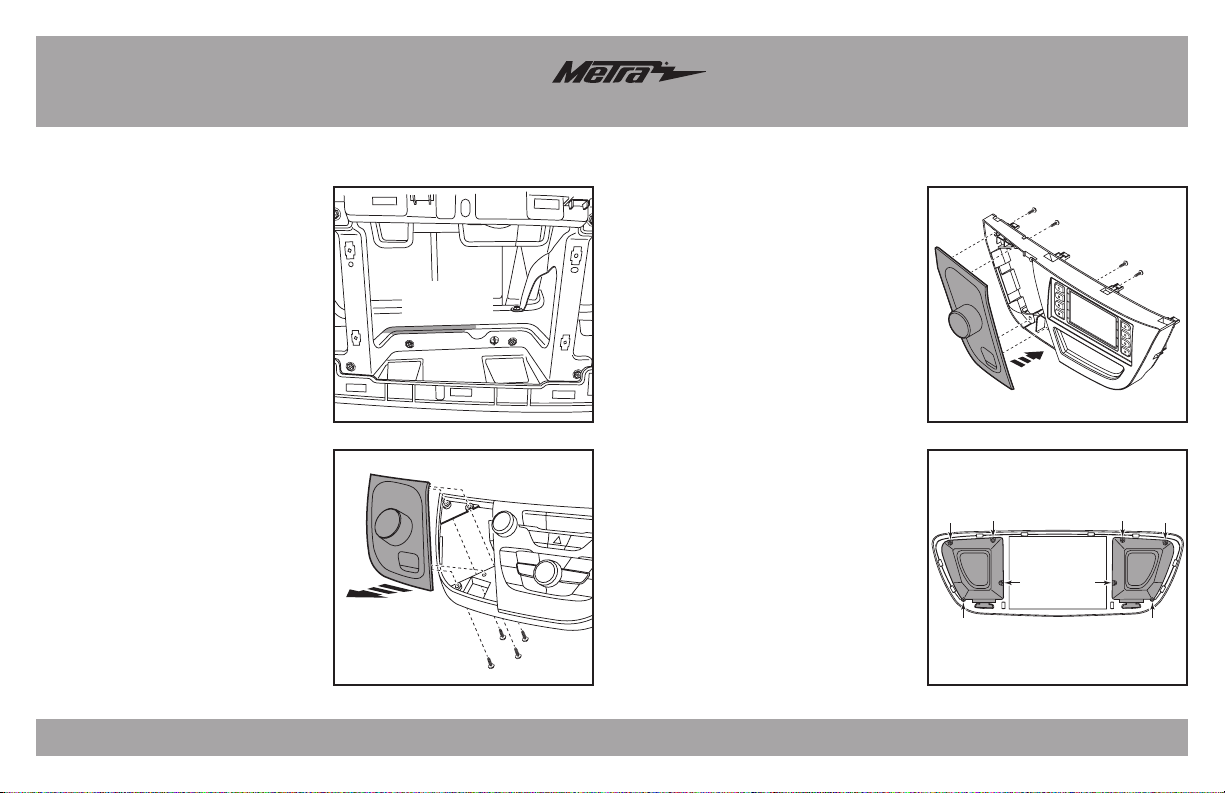

Kit Preparation

1. Depending on the depth of the

aftermarket radio, the sub-dash of

the vehicle may need to be cut. If

so, cut the plastic from the sub-

dash of the vehicle. (Figure A)

From the factory climate

control panel:

1. Remove the (4) Phillips screws

securing the gear selector/parking

brake panel, and then remove.

(Figure B)

To the 99-6543HG climate control

panel with touchscreen:

1. Secure the gear selector/parking

brake panel to the panel using the

factory hardware. (Figure C)

2. Attach the (7) panel clips to

the panel.

From the factory radio/screen panel

with A/C vents:

1. Remove the (4) Phillips screws

securing each A/C vent, and then

remove. (Figure D)

To the 99-6543HG radio trim panel:

1. Secure the A/C vents to the panel

using the factory hardware.

2. Attach the (11) panel clips to

the panel.

Continue to Kit Assembly

Remove

shaded area

99-6543HG

(Figure A)

(Figure B)

(Figure A)

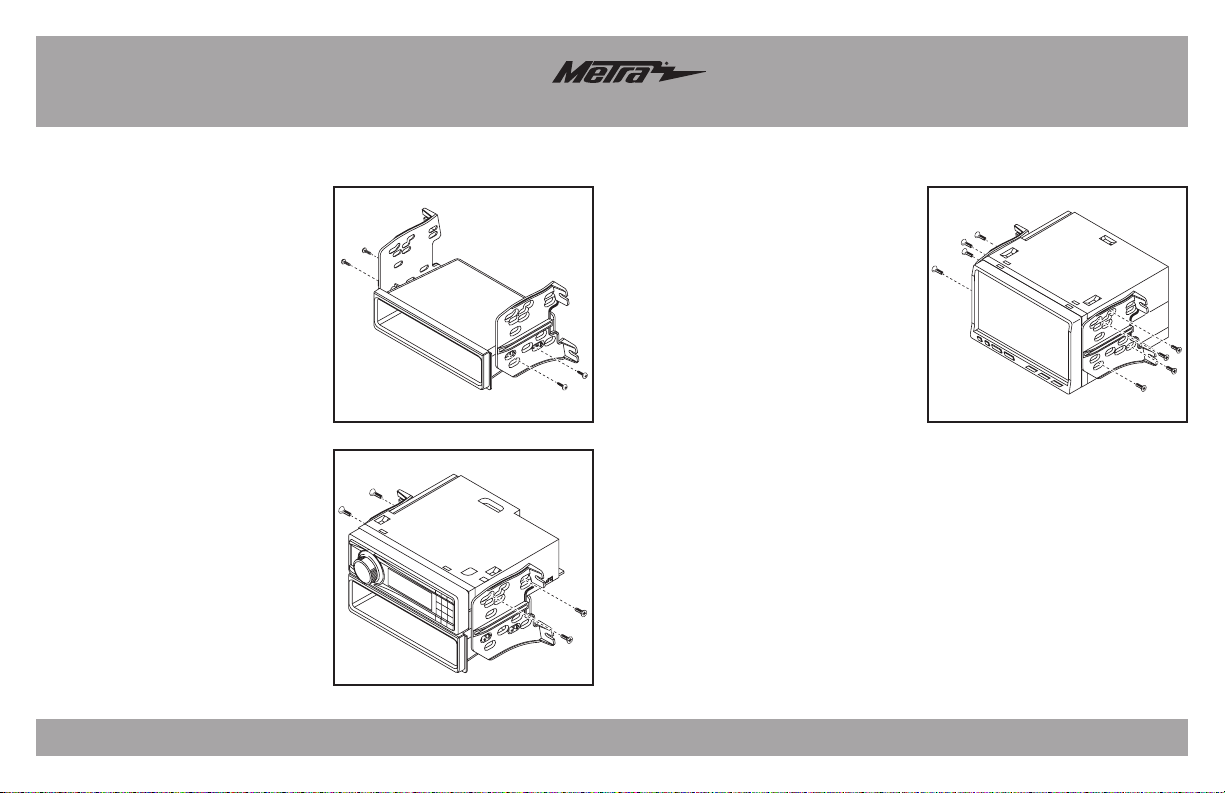

ISO DIN radio provision with pocket

1. Attach the pocket to the radio

brackets using the (4) #8 x 3/8”

Phillips screws provided. (Figure A)

2. Remove the metal DIN sleeve and

trim ring from the aftermarket radio.

3. Slide the radio into the bracket/

pocket assembly, and then secure it

using the screws supplied with the

radio. (Figure B)

Continue to Axxess

Interface Installation

ISO DDIN radio provision

1. Attach the brackets to the radio

using the screws supplied with

the radio. (Figure A)

Continue to Axxess

Interface Installation

Kit Assembly

99-6543HG

Axxess Interface Installation

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Retains safety chimes

• Retains the factory backup camera

• Retains the factory AUX-IN jack

• Retains balance and fade*

• Micro “B” USB updatable

* Non-amplified models only.

Note: Does not support surround camera (360) switching.

INTERFACE FEATURES

• Wire cutter • Crimp tool • Solder gun • Tape

• Connectors (example: butt-connectors, bell caps, etc.)

TOOLS REQUIRED

• Axxess interface (built into the touchscreen display)

• 6543 harness

• 16-pin harness with stripped leads

• 4-pin harness with yellow RCA jacks

• Hazard harness

• Female 3.5mm connector with stripped leads

Connections to be made..........................................................................6-8

Installing the interface ............................................................................... 9

Initializing the interface ............................................................................. 9

Final assembly............................................................................................ 9

Touchscreen display operation ...........................................................10-12

Steering wheel control settings..........................................................13-14

INTERFACE COMPONENTS

TABLE OF CONTENTS

99-6543HG

Connections to be made

From the 6543 harness to the aftermarket radio:

• Connect the Black wire to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the Gray wire to the right front positive speaker output.

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

• Connect the (2) 4-pin connectors together.

• If retaining the factory backup camera, connect the Yellow RCA jack to the reverse

camera input.

• If the AUX-IN jack in the dash is desired to be used, connect the Red and White RCA

jacks to the audio AUX-IN jacks of the aftermarket radio.

• Disregard the DIN jack, it will not be used in this application.

Continue to 3.5mm jack steering wheel control retention

Attention! This interface will work with models that are either non-amplified, or

amplified. Please follow the instructions carefully for your model vehicle. Failure to

do so will result in either no sound, or low sound. If you are unsure if your vehicle is

factory amplified or not, please contact your local dealership.

For models without a factory amplifier:

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the Red wire to the accessory wire.

• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.

• Connect the Green wire to the left rear positive speaker output.

• Connect the Green/Black wire to the left rear negative speaker output.

• Connect the Purple wire to the right rear positive speaker output.

• Connect the Purple/Black wire to the right rear negative output.

• Tape off and disregard the following (6) wires, they will not be used in this application.

Blue/White, Brown, Gray, Gray/Black, White, White/Black

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the Blue/Pink wire to the VSS/speed sense wire.

• Connect the Green/Purple wire to the reverse wire.

• Connect the Light Green wire to the parking brake wire.

99-6543HG

Connections to be made

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the Blue/Pink wire to the VSS/speed sense wire.

• Connect the Green/Purple wire to the reverse wire.

• Connect the Light Green wire to the parking brake wire.

From the 6543 harness to the aftermarket radio:

• Connect the Black wire to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the (2) 4-pin connectors together.

• Tape off and disregard the following (4) wires, they will not be used in this application:

Gray, Gray/Black, White, White/Black

• If retaining the factory backup camera, connect the Yellow RCA jack to the

reverse camera input.

• If the AUX-IN jack in the dash is desired to be used, connect the Red and White RCA

jacks to the audio AUX-IN jacks of the aftermarket radio.

• Disregard the DIN jack, it will not be used in this application.

Continue to 3.5mm jack steering wheel control retention

Attention! This interface will work with models that are either non-amplified, or amplified.

Please follow the instructions carefully for your model vehicle. Failure to do so will result in

either no sound, or low sound. If you are unsure if your vehicle is factory amplified or not,

please contact your local dealership.

For models with a factory amplifier:

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the Red wire to the accessory wire.

• Connect the Blue/White wire to the amp turn on wire. This wire must be connected to

hear sound from the factory amplifier.
