Metra Electronics 99-5801 User manual

ALL VEHICLES

Disconnect the negative battery terminal to prevent an accidental short circuit. Place your

index fingers on the inner edges of the a/c vents (shown above) and push inward. Grasp the

exposed lip of each vent opening ("A") and pull out on the radio trim bezel. Remove the dash

trim bezel. (The airbag wiring does NOT need to be disconnected). Using Metra's 86-5618 or

AW-FDRT, pull the factory head unit from the dash and disconnect the wiring.

2-SHAFT HEAD UNITS: Slide the aftermarket head unit into the kit and secure with shaft

nuts. (see Fig. A)

DIN HEAD UNITS: Cut and remove the shaft supports from the Radio Housing. Slide the

DIN cage into the Housing and secure by bending the metal locking tabs down. Slide the

aftermarket head unit into the cage until secure. (see Fig. B)

Re-connect the battery terminal and test the unit for proper operation. Remove the top (2)

Phillips screws securing the climate control cluster to the sub-dash. Slide the head unit/kit

assembly into the dash cavity (be sure the Rear Support Bracket engages the support shelf in

the dash). Mount the bottom legs of the kit to the same holes in the climate control cluster with

the (2) Phillips screws previously removed.

Fig. A

Fig. B

Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adaptor and making

connections as shown. (Isolate and

individually tape off the ends of any

unused wires to prevent electrical short

circuit).

Mount the Rear Support Bracket to the back of

the head unit with the necessary hardware.

A) Strip wire ends back ½"

B) Twist ends together

C) Solder

D) Tape

"A"

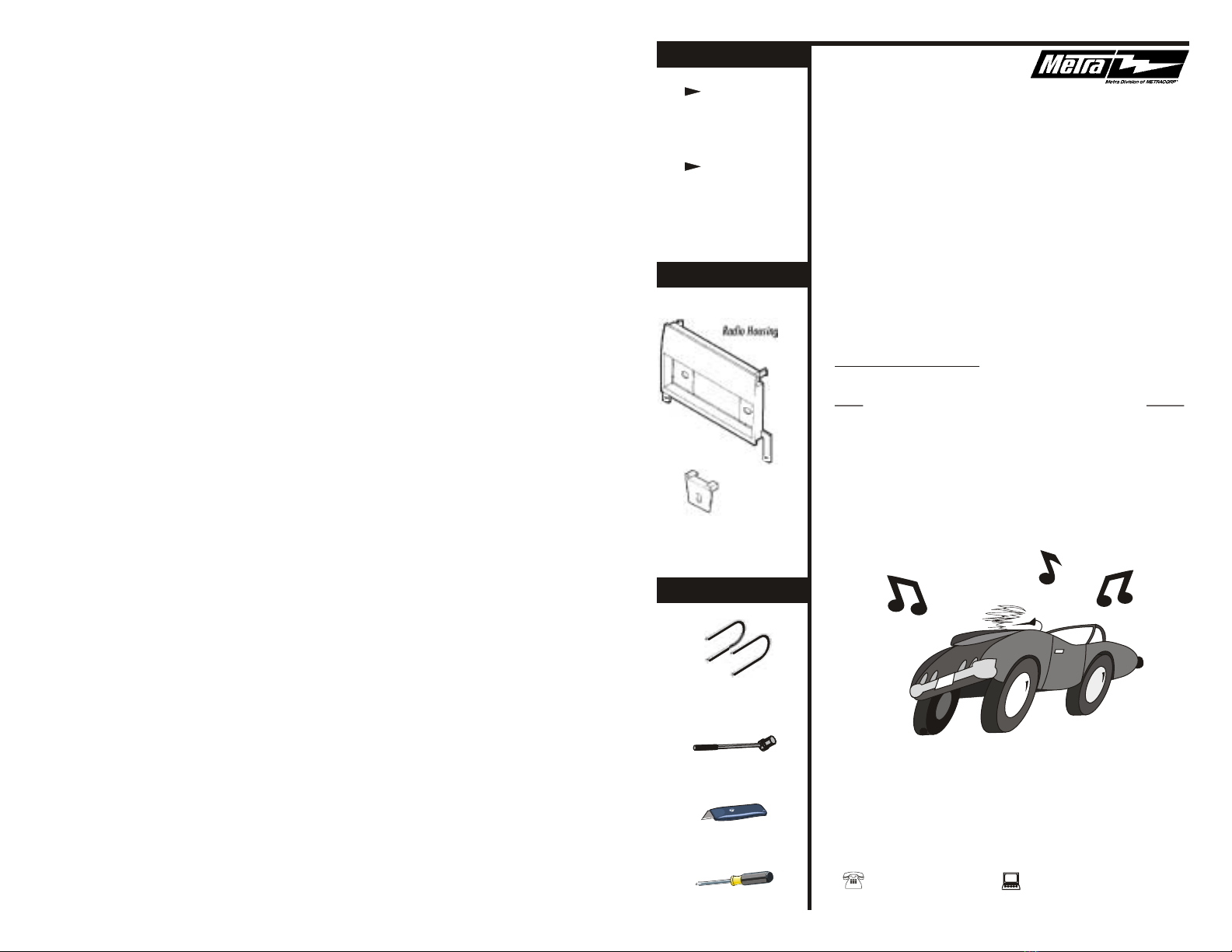

KIT COMPONENTS

Rear Support

Bracket

KIT FEATURES

Shaft and

DIN unit

provisions

Rear support

provisions

APPLICATIONS

CAR PAGE

FORD

Expedition 1997-98..................................................1-3

F-150 1997-98.........................................................1-3

TOOLS REQUIRED

Cutting tool

Socket wrench

Phillips screwdriver

86-5618 or AW-FDRT -

Head unit removal keys

Radio Housing

99-5801

AW-580FD

INSTALLATION

INSTRUCTIONS

1-800-221-0932 www.metraonline.com

rev. 030701
