METHVEN Deva IND104 User manual

Indi Sink Mixer

IND104

Installation Guide

Technical Specification

Working Pressure:

Min:

Max:

Operating Temperature:

Hot:

Cold:

0.3 Bar

5.0 Bar

65⁰C

5⁰C

METHVEN UK LIMITED

METHVEN EXPERIENCE CENTRE

3/3A STONE CROSS COURT

YEW TREE WAY

GOLBORNE

WARRINGTON

WA3 3JD

UNITED KINGDOM

INST-IND104

02.03.2020

TEL: 0800 195 1602

FAX: 0844 406 8690

EMAIL: [email protected]

www.deva-uk.com

www.methven.com

Warranty Information

Proof of purchase will be required.

The guarantee does not cover faults or damage caused by incorrect

installation and/or maintenance, ordinary wear and tear, water

composition, etc.

*Please see www.deva-uk for full terms and conditions of warranty

Cleaning

Your product has a high-quality finish and should be treated with care

to preserve the visible surfaces. Never use abrasives or abrasive

cleaning agents to clean this product clean regularly with

contamination free warm water and a damp soft cloth. Do not use

products containing chlorine bleach or hydrochloric acid as these can

damage the product.

We have a policy of continuous improvement and reserve the right to

change specifications without notice.

Inlet Connections:

½" BSP

Features:

•Swivel spout

•Ceramic Cartridge

•Tilt and Turn Temperature and Flow

Control

Contents

Congratulations on your purchase of your new Deva by Methven Sink Mixer.

Our fitting instructions have been created with you in mind to provide you

with all the information you require and, if you need any further help, please

don't hesitate to contact our customer care team on 0800 195 1602.

General Safety Information

Line Drawing

Product Breakdown

Installation Requirements

Installation

Troubleshooting

Warranty Information

Cleaning

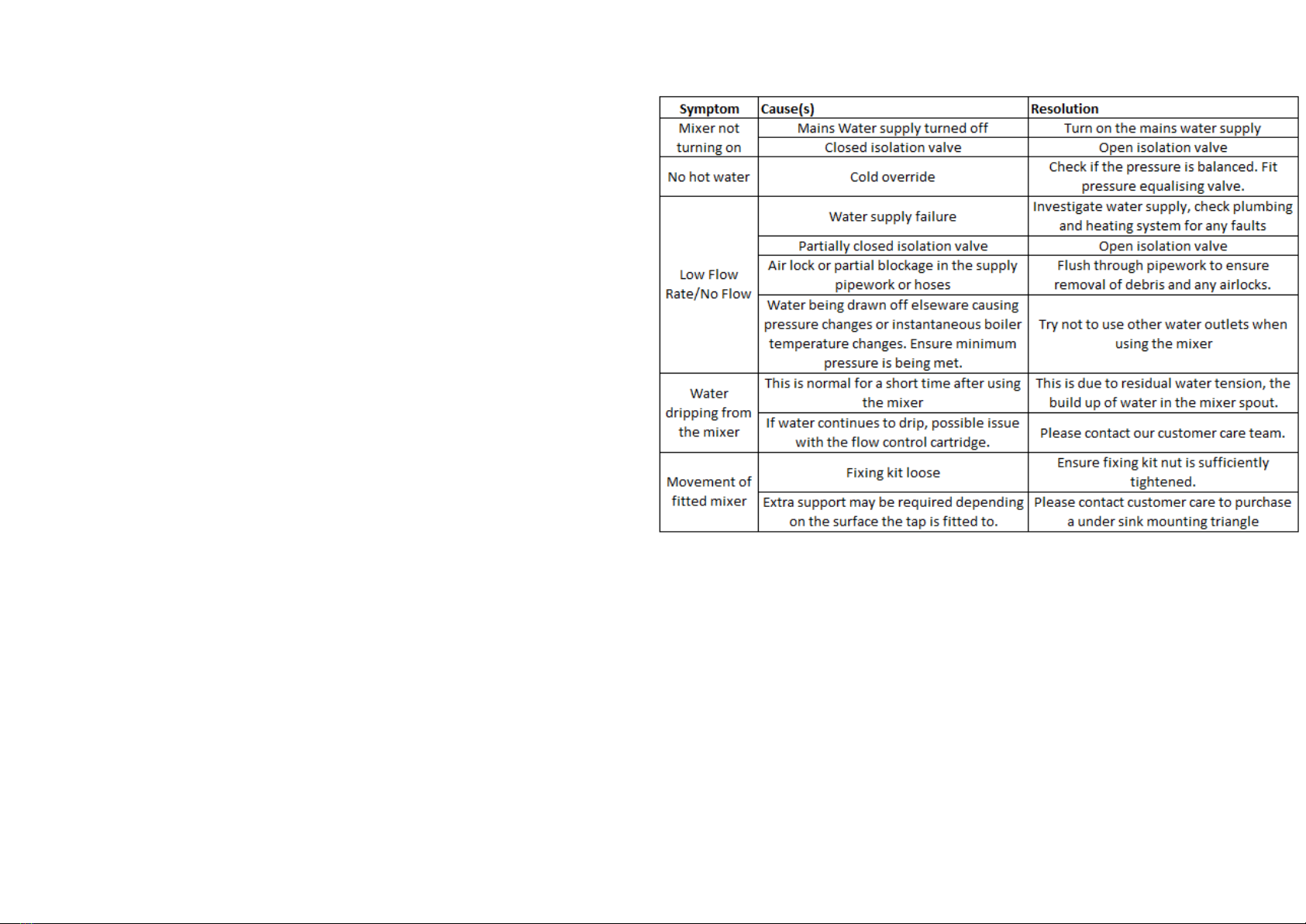

Troubleshooting

Please keep these instructions for future reference and request of replacement

parts

General Safety Information

Please read all of the instructions before installation.

Methven recommends this product is installed by a competent person in

compliance with all relevant regional regulations.

Remove all packaging and check the components for damage before starting

installation.

This product must not be modified in any way as this will invalidate the guarantee.

It is the responsibility of the installer to ensure a waterproof seal is achieved, after

installation all connections must be checked for leaks.

All outlets used primarily for personal hygiene shall deliver water at a safe

temperature as per regional regulations.

Line Drawing

Installation Requirements

Before commencing installation of the new product, ensure that the system has

been flushed to remove any debris, which could cause damage to the valves and

invalidate the warranty.

Installation

1, Screw the threaded fixing bolt into the bottom of the mixer body

2, Screw both Flexi Tails into the tap body, ensuring that the O-Ring on the

tail is positioned inside the tap body. Hand tighten, do not use PTFE tape or

similar to create the seal.

3, Offer the tap up to the hole in the sink

4, On the underside of the sink fit the

rubber and metal horseshoe shaped

washers onto the threaded fixing bolt and

using the nut provided tighten until the

tap is secure in the mounting hole.

Note: Plastic Triangle - If required a under

sink mounting triangle can be purchased,

this should be used on thin work surfaces

to help distribute the weight of the tap

and provide a thicker mounting surface

for the fixing kit to clamp to.

5, Connect the male end of the tail to the

corresponding hot and cold inlets.

6, Reinstate water supply and test for

leaks.

Product Breakdown

Check All components are present prior to starting installation.
