Meitav-tec MTSC/SUPER/HU User manual

Touch Screen Thermostat

MTSC/SUPER/HU

Owner’s manual and technician settings

Rev 2.1

-2-

-3-

Index

1. Owner’s Manual ………………………………………………..... 4

1.1 Quick Guide……………………………………………………. 4

1.2 Turning the unit ON or OFF………………………………….. 5

1.3 Adjusting the set-point temperature ………………………... 5

1.4 Switch between temperature scales ……………………….. 5

1.5 Switching between System modes………………………….. 6

1.6 Switching between Fan speeds …………………………….. 6

1.7 Fan on demand (Auto fan)….……………………………….. 7

1.8 Lock the thermostat’s buttons….…………………………….. 7

1.9 Timer for turning the thermostat off…………………………. 7

1.10 Lights ……………………………...…………………………. 7

2. Installation Instructions……..………………………………..... 8

3. Wiring Configuration and DIP Switches…….……………..... 11

4. Technician Settings …….……………………………………..... 18

5. MAC Address …….………...…………………………………..... 35

1. Owner’s manual

-4-

Fan

only

*Auto

mode

Heat Cool

*Auto

speed

High Low

Press to switch between

fan speeds:

Med.

*In Auto mode, the active

mode will flash

System ON

Press and hold to lock the

thermostat’s buttons

(set-point must be other

than 10ºC/50ºF)

Press and hold

to enter technician settings

(set-point must be equal to

10ºC/50ºF)

Set-point

adjustment

% Humidity

display

Modes

indication

Ambient /

Set-point

temperature

display

Fan speeds

indication

Press to

turn

system

ON or OFF

Press to switch between

system modes:

*In Auto speed, the active

speed will appear

System OFF

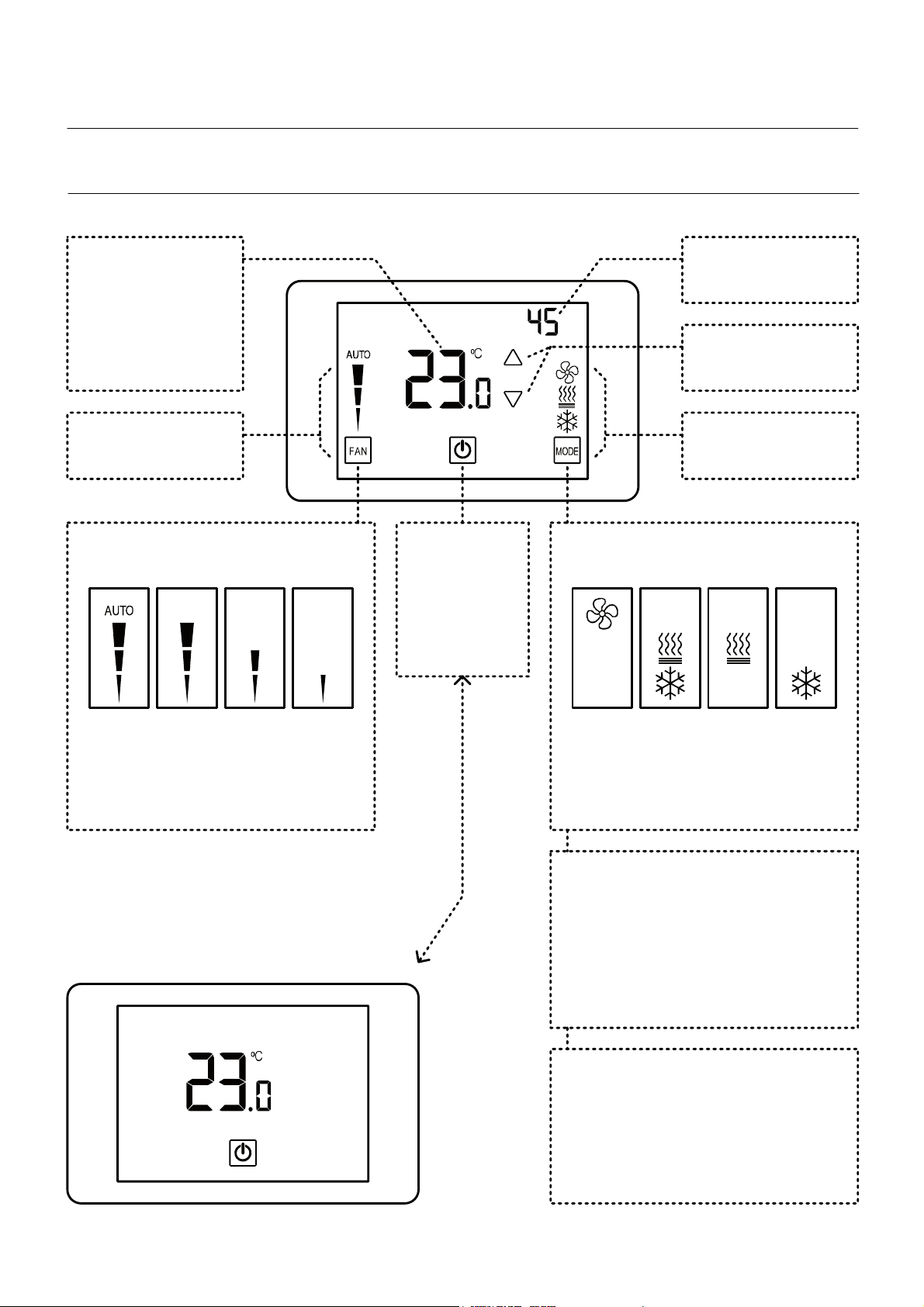

1.1 Quick Guide

1.2 Turning the unit ON or OFF

Press the button to turn the unit ON – system mode and fan

speed symbols will appear on display.

Press again to turn the unit OFF – the symbols will disappear.

1.3 Adjusting the set-point temperature

While the thermostat is ON, press the or buttons – the

set-point temperature will flash.

Press again to adjust the set point.

Note: for humidity set-point please refer to technician settings –

parameter P197.

Unit ONUnit OFF

-5-

1.4 Switching between temperature scales

Press and hold the button to switch between temperature

scales.

Note: set-point must be other than 10ºC,11ºC/50ºF,51ºF

Press the button to

switch between system

modes:

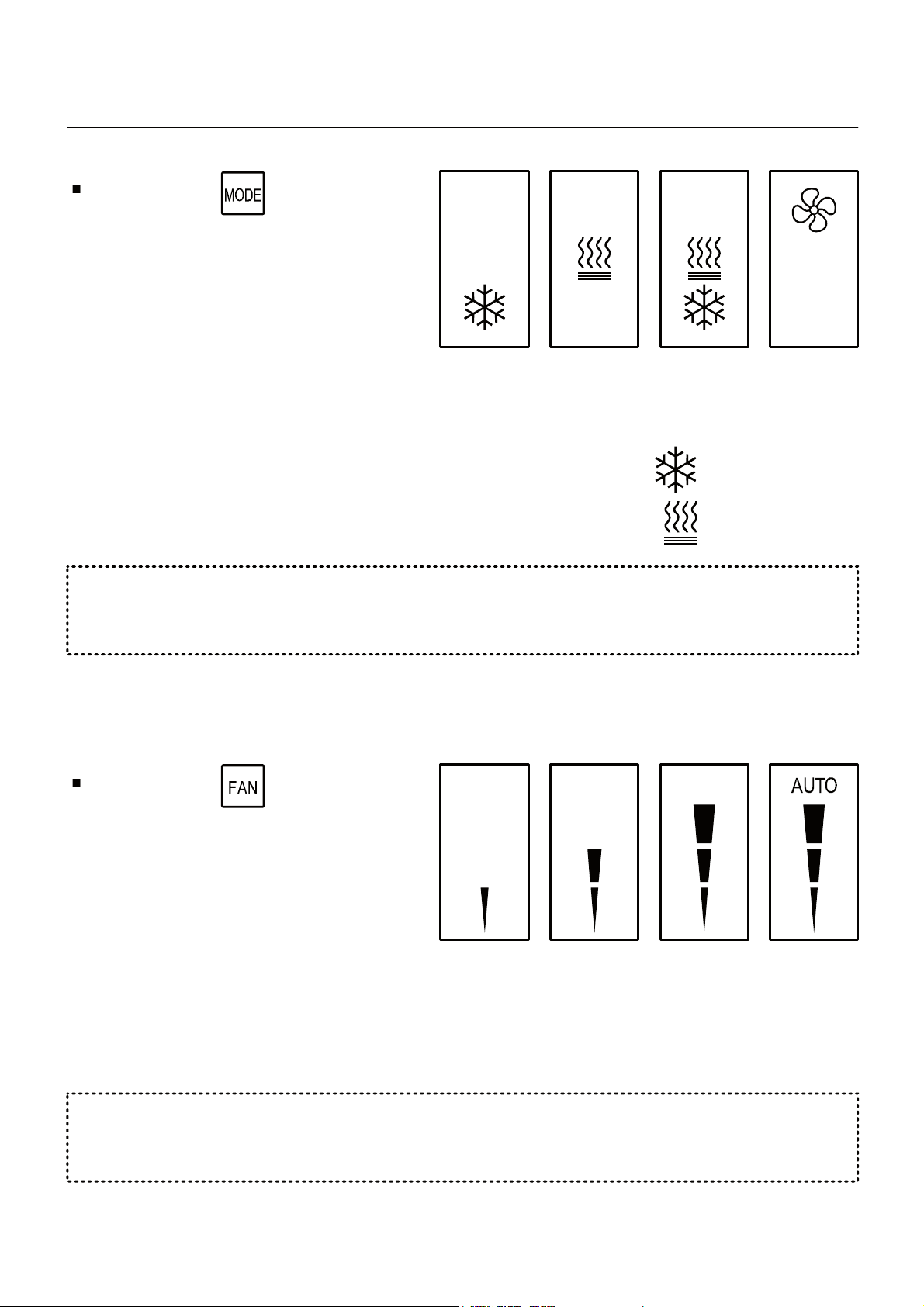

1.5 Switching between system modes

Fan

only

Auto

mode

HeatCool

Notes:

- During demand for cooling (cooling active), the will flash.

- During demand for heating (heating active), the will flash.

1.6 Switching between fan speeds

Press the button to

switch between fan speeds:

Low

speed

Medium

speed

High

speed

Auto

speed

Note: When Auto speed Is

selected, the word “AUTO”

and the active fan speed

will appear on display

-6-

The selection of system modes may be disabled depending on

system configuration.

The selection of fan speeds may be disabled depending on system

configuration.

-7-

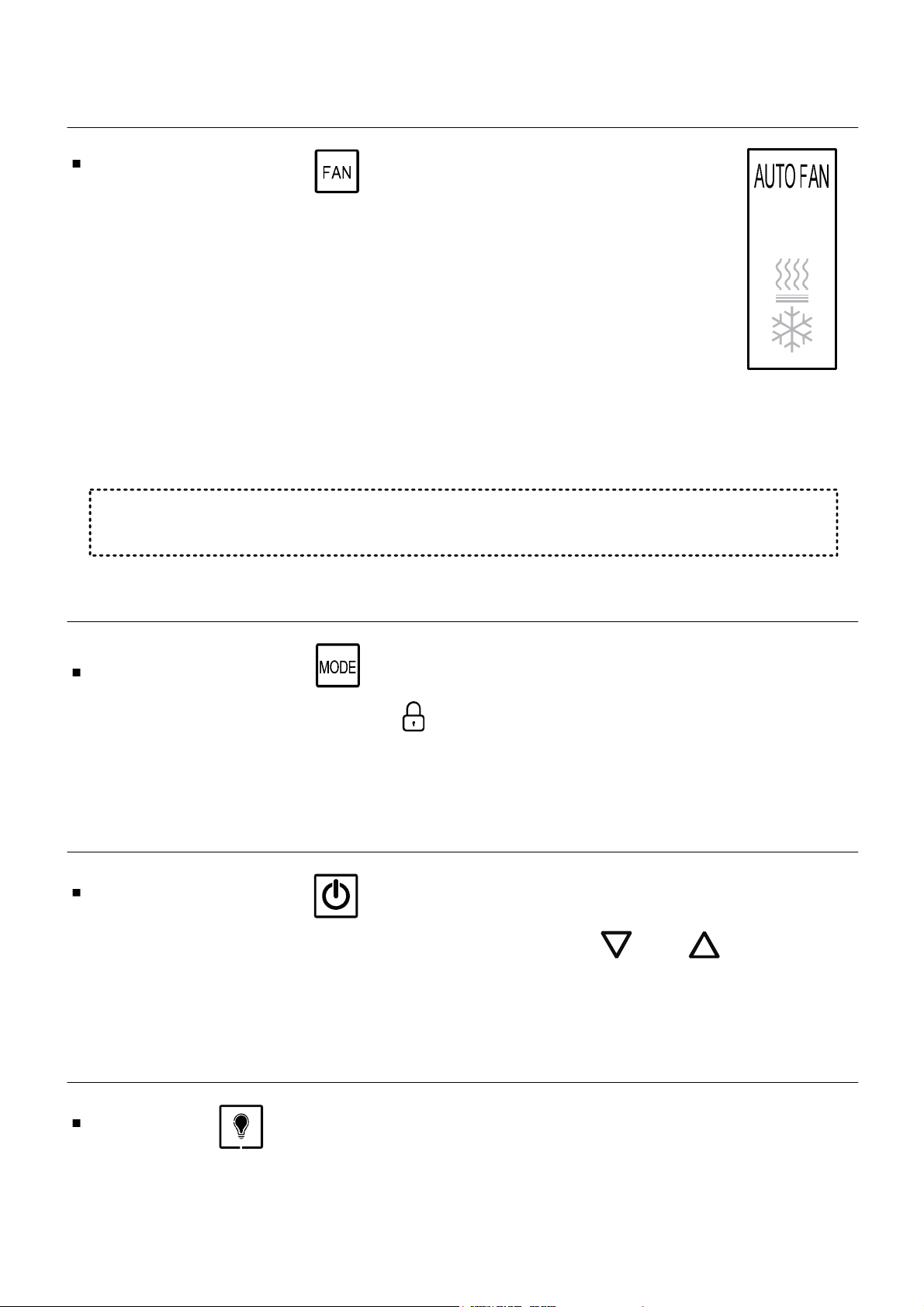

1.7 Fan on demand (Auto fan)

Press and hold the button to activate or deactivate

fan on demand (Auto fan) function.

Notes:

- When activated, the fan will run with demand for cooling

or heating (When activated in floor heating configuration -

the fan will not run together with the floor heating output.

- The fan on demand function cannot be activated with

“Fan only” mode.

AUTO FAN

active

This option may be disabled, depending on system configuration.

1.8 Lock the thermostat’s buttons

Press and hold the button to lock or unlock the thermostat’s

buttons. When locked, the icon will appear on display.

See technician parameters P4-P7 for locking options.

1.9 Timer for turning the thermostat off

Press and hold the button – the hours for the off-timer will

appear on display. Adjust the timer using the and buttos.

Range: 0...10 Hours, Set “0” to disable the timer.

1.10 Lights

Press the button to turn lights ON or OFF.

Note: enable the lights option using DIP switch S2.3

2. Installation Instructions

-8-

The MTC/SUPER/HU Thermostat designed for flush mounting in the

room to be controlled. It should be located where the occupant can

easily read the display and use the controls.

If the built in temperature and humidity sensors are being used to

measure room temperature and humidity, the panel should be placed

where the temperature is representative of the general room

conditions, away from cold or warm air draughts, radiant heat and

direct sunlight.

The panel should not be installed on an outside wall.

- The standard installation height is 1.5 meter (5 feet) from the floor.

WARNING: Risk of Electric Shock and Property Damage.

Disconnect power supply before making electrical connections.

The installation is to be performed by a qualified electrician.

WARNING: The integrated circuits in the controller are

sensitive to static currents. Take suitable precautions.

2. Installation Instructions (cont’)

-9-

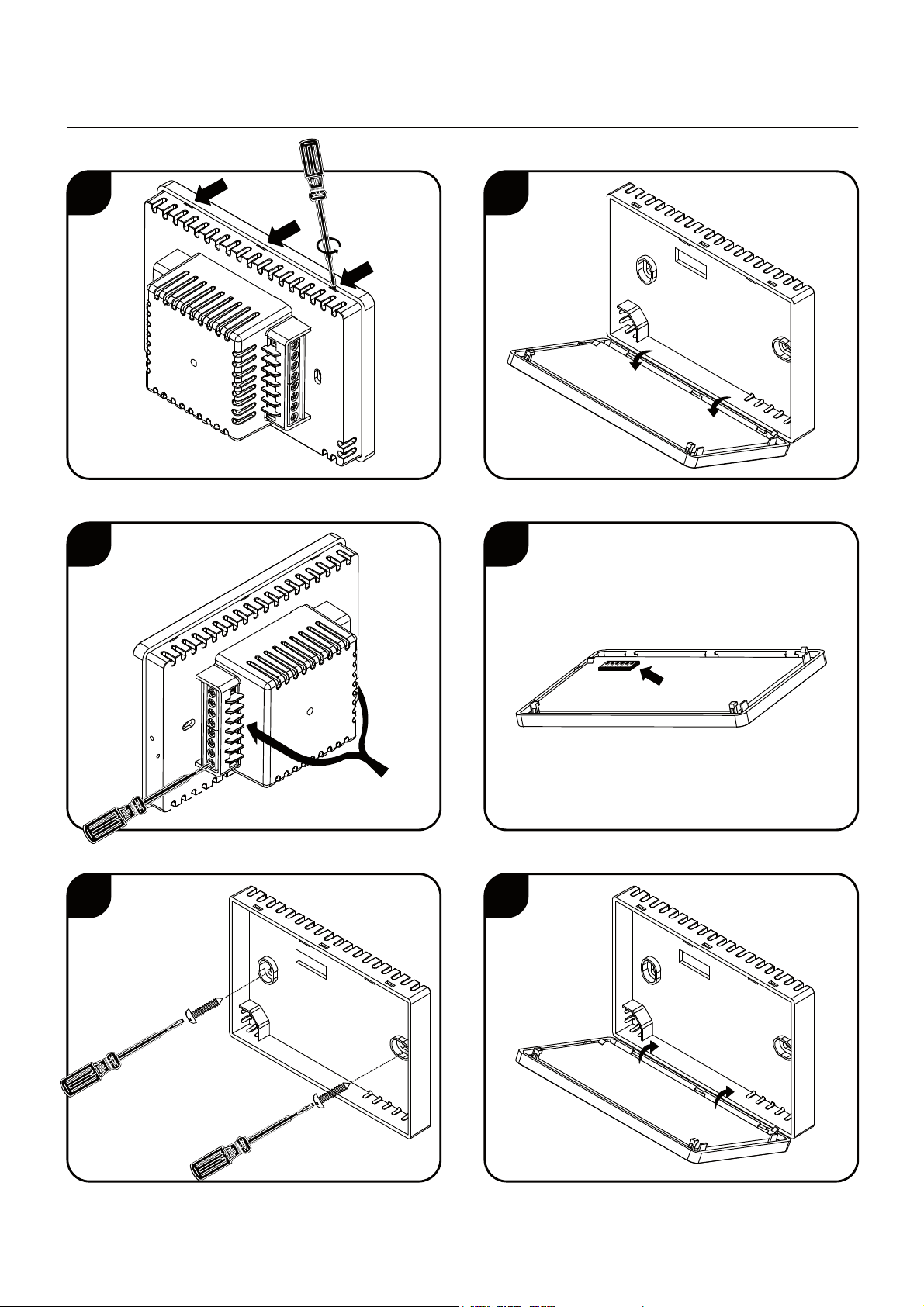

Installation procedure:

1. separate the front display from the back plastic cover by inserting a a

small flat screwdriver into each of the three slots as shown in the

picture and rotating it gently.

2. Remove the front display and keep it in a safe place.

3. Connect the wires as shown in the enclosed wiring diagram. All

terminals accept 1x0.5mm2/24 AWG.

4. If necessary, make changes to the DIP switches position as

explained in this manual.

5. Place the thermostat in the electrical box and tighten up the 2 screws

(Gewiss Box - GW 24 203).

6. Adapt the front frame-panel into its place, by pushing it towards the

wall.

1 2

5 6

3 4

-10-

2. Installation Instructions (cont’)
