MegaLite DECO Driver CV4 User manual

USER MANUAL

Table of Contents

Safety Information 3

What Is Included 3

Specifications 4

Main Power Connection 5

DMX-512 Connection 5

Output Connection 6

Control Board 7

DMX Profile 8

Size & Weight 9

Cleaning & Maintenance 10

Parts List 10

Warranty 11

Customer Support 11

Check that the unit has not been damaged during transport

Protection Against Fire

1. Maintain a minimum of 1 foot distance from any type of flame.

2. Do Not install the unit too close to a heat source.

3. Make sure cables are properly secured away from movement.

4. Maximum surface operating temperature is 135°F

5. Unit must not be left on for long periods of time.

Protection Against Electrical Dangers

1. Disconnect power before servicing.

2. For connection to main power supply proceed to page 5.

3. This unit must be earthed. (electronically grounded)

4. Do not expose unit to rain or moisture.

5. The Unit must be installed in a well ventilated area.

6. Be sure ventilation slots are not blocked.

Protection Against Mechanical Hazards

1. Unit surface may reach high temperature. Allow about 5 minutes after powering the unit before

moving.

2. When repositioning rack ears make sure they are securely attached.

What is Included

1pc Deco Driver CV4

1pc Power Con Cable

4pc 5 Pin Screw Terminal Blocks

1pc User Manual

Specifications

Part Numbers

Fixture

5060– Deco Driver CV4

Mechanical Specifications

Fastening System: Removable rack ears for Wall Mounting , Rack mounting and Rear rack mount-

ing

Display: Digital

Power Connection: PowerCon (type) Cable Mounted to Edison head.

Housing: Black painted

DMX Connection: 5 Pin XLR & RJ45 in and out (optional 3 pin available)

Output Connection: 4 Port 5 pin Screw terminal & RJ45 output

Electrical Specifications

Power Input:

Outputs:

Power Per Output

Total Max Power:

Ballast:

Output:

Drive Method:

110-240VAC 5.9A 50/60 Hz

96W

4x 96W

Electronic: Mean Well RSP-500-24

24V

Constant Voltage

Protocol: DMX 512

DMX 5 Modes:

1 Channel Mode Dimmer

2 Channel Mode Warm White, Cool White

3 Channel Mode R, G, B

4 Channel Mode R, G, B, W

7 Channel Mode Dimmer R, G, B, W, Strobe, Macro

Operating Mode: 22 Pre Programs, Stand alone via display

Control & Programming

Main Power Connection

Caution!

1. Do not connect fixture to a dimmer system.

2. This unit has Auto switching power supply. It will respond to 110V or 220V automatically

3. This unit must be earthed. (electronically grounded)

4. Replace fuse only with the specified type and rating.

The occupation of the connection-cable is as follows:

DMX-512 Connection

The fixture is equipped with 5 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a

shielded twisted pair cable designed for RS-485 and 3 pin XLR plugs and connectors in order to connect the controller

with the fixture or the fixture with another.

DMX 5 Pin —Input DMX 5 Pin—Output

1. Ground

2. Signal (-)

3. Signal (+)

This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz

Cable (USA) Cable (EU) Pin 110V

Black Brown

White

Green

Light Blue

Yellow/Green

Live

Neutral

Ground

220V

RJ45 8 Pin— In & Output

1. Signal (+)

2. Signal (-)

7&8. Ground

1 Signal +

2 Signal -

3 N/A

4 N/A

5 N/A

6 N/A

7 Ground

8 Ground

Output Connection

Deco Driver CV4 is designed to be used as a driver for Constant Voltage lighting fixtures. There are many fixtures a

Deco Driver can control . Each of the 4 output can be individually controlled and addressed to use the same or different

fixture per each output. The Deco Lighting fixture manual will give you the information with power link limitations and

control type for that unit.

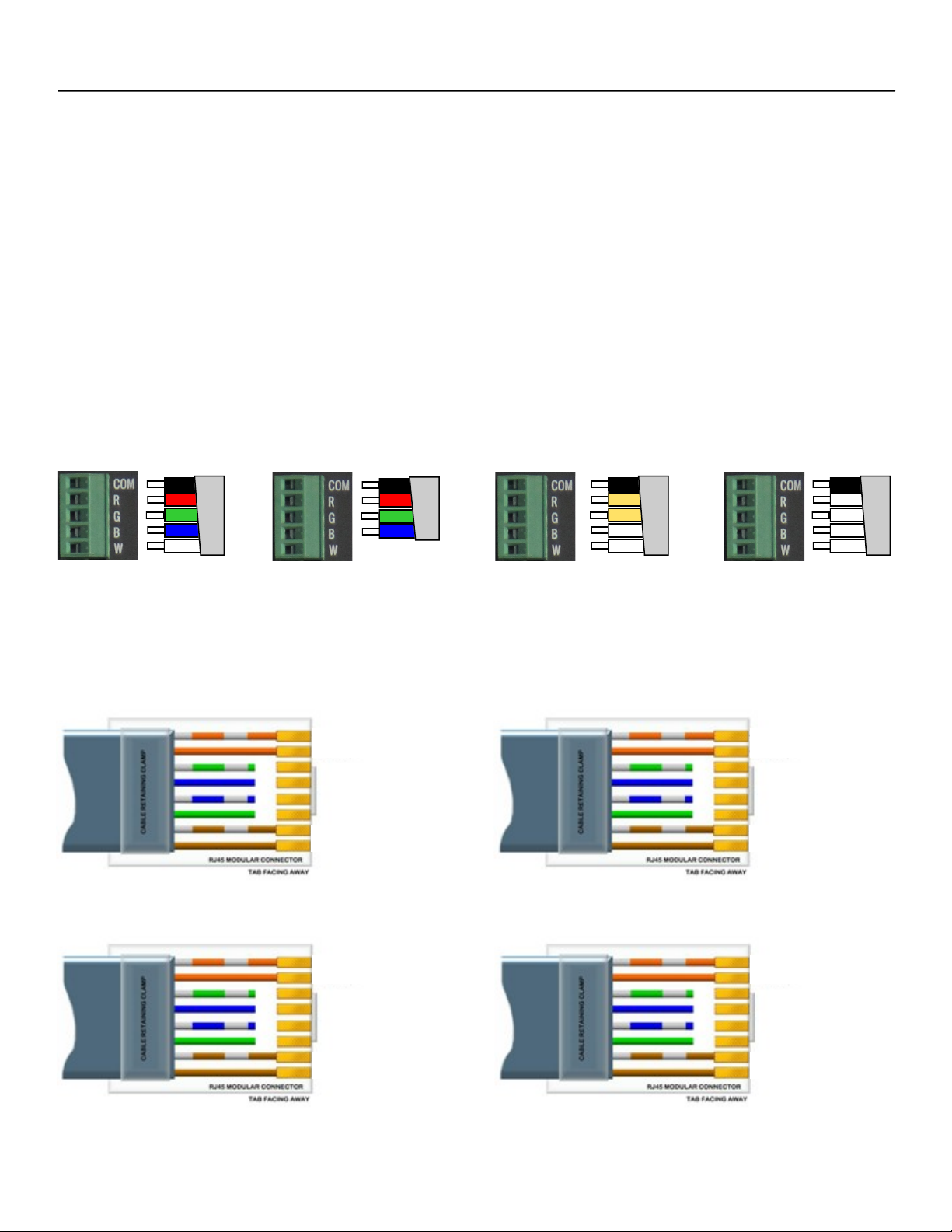

Fixtures that require Strip Cable connection will connect the input cables via 5Pin Screw terminal

4 Ch Fixtures

DMX Control Mode

4 or 7CH

3 Ch Fixtures

DMX Control Mode

3 CH

2 Ch Fixtures

DMX Control Mode

2 CH

1 Ch Fixtures

DMX Control Mode

1 CH

Fixtures that require RJ45 connection will connect the input cables RJ45 Output

Pin1 Red-

Pin 2 24V+

Pin 3 Green-

Pin 4 24V+

Pin 5 Blue-

Pin 6 24V+

Pin 7 Warm White-

Pin 8 24V+

4 Ch Fixtures

DMX Control Mode

4 or 7CH

Pin1 Red-

Pin 2 24V+

Pin 3 Green-

Pin 4 24V+

Pin 5 Blue-

Pin 6 24V+

Pin 7 N/A

Pin 8 N/A

3 Ch Fixtures

DMX Control Mode

3 CH

Pin1 Warm White-

Pin 2 24V+

Pin 3 Warm White-

Pin 4 24V+

Pin 5 Cool White-

Pin 6 24V+

Pin 7 Cool White-

Pin 8 24V+

2 Ch Fixtures

DMX Control Mode

2 CH

Pin1 White-

Pin 2 24V+

Pin 3 White-

Pin 4 24V+

Pin 5 White-

Pin 6 24V+

Pin 7 White-

Pin 8 24V+

1 Ch Fixtures

DMX Control Mode

1 CH

Control Board

System Mode

( DMX)

Port Mode DMX Address

(01) (01) (001)

DMX: DMX mode allows you to set the DMX

operational mode: For each output port you can

select Mode of operation and DMX start address.

Press Enter use the Up / Down button to select

the output port press Enter once selected. Mode

function will then be highlighted, use the Up /

Down button to select your operating mode.

Each lighting fixture will have a different operat-

ing mode. Consult the fixture’s manual or fixture

label to determine the operating mode. Press

Enter, DMX Address will then be highlighted,

use the Up / Down button to select the fixtures

start address. Start address should match your

controller’s start address channel. Press Enter

to confirm your settings.

Port Mode DMX Address

(02) (01) (001)

Port Mode DMX Address

(03) (04) (004)

Port Mode DMX Address

(04) (07) (210)

System Mode

( Auto)

Prog 01

(ST Color 1)

Auto: Auto mode allows you to access the

pre-built auto function for control. Press Enter

use the Up / Down button to select the pre pro-

gram fixture look. Programs 01 to 18 are single

scene programs and programs 19 to 21 are

chase programs. Press Enter once you have

decided on the scene or chase. For Programs 1-

18 use the Up/Down buttons to adjust fixture

dimmer output. For programs 19-21 use the Up/

Down buttons to adjust the chase speed. Press

Enter to confirm the fixture setting.

Prog 18

(ST Color 18)

Prog 19

(Step Chace)

Prog 20

(Color Fade)

“ “

Prog 21

(Strobe)

Prog 22

(Chasing)

Prog 01 Dimmer

(000)

Prog 18 Dimmer

(000)

Prog 19 Speed

(000)

Prog 20 Speed

(000)

“ “

Prog 22 Speed

(000)

Prog 22 Speed

(000)

System Mode

( Manual)

Red

(000)

Green

(000)

Blue

(000)

White

(000)

Manual: Manual mode allows you to man-

ually control the intensity of all 4 ports simultane-

ously via the control display without the need for

a DMX controller. Press Enter to select the dim-

mer output you would like to adjust . Use the Up/

Down keys to select the dimmer intensity. There

is many Deco Fixtures that can be controlled via

a Deco Driver. Please Consult your Deco Light-

ing fixtures Manual to see what values are ac-

tive. Press Enter to confirm the setting.

Lock Display: The display for the Deco Driver factory setting is lock screen function to unlock the display press and hold

the Menu & Enter for 3 seconds
