MegaLite Axis LED User manual

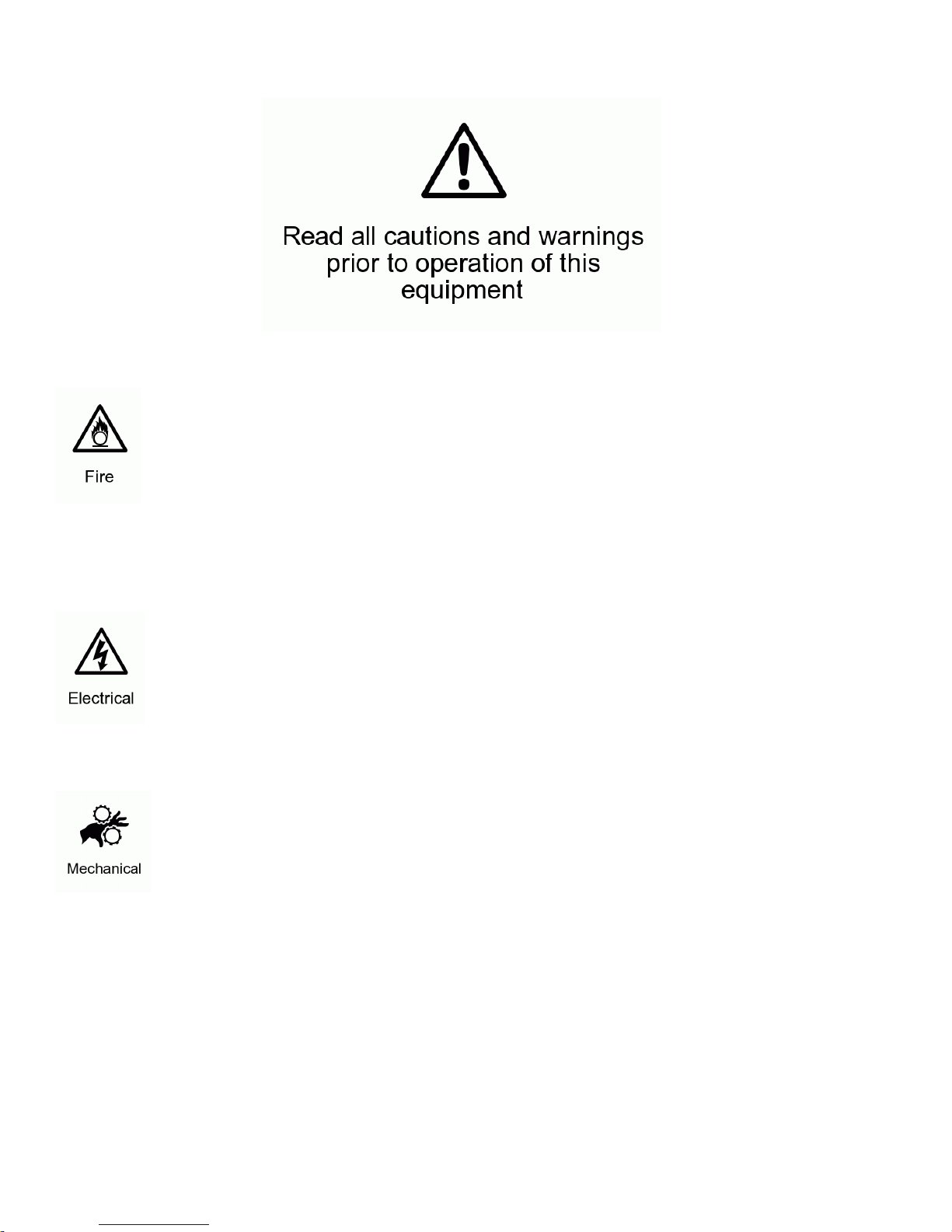

Check that the unit has not been damaged during transport

Protection Against Fire

1. Maintain a minimum of 1 foot distance from any type of flame.

2. Replace fuse only with the specified type and rating.

. Do Not install the unit to close to a heat source.

4. Make sure cable are properly secured away from unit movement.

5. Maximum surface operating temperature 80º.

Protection Against Fire

1. Disconnect power before servicing.

2. For connection to main power supply proceed to page 4.

. This unit must be earthed. (electronically grounded)

4. Do not expose unit to rain or moisture.

Protection Against Mechanical Hazards

1. Make sure head movement is not blocked.

2. Use safety chain when hanging unit

. Unit surface may reach high temperature. Allow about 5 minutes after lamp has been turned off be-

fore moving.

Part Numbers

Fixture Flight Case

1100 - AXIS LED P-1100DUALCASE

Mechanical Specifications

Fixture Packaged for Shipping

Size: 12.25”L x 1 .5”W x 14.25”H

Weight: 24 lbs

Size: 16.5”L x 16.5”W x 19”H

Weight: 28 lbs

Pan: 60° Tilt: 270°

DMX Connectors: -pin XLR connectors

Thermal: Maximum ambient temperature 5° C

Maximum surface temperature 80° C

Mounting Points: 2 pairs of L-turn locks

Fastening System: 2 quick clamp release

Electrical Specifications

12.25 1 .5”

7”

9.25”

4.75”

9.5”

10.75”

.5”

L D Quantity: 54

Red: 18

Green: 18

Blue: 18

L D Watts: 3

L D Lifetime: 60,000 - 100,000 hours

L D Angle: 2°

Power Consumption: 110V 50/60 Hz

Ballast: Electronic

Watts: 2 6

Amps: 2.50

Protocol: DMX 512

DMX Channels: 12 Channels Pan, Tilt, Pan Fine, Tilt Fine, Speed, Control, Red, Green, Blue, Strobe, Macro, Dimmer

Control & Programming

Technical Features

Main Power Connection

Caution!

1. Do not connect fixture to a dimmer system.

2. This unit must be earthed. (electronically grounded)

. Replace fuse only with the specified type and rating.

The occupation of the connection-cable is as follows:

Cable (USA) Cable (EU) Pin International

Brown Brown

Light Blue

Yellow/Green

Light Blue

Yellow/Green

Live

Neutral

DMX-512 Connection

110V 50/60hz Connection

The fixture is equipped with pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a shielded

twisted pair cable designed for RS-485 and pin XLR plugs and connectors in order to connect the controller with the fixture or

the fixture with another.

DMX—input DMX—output

1. Shield/Ground

2. Signal (-)

. Signal (+)

Caution!

At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120

Ohm resistor between the (-) and the (+) signal into a pin XLR plug and plug it in to the

last fixture on the signal run. Pre-manufactured terminator plugs are available for

purchase from your Mega-Lite dealer (HOS-DMXT).

Note: After switching the unit on it will automatically detect whether DMX 512 data is received or not . There is a single red LED

above the display that will flash once it is receiving DMX. If there is no DMX present the LED will not light.

Rigging the fixture

Caution!

1. The installations must be carried out by an authorized dealer or trained professional.

2. Unit may cause severe injures if you have doubts concerning the safety do not install.

. Unit is to be 24inches away from flammable materials (decoration material)

4. Use high quality installation equipment to hang unit.

When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experience includ-

ing but not limited to calculating working loads, material being used and periodic safety inspections. If you lack these qualifica-

tions, do not attempt the installation yourself, instead use a professional structural rigger.

When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector has got to

be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be checked at least

one time a year by a skilled person.

Axis LED DMX profile-version 1.0

DMX Channel Function Description Value

1 Pan Pan course 0-255

2 Tilt Tilt course 0-255

Pan Fine Pan fine 0-255

4 Tilt Fine Tilt fine 0-255

1-244

245-252

25 -255

Max speed (tracking mode)

Max to min speed (vector mode)

Changes

Changes with pan and tilt movement

Speed

0-127

140-150

151-255

Fan speed from fast to slow

Reset (hold for secounds)

No Changes

Control

Red LED (0-100%) Red LED 7 0-255

Green LED (0-100%) Green LED 8 0-255

Blue LED (0-100%) Blue LED 9 0-255

1-19

210-219

200-209

180-199

160-179

140-159

120-1 9

100-119

80-99

60-79

40-59

20-9

Purple Pulse

Yellow Pulse

Blue Pulse

Green Pulse

Red Pulse

Fast Scroll

Aqua

Purple

Yellow

Blue

Green

Red

Macro

2 0-255

220-229

White Pulse

Aqua Pulse

Strobe from slow to Fast Strobe 10 0-255

Dimmer from off to full Dimmer 12 0-255

No Function 0

Main Control Menu

The control board on the fixture base is your interface to access and control

all the functions on the unit. Its digital display gives you a code view of the

options and functions including errors and diagnostics. The following will ex-

plain each function and its options. Press Mode button to scroll through the

different options.

MODE

ENTER

DOWN

DMX

DMX Address

Use the up/down keys to select the required DMX channel. Press nter to confirm or Mode to exit and return to main menu.

The display will flash if there is no DMX signal been received from the console. The Axis 500 uses 16 or 14 DMX channels

DMX Address Programme Pan Reverse Tilt Reverse Demo Mode Unit Reset Display

0-512 Yes/No Yes/No Yes/No Yes/No Yes/No

Programme Version

No function this will just show you what version of program you have.

Reverse Pan

This function allows you to invert the Pan direction. Use the up/down keys to select, Y to invert pan and N not to invert the pan.

Press nter to confirm or Mode exit and return to the mail menu.

Reverse Tilt

This function allows you to invert the Tilt direction. Use the up/down keys to select, Y to invert tilt and N not to invert the tilt.

Press nter to confirm or Mode exit and return to the mail menu.

Demo Mode

This function allows you to turn on the demo mode operation. Use the up/down keys to select, Y to turn demo mode on and N

not to turn demo mode on. Press nter to confirm or Mode exit and return to the mail menu.

This function allows you to reset the fixture. Use the up/down keys to select, Y to reset the fixture and N not to reset the fixture.

Press nter to confirm or Mode exit and return to the mail menu.

Unit Reset

Display reverse

This function allows you to invert the display direction. Use the up/down keys to select, Y to invert display and N not to invert the

display. Press nter to confirm or Mode exit and return to the mail menu.

Cleaning and maintenance

Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electron-

ics checked by an expert every 2 years.

The following points have to be considered during the inspection:

1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.

2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).

) Mechanically moved parts like axles, fans and other must not show any traces of wearing and must not rotate with unbal-

ances.

4) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further

instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems

have to be removed.

Disconnect from mains before starting maintenance operation!

Caution Danger to life!

We recommend a frequent cleaning of the device. Please use a moist, lint free cloth. Never use alcohol or solvents!

1) The objective lens will require periodic cleaning on usage and environment. Environment with foggers will require more peri-

odic cleaning as fog fluid tends to build up residues, reducing the light output.

2) The cooling-fans should be cleaned monthly. DO NOT blow high pressure air into fans as incorrect rotation can damage the

fans operation.

) The gobos, dichroic color filters and internal lenses may be cleaned with soft brush using soapy water.

Note: There is no serviceable parts inside the device except for the fans and the fuse. Maintenance and service operations are

to be carried out by authorized dealers.

Replacing the fuse: Only replace the fuse with the same type and rating.

Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized dealers only

In order to avoid hazards.

Should you have further questions , please contact your dealer.

Parts List

P-1100DISC Display Card

P-1100DMXC DMX Card

P-1100FH Fuse Holder

P-1100LEDb Blue LED

P-1100C Quick Release Mount Set

P-1100LEDr Red LED

P-1100LF Large Fan

P-1100PCB Main PCB Card

P-1100MS Motor Sensor

P-1100LEDg Green LED

P-1100PB Pan Band

P-1100PM Pan Motor

P-1100PS Power Switch

P-1100PSUP Power Supply

P-1100RF LED Reflector

P-1100PBS Plastic Body Set

P-1100T Transformer

P-1100TB Tilt Band

P-1100TM Tilt Motor

P-1100SF Small Fan

Mega-Lite

5718 Kenwick St

San Antonio, TX 782 8

Ph 210-684-2600 Fax 210-855-6279

www.mega-lite.com / info@mega-lite.com
