Maytag MHWE200XW00 User manual

TOP AND CABINET PARTS

For Model: MHWE200XW00

(White)

3−10 Printed in U.S.A. (drd)(bay) Part No. W10312145 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: MHWE200XW00

(White)

W10312145

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10295008

Use & Care Guide

W10252711

Tech Sheet

W10294937

Energy Guide

2 8540716 Top

W10245758

Cabinet

W10306505

Panel, Front

5 8540813 Toe Panel

W10245373

Foot, Leveling (4)

7 3359452 Nut, Lock (4)

W10110676

Strain Relief,

Power Cord

9 8518891 Rivet

W10258341

Panel, Rear

W10189657

Brace, Transport

W10251449

Bolt, Shipping (4)

13 Hose, Water Inlet

W10194208

Cold Water

8571378 Hot Water

W10205500

Cord, Power

W10289776

Motor Control Unit

W10244560

Brace, Rear

17 356138 Clamp, Hose

W10281257

Hose, Drain

(Outer)

W10003260

Connector,

Drain Hose

20 238614 Bumper (2)

W10015090

Screw, 8−18 x 5/8

22 8540230 Filter,

Interference

W10239066

Switch, Pressure

24 8540294 Hose, Pressure

Switch

25 8540479 Screw, Grounding

26 8540268 Cover, Transport

27 8540021 U−Bend,

Drain Hose

W10085220

Microswitch (2)

29 8540728 Sleeve,

Cord Support (2)

30 8540727 Screw, 3 x 8 mm

31 8540329 Screw

32 8540720 Brace, Top

(Includes Item 33)

33 8283273 Damper, Brace

34 2161302 Sleeve, Pressure

Switch Hose

35 3347868 Cable Tie

36 3976300 Washer, Water

Inlet Hose (4)

1−1/16 x 5/8

37 8540644 Bracket−Suspension

Spring (2)

W10168546

Harness Channel,

Side Front

W10168547

Harness Channel,

Side Rear

W10239822

Harness, Wiring

(Lower Main)

(Includes Item 38)

41 8318396 Seal, Foam − IEC

DOOR AND LATCH PARTS

For Model: MHWE200XW00

(White)

W10312145

Illus. Part

No. No. DESCRIPTION

W10290499

Bellow

2 8540108 Clamp, Bellow

To Tub

W10253483

Lock, Door

4 8540725 Screw

5 8540221 Hook, Door

W10117475

Handle, Door

(Includes Item 19)

W10300870

Trim Ring,

Outer Door

W10217563

Clamp, Bellow

To Front Panel

9 8540115 Clamp, Support

W10281267

Clamp, Glass (3)

11 8540513 Screw

W10119007

Frame, Door

Front Assembly

W10205548

Glass, Door

W10138523

Frame, Door

Back Support

W10118967

Hinge, Door

16 8540284 Screw

17 8540282 Screw

W10015090

Screw

W10112927

Pad, Door Handle

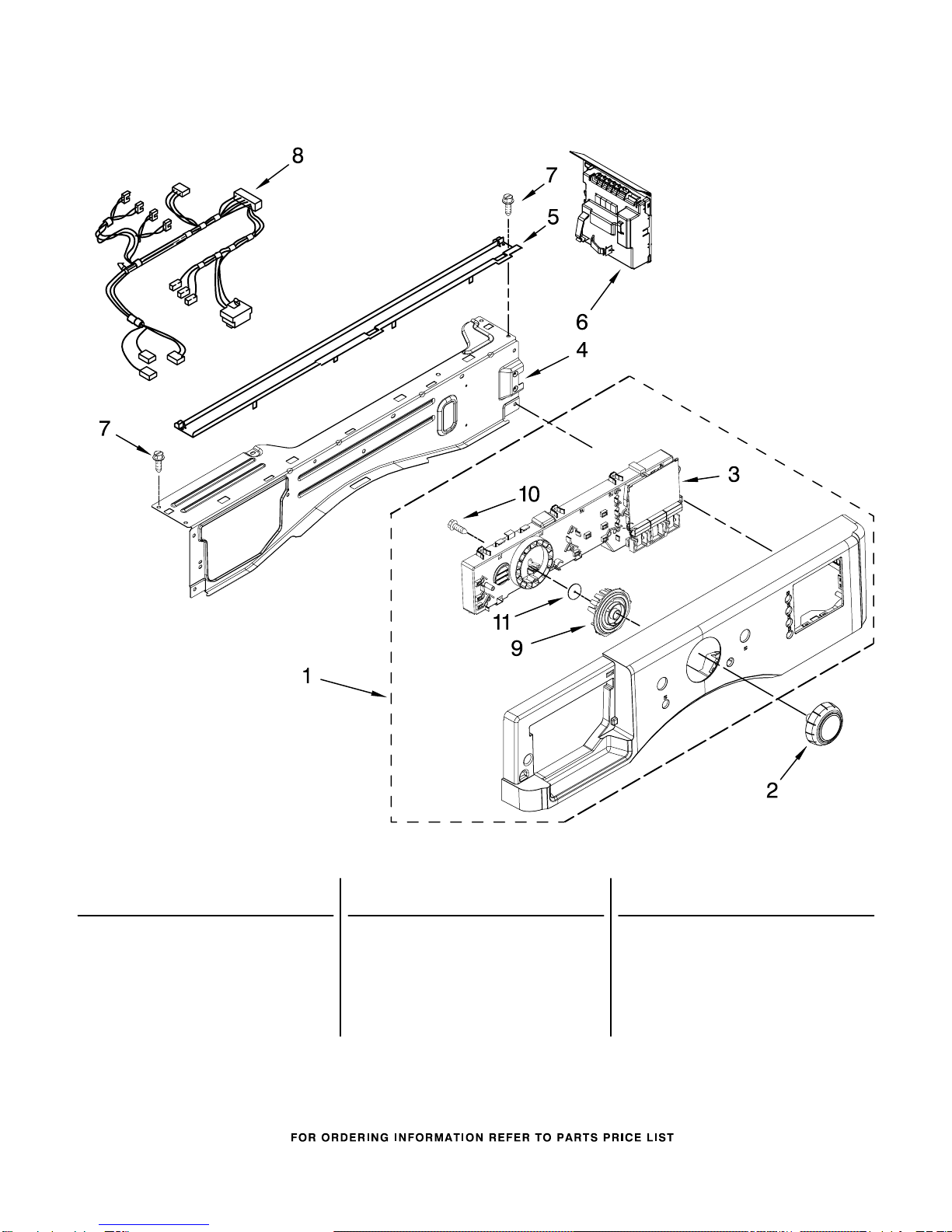

CONTROL PANEL PARTS

For Model: MHWE200XW00

(White)

W10312145

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10212729

Console

W10215799

Knob, Control

W10212771

User Interface

W10240776

Brace, Top Front

5 8540839 Channel, Water

W10294680

Microcomputer,

Machine Control

W10015090

Screw, 8−18 X 5/8

W10269290

Harness, Wiring

(Upper Main)

(Includes Item

39 On Page 1)

W10215797

Light Guide, Cycle

W10006580

Screw, M3−1.12x12

11 8572039 Seal,

User Interface

DISPENSER PARTS

For Model: MHWE200XW00

(White)

W10312145

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10212596

Valve, Water

Inlet (Double)

W10212598

Valve, Water

Inlet (Single)

3 370450 Clamp, Hose (6)

W10137456

Screw, Valve (2)

5 8183181 Nozzle, Inlet (3)

W10212611

Hose, Valve

To Dispenser (3)

7 8540402 Drawer,

Detergent

8 8540399 Cover,

Detergent Drawer

W10003170

Hook, Drawer

10 8540429 Siphon,

Bleach/Softener

11 8540063 Hose, Dispenser

To Tub

12 8281276 Clamp, Hose

W10212602

Dispenser,

Complete

W10237414

Handle, Drawer

W10177245

Badge Assembly

PUMP AND MOTOR PARTS

For Model: MHWE200XW00

(White)

W10312145

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10171902

Motor, Drive

2 8540134 Bolt, Motor

3 8540180 Air Trap

4 8540013 Ball

5 8181734 Clamp

6 8540012 Hose,

Tub to Pump

7 370448 Clamp, Hose

W10245724

Clamp, Drain Hose

W10130913

Pump (Complete)

W10034820

Foot, Rubber

(Slider)

W10034830

Foot, Rubber

(Lock)

12 8540033 Cap, Lock Foot

13 8533964 Screw,

10−16 x 1.25 (2)

14 8540025 Seal, Filter Cap

15 8540996 Filter Assembly

(Includes Item 14)

W10201879

Harness, Motor

W10272563

Hose, Drain

(Inner)

TUB AND BASKET PARTS

For Model: MHWE200XW00

(White)

W10312145

TUB AND BASKET PARTS

For Model: MHWE200XW00

(White)

W10312145

Illus. Part

No. No. DESCRIPTION

1 8533999 Nut, Pulley

2 8540088C Pulley

W10260319

Belt, Drive

W10246531

Screw, Rear

Counterweight (3)

W10142720

Pipe, Ventilation

6 8540010 Clamp, Vent Hose

7 8540019 Hose, Exhaust

W10200751

Tub, Rear

(Includes Items

10 & 22)

W10200747

Counterweight,

Rear

10 8540090 Gasket, Tub

W10205253

Basket, Complete

W10112972

Baffle, Tub

W10094780

Bolt,

Counterweight (4)

W10259288

Bolt Assembly,

Counterweight

Center Hole (2)

W10223198

Counterweight,

Front (2)

W10010360

Spring,

Suspension

(Set of 2)

W10015830

Shock Absorber (3)

18 8540382 Screw

W10202464

Crosspiece Asm

20 8540092 Clamp, Tub

W10289875

Tub, Front

(Includes Items

10 & 22)

22 8540072 Nut, Push−In

W10176659

Negative

Thermistor Control

24 8540766 Seal, Rubber

OPTIONAL PARTS (NOT INCLUDED)

For Model: MHWE200XW00

(White)

W10312145

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

8572546 Stack Kit

285863 Drain Extension

8212638RP

Inlet Hoses, 6 Ft.

(Two Braided Hoses

W/One Straight

End & One

90 Degree End &

4 Rubber Washers)

8212487RP

Inlet Hoses, 5 Ft.

(Two Braided Hoses

W/Straight Ends &

4 Rubber Washers)

31682 All Purpose

Appliance Cleaner

W10135699

Affresh

Odor Remover

8212526 Washer Drip Tray

1903WH Laundry Supply

Storage Cart
