Maytag MAV3700AWW User manual

INSTRUCTION MANUAL

Improving washing performance by more than 35%, while

reducing power consumption by 40%.

Applying One-Touch Operation System.

Fabric care through innovative washing and low noise design.

Before operating this washer, please read this instruction

completely. Thank you.

Model: MAV3700AWW

Full Automatic Washer

CONTENTS Page

RTS AND FEATURES........................................................................................................................................2

WASHER SAFETY.........................................

..........................................................................................

...............3

INSTALLATION INSTRUCTIONS..........................................................................................................................4

ELECTRICAL REQUIREMENTS......................

.........................................................................................

............5

INLET HOSE CONNECTION................................................

.................................................................................

OPERATING YOUR WASHER...........................

........................................................................................

...........7

THE FUNCTIONS OF THE CONTROL PANEL.......

.......................................................................................

....8

WASHING PROCEDURE AND COURSE SELECTION

....................................................................................

..9

GENERAL PROCEDURE FOR OPERATION....................................................................................................11

CARING FOR YOUR WASHER...................

................................................................................

........................12

HOW TO CLEAN THE FILTER............................

................................................................................

.................13

REMOVING STAINS..................................................

................................................................................

............14

TROUBLE SHOOTING.................................................

................................................................................

.........15

SPECIFICATION.............................................................

.................................................................................

......16

A NOTE TO YOU

Thank you for buying a MAYTAG appliance.

MAYTAG washers are easy to use, save time, and help you manage your home better.

This manual contains valuable information about how to operate and maintain your washer properly and safely.

Please read it carefully.

WATER TAP ADAPTER INLET HOSE

PARTS AND FEATURES

DRYTEN (OPTION) COVER UNDER (OPTION)

DRAIN HOSE (FOR NON-PUMP)DRAIN HOSE CLAMP

DRAIN HOSE (FOR PUMP) CONNECTOR INLET(OPTION)

DRYTEN

The parts and features of your washer are illustrated on this page.

Become familiar with all parts and features before using your washer.

NOTE

•

The drawings in this book may vary from your washer model.

They are designed to show the different features of all models covered by this book,

Your model may not include all features.

ACCESSORIES

•HOT WATER TAP

•COLD WATER TAP

After using the washer,

close the water tap, In case

of the single valve model,

there is no hot water valve.

After using the washer,

close the water tap

•CASE DETERGENT

AND SOFTENER

•BLEACH INLET

•ADJUSTABLE LEG

•CONTROL PANEL

•DRAIN HOSE

•POWER CORD

In case of 3-wire power cord

ground wire will not be provided

•GROUND WIRE(OPTION)

•DOOR

•PULSATOR AGITATOR

Read all instructions before using your washer

Save these instructions

Your safety is important to us.

To reduce the risk of fire, electrical shock, or injury when using your washer, follow

basic precautions including the following:

Understanding your responsibilities

•Do not wash items that are soiled with vegetable or cooking oil.

These items may contain some oil after laundering.

Due to the remaining oil, the fabric may smoke or catch fire by itself.

•Do not use chlorine bleach and ammonia or acid (Such as vinegar or rust remover) in the

same wash. Hazardous fumes can form.

•Unplug power supply cord before attempting to service your washer.

•Do not wash fiber glass materials.

Small particles can stick to fabrics and cause skin irritation.

•Do not use hot water that temperature is over 50˚C (120˚F).

It can cause a deformation of plastic parts.

•Do not spray water on the control panel and back cover of the washer.

It can cause a fire or an electric shock.

•Flammable fluids (dry-cleaning solvents,

kerosene, gasoline, etc.) should not be

used or stored in near your washer.

.Do not add flammable fluids to your wash

water.These substances give off vapors

that can create a fire hazard or explosion.

•Do not allow children to operate, play

with, or crawl on or inside your washer.

Supervise children closely when your

washer is used near them.

•After starting a cycle, do not reach into

the spin basket unless all motion stops.

•Do not tamper with the controls.

Please ...

•Have only a qualified person install, repair,

or replace parts on washer.

•Maintain washer properly.

•Protect washer from the weather and

keep it where the temperature will not fall

below freezing.

•Do not install the washer at a place of

extremely high humidity. It could cause an

Electrical shock or a short circuit.

•Connect washer to the correct outlet,

electrical supply, water supply, and drain.

•Ground washer properly.

WASHER SAFETY

•If the supply cord is damaged, it must be

replaced by the manufacturer or its service

agent or a similarly qualified person in order

to avoid a hazard

•If the appliance is supplied from a cord

extension set or electrical portable outlet

device it should be positioned so it is not

subjected to splashing or ingress of moisture.

Pump Model

Location of washer

Check location where washer will be installed. Make sure you have everything

necessary for correct installation.

Proper installation is your responsibility.

•Do not place or store your washer below 0˚C (32˚F) to avoid any damage from freezing.

•Install the washer on the horizontal solid floor.

Drain system

Never forget to install drain hose before operating your washer.

The packing box is opened, there are a drain hose the washer.

INSTALLATION INSTRUCTIONS

•Connect the drain hose to the drain outlet at the back of the washing machine.

Drain Outlet

Drain hose

If the washer is installed on an unsuitable floor, it could

make considerable noise, vibration and cause a malfunction.

If washer is not level, adjust the front leg(A) up or down for

horizontal setting.

•Earthed electrical outlet(B) is required with 20cm of

bottom back of washer cabinet.

•Hot and cold water faucets (C) must be within 1M of the

upper back of the washer cabinet and provide water

pressure 0.3kgf/cm2-8kgf/cm2 (29.4kPa-784.5kPa).

NOTES

•

The opening must not be obstructed by carpeting when the washing machine is

installed on a carpeted floor.

UP DOWN A

Recommended earthing method

WARNING

Laundry tub drain system Standpipe drain system

Pump Model

•Top of tub must be at least 86cm

(34inches) high and no higher than 130cm

from bottom of washer (A)

•Needs a 3cm minimum diameter

standpipe with minimum carry away

capacity of 30liters per minute.

•Top of tub must be at least 86cm

(34inches) high and no higher than 130cm

from bottom of washer (B)

ELECTRICAL REQUIREMENTS

For your personal safety, this washer must be earthed.

This washer is equipped with a power supply cord (A) having a

earthing plug (B). To minimize possible shock hazard, the cord must

be plugged into a mating earthing-type wall receptacle (C).

If a mating wall receptacle is not available, it is the personal

responsibility and obligation of the customer to have the proper

earthed wall receptacle installed by a qualified electrician.

•Electrical earth is required on this washer

•If it does not fit the outlet, have a proper outlet

installed by a qualified electrician.

•Don’t earth to a gas pipe

•Don’t change the power supply cord plug.

•Check with a qualified electrician if you are not

sure the washer is properly earthed.

electrical shock hazard:failure to follow these instructions could result in

death or serious injury.

Be careful not to confuse hot water inlet and cold water inlet.

In using only one water tap or in case of attached one water inlet valve, connect the

inlet hose to the cold water inlet valve.

For Screw-Shaped Tap

For Ordinary Tap

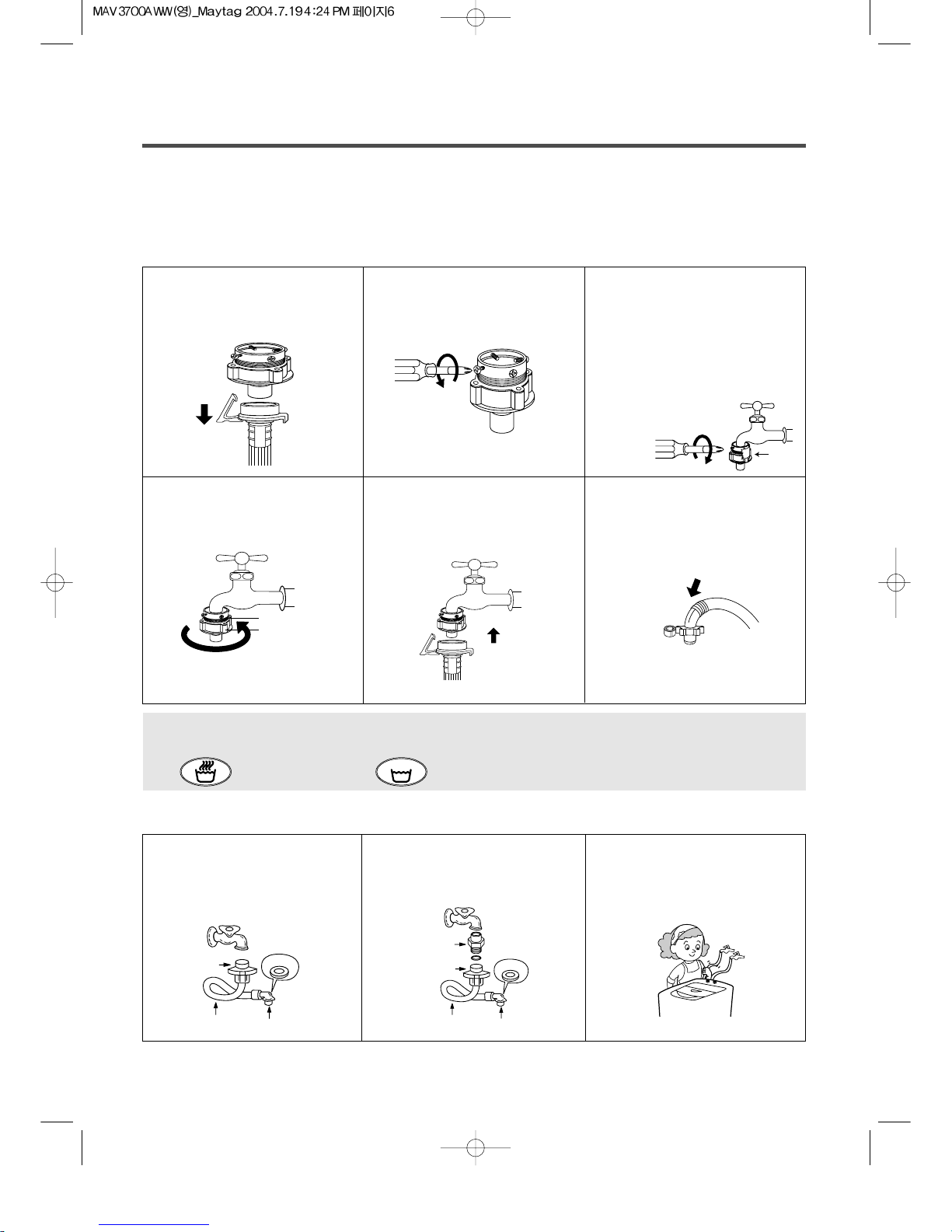

INLET HOSE CONNECTION

1Pull down the collar of

the inlet hose to separate

it from the water tap

adapter.

2Loosen the four screws

properly in fitting into

water tap.

3Fit the water tap adapter

into the water tap

and tighten the four

screws evenly while

pushing up the adapter

so that the rubber

packing can attach to the

water tap tightly.

4Remove the tape, and

screw connector B into

connect A tightly.

5Connect the inlet hose to

the water tap adapter by

pulling down the collar of

the hose end.

6Connect the inlet hose

adapter of the hose to

the water inlet of the

washer by turning it

clockwise to be fixed

tightly.

•Please check the rubber

packing inside the inlet hose

adapter of the hose.

1Connect the inlet hose to

the water tap by

screwing the connector

tightly.

2Connect the connector-

inlet supplied if

necessary.

3Insert the inlet hose

adapter into the water

inlet of a washer and turn

it to be fixed.

*Cheek the packing in the inlet

TAPE

Connector

Rubber

Packing

Hose

Connector

Rubber

Packing

Hose

Connector

inlet

Connector B

Connector A

NOTES

•

When connecting the water inlet valve, please find the symbol mark for each.

for hot water inlet, for cold water inlet.

Sorting

Preparing clothes for washing

To obtain the best wahing results, you must operate your washer properly.

This section gives you this important information.

OPERATING YOUR WASHER

•Close zippers, snaps, and hooks to avoid

snagging other items.

Remove pins, buckles, and other hard

objects to avoid scratching the washer

interior.

•Empty pockets and turn them inside out.

•Turn down cuffs and turn synthetic knits

out to avoid pilling.

•Tie strings and sashes so they will not

tangle.

•Treat spots and stains.

(see "Removing stains" on page14)

•Drop items into washer loosely. Items

should move easily through wash water

for best cleaning and wrinkle-free results.

•Load washer properly and select correct

load size setting.

Overloading and selecting a setting too

small for the wash load can:

- cause poor cleaning

- increase wrinkling

- create excessive lint

- wear out items faster (because of pilling)

•Mix large and small items in each load.

Load evenly to maintain washer balance.

An off balance load can make the washer

vibrate during spin.

•Reduce wash time when using a small

load size setting. Loads with only a few

small items need less wash time.

•Use a large load size setting to reduce

wrinkling with permanent press clothes

and some synthetic knits. These items

should have more room to move in the

water than heavy items (towels, jeans)

•Separate heavily soiled items from, lightly soiled ones, even if they would normally be

washed together.

•Separate dark colors from light colors, color

THE FUNCTIONS OF THE CONTROL PANEL

•Press this button to turn the power "ON" or "OFF".

•It can be used to choose water temperature to be supplied.

•As the button is pressed, water temperature will be repeated.

COLD ➝COLD + HOT ➝HOT

•In case of the single valve model, there is no wash temperature

selector function.

•It can be used to adjust amount of water according to the size of the

load to be washed.

•As the button is pressed, water level is selected by

•It can be used to adjust washing time.

•As the button is pressed, you will see the repeated.

MEDIUM ➝➝HIGH ➝

•It can be used to select the full-automatic cycle.

•As the button is pressed, course will be selected by following order:

FUZZY/REGULAR ➝ EXTRA DIRTY ➝ HEAVY LOAD ➝ COLOR ➝

ECONOMIC ➝ DELICATE.

•This button selects the number of times you want to rinse.

•As the button is pressed, It will repeat.

1 time rinse

➝

2 times rinse

➝➝

3 times rinse 4 times rinse

➝

5 times rinse

➝

OFF➝

•Operation and temporary PAUSE is repeated as it is pressed.

•When you want to change cycle in operating;

press the "START/PAUSE" button ➝Select the course that you want to

change ➝press the "START/PAUSE" button again.

•It can be used to change spin time.

•It can be used to pre-engage time for wash.

•As the button is pressed, it will repeat. 5 7 ➝9➝1➝3

➝OFF

➝➝LOW ➝E.LOW

6➝14 ➝➝18 ➝OFF➝

SOAK(WASH 18 MIN. + SOAK 30 MIN.)

FULL AUTOMATIC CYCLE

1. FUZZY/REGULAR CYCLE (AUTOMATIC SENSING);

•This selection is for general washing except extraordinary clothes.

•It is possible for changing water temperature what you want.

•Artificial brain sensor selects properly the various kind of washing condition such as

washing time, rinse times, spin time and water level.

3. HEAVY LOAD CYCLE;

•This selection is effective for blanket, curtain, carpet, etc ...

•Do not wash general-electric blanket. (4kg’s limitation for one-time-wash)

Procedure to press the button;

4. COLOR CYCLE

•This selection is effective for colored clothes or less dirty wash. Procedure to press the button;

•Washing time, Rinse times and spin time are selected by artificial brain sensor automatically depending on

•Also, it is possible to change the water temperature.

amount of laundry.

6. DELICATE CYCLE

•This selection is effective for wool clothes.

•Do not put leather clothes, or chamois clothes into the washing tub for washing.

It may cause shrinkage or deformation to the clothes.

•Please use the neutral detergents only .

•The water temperature is fixed to "COLD"

•The water level is fixed to "MEDIUM".

•1.5kg’s limitation for one-time-wash.

WASHING PROCEDURE AND COURSE SELECTION

adjust to

"DELICATE"

adjust to water

level and water

temperature and

washing time, rinse times,

spin time.

5. ECONOMIC CYCLE;

•This selection is useful to reduce water consumption and washing time for less dirty

clothes.

adjust to

"ECONOMIC" adjust to

water level and

water temperature and

washing time, rinse times,

spin time.

adjust to

"HEAVY

LOAD"

adjust to

"COLOR"

2. EXTRA DIRTY CYCLE

•This selection is effective for blue-jean, climbing clothes, ruck sack, sports wear, etc ...

•Washing time, Rinse times and spin time are selected by artificial brain sensor automatically depending on

•Also, it is possible for changing water temperature what you want.

amount of laundry.

adjust to

"EXTRA

DIRTY"

GUIDES FOR OTHER USEFUL PROGRAMS

DELAY START.

•Selection can be made from 1 hour to 48 hours.

example) To make selection to complete washing in 8 hours.

•Now the Delay Start is mode.

•WOOL course is not selected.

•The displaying time shows the finishing time you want.

Partial Selection Among Wash, Rinse or Spin

REMAIN

adjust to "8"

REMAIN

"--" shall blink

CYCLE

HOUR

RES

HOUR

RES

Procedure of processing

Only Wash

Only Rinse

Wash &

Rinse

Wash & Spin

Only Spin

Again the

Rinse &

Spin, after

washing

Only Drain

1Press

the Power

button

2Agitation time

you want.

Number of rinses

you want.

2Select the

agitation time &

number of rinses

you want.

2Select agitation

time & spin time you

want.

2Select the spin

time you want.

2Select the

number of rinses &

spin time you want.

2Press the Spin

button.

Partial

process

3Select water level

and water tempera

ture you want.

4Press the

Start/Hold button

with closing

Lid(Door)

At end of cycle, the

buzzer will sound.

The power will be

switched off

automatically.

3Press the

Start/Hold button.

3Press the

Start/Hold button.

At end of cycle, the

buzzer will sound

and the led display

will show “LE”the

power will not be

switched off

automatically.

Table of contents

Other Maytag Washer manuals

Maytag

Maytag MAH-24 User manual

Maytag

Maytag W10176966C User manual

Maytag

Maytag BRAVOS W10373814A User manual

Maytag

Maytag MVWB450WQ - Bravos 5.0 cu. Ft. IEC Capacity... Assembly instructions

Maytag

Maytag MFS18 User manual

Maytag

Maytag MTW6600TB - Ing Washer Assembly instructions

Maytag

Maytag MHWE201Y Series User instructions

Maytag

Maytag LAT9616 User manual

Maytag

Maytag MVWC400XWH User manual

Maytag

Maytag LAW9406 User manual

Maytag

Maytag LAT2200AAE User manual

Maytag

Maytag MAH5500BWW - Neptune Series 27'' Front-Load... User manual

Maytag

Maytag LSG7804AAE User manual

Maytag

Maytag Neptune SL-3 User manual

Maytag

Maytag MVW6500MW User manual

Maytag

Maytag Bravos MTW6400TQ0 User manual

Maytag

Maytag W11099670B User manual

Maytag

Maytag MAF 1260 User manual

Maytag

Maytag Neptune TL FAV9800A Manual

Maytag

Maytag MHWE450WJ Assembly instructions

Maytag

Maytag MTW6700TQ - 28" Washer User manual

Maytag

Maytag LAT8804 User manual

Maytag

Maytag W10277179A User manual

Maytag

Maytag MHW7000AG User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
