Maytag MDB4000AWB Manual

Repair

Parts

List

MODEL NUMBER

MDB4000AWB

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

DISHWASHER

Section: CONTROL PANEL

DW11-50

Model: MDB4000AWB

CONTROL PANEL

No. Part No. Description

Section:

Series Qty

1 99001755 PANEL, CONTROL (BLK) 10 1

- 912615 SCREW, #8X1/2 HEX WASHER HEAD Note: SCREW, PANEL 10 4

2 99001780 KNOB, TIMER Note: KNOB, TIMER (BLK) 10 1

3 99001855 SWITCH, CONTROL (6-BUTTON) 10 1

- 912615 SCREW, #8X1/2 HEX WASHER HEAD Note: SCREW, SWITCH 10 2

4 99001946 TIMER 18 1

4 99001853 TIMER 10 1

- 912615 SCREW, #8X1/2 HEX WASHER HEAD Note: SCREW, TIMER 10 3

4 99001920 TIMER (6 & 8 BUTTON) 14 1

5 99001077 HOLDER, DOOR SWITCH 10 1

- 912615 SCREW, #8X1/2 HEX WASHER HEAD Note: SCREW, SWITCH HOLDER 10 1

6 99001545 BARRIER, CONTROL PANEL 10 1

7 903115 LOCK LIGHT Note: LIGHT, INDICATOR 10 2

8 99001860 LENS, INDICATOR LIGHT 10 2

9 903086 SWITCH,DOOR 10 2

10 99001078 HANDLE, LATCH (BLK) 10 1

- 99001402 FOAM, LATCH HANDLE 10 2

- 99001401 PAD, LATCH 10 1

11 99002045 HARNESS, WIRE--++*** 10 1

- N 16000327 GUIDE, QUICK REF. - MAYTAG Note: GUIDE, QUICK REFERENCE 10 1

- 99001825 MANUAL, USE & CARE (FRCH) Note: MANUAL, USE & CARE (FRCH) 10 1

- 99001822 MANUAL, USE & CARE 10 1

- 16009270 MANUAL, SERVICE-NO REFUND 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: DOOR

DW12-34

Model: MDB4000AWB

DOOR

No. Part No. Description

Section:

Series Qty

- 99001446 SCREW, DECORATOR PANEL (BLK) 10 2

- DAX2000AXE PANEL ACCESSORY KIT (WHT) 10 1

- DAX2000AXM PANEL ACCESSORY KIT (ALM) Note: (KITS INCLUDE #1 & #12) 10 1

1 99001417 PANEL, DECORATOR (BLK) 10 1

2 99001415 FILLER, FRONT PANEL 10 1

3 99001892 DOOR, OUTER 13 1

3 99001419 DOOR, OUTER Note: (MUST ORDER 99001880 ALSO) 10 1

- 99001688 GROUND WIRE, REINFORCEMENT 10 1

- 912615 SCREW, #8X1/2 HEX WASHER HEAD 10 2

4 912666 RETAINER, WIRE 10 1

5 99001899 HINGE (RT) 13 1

5 99001898 HINGE (LT) 13 1

- 99001075 SCREW Note: SCREW, HINGE 10 6

5 903070 HINGE (LT) 10 1

5 903071 HINGE (RT) 10 1

6 912652 SPRING, DOOR 10 2

7 912669 INSULATION, DOOR 10 1

- 99001807 MOTOR, WAX 10 1

- 99001805 GROMMET, VENT 10 1

- 99001806 RETAINER, GROMMET 10 1

- 912620 SCREW 10 7

- 99001783 SEAL, VENT BACK 10 1

8 99001775 DOOR, INNER (W/VENT ASSY)--SUB 10 1

9 912668 BAR, REINFORCEMENT 10 1

10 912836 INSULATION, ACCESS PANEL 10 2

11 912653 LINK, DOOR SPRING 10 2

12 99001412 PANEL, ACCESS (BLK) Note: (BLK) 10 1

- 912366 SCREW --++*** Note: SCREW, ACCESS PANEL (BLK) 10 4

13 903233 FOAM STRIP, INSULATION 10 1

- 912266 STRAP, CABLE--++*** 10 1

- 912366 SCREW --++*** Note: SCREW, TUB SHIELD 10 1

14 99001414 SHIELD, TUB 10 1

15 99001444 STRAP, HARNESS 10 1

- 912365 SCREW Note: SCREW, STRAP 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: RINSE AID & SOAP DISPENSER

DW17-10

Model: MDB4000AWB

RINSE AID & SOAP DISPENSER

No. Part No. Description

Section:

Series Qty

1 902899 MOTOR,WAX 10 1

2 903184 KNOB, RINSE AID (GRAY) Note: KNOB, RINSE AID 10 1

3 913060 NUT, RESERVOIR Note: NUT, RESERVOIR 10 1

4 913191 GROMMET, DISPENSER 10 1

5 99001288 RETAINER Note: RETAINER, MOTOR & SLIDER 10 1

- 912615 SCREW, #8X1/2 HEX WASHER HEAD 10 2

6 99001291 LATCH, DISPENSER Note: LATCH, LID 10 1

7 99001289 SLIDER Note: LATCH, SLIDER 10 1

8 912676 SPRING, DISPENSER LATCH 10 1

9 903656 RESERVOIR, RINSE AID Note: RESERVOIR, RINSE AID 10 1

10 903124 PLUNGER ASSEMBLY Note: PLUNGER ASSEMBLY 10 1

11 913061 GASKET, RESERVOIR Note: GASKET, RESERVOIR 10 1

12 99001290 ACTUATOR, RINSE AID Note: ACTUATOR, RINSE AID 10 1

13 903108 LID, DETERGENT CUP 10 1

14 912547 SPRING, CUP LID Note: SPRING, SOAP DISPENSER 10 1

15 912679 PIN, HINGE (SHORT) Note: PIN (SHORT) 10 1

16 912678 PIN, HINGE (LONG) Note: PIN (LONG) 10 1

17 99001287 PIVOT 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: TRACK & RACK ASSEMBLY

DW15-53

Model: MDB4000AWB

TRACK & RACK ASSEMBLY

No. Part No. Description

Section:

Series Qty

1 99001507 RACK ASSEMBLY (UPR) Note: (INCLUDES #903093) 10 1

2 903093 WHEEL ASSEMBLY (UPR) Note: WHEEL ASSEMBLY (UPR) 10 4

3 99001487 RACK ASSEMBLY (LWR) Note: (INCLUDES #903095) 10 1

4 903095 WHEEL ASSEMBLY (LWR) Note: WHEEL ASSEMBLY (LWR) 10 6

5 912709 CLIP, ADJUSTABLE PEG Note: CLIP, ADJUSTABLE PEG (LWR) 10 2

6 99001751 BASKET, SILVERWARE (W/COVER) 10 1

7 902990 SHELF, RACK (LWR) Note: SHELF, RACK (LWR) 10 1

8 99001485 TINE, BOWL (FRT) 10 1

- 912710 SLEEVE, FOLDING TINES 10 2

9 99001486 TINE, BOWL (REAR) 10 1

- 912710 SLEEVE, FOLDING TINES 10 2

10 99001533 TOWER, SPRAY (W/SHAFT-GRAY) 10 1

11 99001442 DIVERTER, SPRAY (GRAY) 10 1

12 99001443 CAP, SPRAY DIVERTER (GRAY) 10 1

13 99001426 NUT, DISCHARGE HOUSING 10 1

14 912545 TRACK, RACK 10 2

15 912548 WHEEL, TUB 10 8

16 912549 SHAFT, TUB WHEEL 10 8

17 912798 WASHER, TUB WHEEL 10 8

18 912546 STOP, RACK 10 4

19 99001508 SHELF, RACK (UPR) 10 1

- 99002017 CAP, RACK (LIGHT GRAY) 10 1

- 99002016 CAP, RACK (WHT) 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

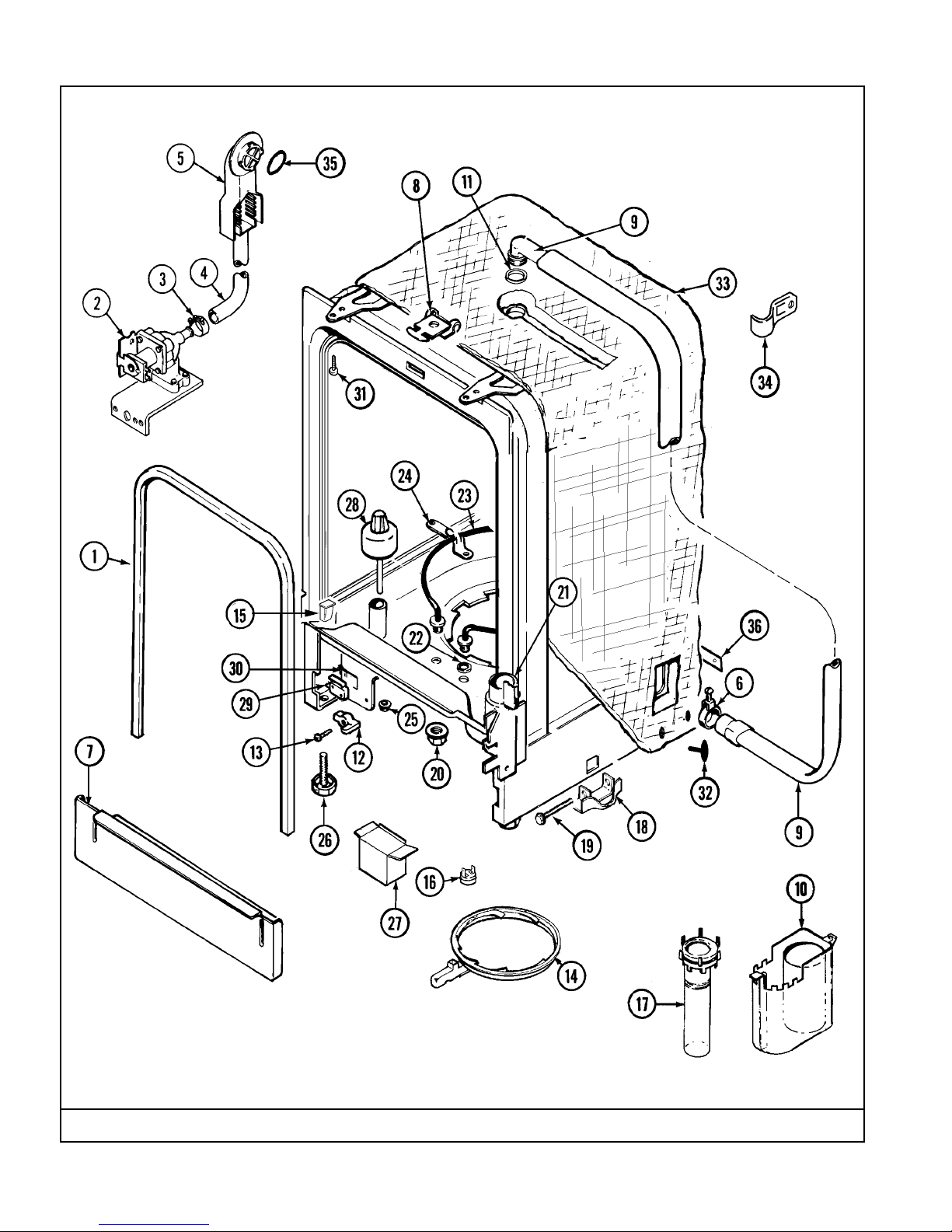

Section: TUB

DW13-79

Model: MDB4000AWB
