Masterclock RC1000 Manual
MASTERCLOCK INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Page | 1
Quick Set-Up Instructions – RC1000
The RC1000 can be configured via either USB or via the RJ45 Ethernet connection with WinDiscovery for
use with either TCDS (SMPTE) time code displays, NTDS (Network Time Displays) from Masterclock.
Quick-Start Instructions
Keep the power disconnected until the last step.
Make any desired input and output connections to the DB25 connector labeled CONTROL using
either your own cable or an optional DB25 to terminal block breakout adapter (included with your
RC1000). See the “Connections” section of your user manual for additional details and pinout for
the DB25 connector.
MASTERCLOCK INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Page | 2
Connect the RC1000 device to your LAN (Local Area Network) hub/router/switch
using Cat5 cable making the connection to the RJ45 connector labeled ETHERNET.
Apply power: insert the supplied AC/DC power supply module into an appropriate AC power
source and the DC power connector into the male Switchcraft-style locking power socket on
the rear of the unit labeled DC IN +8 to28 VDC.
Status LEDs
Monitor the front panel display for power up status. When power is first applied the initial
sequence of the front panel LEDs are:
• Chan A and Chan B, 6-digit LEDs will show all 8s, then will display time and/or date
according to the settings the user has made.
Configuration
The RC1000 is configured over the network via software control using either Telnet, SSH or
WinDiscovery.
MASTERCLOCK INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Page | 3
The device may be configured via USB if using WinDiscovery. (Note: If configuring via USB, first
install the included driver.)
Use the WinDiscovery application provided to set initial configurations for these devices.
To configure your RC1000 via WinDiscovery:
1. Install and open included WinDiscovery software.
2. Click [Discover]. A list of device groups will be displayed in the left pane
of the WinDiscovery window. RC1000 devices are listed under
‘RC1000 Controller”.
To configure and manage a device,
right-click the device name and the drop-down menu appears. Click on a
menu choice to open the window for that function. Use the [Save] and [OK]
buttons to accept changes that you have made. Use the [Exit] button to exit
the screen without applying changes.
3. Devices are password protected. You may enter a password for each device, or
click on [Global Password] to only enter a password once.
MASTERCLOCK INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Page | 4
NOTE:
If you are having issues running WinDiscovery using Windows 7 or
Windows 8, you may need to run the software in Compatability Mode.
• Right-click on WinDiscovery program in the Windows Start Menu,
then click on
[Properties]
.
• Select the Compatiblity tab. Check the box for compatiblity mode.
Select WINXP SP3
Factory-default password: public
WinDiscovery Tips
Network Configuration
• Click on
[Network Configuration]
from the Device Settings window.
• Network settings must be established for the clock to operate on the network.
• To use a static IP address, de-select the checkbox for “Automatically obtain
network configuration from DHCP/BOOTP”. You must enter the IP address,
netmask, gateway, primary DNS and also a secondary DNS.
MASTERCLOCK INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Page | 5
• A momentary press of the reset button will display the current IP address of
the unit.
Input Configuration
• The
[Input Control]
button provides access to the Input Control window,
which provides buttons for NTP Client, and Time Code Reader
MASTERCLOCK INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Page | 6
• Note: If the NTP server is not provided by the DHCP server, unclick the box
“Use NTP server provided by the DHCP server”
The Time Code Reader will automatically detect and calibrate its automatic gain control circuit to
the incoming time code signal, by default. The circuit is self-adjusting to changes in the input time
code; However, you may adjust some of the calibration and detection circuit settings manually.
MASTERCLOCK INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Page | 7
`
Output Configuration
• The
[Output Control]
button provides access to the Output Control window,
MASTERCLOCK INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Page | 8
which provides buttons for Time Code Generator Output.
Select [ Timecode Generation] and select either [Time Code Generator A] or [Time Code Generator
B]. You may now select the SMPTE time code to generate from that channel along with any
additional encoding you would like to use. The time code may be generated in Local Time, UTC, or
with a custom offset.
MASTERCLOCK INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Page | 9
Telnet and SNMP Configuration
• Telnet is disabled by default. To enable Telnet, under Device Setting click on
[Communications
Control]
then click on
[Telnet Control],
and click the checkbox to “Allow Telnet Configuration”
• To configure SNMP control, under Device Setting click on
[Communications
Control]
then click on
[SNMP Control]
.
MASTERCLOCK INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Page | 10
Time Zone
• To configure Time Zone offset, under Device Settings click on
[Time Zone]
. The pop-up window displays a list of time zones,
including descriptions to help with the selection.
Other manuals for RC1000
1
Table of contents
Other Masterclock Clock manuals
Masterclock
Masterclock NTDS 16 User manual
Masterclock
Masterclock NTD200 User manual
Masterclock

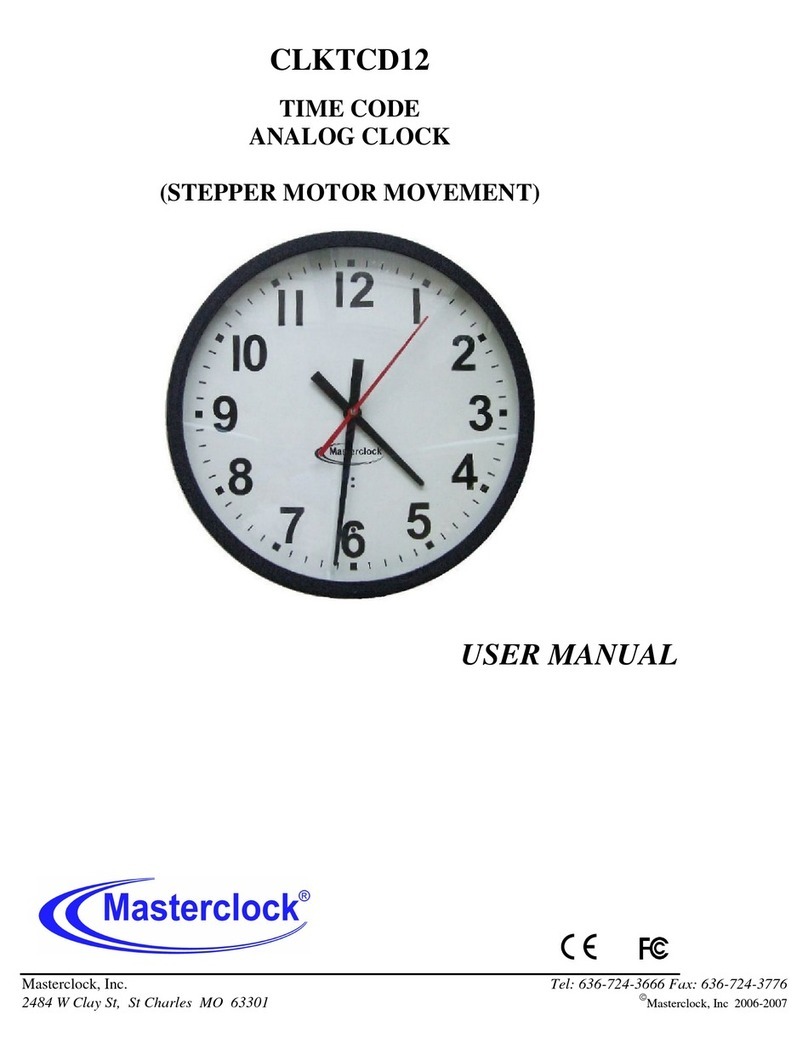

Masterclock CLKTCD12 User manual
